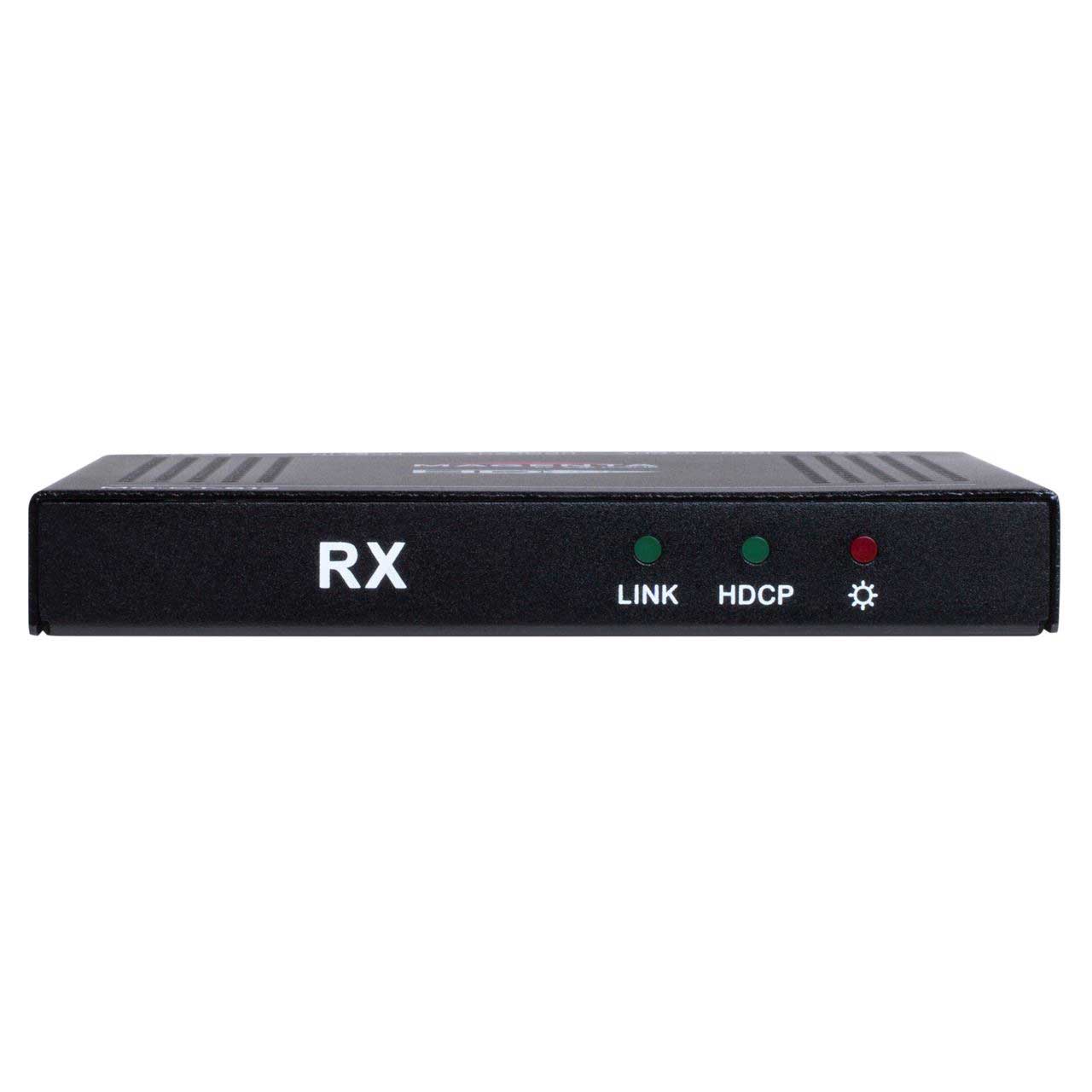

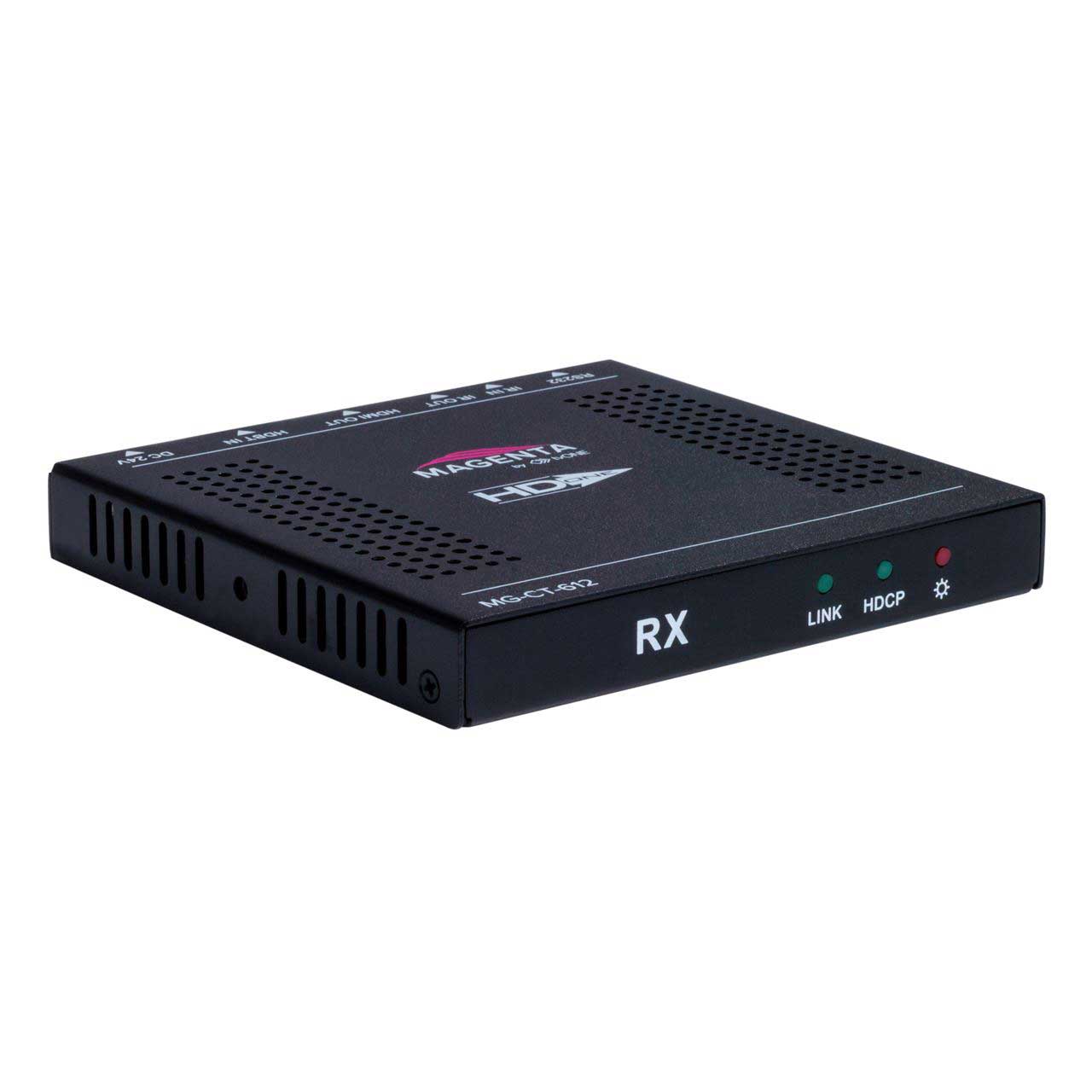

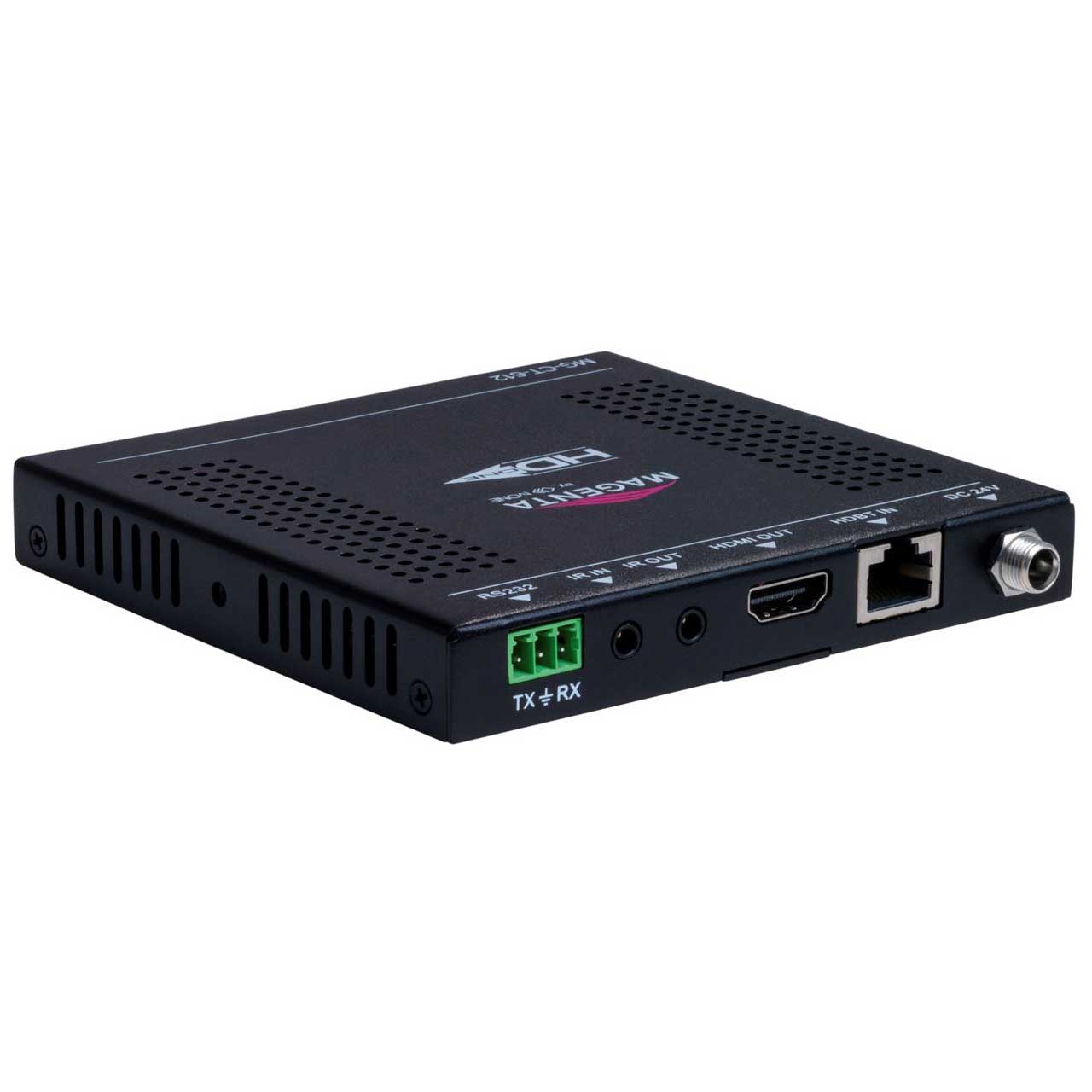

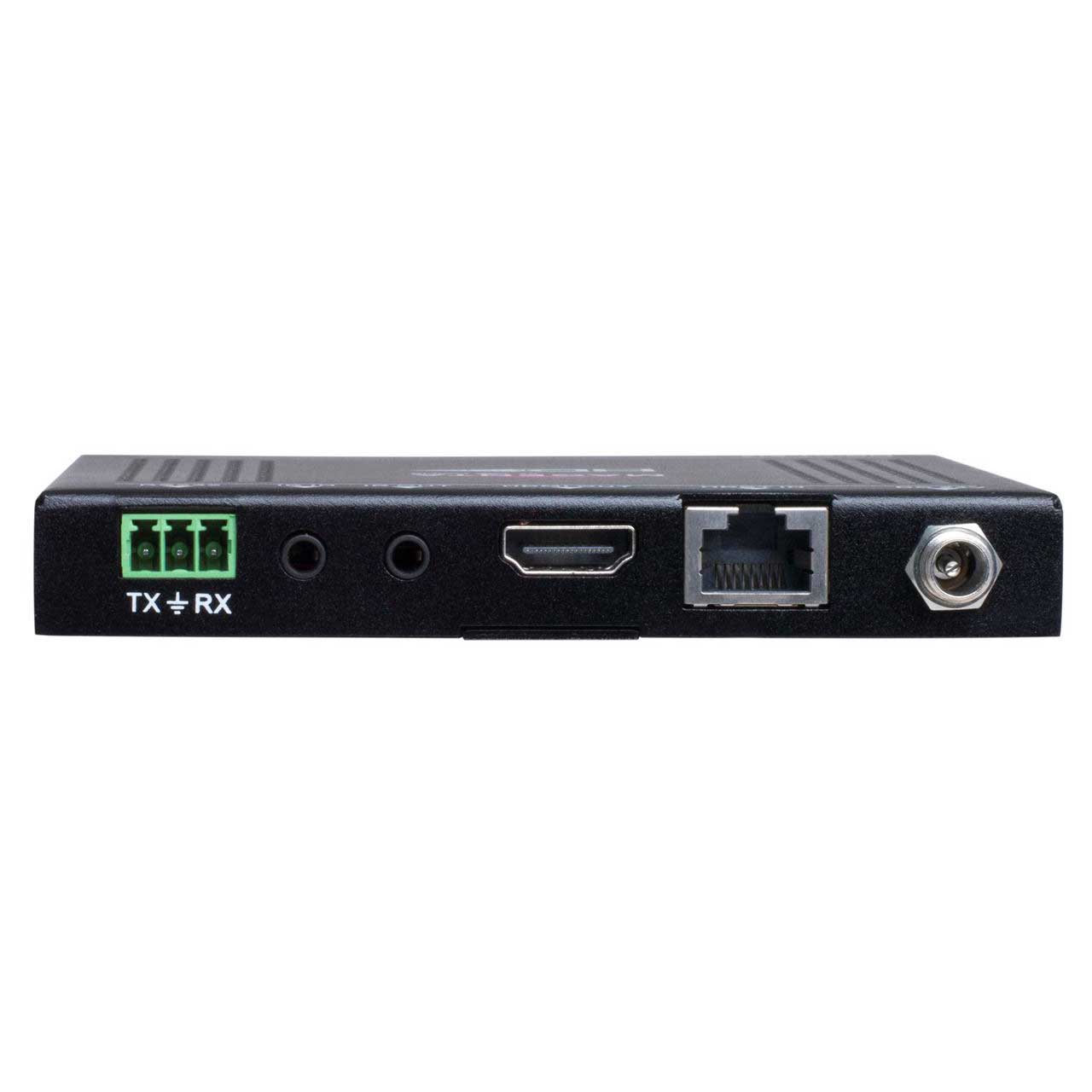

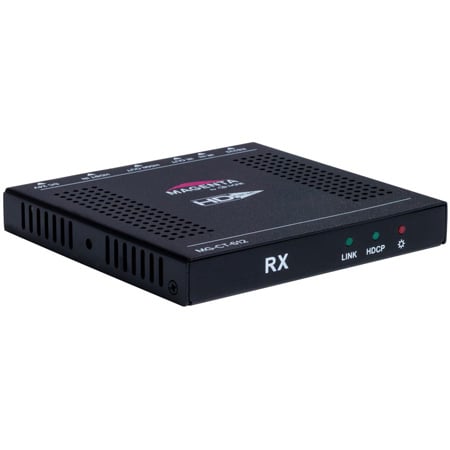

Magenta Research MG-CT-612 HDBT Receiver with POH for MG-WP-611 Wall Plates - HDMI 1.4 RS232 and IR

MG-CT-612 - Overview

• Features:

  • HDMI, Bidirectional RS-232 and IR
  • Provides PoH (Power over HDBaseT), which is fully compatible with HD-One MG-WP-611 series wall plates
  • HDMI 1.4 HDCP 2.2 compliant
  • Delivers full HD video, 3D, and 4Kx2K, RS-232 and IR
  • HD extension up to 70 meters (230ft) and 4K extension up to 40m (130ft)
  • Ultra-thin design easily fits behind monitors


• Specifications:

  • HDCP Compliance: HDCP 2.2 compliant
  • Bandwidth: 10.2Gbps
  • Video Support: 640 x 480@60 up to 4K x 2K@30
  • Audio Impedance: Digital Audio via HDMI
  • Output:
    HDMI
    RS-232 via 3-pin terminal block
    IR via 3.5mm
  • Input: HDBaseT via RJ45
  • Extension: 1080p up to 230ft (70m); 4K up to 130ft (40m)
  • Dimensions (HxWxD): 0.6" x 4.5" x 4.3" (16.2mm x 115mm x 109mm)
  • Net Weight: 0.43lbs (196g)
  • Power: Via 24V 1.25A DC power supply PoH 48v*
  • Power Consumption: 14W (max)
  • Operating Temperature: 4°F - 104°F (-10°C - 40°C)
  • Humidity: 10% to 90%
  • Regulatory Compliance: FCC, CE


• Warranty:

  • 3 Years
