Shure ULXD4 Single Digital Wireless Receiver - H50 530-602 MHz

ULXD4-H50 - Overview

• Features:

  • Predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench® 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control
  • Support for frequency coordination with the Axient® Spectrum Manager
  • Rugged metal chassis

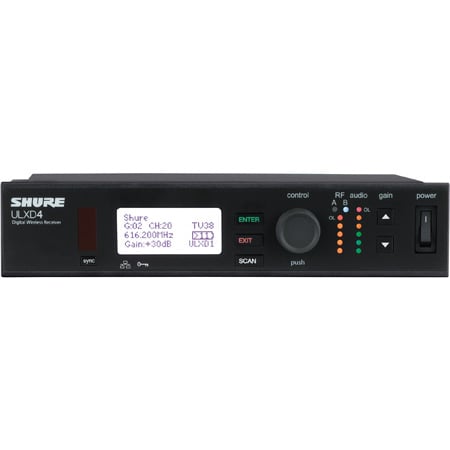

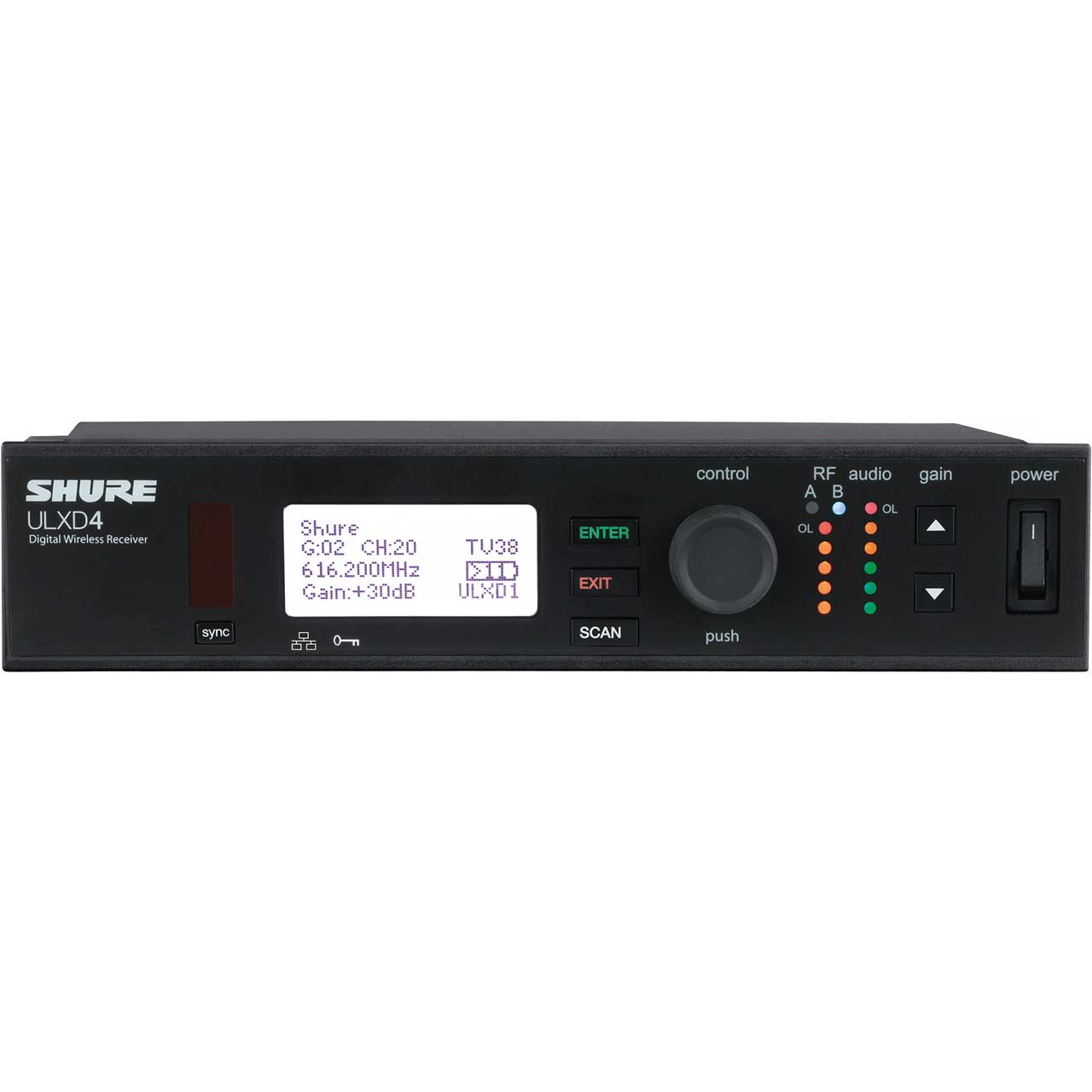

  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable 1/2 wave antennas
  • Furnished rack hardware


• Specifications:

  • Type Of Power Supply External
  • Bias Via BNC yes
  • Encryption yes, AES-256
  • Frequency Diversity no
  • DANTE Audio Network Interface no
  • Detachable Antennas yes
  • Network Ability DHCP, link-local, static
  • Software Control SystemOn, ShurePlusT Channels, Wireless Workbench, Shure Update Utility
  • Antenna Cascade no
  • Rack Mount Accessories Included Rack mounts brackets
  • Receiver Types single
  • Antenna Type External 1/2 wave
  • Line/Mic Switch yes
  • Phantom Power Protection yes


• Item Includes:

  • 1) PS43 Power Supply
  • 1) Rackmount Kit
  • 1) Hardware Kit
  • 1) Cat5e Ethernet Cable
  • 2) 1/2-Wave BNC-Terminated Antenna
  • 2) 2-foot BNC-Terminated Coaxial Cable
  • 2) BNC Bulkhead Adapters


• GTIN:

  0042406338998
