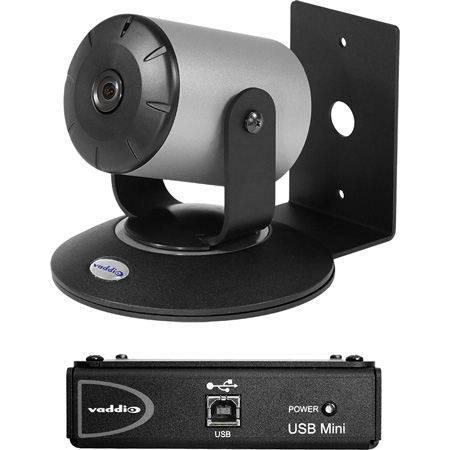

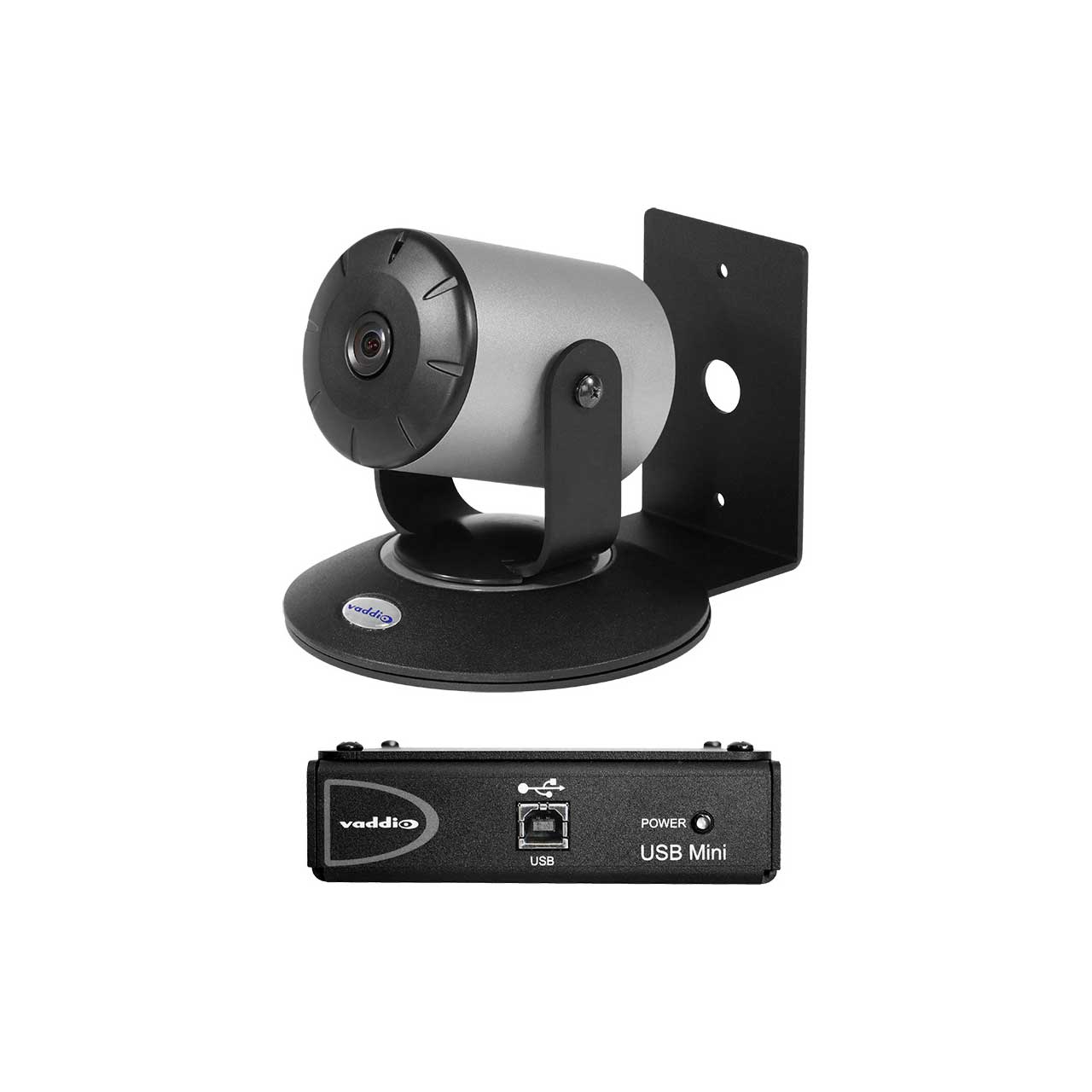

Vaddio WideSHOT SE QMini Camera System - Fixed Network Camera - 3x Zoom - USB 2.0

ITEM #: VAD-999-6911-300 MFG #: 999-6911-300

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,580.00

Our Price:

$2,322.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


999-6911-300 - Overview

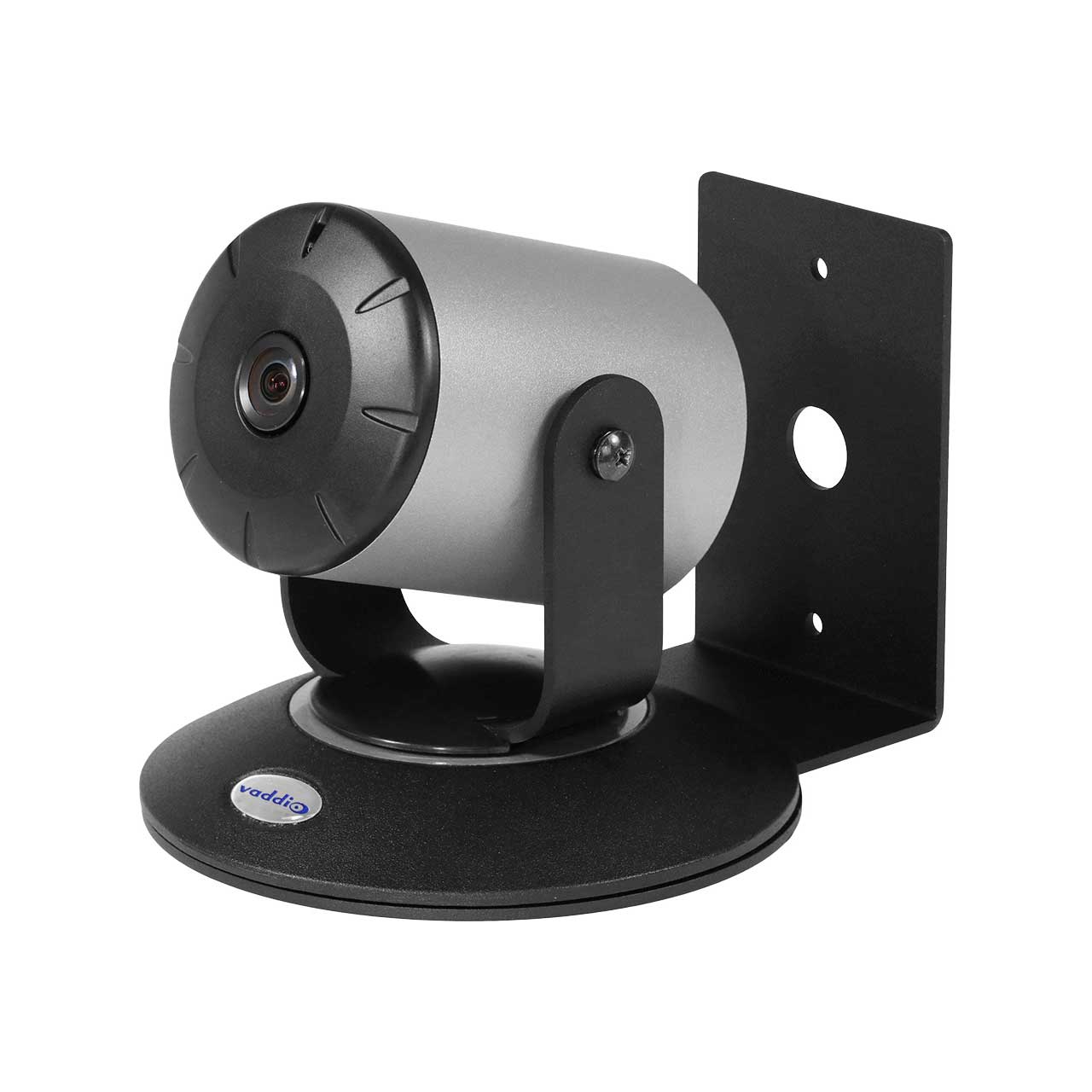

Ideal for small conference rooms and huddle spaces, the Vaddio 999-6911-300 WideSHOT SE Series is a high quality fixed camera with 111° wide horizontal field of view. Its fixed lens has a 3x digital zoom mode, and offers manual pan/tilt positioning. The WideSHOT SE offers excellent video quality with resolution up to 1080p/60.

The advanced 1/1.9" CMOS image sensor offers our best low light performance to date, ideal for use in dimly lit auditoriums to capture a wide shot of the audience or stage.

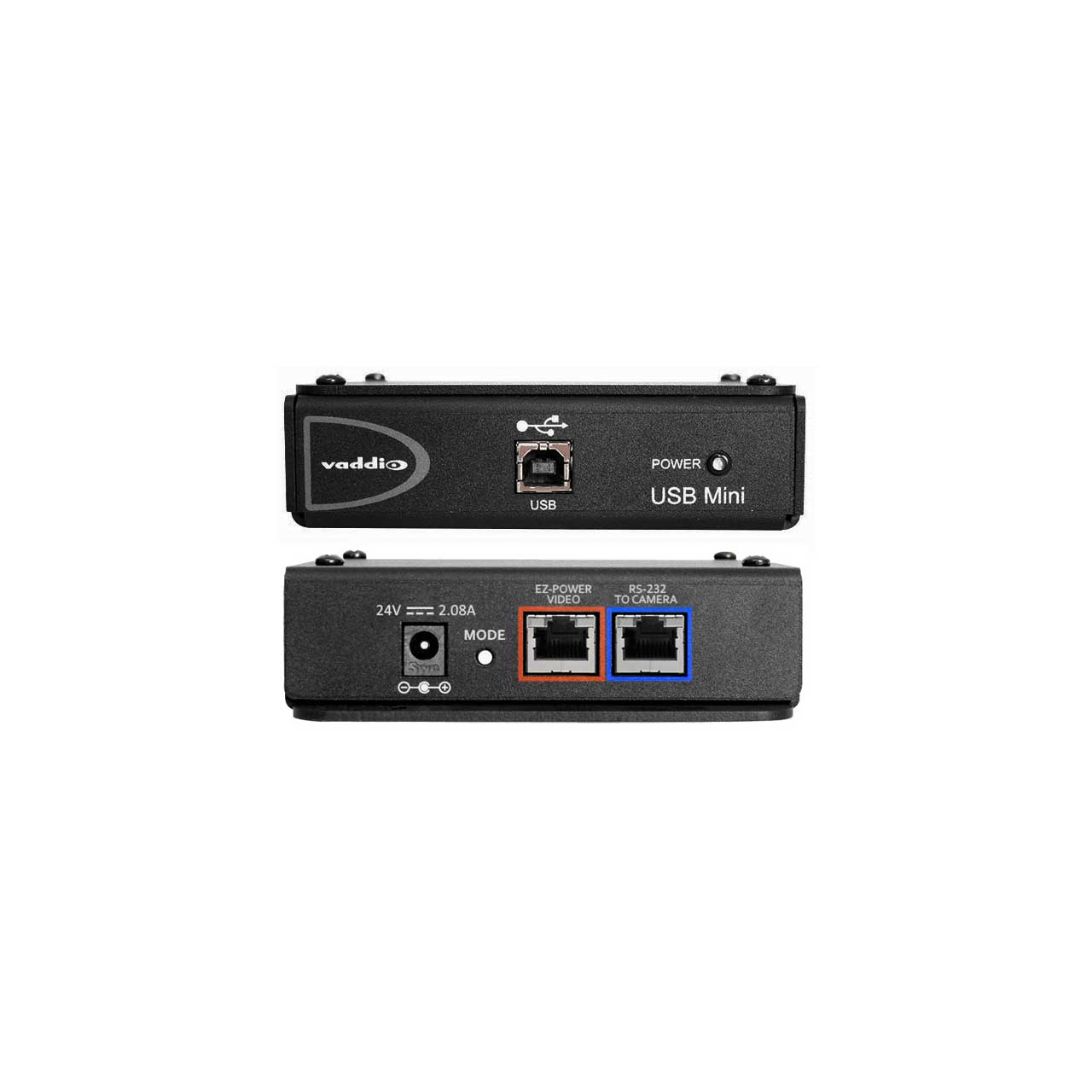

The USB Mini was designed for simple and effective USB 2.0, 720p/30 streaming and capture capabilities for customers who only need USB outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

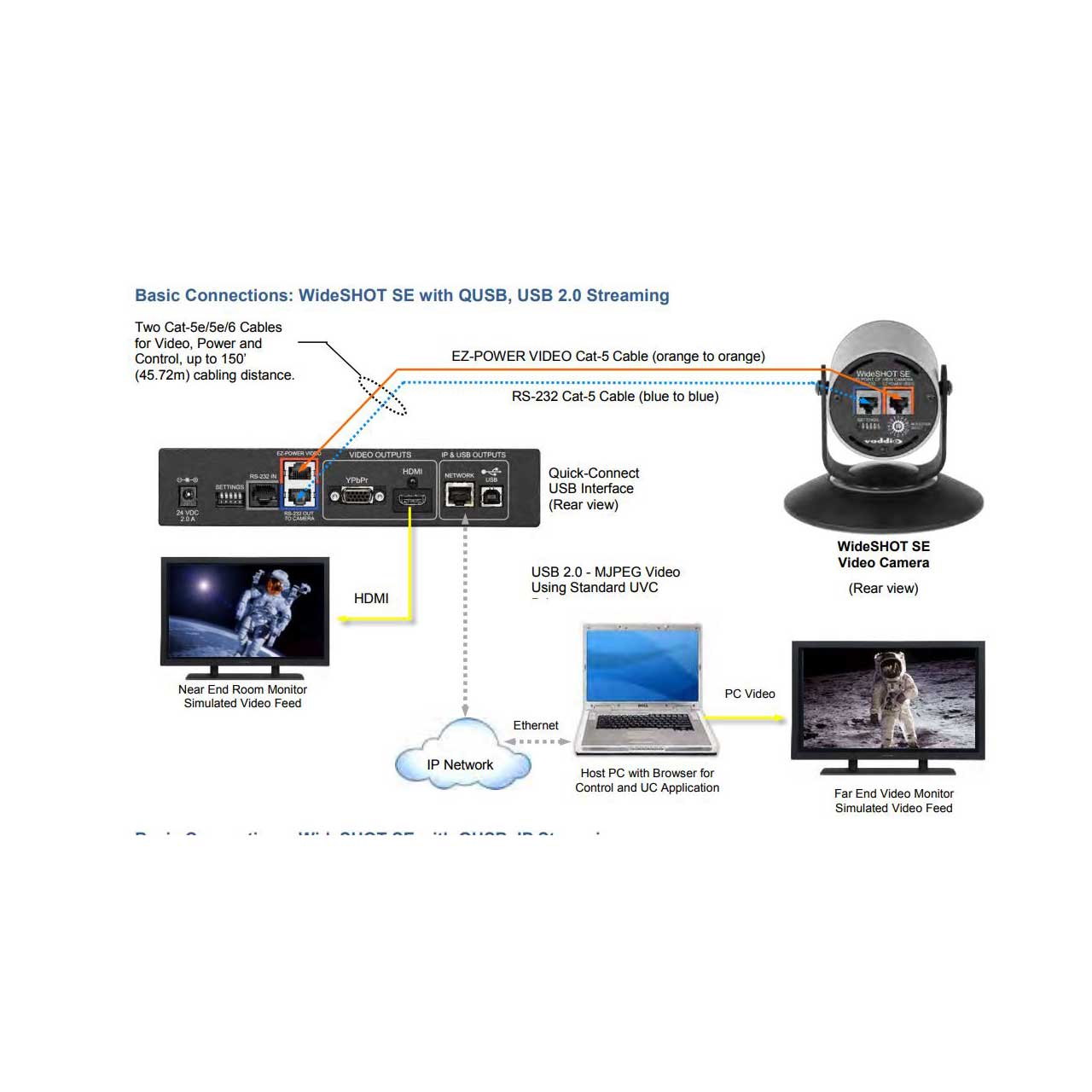

The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.

  • Features:

    • MADE IN THE USA!
    • USB 2.0 Output
    • Power/Video/Control on two Cat-5's up to 150' (45.72m) for ZoomSHOT/WideSHOT series cameras
    • Power/Video/Control on two Cat-5's up to 100' (30.5m) for RoboSHOT, PowerVIEW and ClearVIEW series cameras

  • Specifications:

    • Image Sensor 1/2" CMOS 2.4M Pixels (Total) / 2.1M Pixels (Active)
    • Video Output Resolutions HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50; SD: 480p/59.94 & 576p/50
    • Lens/ Focus Approx. 3X Digital Zoom, fixed focus
    • Horizontal Viewing Angle 111° (wide), 95° (tele)
    • Video S/N Ratio >50 dB
    • Minimum Illumination 0.2 LUX
    • Serial Control Protocol RS-232 Serial Control, 9600 baud
    • Manual Pan/Tilt Range Pan: Limited to service loop of cabling, yoke and base are mechanical only; Tilt: ± 30° Invertible for Ceiling Mount
    • Tally Light Red LED available through RS-232 Control

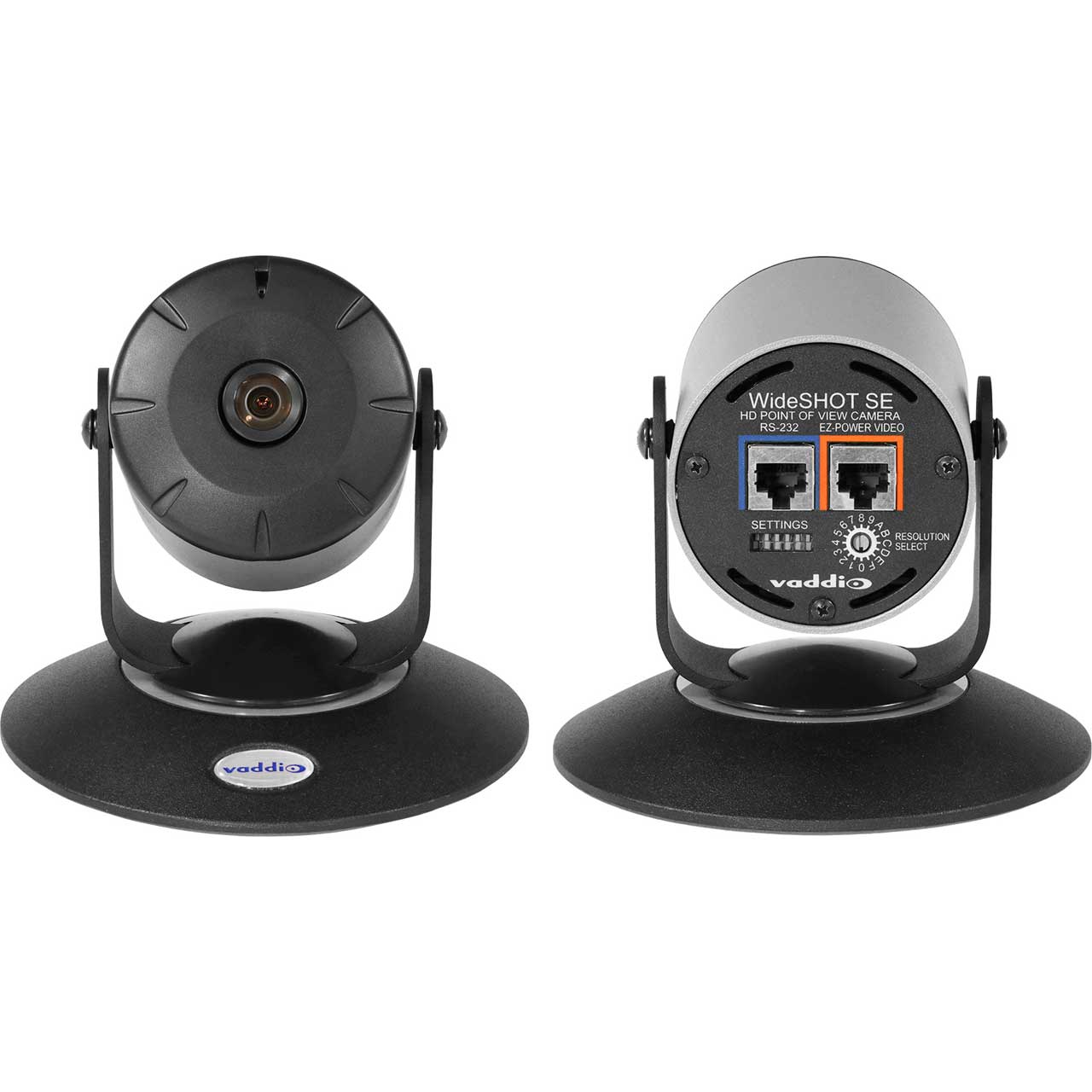

    • Camera Connectors: Two (2) RJ-45 Jacks: EZ-Power VIDEO RJ-45 Jack for use with Quick-Connect - Supplies power to the camera and returns differential HD video from the camera; RS-232 RJ-45 Jack (Serial Communication)
    • Camera Settings: 6-Position Dip Switch: For IR Freq., Image Flip & Digital Zoom; 16-Position Rotary Switch for Output Resolution Settings
    • Thin Profile Wall Mount: 535-2000-237 (included) Black powder coating, sized to fit on 1-gang wall box or with supplied drywall fasteners
    • User Controls IR SHOT Commander and RS-232. With On Screen Display (OSD) for configuration.
    • Materials & Weight Aluminum & Steel, Weight = 2.25 lbs. (1.02kg)
    • Dimensions: Tube: 3.5" (88.9mm) Diameter x 4" (101.6mm) Long (including front bezel); Base: 5.5" (139.7mm) Diameter; Overall Height: 5.5" (139.7mm) Tall

  • Item Includes:

    • (1) WideSHOT SE camera (998-6911-200)
    • (1) Vaddio IR Shot Commander Remote
    • (2) AAA Batteries
    • (1) Thin Profile Wall Mount
    • (2) 1-5/8" Nylon self-drilling drywall anchors
    • (2) #8 x 1.25" sheet metal screws
    • (2) black oxide ¬-20 x 1/2" pan head screws
    • (1) Quick-Connect USB Mini Interface (998-1105-039)
    • (1) 24 VDC 2.08 A power supply and power cable(s)
    • (1) 6ft USB 2.0 cable, Type A to Type B
    • (1) Quick-Start Guide for WideSHOT SE Fixed Camera
    • (1) Quick-Start Guide for Quick-Connect USB Mini Extender

  • Warranty:

    • 2 Year

  • GTIN:

    0840077501372
