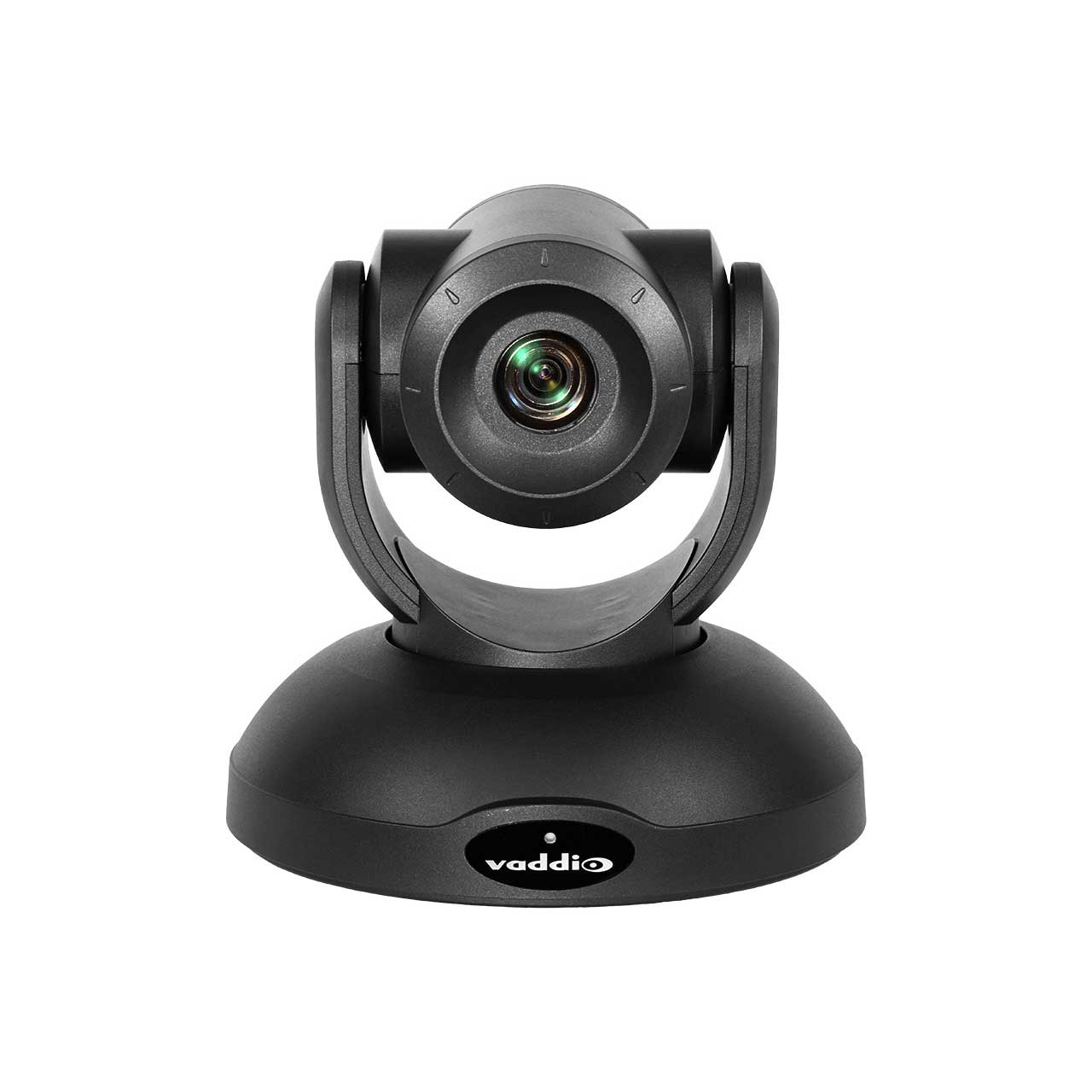

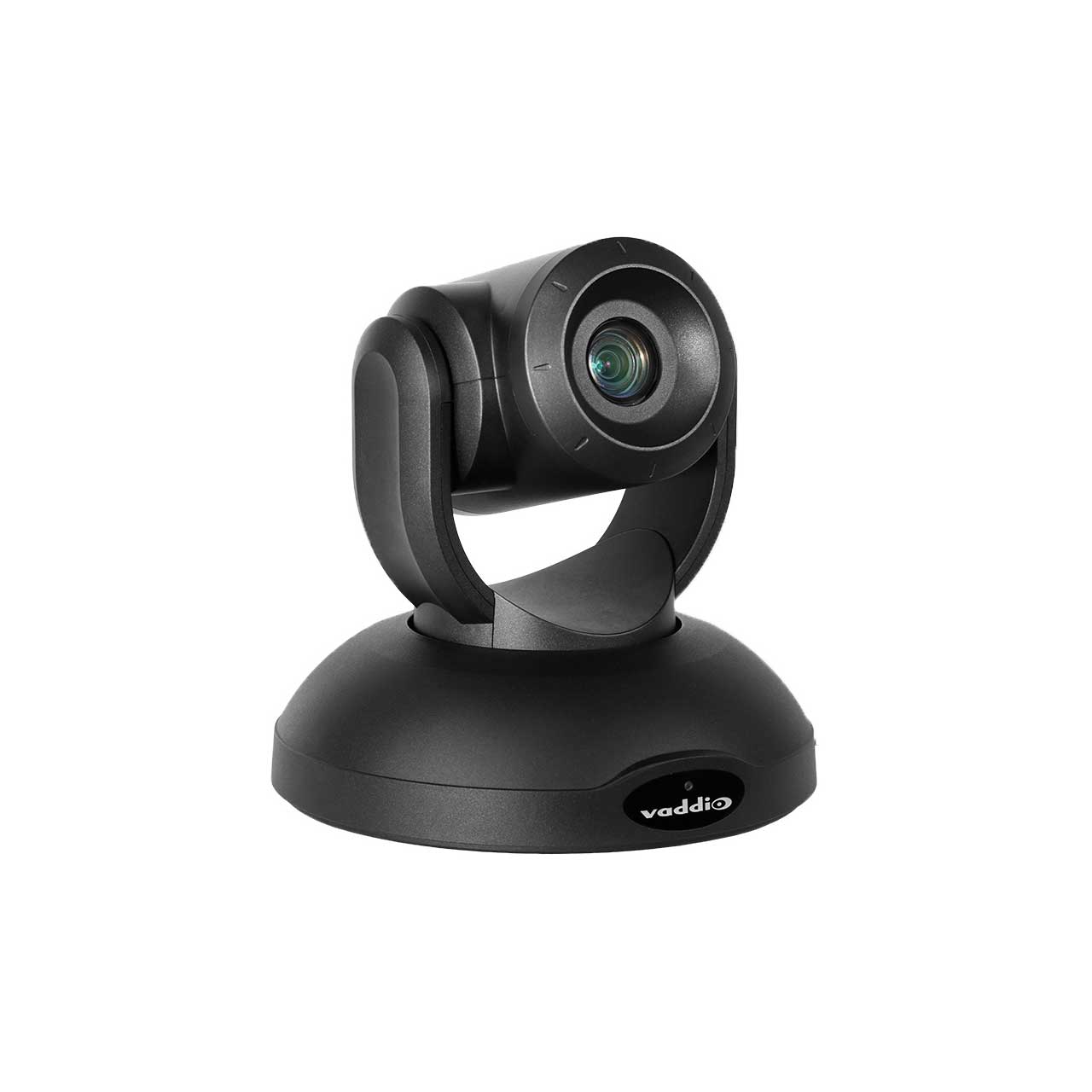

Vaddio RoboSHOT 40 UHD 4K PTZ Streaming Camera - 3G-SDI - 40x Zoom - Black

ITEM #: VAD-999-9952-000 MFG #: 999-9952-000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7,544.00

Our Price:

$6,789.60

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


999-9952-000 - Overview

The production-quality of the Vaddio 999-9952-000 RoboSHOT 40 UHD PTZ camera provides a brilliant 4K video footage for broadcasting or live streaming applications.

RoboSHOT 40 UHD offers 40x zoom, genlock capabilities, ultra-smooth motor movement and outstanding image quality - all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.

Genlock
Designed with a genlock external sync port, the RoboSHOT 40 UHD camera provides accurate synchronization in multicamera broadcast environments. The camera also offers phase compensation to fine-tune and adjust the genlock signal.

Super Resolution Zoom
In addition to an incredible 30x zoom with 4K resolution at 30fps, you can achieve full high definition 40x zoom with 1080p/60fps performance with the latest advancements in intelligent zooming technology. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 40 UHD camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

Enhanced Wide Dynamic Range (WDR)
With its back-illuminated CMOS image sensor, RoboSHOT 40 UHD offers more powerful image signal processing (ISP) - resulting in better light-gathering capabilities, incredible contrast and sharp 4K video, even in dim lighting conditions. Enhanced WDR makes the darker part of an image brighter, and automatically corrects brightness and contrast to show more detail on brighter portions of the image. Enhanced WDR evens out backgrounds with bright windows, varied light settings like sanctuaries or outdoor live events. The WDR can be turned off and on via the web interface.

Spotlight Compensation Mode
Expect exceptional performance in the presence of high intensity spotlights seen in performance halls, live event venues, and nighttime outdoor sporting events.

Smooth & Silent Pan Tilt Zoom Motion
Experience the world's smoothest pan, tilt and zoom operation with Vaddio's next generation silent motors paired with Tri-Synchronous motion algorithms. Even at full zoom, the RoboSHOT 40 UHD moves with no jitter or bouncing.

Flexible Mounting Options
Like most other RoboSHOT cameras, RoboSHOT 40 UHD can be inverted, ceiling mounted or wall mounted for maximum flexibility.

Remote Management
RoboSHOT 40 UHD offers an intuitive user interface for administrative control and remote operation via web interface.

Exceptional Value
RoboSHOT 40 UHD is an outstanding broadcast quality PTZ camera with 40x zoom, genlock capabilities, smooth motor movement and outstanding image quality - all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.

The RoboSHOT 40 UHD broadcast-quality PTZ camera is ideal for these applications:

  • Broadcast TV, corporate broadcast, local TV stations, campus news
  • Churches, houses of worship
  • Live events
  • Sporting events such as high school football or soccer
  • Large auditoriums
  • Concert halls
    • Features:

      • MADE IN THE USA!
      • Genlock signal for multi-camera synchronization
      • Back-illuminated 8.51 Megapixel, ultra-high definition 1/2.5-type ExmorR CMOS sensor delivers native 2160p/30 (3840 x 2160) video
      • 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
      • Horizontal field of view: 70.2° (wide) to 4.1° (tele)
      • Simultaneous IP streaming (RTSP or RTMP format with H.264 compression) up to 1080p/30
      • Can be powered remotely with PoE++
      • Power Connector: 12 VDC, 3.0 amp
      • OneLINK Port: HDBaseT output port carrying power, video and control. Also functions as a standard Network port and can accept PoE++ if not using a OneLINK extender.
      • Full administrative control via web interface; manage remotely while monitoring the stream separately
      • Imaging and performance comparable to 3-chip cameras

    • Specifications:

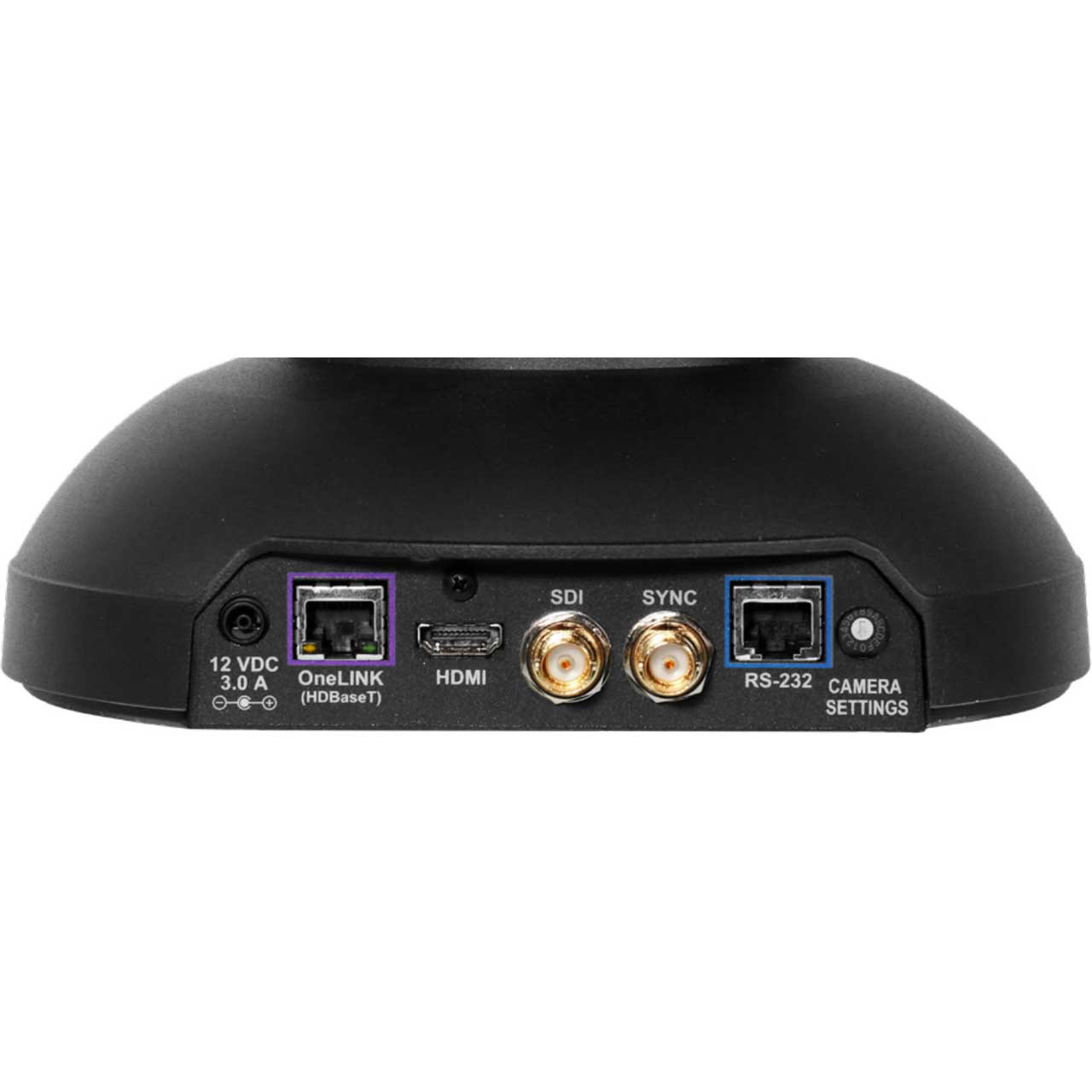

      • Outputs/protocols: HDMI, HDBT, HD-SDI, IP (H.264)
      • Aspect Ratio:
        HDMI: 16:9 (all resolutions)
        IP (H.264) Streaming: 16:9, 3:2 and 4:3
      • HDMI Resolutions/Frame Rates:
        QFHD: 2160p/29.97/25 (3840 x 2160)
        FHD: 1080p/59.94/50/29.97/25,1080i/59.94/50
        HD: 720p/59.94/50
      • 3Gb/s HD-SDI Resolutions/Frame Rates:
        FHD:1080p/59.94/50/29.97/25,1080i/59.94/50
        HD: 720p/59.94/50
      • Streaming: Simultaneous IP (RTSP or RTMP format with H.264 compression) up to 1080p/30
      • Image: Device 1/2.5 Type Exmor R CMOS Sensor, 4K
      • Pixels: 8.51 million; (8.57M Total Megapixels)
      • Lens: 20x optical zoom, f=4.4mm wide end to 88.4mm tele end, F2 to F3.8
      • Digital Zoom: 30x at QFHD (3840x2160p), 40x at FHD (1920x1080P)
      • Horizontal FOV: 70.2° wide end to 4.1° tele end
      • Pan Angle Speed: ±160°, 0.35°/sec to 120°/sec
      • Tilt Angle Speed: +90, -30°, 0.35°/sec to 120°/sec
      • Min. Working Distance: 80mm (wide), 800mm (tele)
      • Min. Illumination: 1.6 lux; 100+ lux recommended
      • Backlight Compensation: On/off
      • Aperture/Detail: 16 steps
      • Focusing System: Auto Focus / Manual Focus Mode / One-push Trigger Mode
      • Gain: Auto/Manual (0 to 33 dB)
      • White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
      • S/N Ratio: More than 50 dB
      • Power: 12 VDC, 3.0 A, LTPoE++
      • Remote Management: IR Remote, web interface, Telnet and RS-232 command APIs
      • Weight: 6lbs (2.7kg)
      • Height: 7.9" (200mm)
      • Width: 8.0" (203mm)
      • Depth: 5.5" (145mm)
      • Operating/Storage Temperature: 32°F - 104°F (0°C - 40°C)
      • Operating/Storage Humidity: 20% to 80% RH, non-condensing

    • Item Includes:

      • RoboSHOT 40 UHD camera (black or white)
      • Quick-Start Guide
      • 12V power supply with AC cord set(s)

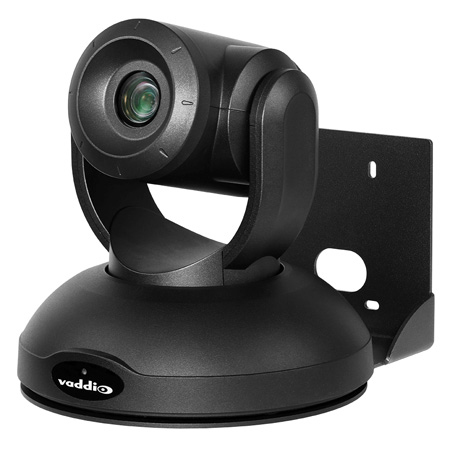

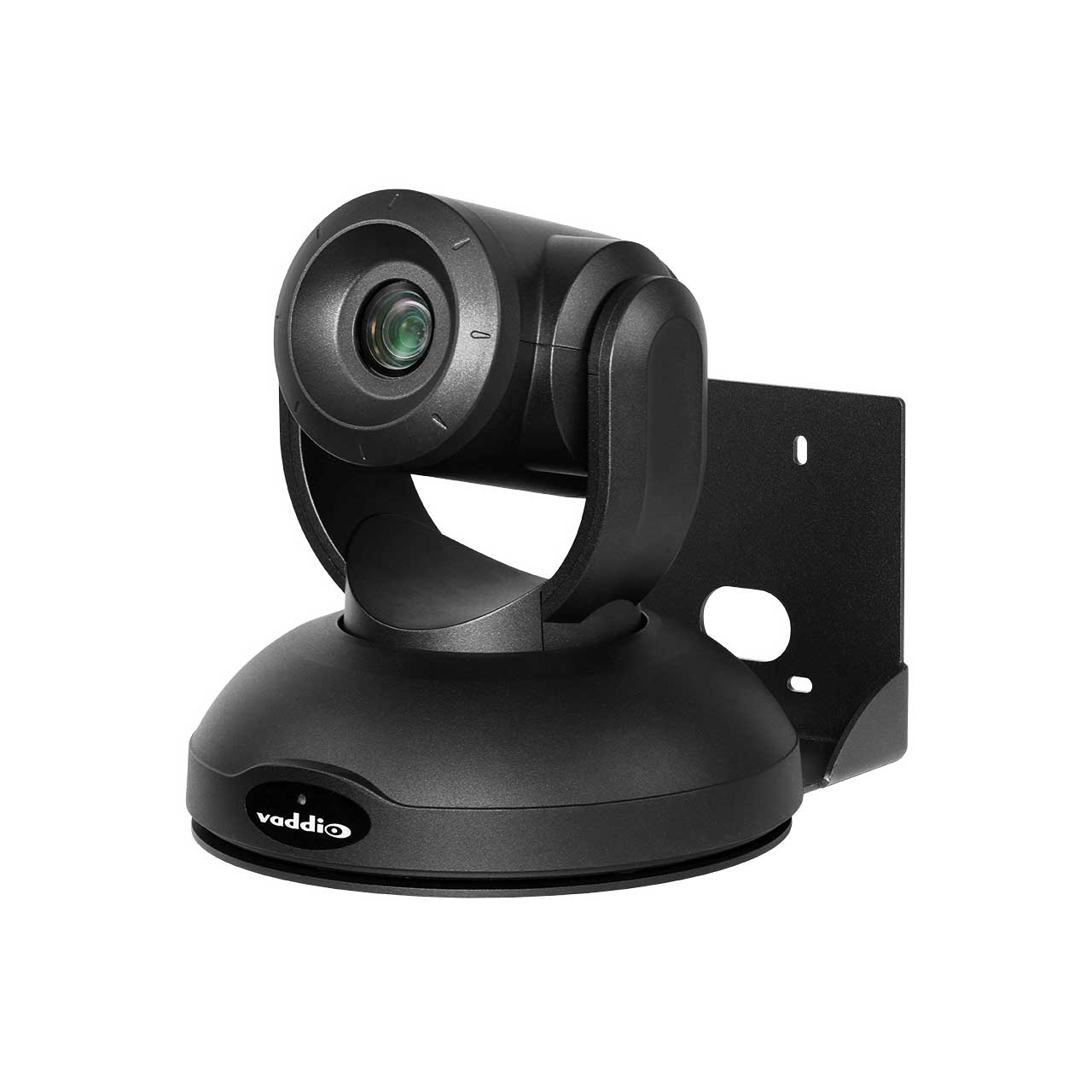

      • Thin Profile Wall Mount (black or white) with mounting hardware
      • Vaddio IR Remote Commander
      • EZCamera RS-232 Control Adapter

    • GTIN:

      0840077503925
