Vaddio RoboTRAK Presenter Tracking System - For Conference Cameras - Black

ITEM #: VAD-ROBOTRAK MFG #: 999-7270-000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Vaddio
Free Shipping with $49 Minimum Order

List Price:

$5,379.00

Our Price:

$4,841.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

999-7270-000 - Overview

The Vaddio RoboTRAK is the perfect answer for lectures, corporate training or teaching environment videography. Based on IR tracking technology an instructor simply wears the supplied lanyard and the RoboTRAK follows them. Paired with any Vaddio RoboSHOT video camera (sold separately) the RoboTRAK sends it’s pan and tilt info as well all without an operator. Operating distance ranges from 12 to 50 feet and a height range of 7 to 15 feet, the operator lanyard lasts up to 40 hours on a single charge.

Please note Because RoboTRAK is an infrared based system environments with intense heat sources or highly reflective surfaces, such as a kitchen, pose installation challenges. Please contact a sales representative if you are considering installation in that type of environment.

  • Features:

    • MADE IN THE USA!
    • Compatible with all RoboSHOT Cameras
    • Up to 40 hours of lanyard operation between charges; 25 hours typical
    • Web-based configuration


  • Specifications:

    • IR Camera
    • Operational Distance 12 to 50 ft (3.7 to 15.2 m)
    • Peak IR Sensitivity 850 nm
    • Horizontal range ±90°
    • Vertical Placement 7 to 15 ft (2.1 to 4.6 m)
    • Max. Vertical Offset 20°
    • Position Presets 10
    • Communication 10/100 Ethernet
    • Power 12 VDC, 3.0A
    • Dimensions (H x D x W): 6.3 in x 5.5 in x 6.1 in
    • Weight 3.0 lbs

      IR Source Lanyard
    • Battery Life: Up to 40 hrs (25 typical)
    • Charging time: About 4 hrs
    • Diameter: 2 in
    • Depth: 1.0 in
    • Weight: 3.2 oz
    • Lanyard length: 24 in

      Environmental
    • Operating temperatute: 0 °C to +24°C (32°F to 75°F)
    • Storage temperature: -5° to +60° C (23°F to 140°F)
    • Operating humidity: 15% to 80% RH (non-condensing)
    • Storage humidity: 20% to 80% RH (non-condensing)
    • Lighting Restrictions: No natural or halogen-based lighting, no IR-based communication systems


  • Item Includes:

    • RoboTRAK IR camera

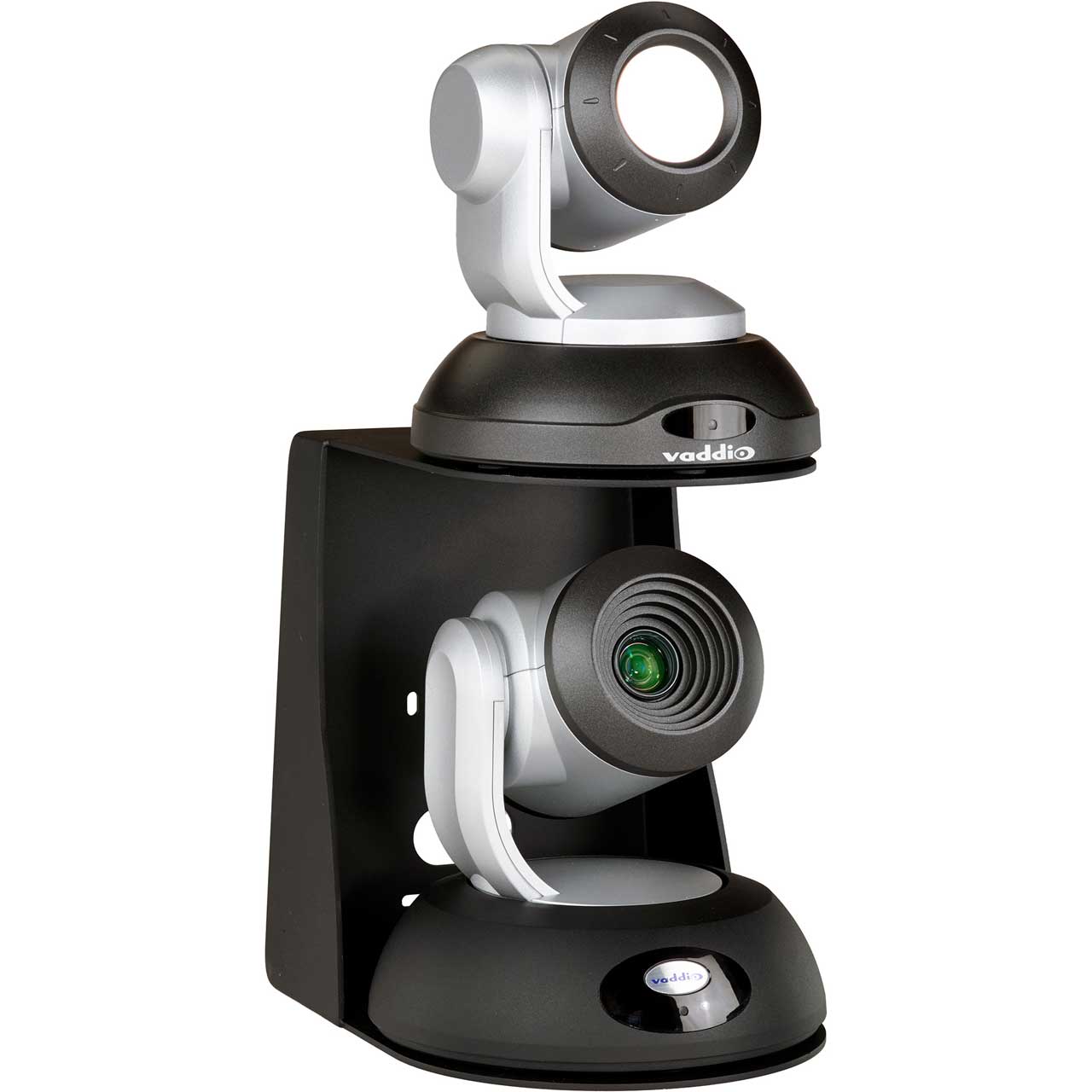

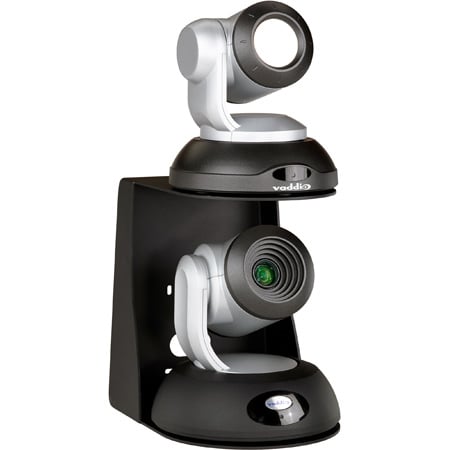

    • RoboTRAK Double Decker Wall Mount (black) with mounting hardware
    • Mid-span PoE+ power injector with AC cord set(s)
    • PoE Splitter (North America & Europe/UK only)
    • 1' (0.3m) EIAJ-04 to EIAJ-04 power cable
    • 1' (0.3m) cat-5e patch cable, black
    • 10' (3m) cat-5e patch cable, black
    • Dual Lock mounting strips
    • RoboTRAK lanyard
    • 6' (1.8m) USB cable, type A to micro B
    • 1 qty snap-on cylindrical ferrite (for USB charging cable)
    • USB wall charger
    • Quick-Start Guides
