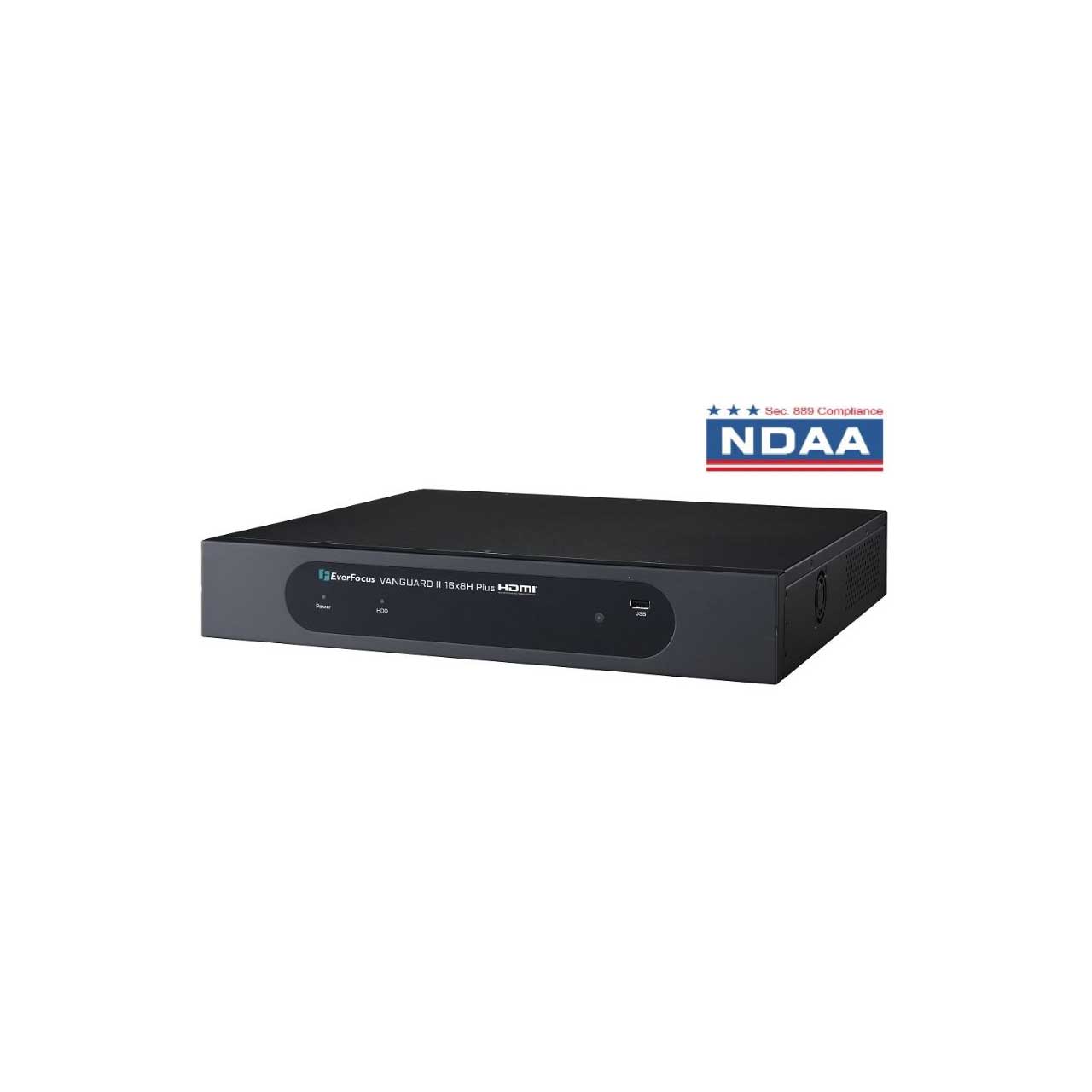

Everfocus VANGUARD II 16X8H/4T NDAA 16 Channel 8MP Hybrid DVR/XVR for Analog & IP CCTV - H.265/H.264 - AHD/TVI/CVBS

VANGUARDII16X8H/4T - Overview

16 Channel H.265 8MP CCTV Hybrid DVR/XVR

• Features:

  • Supports hybrid mode - Analog - Up to 16CH 8MP AHD/TVI/CVBS cameras and IP - Up to 8CH 8MP IP cameras
  • Supports H.265 / H.264 compression formats
  • Supports 16 AHD/TVI/SD 5MP Cameras & 4 Ch of 5MP IP Cameras
  • Supports cloud storage with Dropbox (Snapshot)
  • Supports ONVIF 2.0 IP cameras
  • Control methods: mouse / IR remote controller
  • Remote configuration from built-in web interface
  • Supports video analytics
  • Integrates with EverFocus CMS
  • Supports multi-language
  • Supports mobile App: eFVMS App


• Specifications:

  • Operating System: Embedded Linux
  • Number of Channels: Analog: Up to 16CH 8MP AHD/TVI/CVBS cameras IP: Up to 8CH 8MP IP cameras
  • RAM: 2GB
  • Watchdog: Supported
  • Dual Stream: Supported
  • OSD Menu: Supported
  • System Control: Mouse, IR remote control
  • Multiplex Operation: Live display, record, playback, backup and network
  • PTZ Protocol Supported: Pelco D, Pelco P
  • Compression Format: H.265 / H.264
  • Video Format: NTSC / PAL

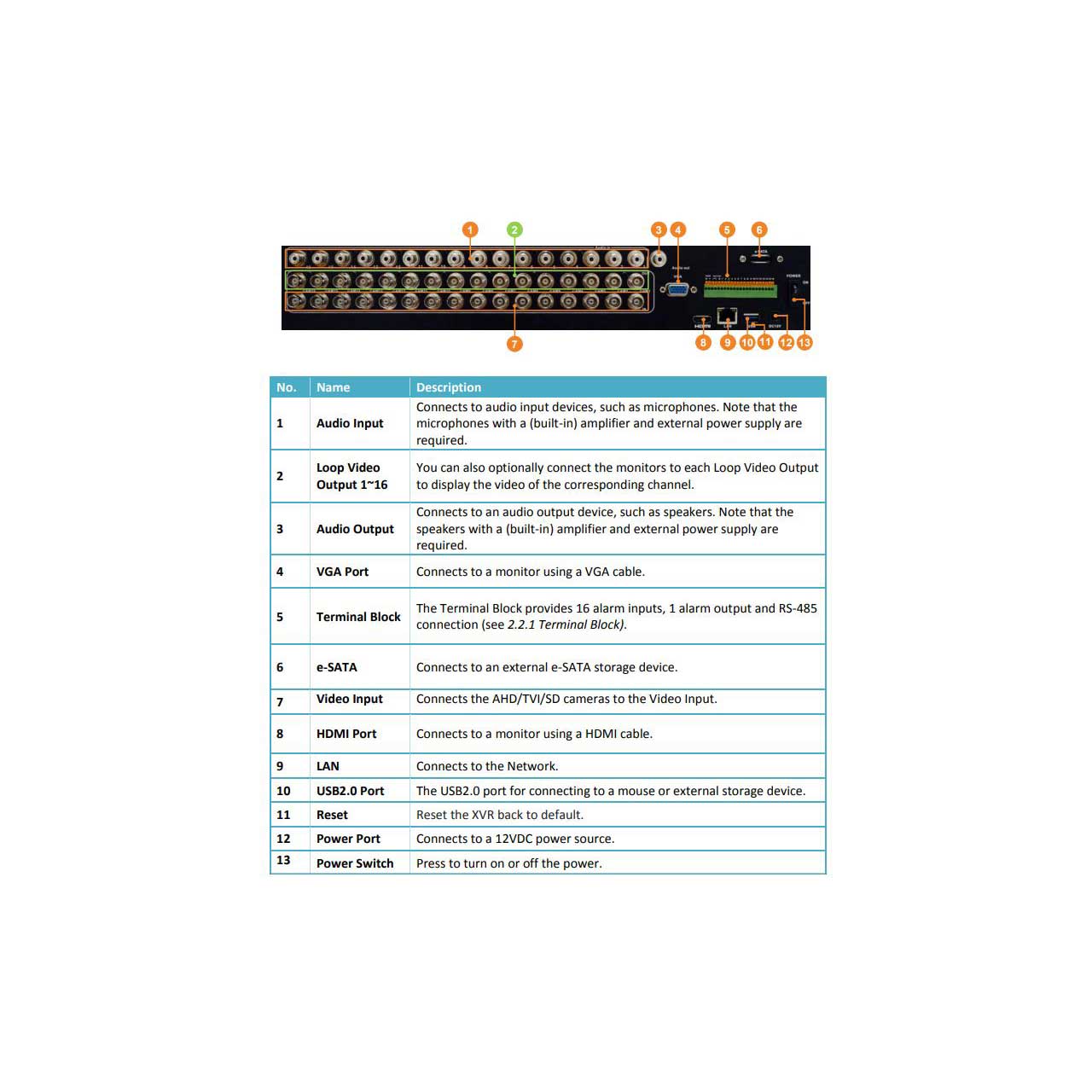

  • Video Inputs Analog: 16 x BNC IP: 8CH 8MP IP cameras
  • Video Looping Outputs: 16 x BNC
  • Video outputs: HDMI/VGA: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 (1080P), 2560x1440 (2K), 3840x2160 (4K, HDMI only)
  • IP Bandwidth Incoming: Max. 64Mbps~192Mbps (default is 16Mbps, decrease one Analog channel can increase 4Mbps )
  • IP Bandwidth Outgoing: Max. 192Mbps
  • Live Resolution / Frame Rate: Analog: 8MP : 15fps/CH; 1080P/720P/960H: 30fps/CH IP: 8MP/1080P/720P
  • Recording Resolution / Frame Rate: Analog: 8MP : 10fps/CH (PAL); 10fps/CH (NTSC); 1080P: 30fps/CH (PAL); 30fps/CH (NTSC) IP: 8MP/1080P/720P: 25fps/CH (PAL); 30fps/CH (NTSC) (each CH)
  • Recording Modes: Continuous/Manual/Motion Detect
  • Synchronized Playback: 16CH
  • Playback Performance: 8MP :144fps (Max 16CH playback ) 1080P: 480fps(Max 16CH playback) 720P:480fps(Max 16CH playback)
  • Search Modes: Time, Event, Motion in Recorded Video
  • Audio Input: 16
  • Audio Output: 1 x RCA
  • Internal: 3.5" HDD - 4 x SATA HDD
  • External HDD: 1 x e-SATA storage
  • Storage Capacity: 8TB/disk
  • DVD Burner: Not supported
  • Ethernet: 10/100/1000 Ethernet
  • Ethernet Protocol: TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP
  • USB: 2 x USB2.0 (for mouse and backup/upgrade); 1 x USB3.0
  • RS485: 1 x RS-485 (for PTZ Control)
  • Ethernet: 1 RJ-45
  • Power Input: 12VDC / 5A (12VDC/8A optional)
  • Power Consumption: 60W max. (5A)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity)
  • Dimensions (W x D x H): 430 x 399.3 x 79.5mm / 16.93" x 15.72" x 3.13"
  • Weight (without HDDs): 6kg / 13.2lb
  • Language: English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian
  • Regulatory: CE, FCC
  • Video Pause: Yes
  • Video Loss Detection: Yes
  • Motion Detection: Yes
  • Event Log: Yes
  • User Interface: GUI (Graphical User Interface)
  • Control: PTZ via OSD - Yes (via both local and remote interfaces)
  • Schedule Setting: Yes
  • User Access: 2 Levels of User Access Defined
  • Video Analytics: Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection
  • Operating System: Win7 (32 and 64-bit) / Win10 (32 and 64-bit)
  • CPU: Intel Core I3-2100
  • RAM: 2GB
  • Graphics: Intel HD 2000
  • LAN Speed: 10 / 100 / 1000 Mbps (RJ45)
  • Web Browser: IE11 and later
  • Other Remote Application: 1. EverFocus VANGUARD CMS 2. EverFocus eFVMS (mobile app)


• Item Includes:

  • 1x VANGUARDII16X8H/4T NDAA 16 Channel Hybrid DVR
