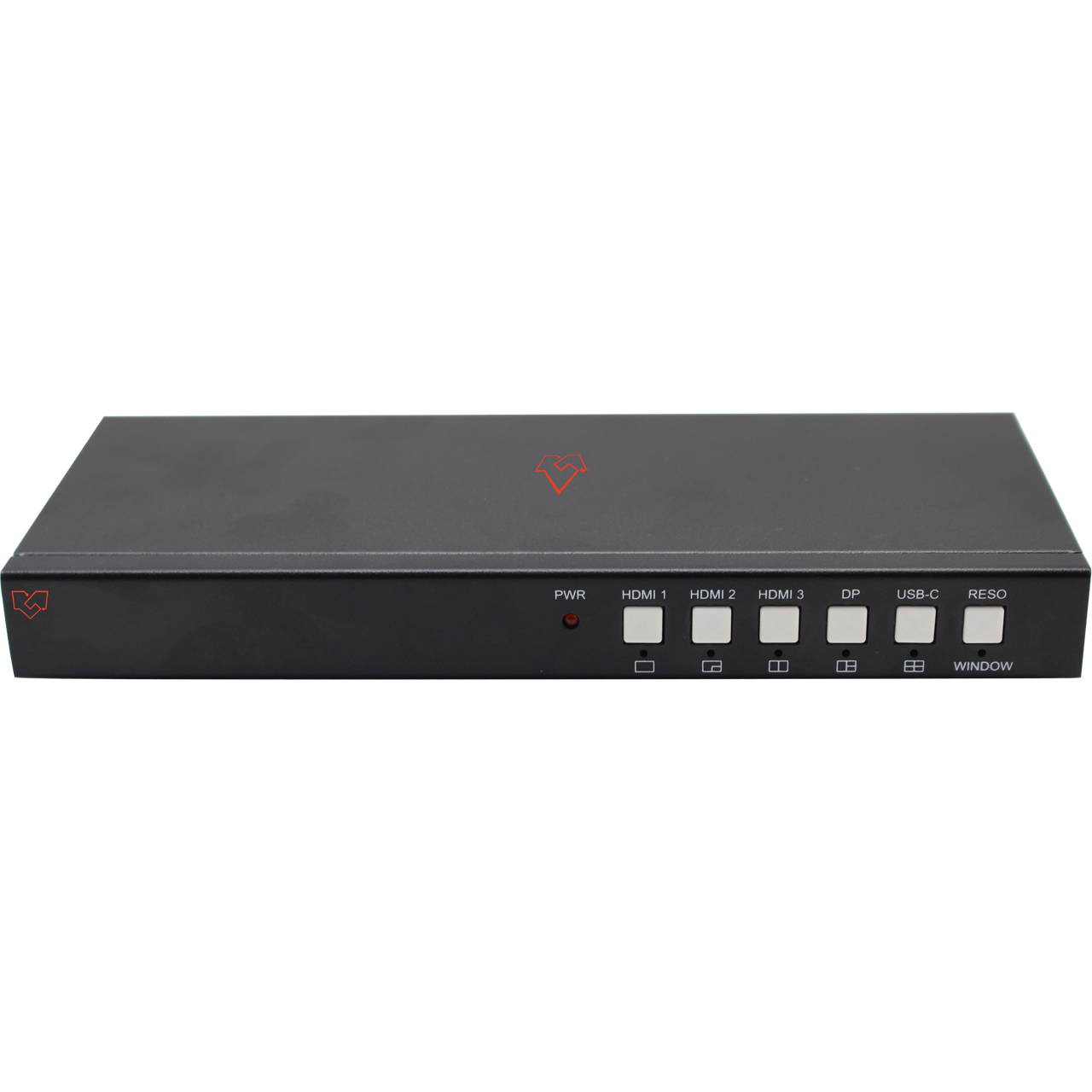

VigilLink VLPT-52HT70U 5x2 3840x 2160@60Hz USB-C Presentation Switcher with PIP/PAP/Tri/Quad-view - HDMI / DP / HDBaseT

VLPT-52HT70U - Overview

• Features:

  • 5x2 presentation switcher with PIP/PAP/Tri/Quad-view
  • True seamless switching, no freezing, black, or snow screen
  • HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
  • 3x HDMI, 1x DisplayPort and 1x USB-C inputs
  • 1x HDMI, 1x Mirrored HDBaseT 70M/POC outputs
  • Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
  • Up to 14 output resolutions are selectable
  • 3.5mm analog audio de-embedding
  • EDID management
  • Buttons and RS-232 control


• Specifications:

  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2
  • DP Compliance: DP 1.4
  • Video Resolution: Up to 3840x 2160@60Hz
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

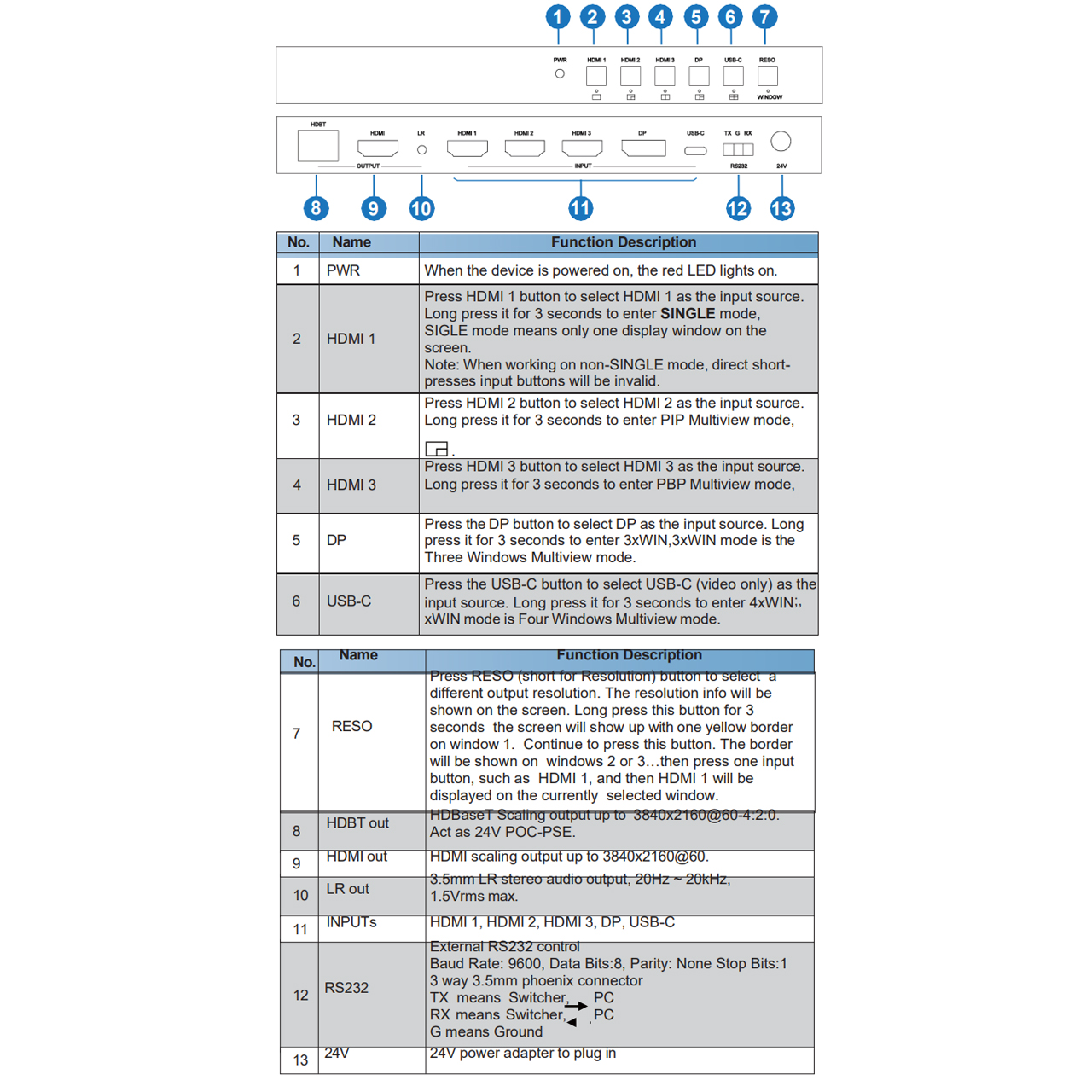

    Switcher Connections
  • Inputs:
    - 3x HDMI IN [Type A, 19-pin, Female]
    - 1x DP IN
    - 1x USB-C
  • Outputs:
    - 1x HDBaseT OUT [RJ45]
    - 1x HDMI OUT [Type A, 19-pin, Female]
    - 1x L/R OUT [3.5mm?mini-Jack]
  • Receiver Connections:
    - Input: 1x HDBaseT In [RJ45]
    - Output: 1x HDMI OUT [Type A, 19-pin Female]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    - Switcher: 3.94 x 8.86 x 0.98" (225 x 100 x 25mm)
    - Receiver: 3.54 x 6.18 x 0.79" (157 x 90 x 20mm)
  • Weight:
    - Switcher: 1.65lbs (750g)
    - Receiver: 0.734lbs (333g)
  • Power Supply:
    - Input: AC100~240V 50/60Hz
    - Output: DC 24V/1A
  • Power Consumption: 14W (Max)
  • Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x 5x2 Seamless Presentation Switcher
  • 1x HDBaseT 70m Receiver
  • 1x 24V/1A Power Adapter
  • 2x 3-way Female Captive Screw Connector
  • 1x User Manual


• Warranty:

  • 6 Years
