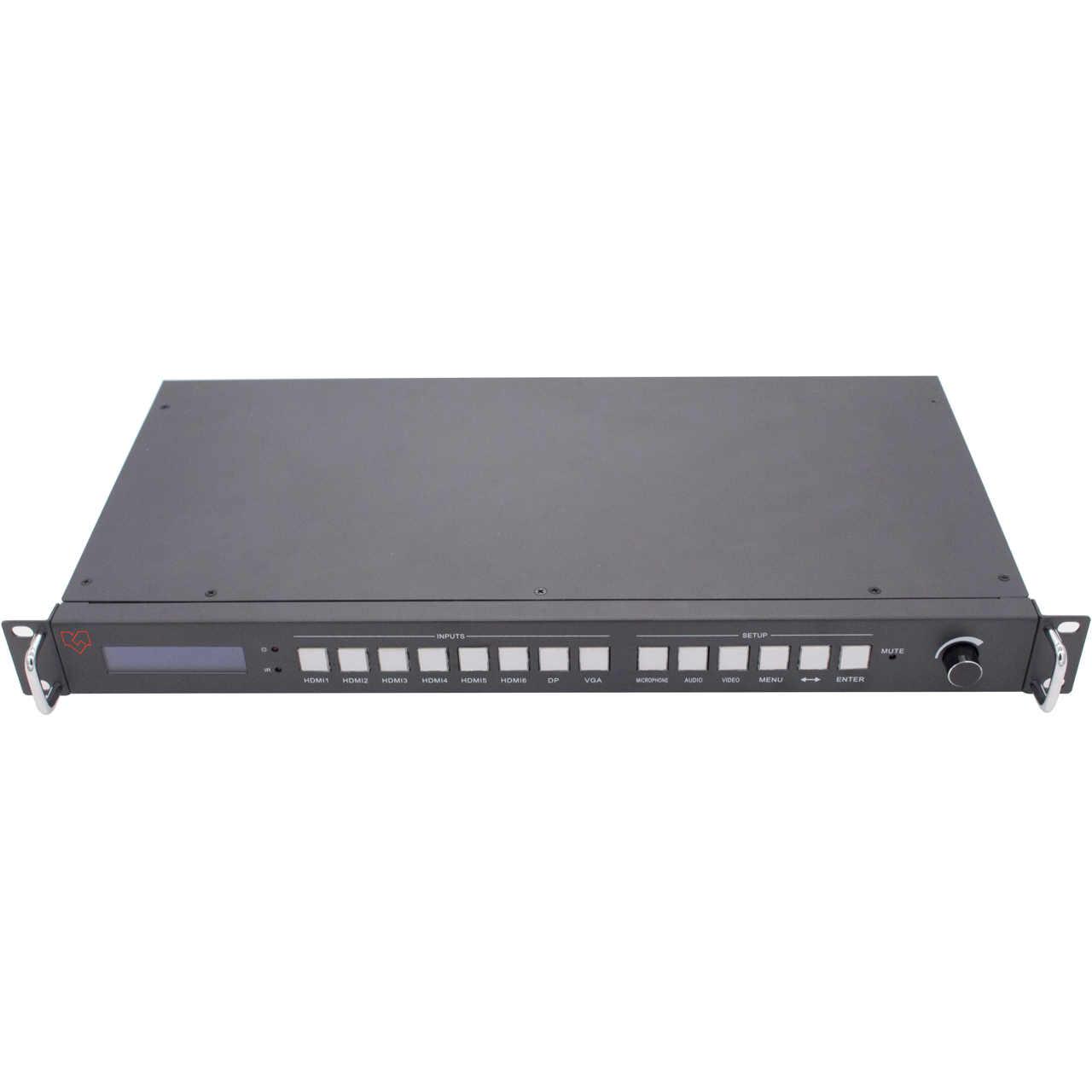

VigilLink VLPT-82HT70V 18Gbps 8x2 HDMI 2.0 UHD Presentation Switcher - Dual USB-C and HDMI inputs with USB

VLPT-82HT70V - Overview

• Features:

  • HDMI 2.0, HDCP 2.2 and DP 1.2 compliant
  • Supports 18 Gbps video bandwidth
  • Supports video resolution up to 4K@60Hz 4:4:4
  • Mirrored output with HDMI and HDBaseT output ports
  • The HDBaseT port can extend the transmission distance up to 70 meters(1080P) and 45 meters(4K@60Hz)
  • Supports seamless switching
  • 8 video inputs: 6 HDMI ports, 1 DP port, 1 VGA port
  • 9 audio source selections (LR1 to LR8 and embedded audio) for HDMI/DP input
  • 8 Audio source selections (LR1 to LR8 ) for VGA video input
  • Microphone mixing or independent function
  • 3 Microphone modes: 48V (PHANTOM POWER) / MIC / LINE
  • 2x 20W speaker output and balanced audio output
  • Speaker and Microphone volume can be controlled by the front panel or PC Tool
  • Supports front panel, RS-232, TCP/IP (LAN 10M/100M) control
  • IR IN/OUT and RS-232 IN/OUT are superimposed on HDBaseT transmission
  • Supports EDID management
  • Additional IO function (2 outputs, 2 inputs)
  • Note: This source does not have seamless switching when VGA input is active.


• Specifications:

  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2
  • DP Compliance: DP 1.4
  • Video Bandwidth: 18Gbps

    Video Resolution
  • Input Video Resolution:
    - 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz
    - 1280x800@60Hz,1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz
    - 1440x900@60Hz, 1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz
    - 480p,576p,720p,1920x1080i,1920x1080p,3840x2160@ 30Hz/50Hz/60Hz
    Note: This device does not support 4:2:0 color space
  • Output Video Resolution:
    - Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@ 30Hz
    - 1920x1080@60Hz, 1920x1080@50Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@ 60Hz, 1920x1200@60Hz
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 8.66 x 16.93 x 1.73" (430 x 220 x 44mm)
  • Weight: 8.81 lbs (3.2Kg)
  • Power Supply: AC 110 - 240V
  • Power Consumption: 60W (Max)
  • Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
  • Storage Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Relative Humidity: 10%~50% RH (non-condensing)


• Item Includes:

  • 1x 8x2 Seamless UHD Presentation Switcher
  • 1x HDBaseT Receiver
  • 1x AC Power Cord
  • 1x User Manual
  • 2x Mounting Ear & 2x Handle
  • 12x 3-pin Phoenix Connector
  • 1x 4-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)


• Warranty:

  • 6 Years
