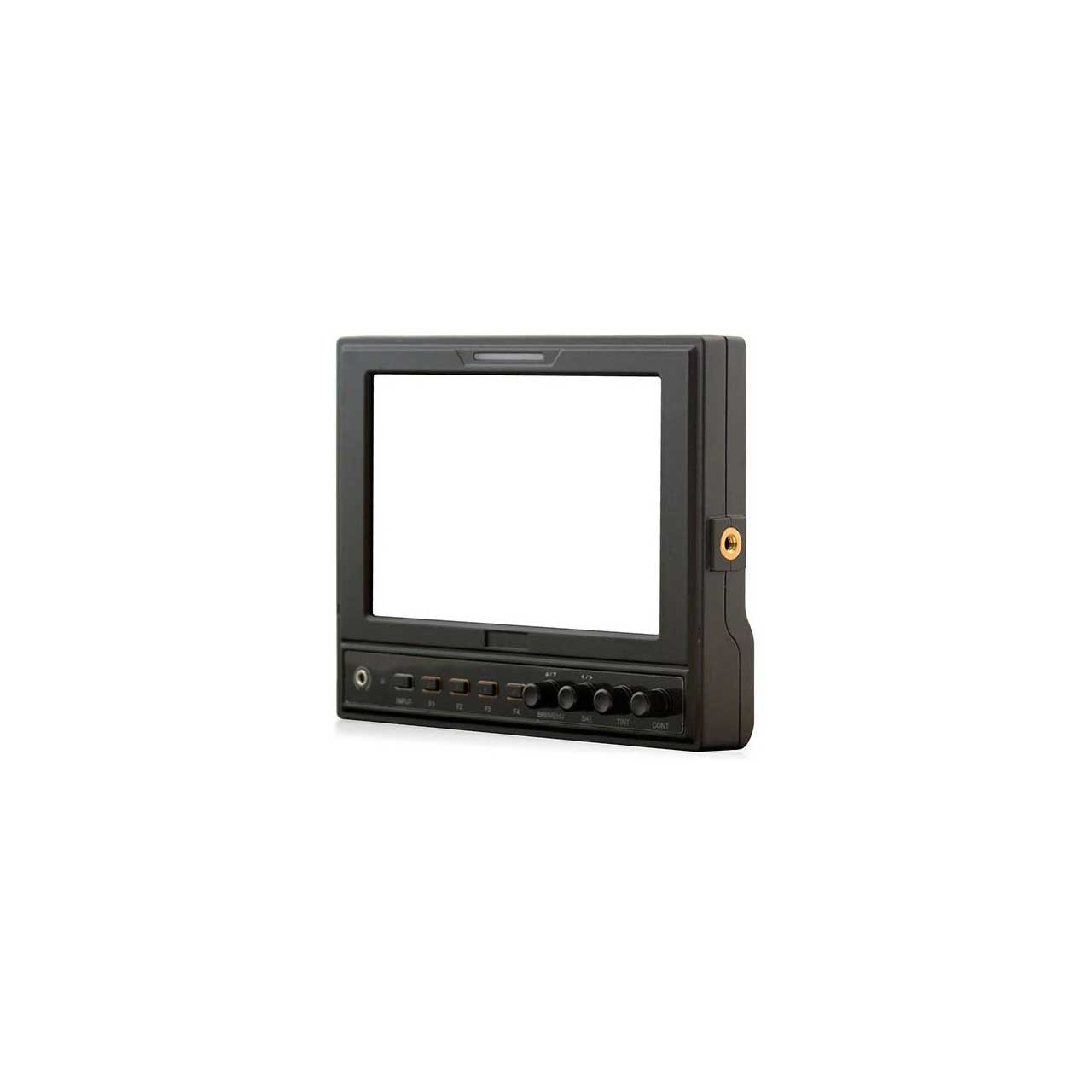

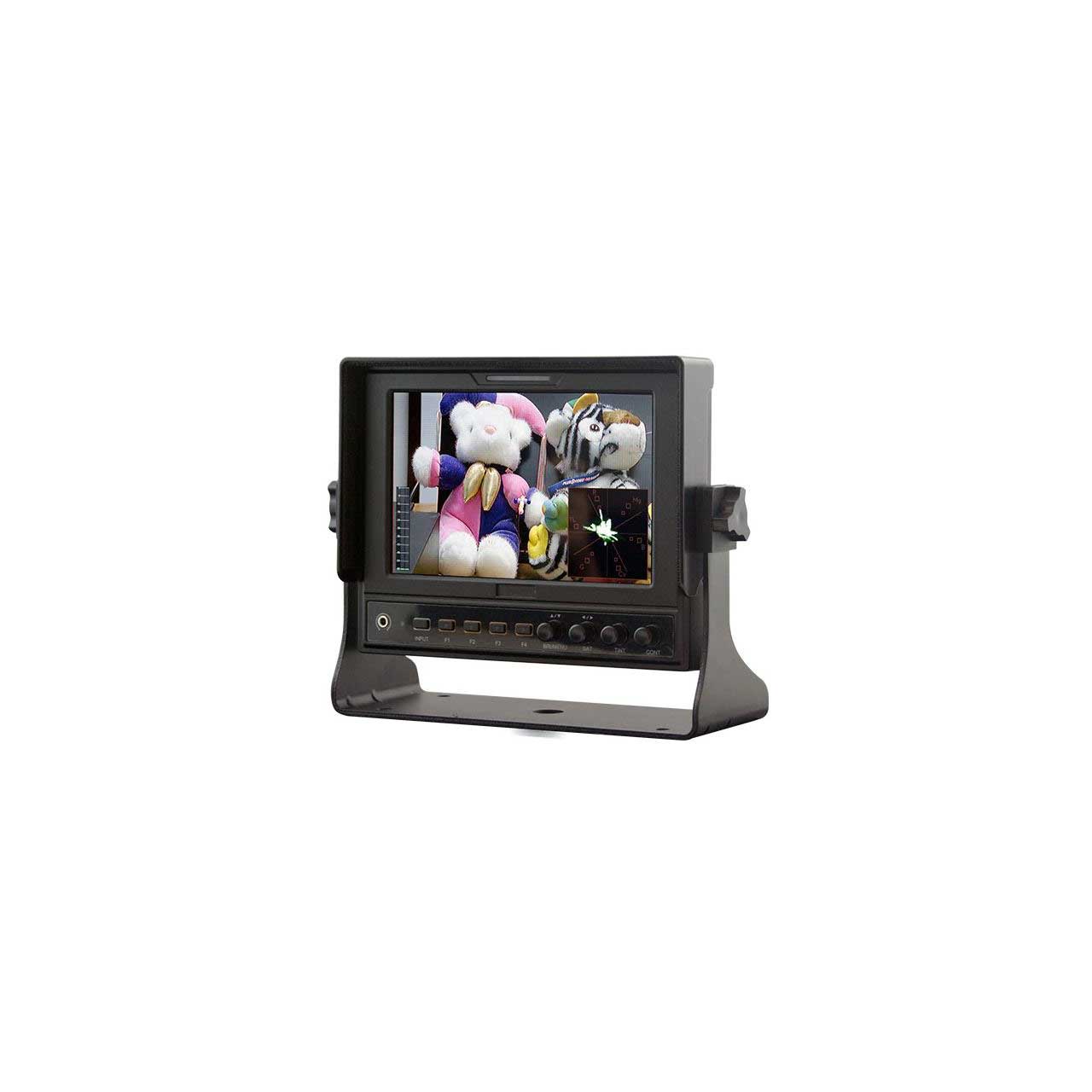

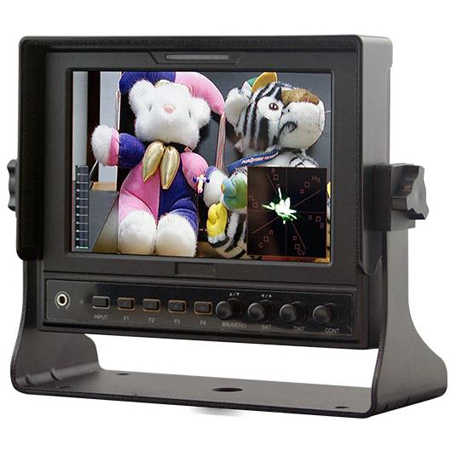

ViewZ VZ-070FM-E 7 Inch FHD Broadcast Monitor - 350cd/m2 - IPS 1280x800 Pixels - 3G-SDI/HDMI/RGB/CVBS

VZ-070FM-E - Overview

• Features:

  • 7" LED 3G-SDI Portable Monitor
  • Wave / Vectpr Scope, Image Flip & Zoom, Histogram
  • SDI to HDMI Cross Conversion, Front User-Definable Buttons (F1 to F4)
  • SDI Embedded 2CH Audio Level Meter
  • SDI to HDMI Cross Conversion
  • Wave / Vectpr Scope
  • Image Flip & Zoom, Histogram
  • Gamma 1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8
  • Front User-Definable Buttons (F1 to F4)
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
  • Tally (Red, Green) Support, Metal Case, Hood


• Specifications:

  • Display
  • Screen Size: 7" (IPS Panel)
  • Max Resolution: 1280+800 @60Hz
  • Pixel Pitch: 0.039 mm x 0.117 mm
  • Brightness: 350 cd/m²(Typical)
  • Contrast Ratio: 800 : 1
  • Aspect Ratio: 16 : 10
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 16.7 Million (8bit)

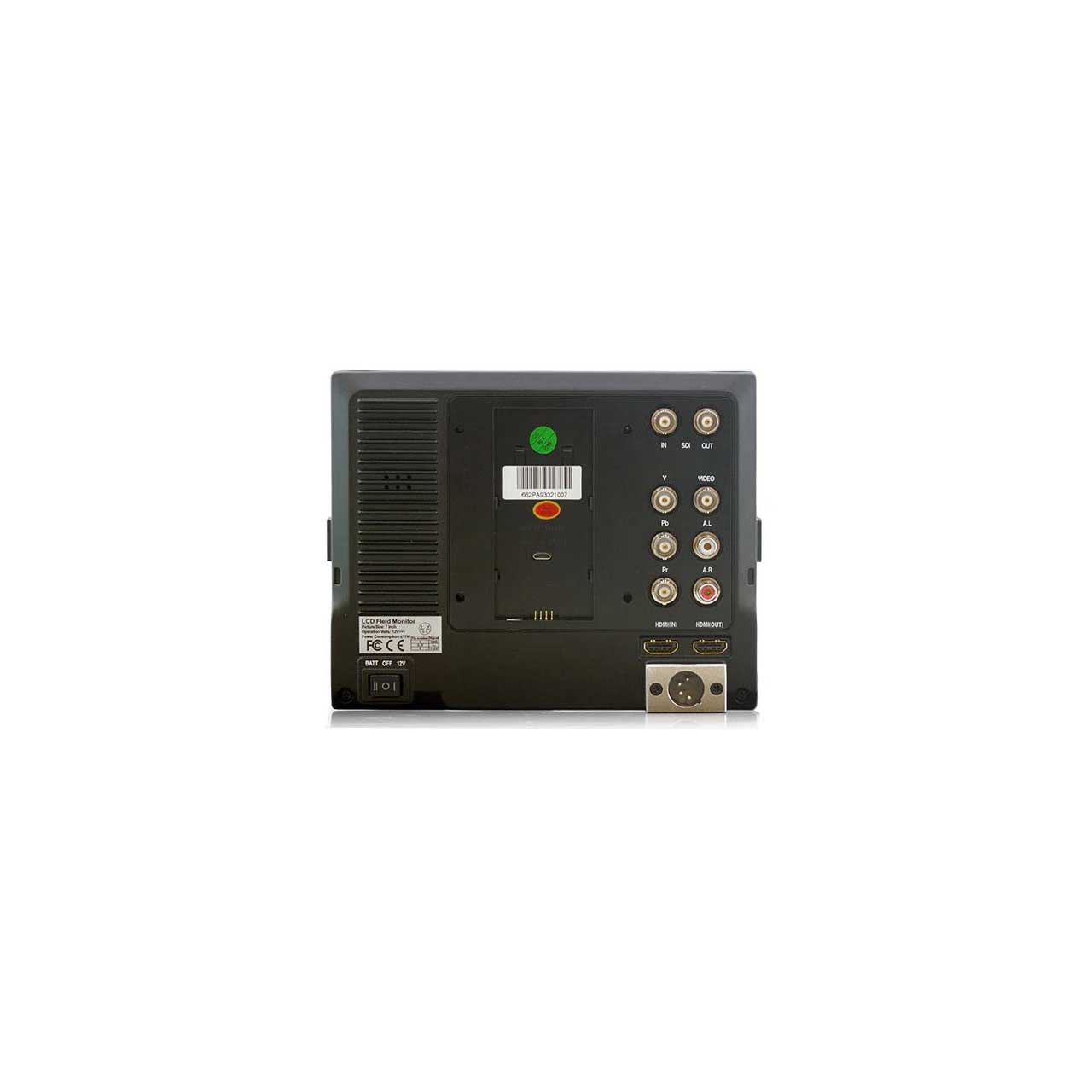

    Interface
  • 3G-SDI In / Ou: 1 / 1
  • HDMI In / Ou: 1 / 1
  • VGA In (RGB): 1
  • AV (Composite) In: 1
  • Audio In / Ou: 1 / 1 (2ch De-Embedded Audio Selected Output)

    Audio
  • Built in speaker: 2W x 1
  • Dimensions & Weight
  • Outline Dimension (W x H x D): 7.53 x 5.98 x 1.22 / 5.55" (w/ Cover) / 191.5 x 152 x 31.5 / 141 mm (w/ Cover)
  • Net Weigh: 1.598 lbs / 725g
  • Gross Weigh: 1.98 lbs / 900g

    Input Format
  • SMPTE 425M-AB: 1920 x 1080p / 60/59.94/50, 1920 x 1080i / 60,59.94,50
  • SMPTE 274M: 1920 x 1080p / 30,29.97,25,24,23.98 psf, 1920 x 1080i / 60,59.94,50
  • SMPTE 296M: 1280 x 720p / 60,59.94,50
  • SMPTE 125M: 480i / 59.94
  • ITU-R BT.656: 576i / 50

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC12V) / DC 7 ~ 24V
  • Power - Consumption: ≤ 11 W
  • Warranty: 2 Years
  • Operating Temperature: 32 - 104°F / 0 - 40°C
  • Regulation: FCC(A), CE

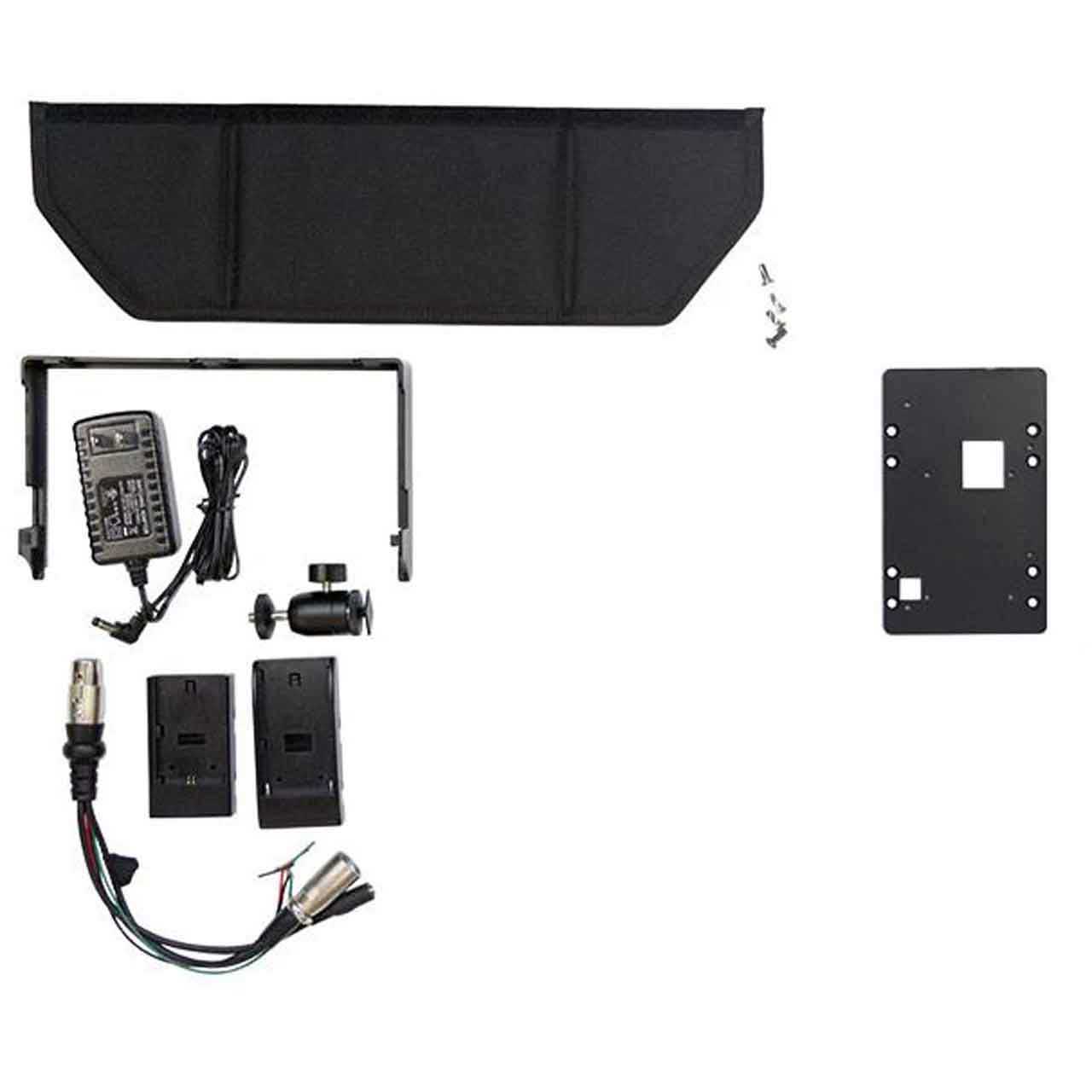

• Item Includes:

  • 1x Monitor

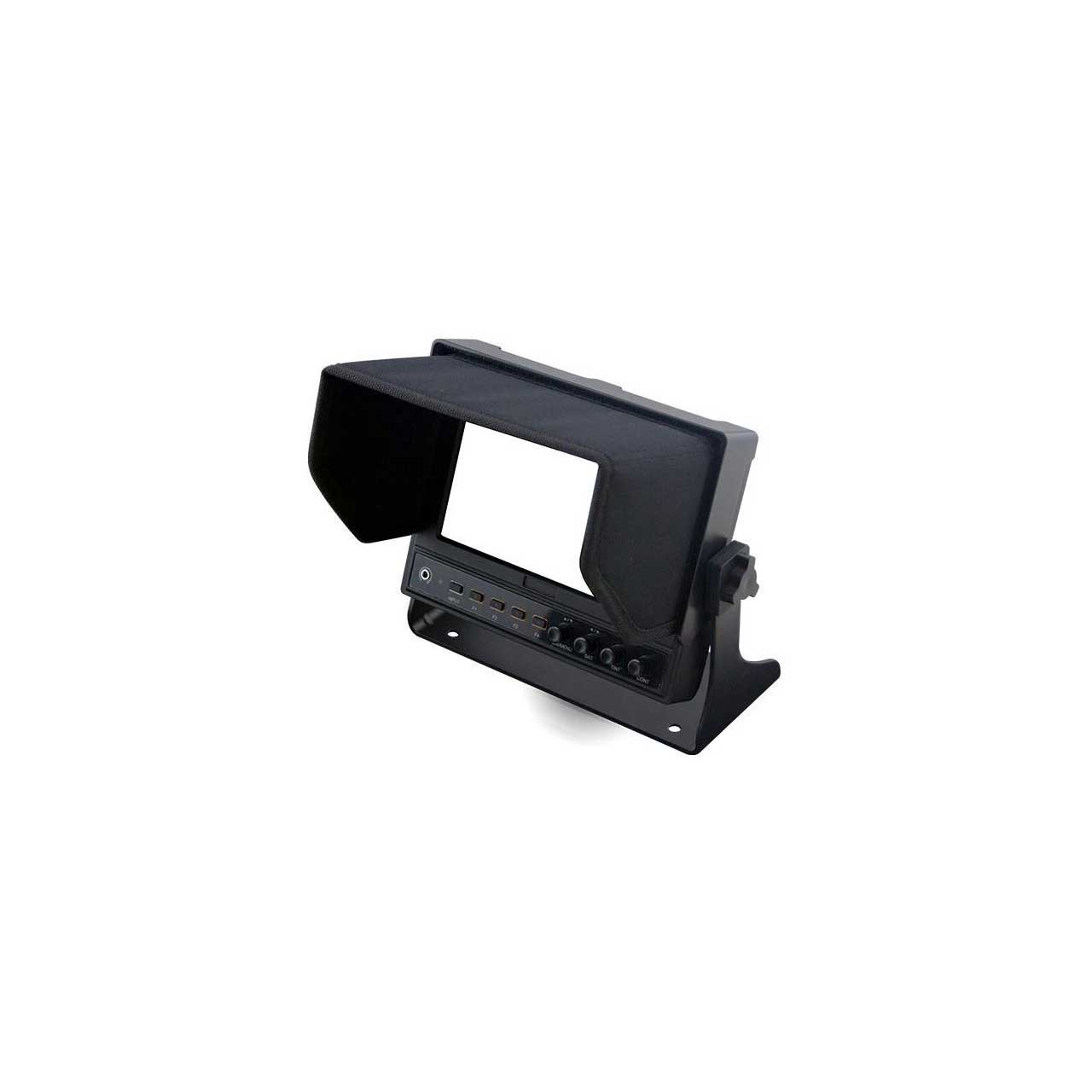

  • 1x Hood
  • 1x Gimbal stand
  • 1x Power Adapter
  • 1x Shoe Mount
  • 1x Adapter Panel
  • 1x Power&Tally Cable
  • 1x Carrying Case


• Warranty:

  • 2 Years
