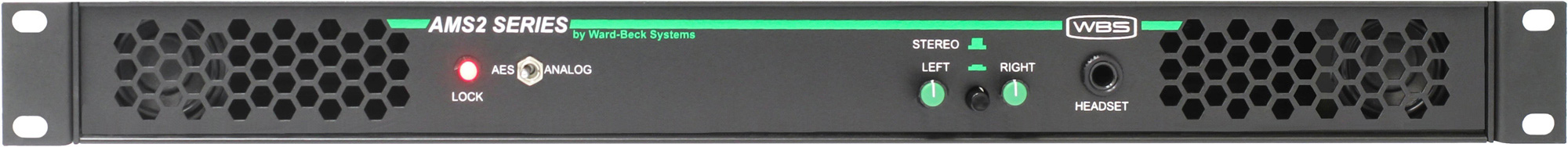

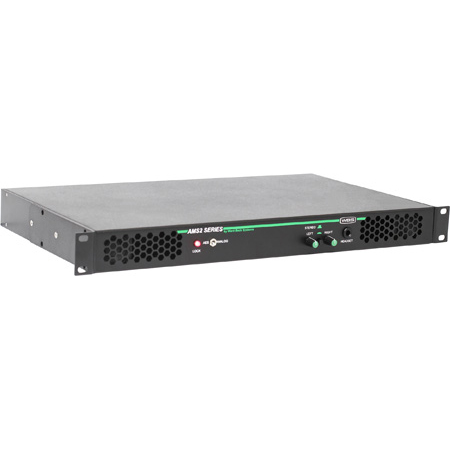

Ward Beck AMS2 Mini Cue Rackmount Stereo Audio Monitor Speaker with Digital & Analog Inputs

AMS2 - Overview

• Features:

  • Versatile and high-quality, low-cost mini cue speaker with digital and analog inputs
  • Packaged as a standard 1RU unit and equipped with both digital and stereo analog inputs

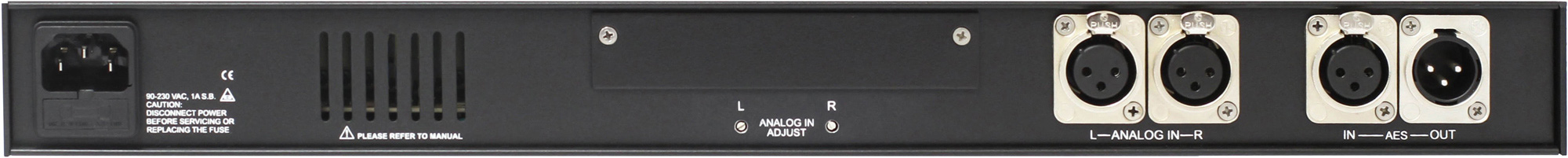

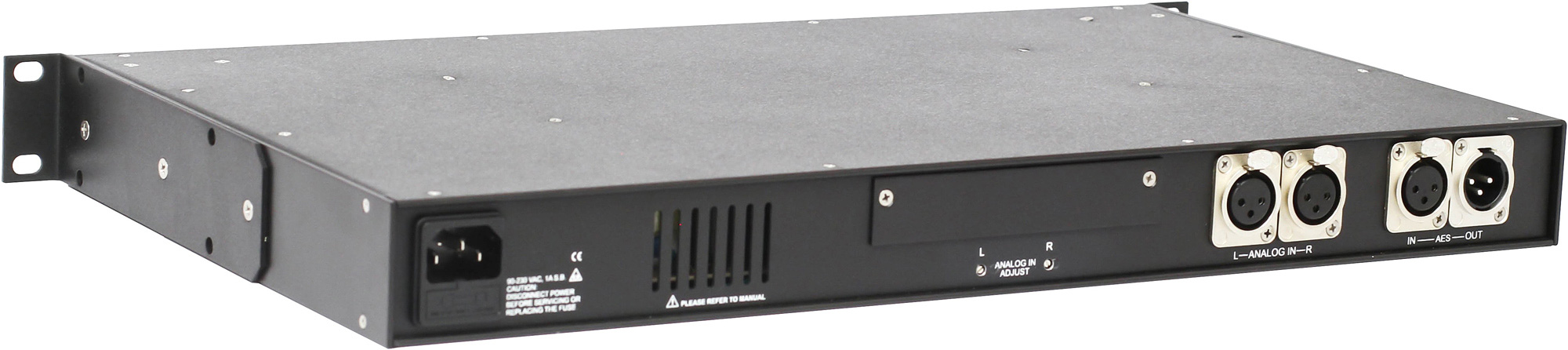

  • Connections are via 3-pin XLR connectors located on the rear panel
  • The amplifier used in the AMS2 is 15 watts per channel
  • IEC power disconnect simplifies installation and removal of the device, especially in mobile applications
  • Perfect for use in studios, pro AV, mobile trucks and other environments where quality is essential and space and budgets are limited


• Specifications:

  • Digital Input Terminal: XLR3F
  • Digital Input Impedance: 110 Ohm Transformer balanced
  • Digital Input Level: 0.2V p-p to 7V p-p
  • Digital Input Sampling Frequency: 32KHz to 192KHz
  • Digital Input Sensitivity: -9dBFS
  • Analog Input Terminal: XLR3F
  • Analog Input Impedance: 30 kOhm balanced
  • Analog Input Maximum Input: +26dBu
  • Digital Output Terminal: XLR3M
  • Digital Output Impedance: 110 Ohm Transformer balanced
  • Digital Output Sampling Frequency: 32KHz to 192KHz
  • Speakers: 2 + 2 full range setup, front-firing
  • Speaker 1 (2 units per system): 2 x 1.75” x 4” woofer, Rated noise power: 15W
  • Speaker: 2 (2 units per system) 2 x 1.5" Full Range, Steel basket 40.5mm square (1.6"), Rated noise power: 5W
  • Power Requirements: 100-240 VAC, 50-60Hz
  • Dimensions: 19" wide x 1.75" high x 10.75" deep / (483mm x 44mm x 273 mm)
  • Weight: 3.79 kg (8.35 lbs)
  • The amplifier used in the AMS2 is 15 watts per channel


• Warranty:

  • 1 Year
