Wisycom CSA221 Diversity Passive Dual Wideband Combiner/Splitter - 470 to 960 MHz

ITEM #: WIS-CSA221 MFG #: CSA221

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Wisycom
Free Shipping with $49 Minimum Order

List Price:

$333.00

Our Price:

$300.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CSA221 - Overview

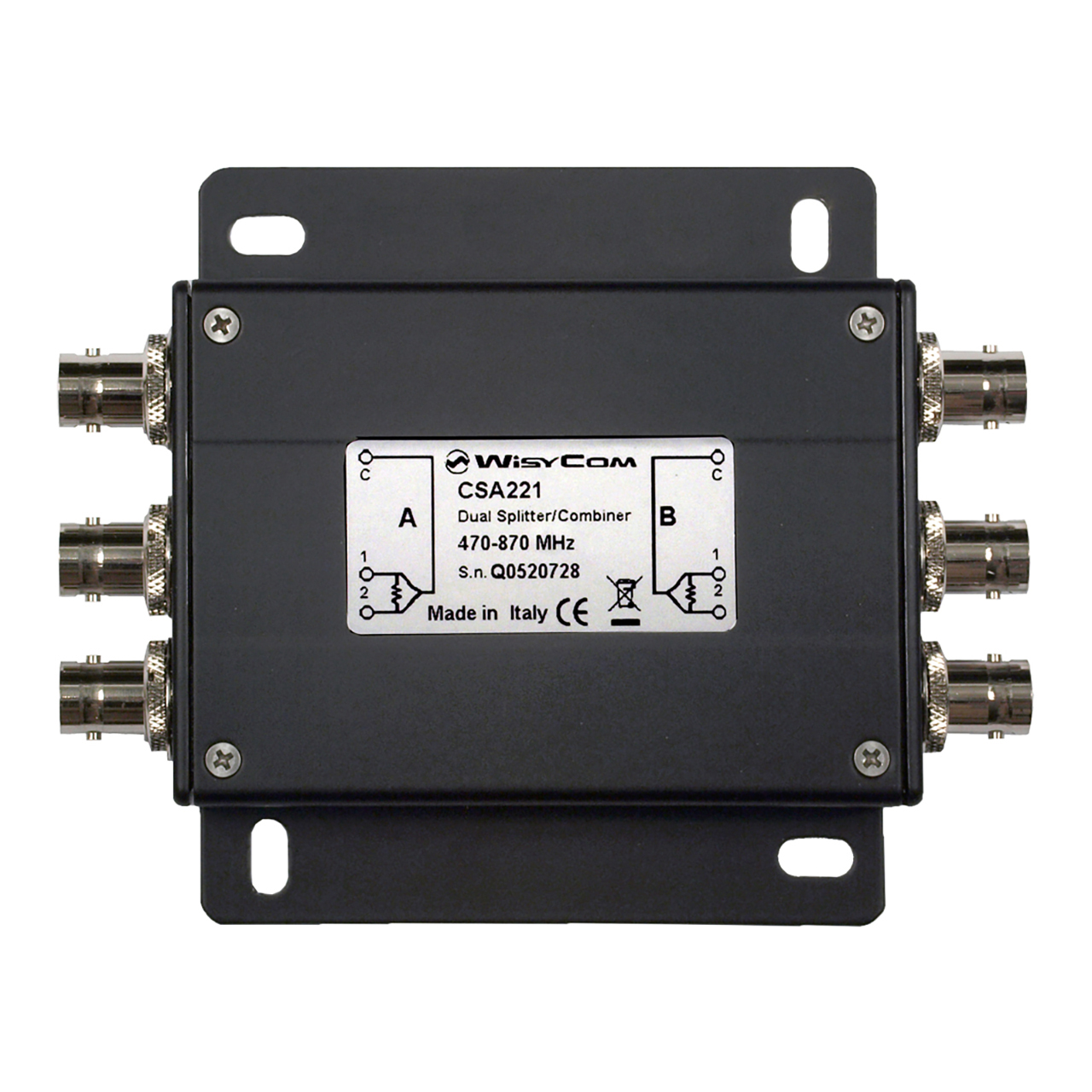

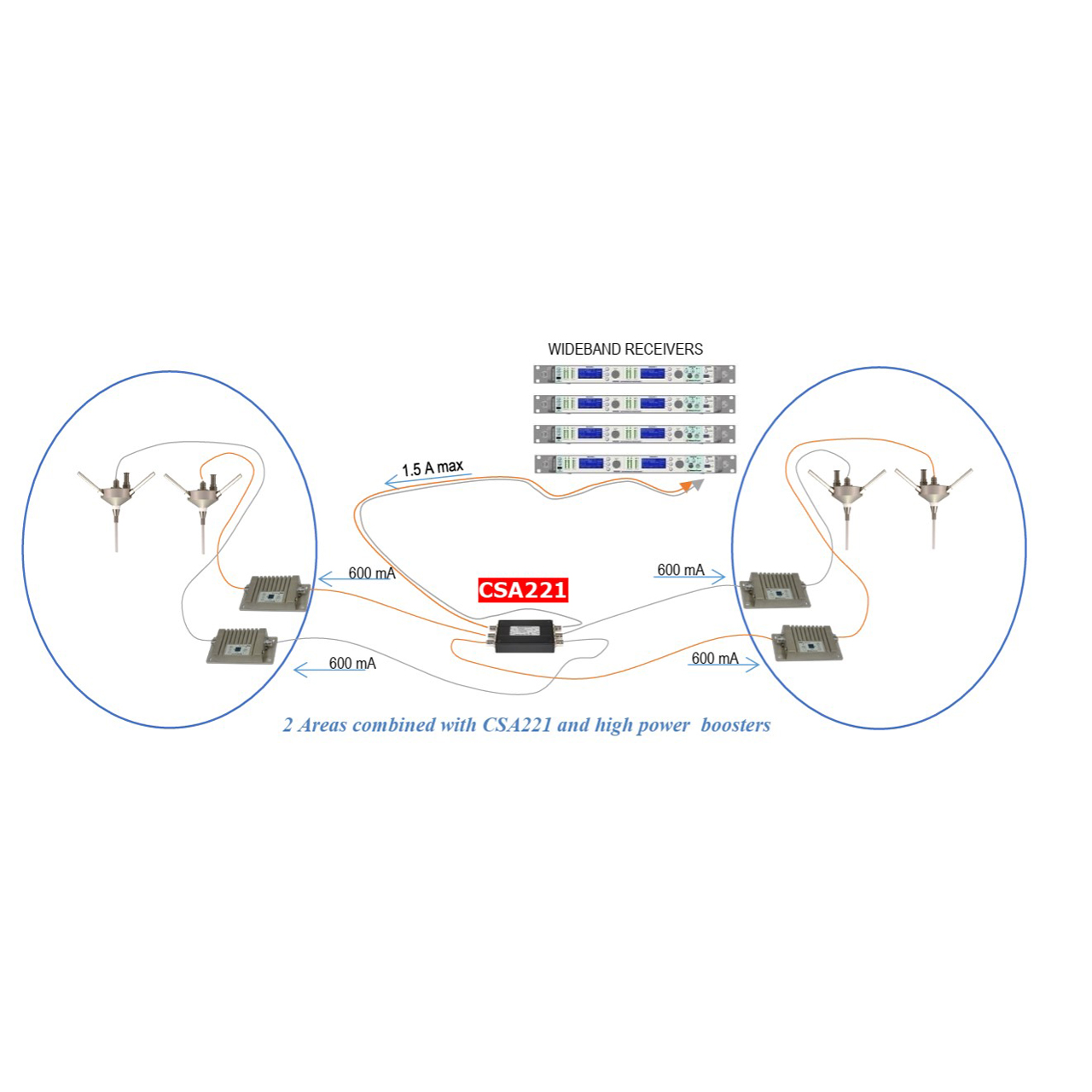

The Wisycom CSA221 is a dual passive splitter/combiner for UHF receive applications. The CSA221 offers two separate splitters/combiners in a single unit. The CSA221 is DC-coupled for use with antenna boosters, such as the BFA, allowing 12V bias to pass through from receiver to antenna device.

  • Features:

    • Small and compact splitter/combiner, stripline construction
    • Wide band operation


  • Specifications:

    • Frequency Ranges: 470 - 960 MHz
    • Splitter/Combiner Loss: 4dB
    • Max Input Power: 125mW
    • Connector: 6 BNC-F
    • Impedance: 50 Ω
    • Max Current Thru Port: 1.5A
    • Material: Aluminum
    • Finishing: Black Varnish
    • Mounting: Mounting plate holes (M5 screw type)
    • Dimensions: 0.78" x 3.93" x 4.96" (20mm x 100mm x 126mm)
    • Weight: 0.48 lbs (220g)


  • Item Includes:

    • 1x Wisycom CSA221 Diversity Passive Wideband Combiner/Splitter


  • Warranty:

    • 1-Year Limited Warranty
