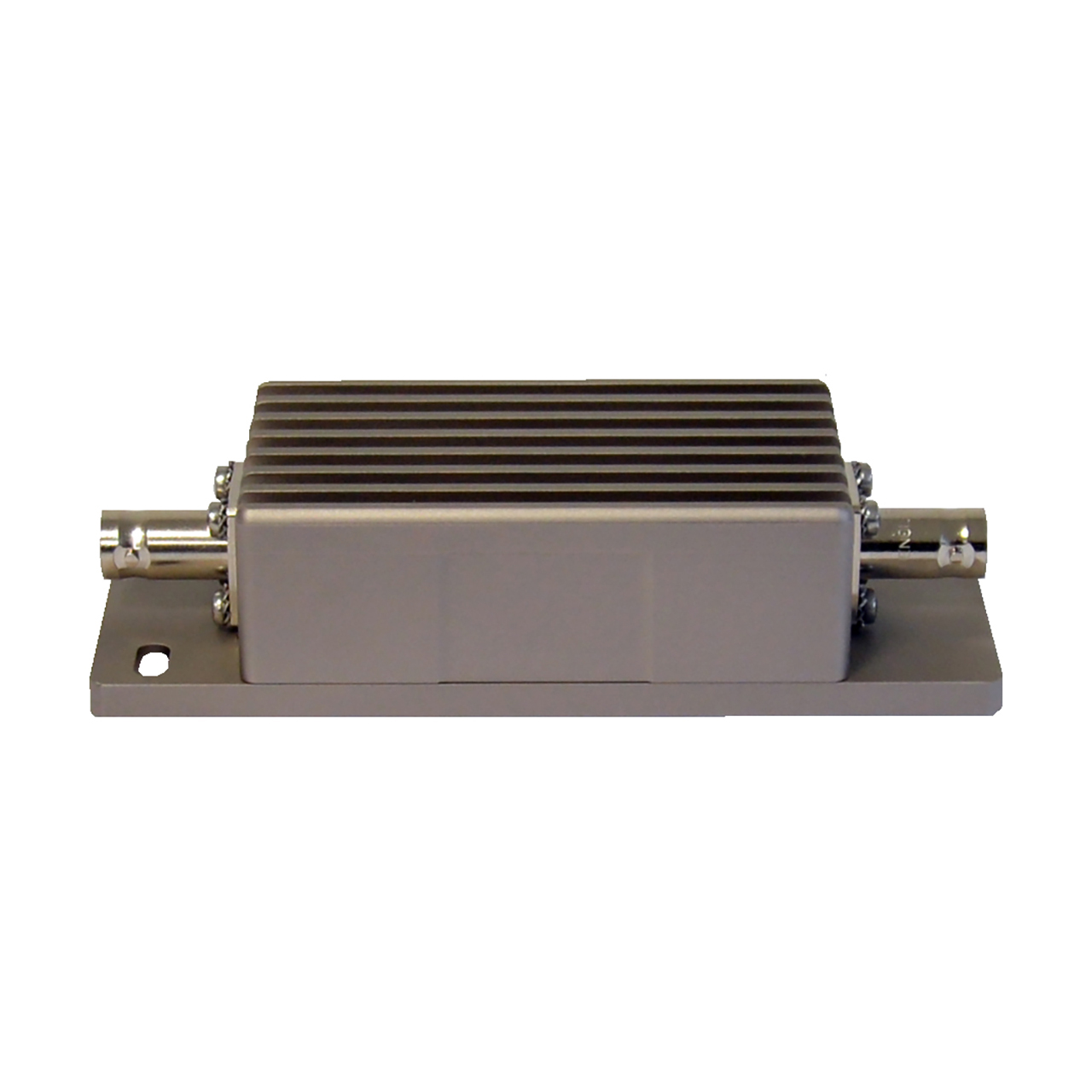

Wisycom PAW-L Wideband Antenna Amplifier - 435 to 700 MHz

PAW-L - Overview

• Features:

  • Designed to amplifier RF signal from 0mW (0dBm) up to 250 mW
  • Powered by the transmitter or MFL system through the coaxial cable
  • Housing is in ruggedized aluminum, with waterproof sealing (for version with N connector), suitable for outdoor installations


• Specifications:

  • Frequency Range: 435-700 MHz
  • Max Input Power: 4dBm
  • Connector: BNC
  • Impedance: 50 Ω
  • Booster Gain: 20 dB (typical)
  • OIP3: +42 dBm (Output 3° order Intercept Point) typical @ 27dBm - 1dB compression point
  • Power Supply: +12 V, 200 mA (thru input coax. cable)
  • Material: Ruggedized aluminum, with waterproof sealing (suitable for outdoor installations)
  • Mounting: 2 holes for wall-installation (M4 screw type)
  • Dimensions (HxWxD): 4.72" x 1.88" x 1.16" (120mm x 48mm x 29.5mm)
  • Weight: 0.5 lbs (230g)


• Item Includes:

  • 1x Wisycom PAW-L Wideband Transmit Power Amplifier


• Warranty:

  • 1-Year Limited Warranty
