Wisycom BAA Wideband Antenna Amplifier - BNC Connectors - 470 to 870 MHz

ITEM #: WIS-BAA MFG #: BAA

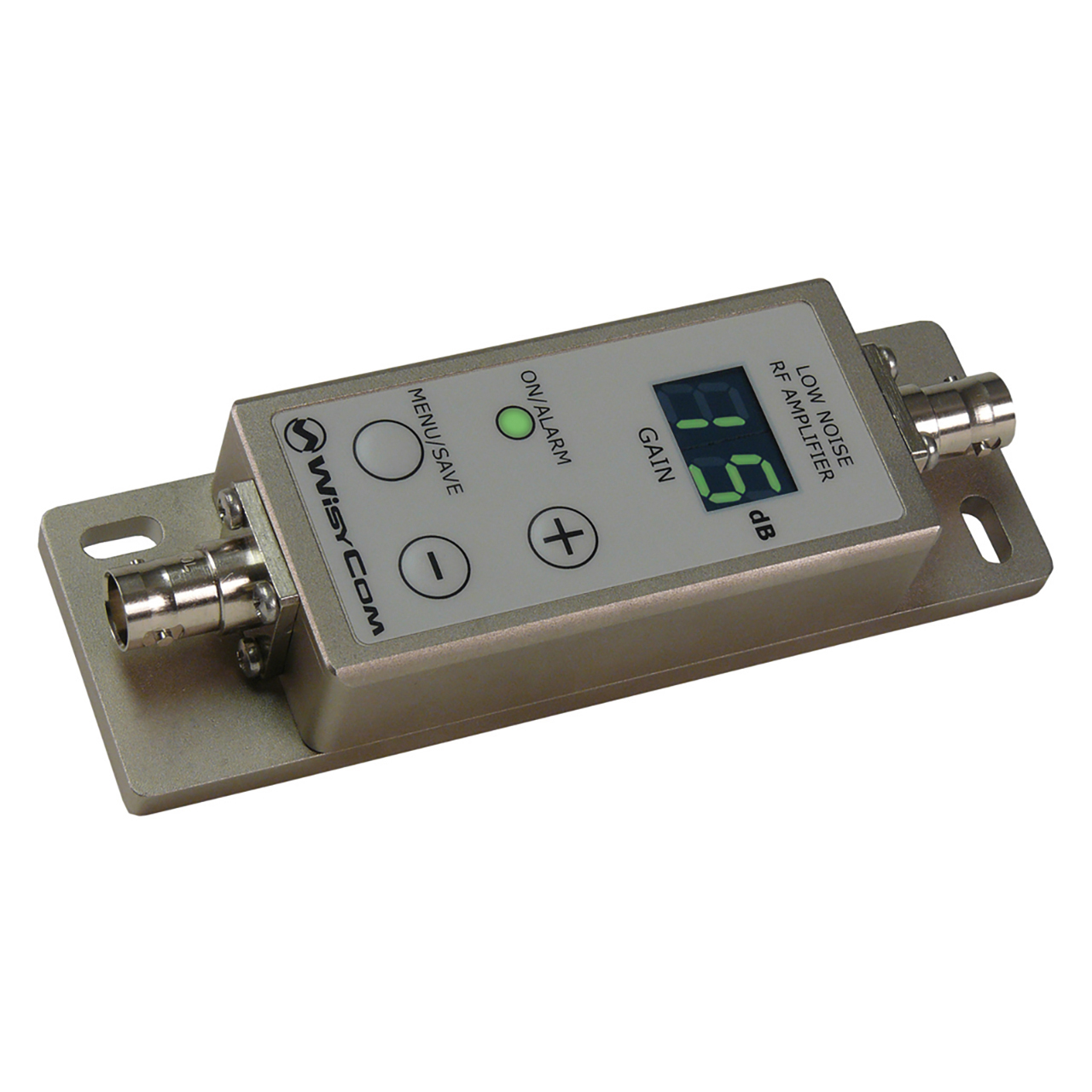

Primary Image
Wisycom
Free Shipping with $49 Minimum Order

List Price:

$433.00

Our Price:

$390.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BAA - Overview

The Wisycom BAA is an in-line booster for UHF. The BAA offers up to 15 dB gain in 1dB steps for microphone receive applications. The BAA requires +12V 100mA for full operation. Featuring a BNC connector for easy connection.

  • Features:

    • Broadband operations 470-960 MHz
    • Very high linearity (OIP3 > 40 dBm)
    • Up to 16 dB gain settable in one dB step
    • Powered thru cable
    • Power feedthrough selectable for cascade operation of several BAAs


  • Specifications:

    • Frequency Ranges: 470 - 960MHz (rev.4); 470 - 870MHz
    • SWR: < 1:1.5; typ. = 1:1.4
    • Connector: BNC-female type
    • Impedance: 50Ω
    • Max Gain: 16dB ± 1dB
    • Gain Adjustment: 0 - 16dB (typical), selectable in step of 1dB (+/- button)
    • Booster Gain Flatness: ±1dB, in the whole working window
    • OIP3: +43dBm (Output 3° order Intercept Point) typical
    • Display: Multi-colored (RGB) led
    • Power Supply: +12V, 100mA+100mA ( if power input activated) [MAX: 12V/300mA]
    • Material: Ruggedized aluminum, with waterproof sealing (suitable for outdoor installations)
    • Mounting: 2 holes for wall-installation (M4 screw type)
    • Dimensions (HxWxD): 4.72" x 1.53" x 0.94" (120mm x 39mm x 24mm)
    • Weight: 0.35lbs (160g)


  • Item Includes:

    • 1x Wisycom BAA Wideband Antenna Amplifier - BNC Connectors


  • Warranty:

    • 1 Year Limited Warranty
