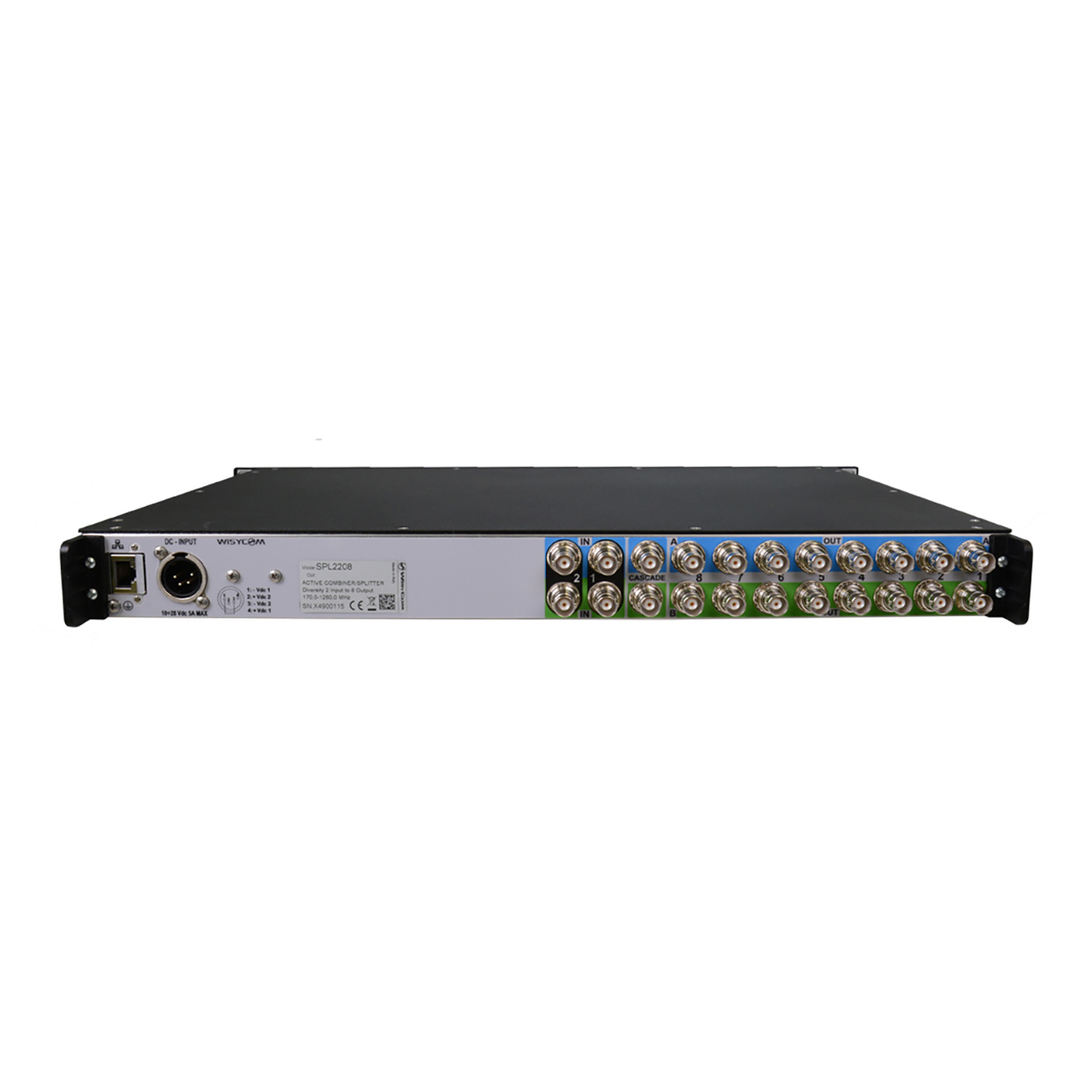

Wisycom SPL2208 Wideband Active Antenna 8x2 Combiner/Splitter - 170 to 1260 MHz

ITEM #: WIS-SPL2208 MFG #: SPL2208

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$3,278.00

Our Price:

$2,950.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SPL2208 - Overview

The Wisycom SPL2208 is an active combiner and splitter for microphone applications from 170MHz - 1260MHz. Featuring 2 sets of diversity inputs, allowing for expanding the coverage of UHF microphones. Then splitting the combined inputs to 8 diversity outputs. The SPL2208 provides optional 12V bias to each antenna input, and can control Wisycom smart antennas, giving control of gain and filters from Wisycom Manager for PC.

  • Features:

    • Wideband: 170-1260 MHz
    • High Rf robustness and linearity: for high density/equally spaced frequencies operations (i.e. with MTP60s Linear)
    • Able to feed 8 diversity receivers
    • Combine/Select signal from 4 antenna inputs
    • Redundant DC supply and antennas diagnostic features
    • Wisycom Remote Antenna Protocol to control antennas/booster remotely thru coax
    • Ethernet interface to access all of feature with a PC, making presets and real time monitoring
    • Cascade output to connect another SPL22xx or monitor devices

  • Specifications:

    • Frequency Ranges: 170 - 1260 MHz
    • Input/Output Gain: +5dB approx.
    • OIP3Input/Cascade Gain: +1.5dB approx.
    • Amplifier Linearity: ±1 dB (typical)
    • Noise Figure: 7.5 dB
    • Antenna Booster Powering: +12Vcc / 500mA MAX (for each BNC-female input connector A & B)
    • Connector:
      - Input: 2+2 BNC-F
      - Output: 16+16 BNC-F (SPL2216), 8+8 BNC-F (SPL2208)
      - Cascade: 2 BNC-F
    • Impedance: 50Ω
    • Managing Interface: 10/100 Base TX Ethernet port and thru frontal tactile buttons
    • Power Supply:
      - 10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
      - 1: -Vdc1, 2: +Vdc2, 3: -Vdc2, 4:+Vdc1
    • Power Consumption: 40W max
    • Temperature Range: -13° - 131°F(-25°C ÷ 55°C)
    • Finishing: Black Varnish
    • Dimensions: 1.73" x 19.01" x 13.81" (44mm x 483mm x 351mm)
    • Weight: 6.61 lbs (3kg)

  • Item Includes:

    • 1x Wisycom SPL2208 Wideband Active Antenna 8x2 Combiner/Splitter

  • Warranty:

    • 1-Year Limited Warranty
