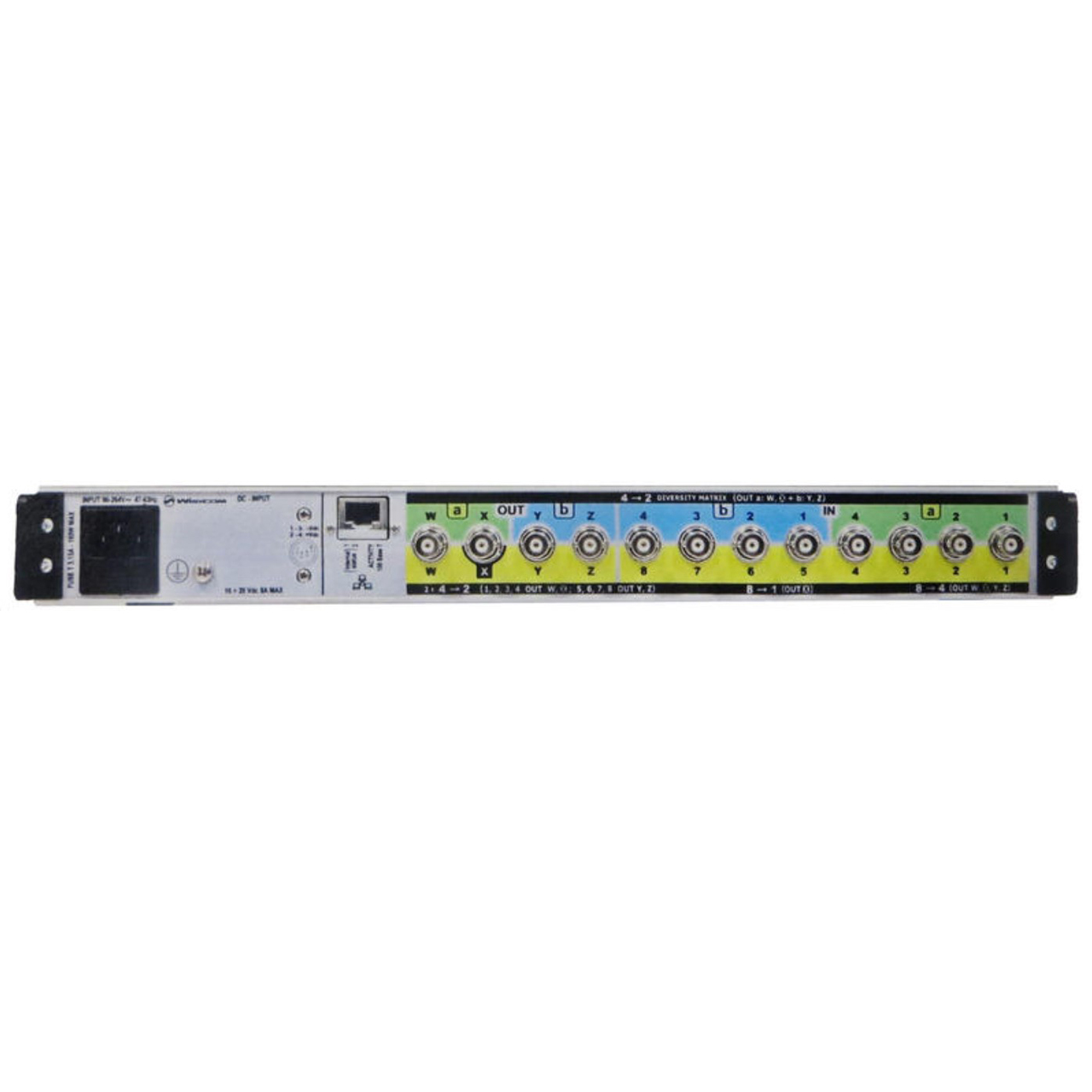

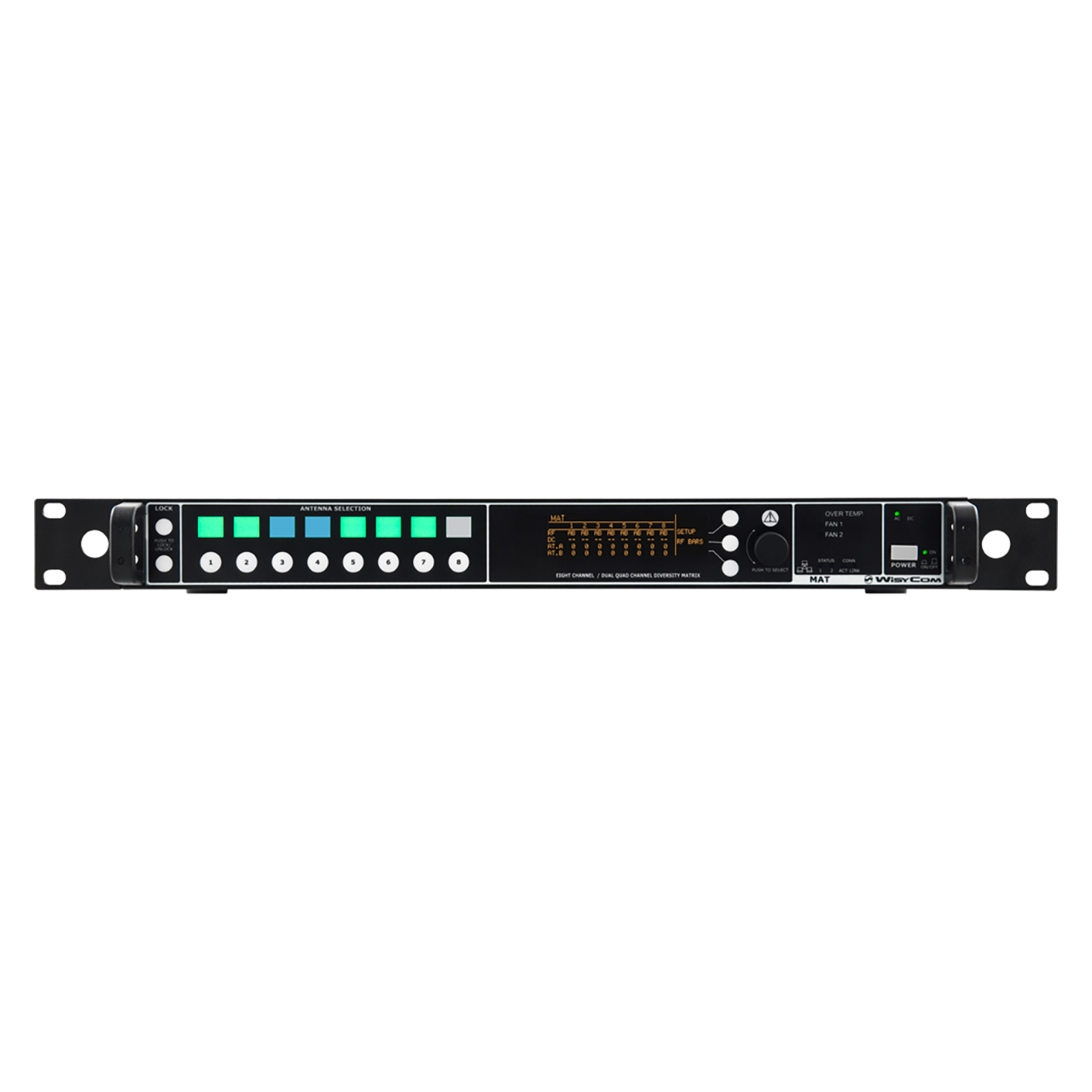

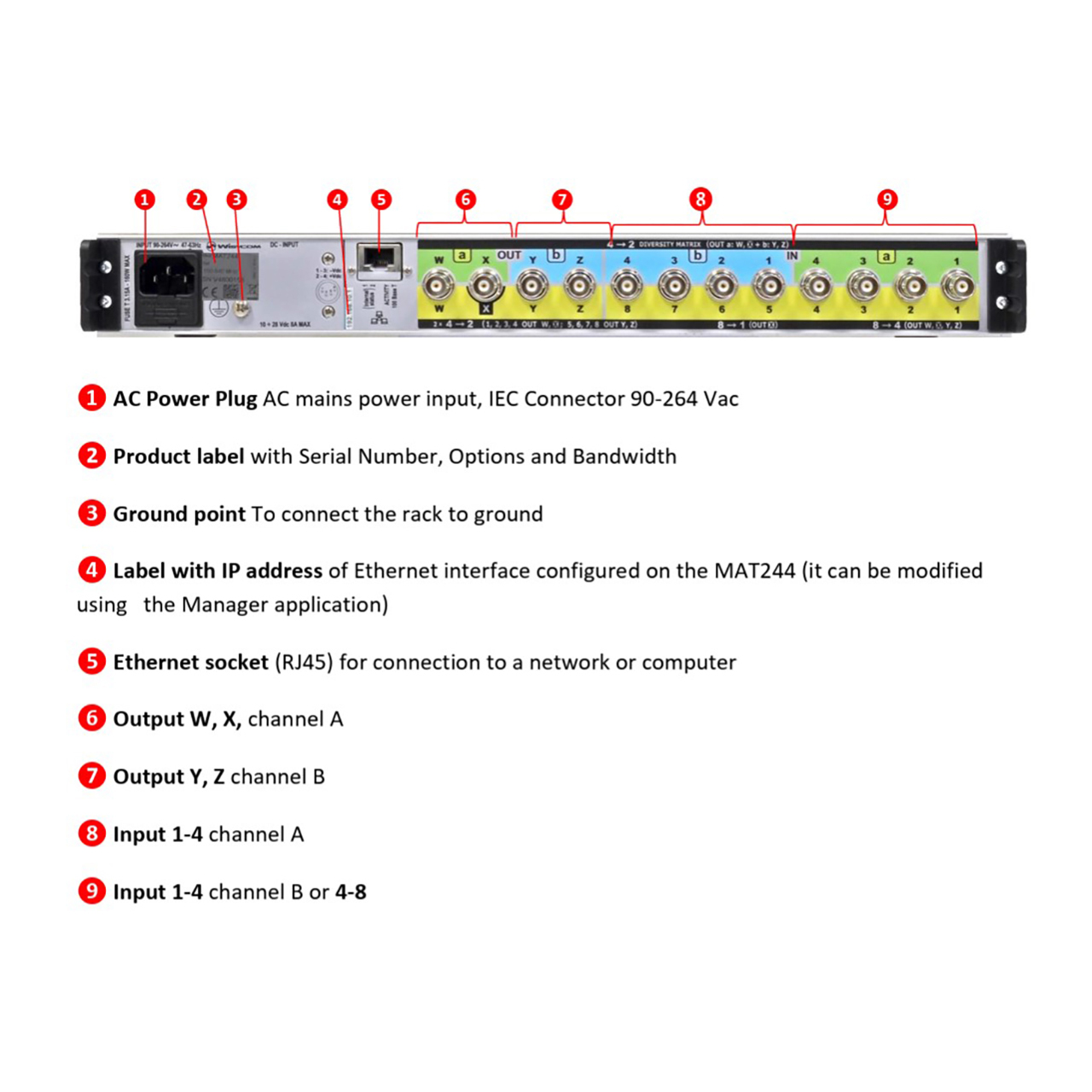

The Wisycom MAT244-X1-DC is a Wideband programmable diversity antenna matrix combiner for receive applications from 150MHz to 1160MHz. The MAT244 is used for expanding the receive coverage of microphones. The MAT244 allows for up to 4 zones of diversity coverage. Using the network connection, monitor and control the MAT244 from Wisycom Manager for PC. The MAT244 provides individual gain control for every input. The MAT244 can provide the 12V bias required for Wisycom active antennas. Utilize the full control of Wisycom smart antennas, such as the LFA, ADFA, and BFA. Connect via coaxial and manage the gain and filters of the antennas from hundreds of feet away on the panel of the MAT244, or through Wisycom Manager for PC. The MAT244-DC additionally offers 12VDC power input for redundancy.
