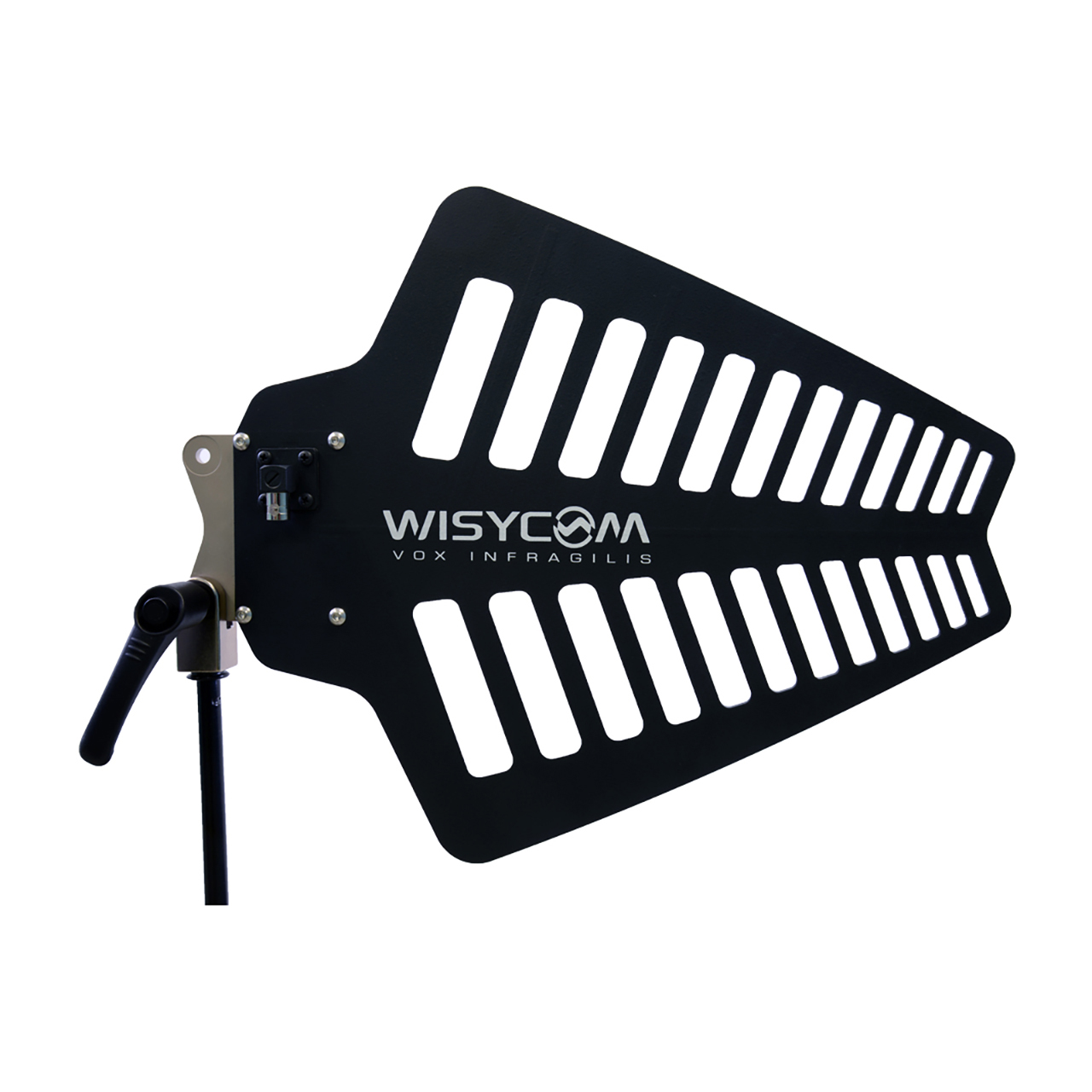

Primary Image

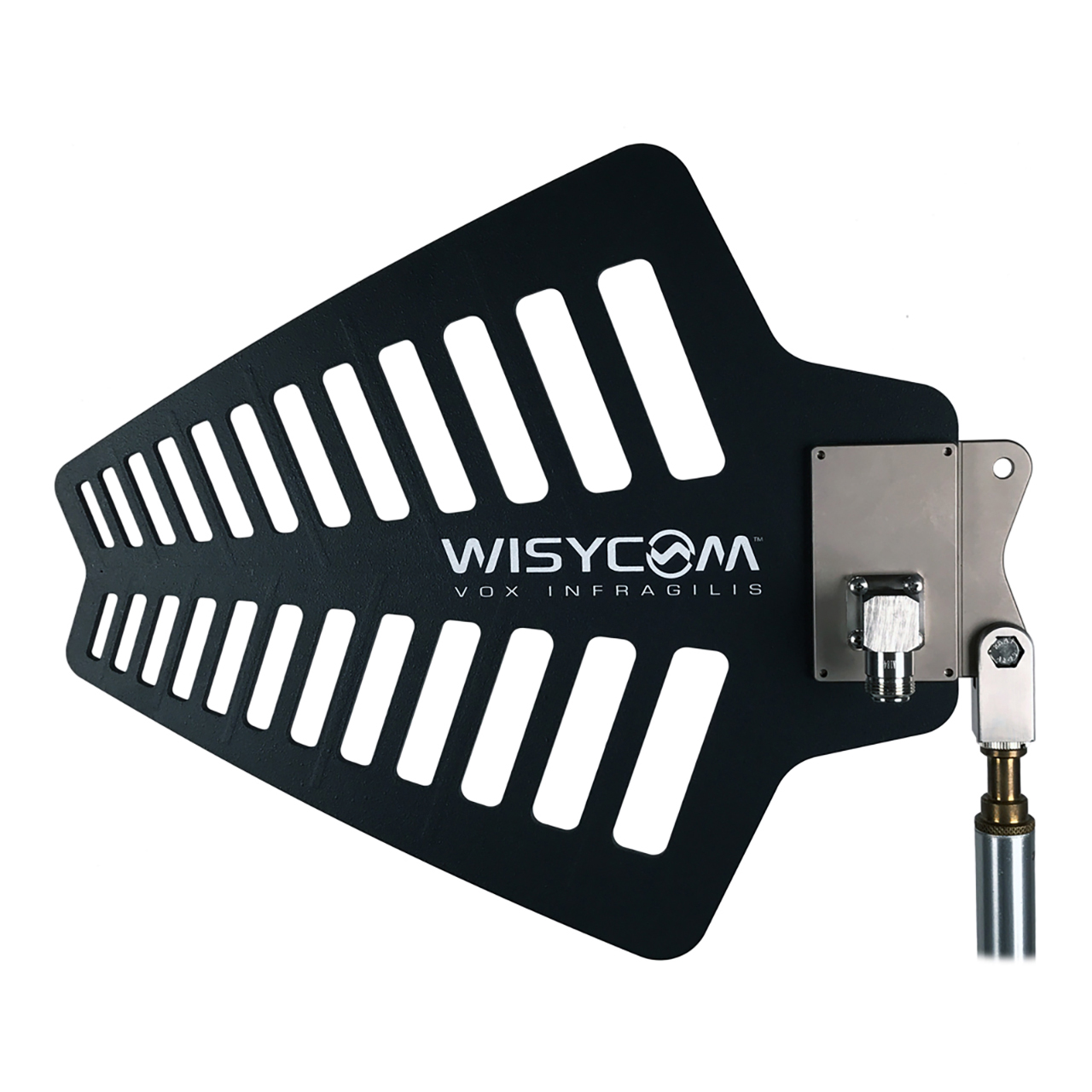

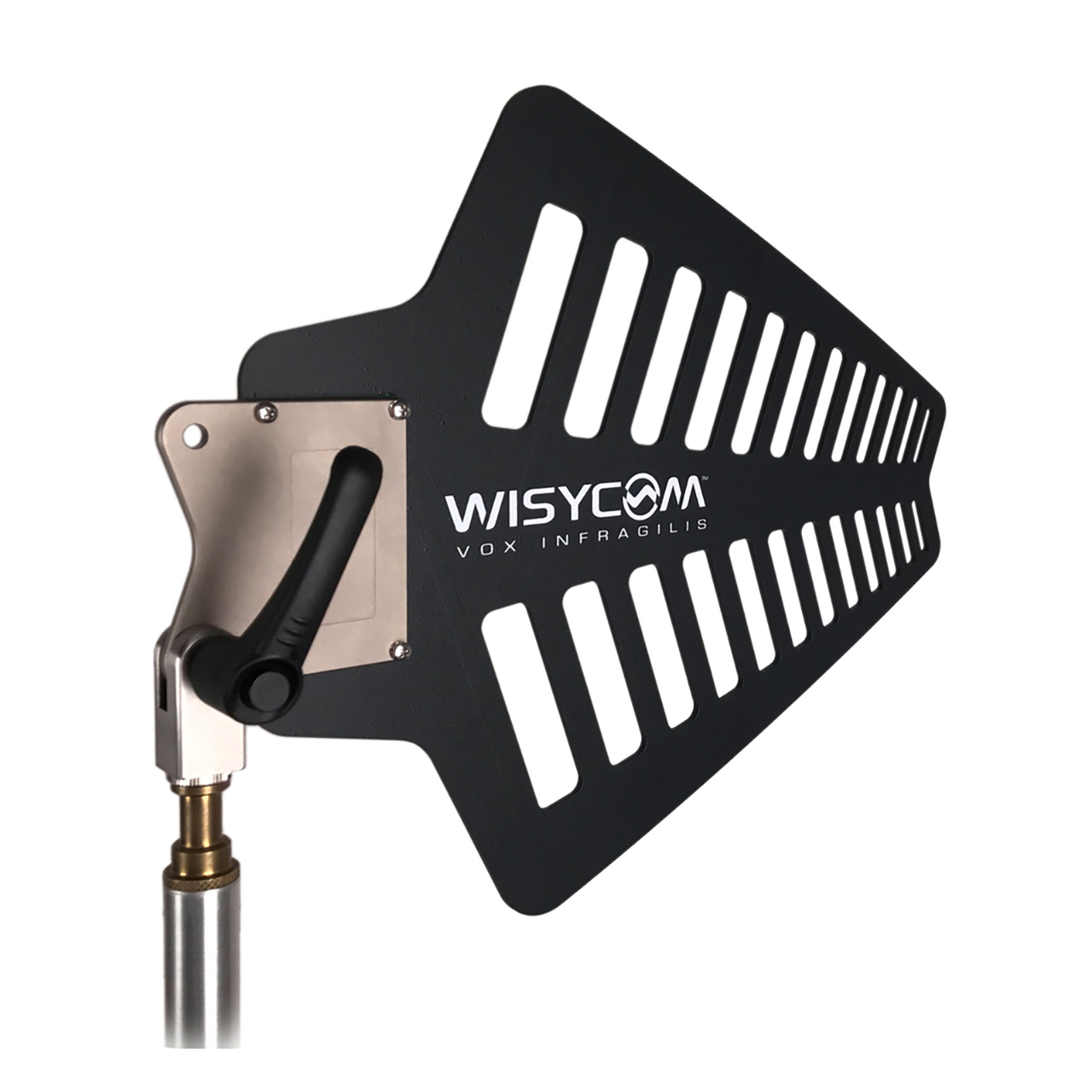

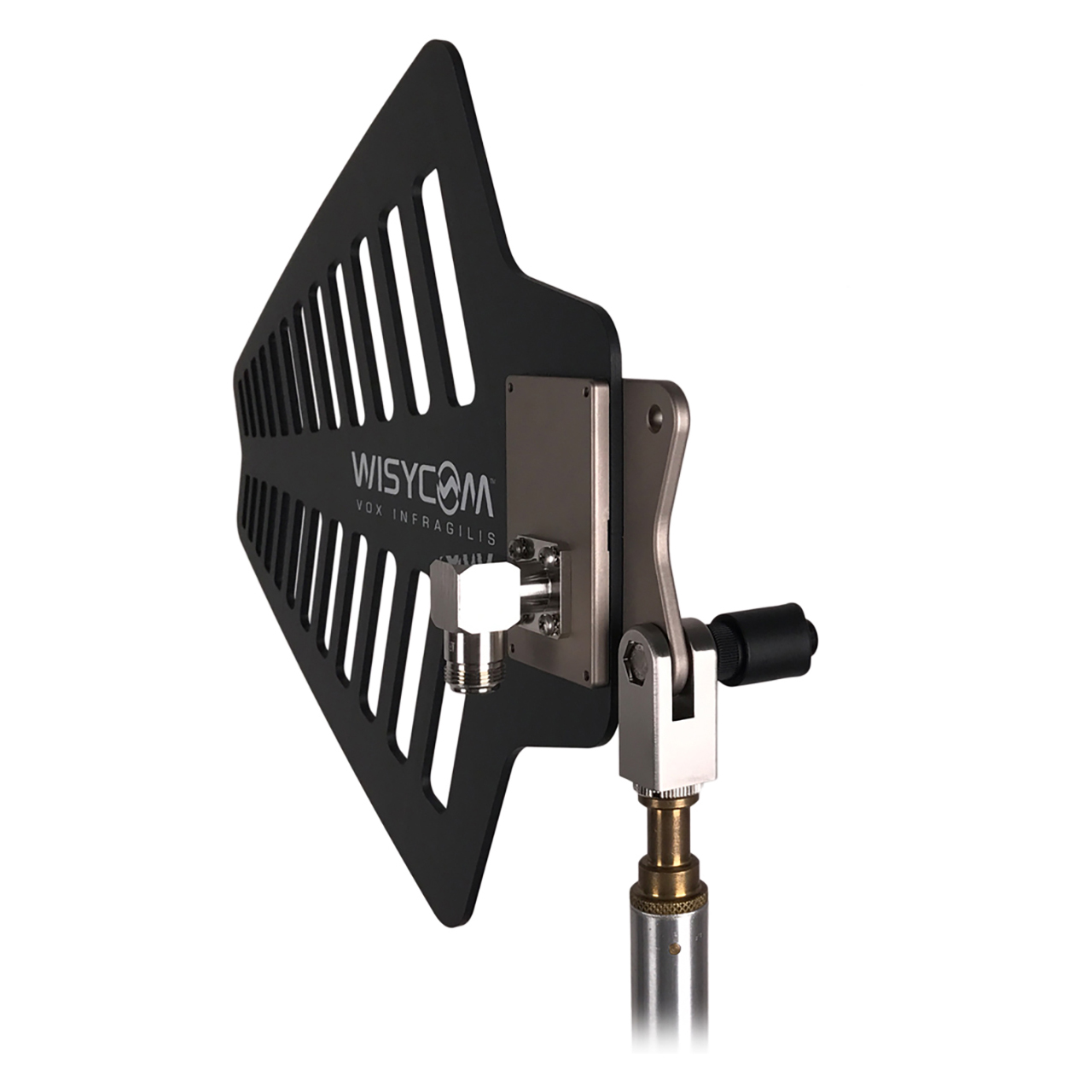

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Wisycom
Free Shipping with $49 Minimum Order

List Price:

$250.00

Our Price:

$225.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

LBN2 - Overview

The Wisycom LBN2 is a passive wide band UHF directional antenna. The LBN2 is a passive directional antenna for receiving or transmitting frequencies between 420MHz and 1300MHz. Featuring a BNC connector for easy connection.

  • Features:

    • Skeletal Design for Minimal Wind Loading
    • Bend elements for maximal directionality with minimum size (6 dBi gain)
    • Future proof huge reception bandwidth 420-1300 GHz
    • Robust metal support with fine slope tuning
    • Full metal support and mounting base (1/4? & 3/8?)
    • Textured Weather-Resistant Coating
    • Waterproof with gasket sealing


  • Specifications:

    • Frequency Ranges: 420 - 1300MHz
    • SWR: < 1:1.5; typ. = 1:1.4
    • Polarization: Vertical
    • Radiation: Directional
    • Connector: BNC
    • Impedance: 50Ω
    • Material: Epoxy fiberglass (copper - clad)
    • Finishing: Black Matte
    • Mounting: 5/8" with worth or 3/8" with adapter
    • Dimensions: 10.86" x 13.22" x 2.4" (276mm x 336mm x 61mm)


  • Item Includes:

    • 1x Wisycom LBN2 Directional Wideband Passive Antenna - BNC Connector


  • Warranty:

    • 1 Year Limited Warranty
