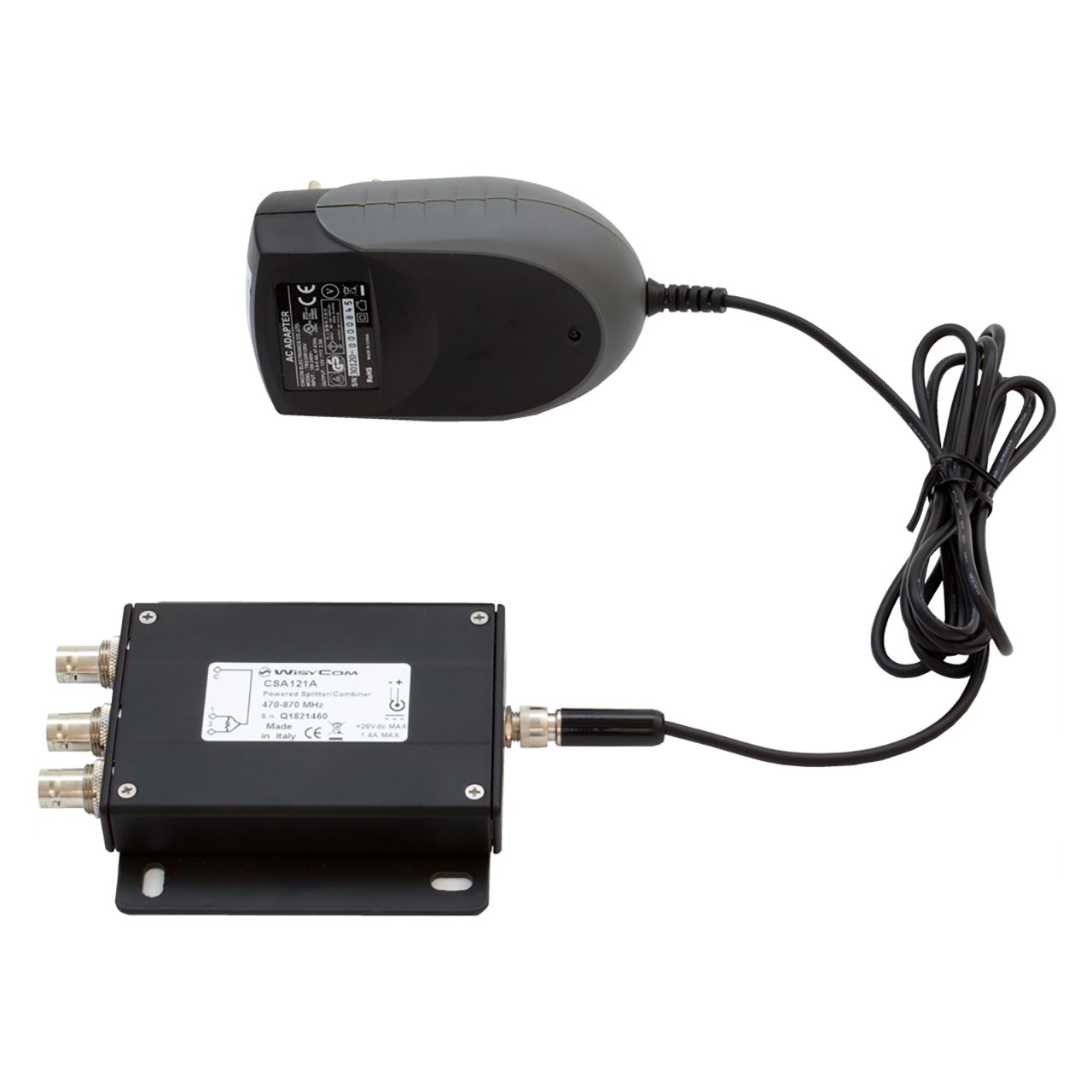

Wisycom CSA121-A Powered Wideband Combiner/Splitter - Standard Version - 470 to 960 MHz

ITEM #: WIS-CSA121-A MFG #: CSA121-A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Wisycom
Free Shipping with $49 Minimum Order

List Price:

$356.00

Our Price:

$320.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CSA121-A - Overview

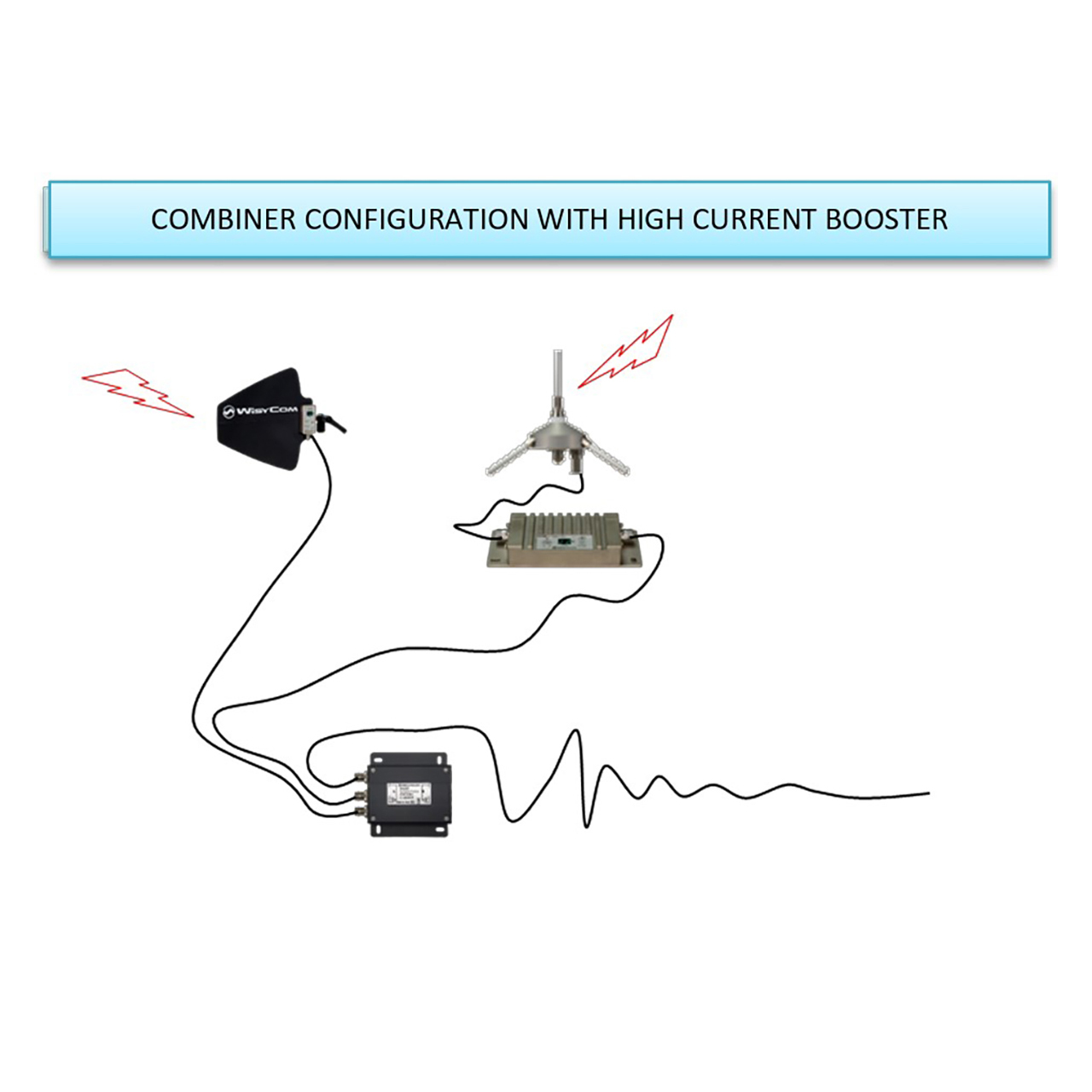

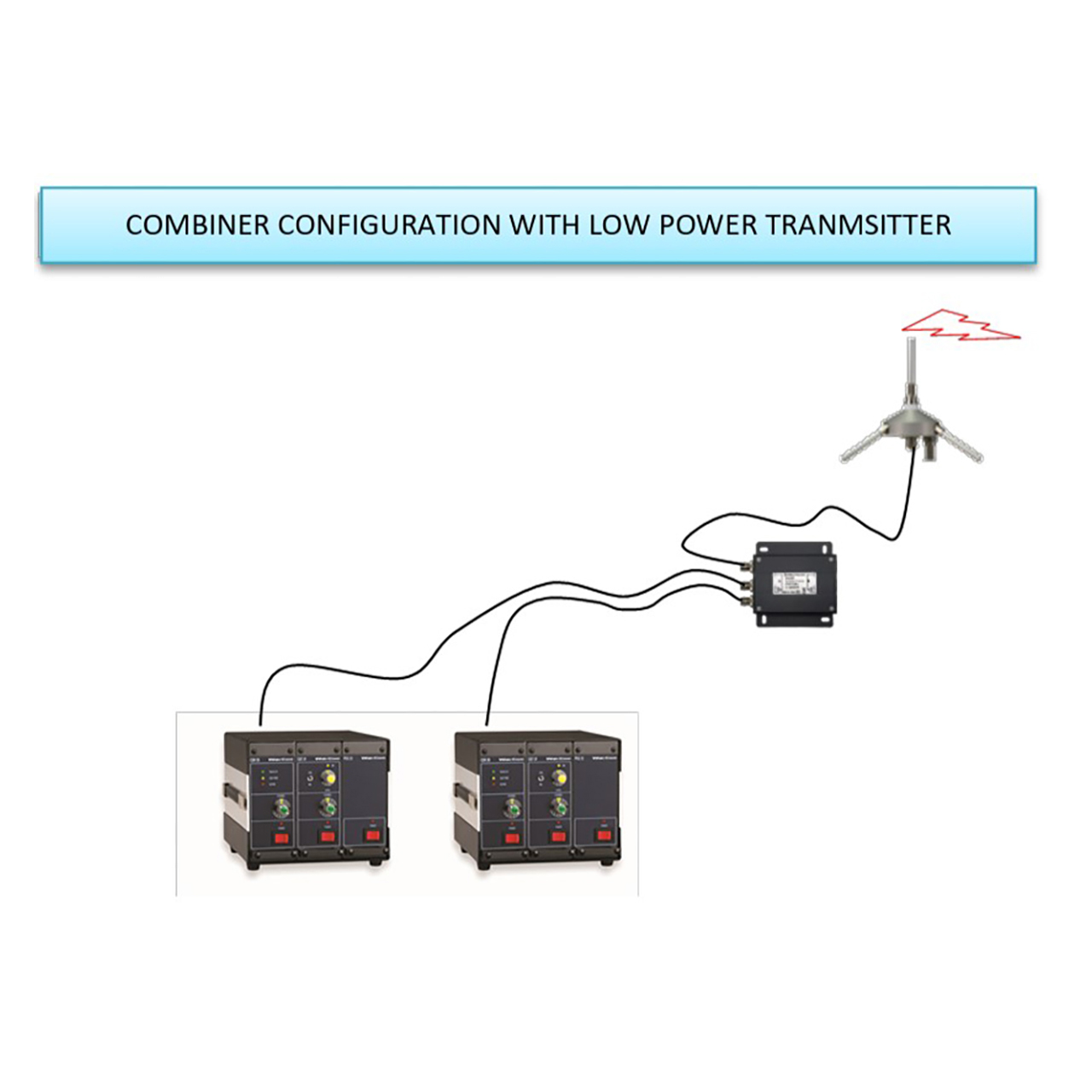

The Wisycom CSA121-A is a DC-coupled splitter/combiner for UHF microphone applications. Utilizing an external power 12VDC power supply, the CSA121A provides 12V bias to all three BNC connectors. The CSA121A can be used as a splitter, or combiner for receive antennas.

  • Features:

    • Small and compact splitter/combiner, stripline construction
    • Wide band operation
    • Supplied with 230/110 Vac power supply with locking connector


  • Specifications:

    • Frequency Ranges: 470 - 960MHz
    • Splitter/Combiner Loss: 4dB
    • Max Input Power: 125mW
    • Connector: 3x BNC-F
    • Impedance: 50Ω
    • Power Supply: 230/110 V AC
    • Max Current thru Port: 1,5A
    • Material: Aluminum
    • Finishing: Black Varnish
    • Mounting: Mounting plate holes (M5 screw type)
    • Dimensions (HxWxD): 0.78" x 3.93" x 4.92" (20mm x 100mm x 125mm)
    • Weight: 0.37lbs (170g)


  • Item Includes:

    • 1x Wisycom CSA121-A Passive Wideband Combiner/Splitter - Standard Version
    • 1x 230/110 VAC Power Supply with Locking Connector


  • Warranty:

    • 1 Year Limited Warranty
