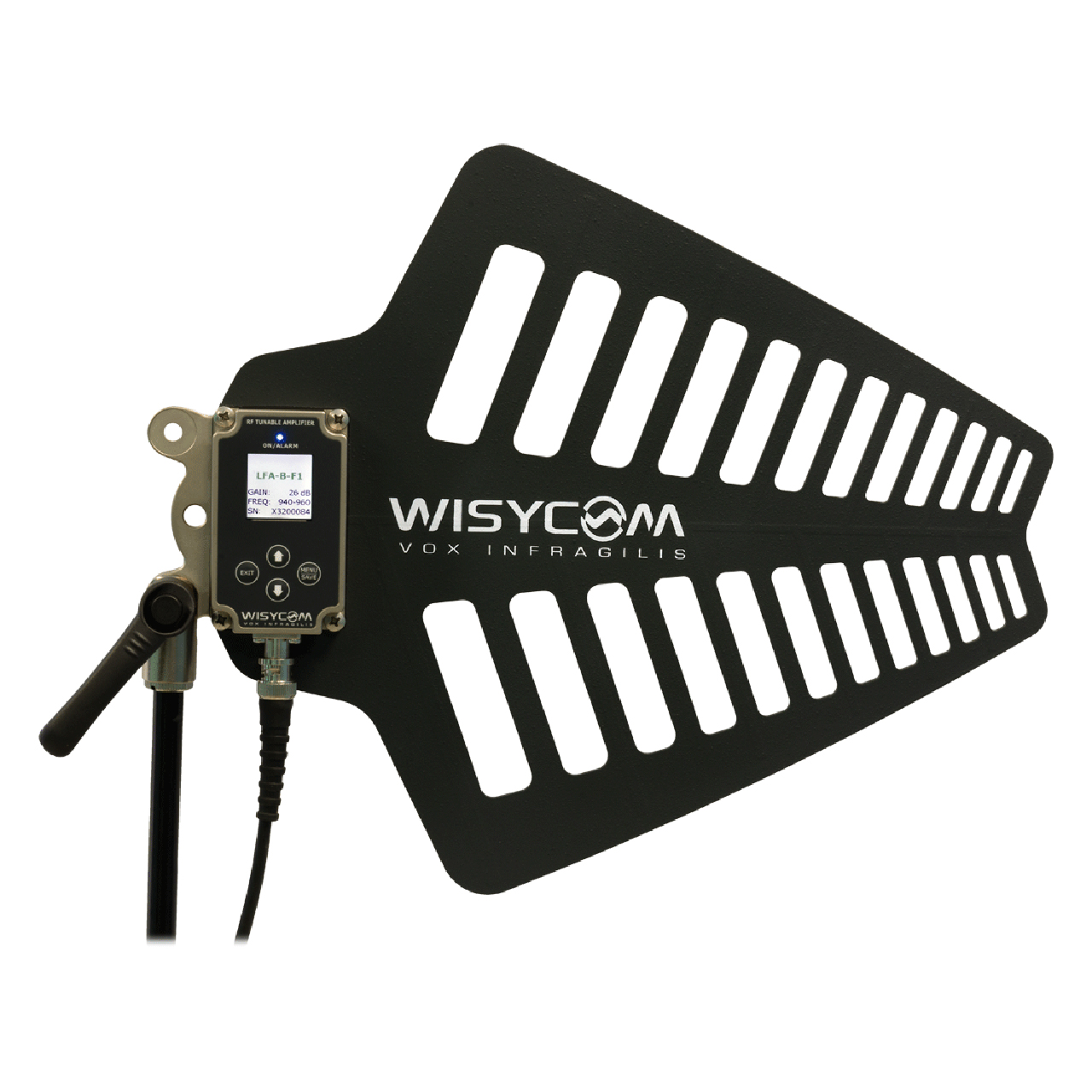

Wisycom LFA-B-F2 Directional Wideband Active Antenna with Tunable Filter - BNC Connector - 410 to 1300MHz

ITEM #: WIS-LFA-B-F2 MFG #: LFA-B-F2

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,028.00

Our Price:

$925.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LFA-B-F2 - Overview

The Wisycom LFA-B-F2 is an active, filtered, UHF directional antenna. The LFA-F2 has three software selectable filter options, allowing for a wide range of use in microphone receive applications. Selectable Highpass options 470/520/550 MHz with a lowpass option 617/663/698 MHz. The second filter option is a 40MHz bandwidth tunable filter, utilizing 1MHz steps from 430MHz to 730MHz. The final filter is a fixed saw filter for the United States from 940MHz to 960MHz. The LFA additionally offers adjustable gain from a -12dB attenuation to +27dB boost. When paired with a Wisycom MAT288/244, SPL2208/2216, or MRK16 the LFA can be remote controlled. The LFA requires +12V 100mA for full operation. LFA-B-F2 features a BNC connector for easy connection.

  • Features:

    • Huge reception band: 410 - 1300MHz
    • Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
    • RF gain from -12dBu to +27dBu (1dB step)
    • Easy configuration thru a TFT display
    • Tunable filter for interference control
    • Antenna off for RF zone disabling
    • Fixed band saw filter
    • Skeletal design for low wind loading
    • 3 High Pass & 3 Low Pass filters
    • Waterproof with gasket sealing

  • Specifications:

    • Frequency Ranges: 410 - 1300MHz
    • Filter Range:
      - Tunable: 430 - 730MHz (UHF), 40MHz of BW
      - Fixed: 940 - 960MHz or 1240 - 1260MHz
      - Selectable Band Pass Filter: HP 410/470/510MHz, LP 600/700/810MHz (other see filter option)
    • Polarization: Vertical
    • Radiation: Directional
    • Connector: BNC
    • Impedance: 50Ω
    • Booster Gain: -12dB - 27dB typical (1dB step selection), 0.8dB attenuation (bypassed)
    • Booster Gain Flatness: ±1dB, in the whole working window
    • Display: TFT - transflective (176 x 176 pixels, RGB)
    • Power Supply: +12V, 100mA
    • Operating Voltage Range: 9.5V - 16V DC
    • Material: Epoxy fiberglass with skeletal design
    • Finishing: Black matte textured weather resistance coating
    • Mounting: 5/8" with worth or 3/8" with adapter
    • Dimensions (HxWxD): 10.86" x 13.22" x 2.4" (276mm x 336mm x 61mm)
    • Weight: 1.21lbs (550g)

  • Item Includes:

    • 1x Wisycom LFA-B-F2 Directional Wideband Active Antenna with Tunable FIlter - BNC Connector

  • Warranty:

    • 1 Year Limited Warranty
