Wisycom LBNA2 Directional Wideband Active UHF Antenna with Integrated Booster - BNC Connector - 470 to 870MHz

ITEM #: WIS-LBNA2 MFG #: LBNA2

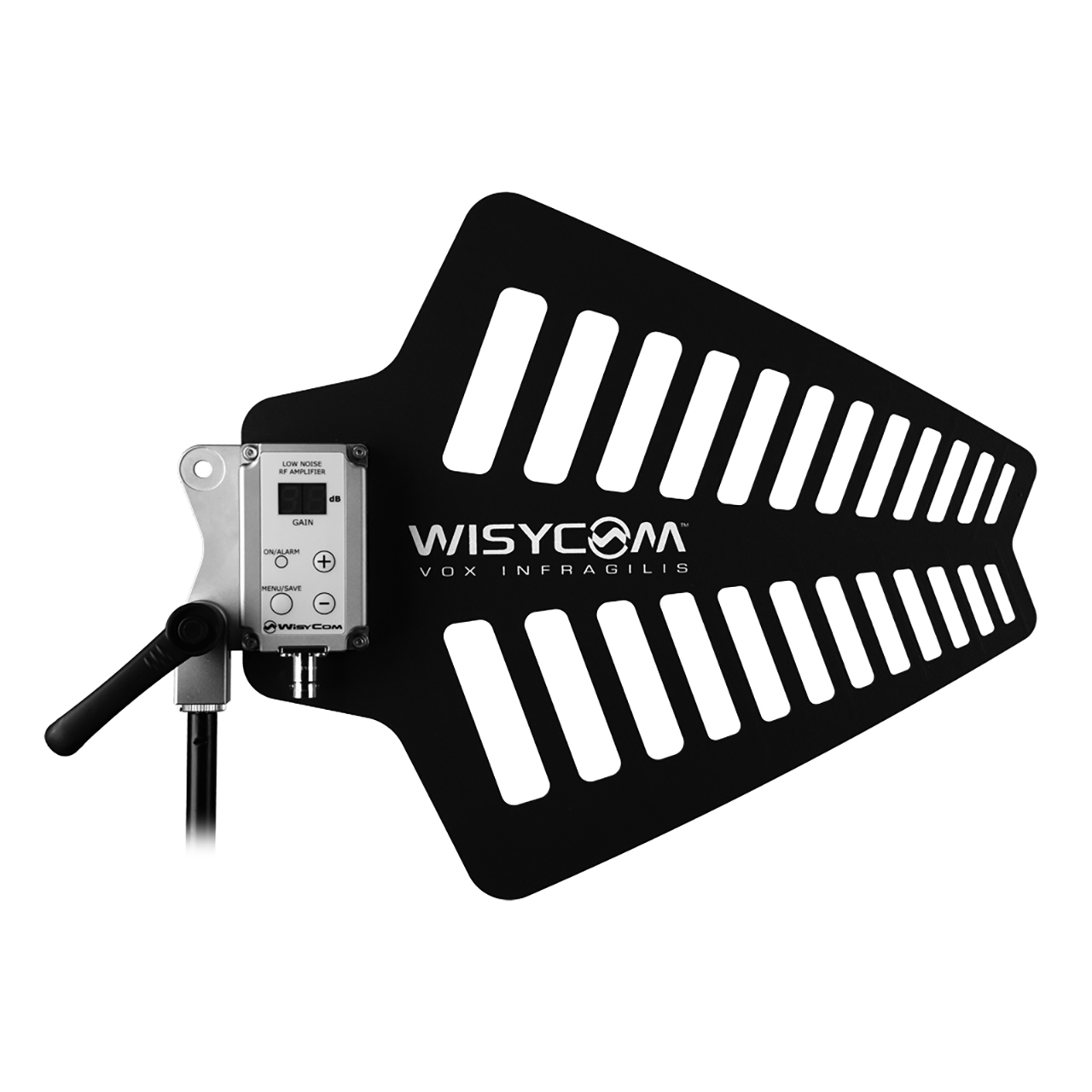

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$644.00

Our Price:

$580.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LBNA2 - Overview

The Wisycom LBNA2 is a directional antenna with booster for UHF receive applications. The LBNA2 offers up to 15 dB gain in 1dB steps for microphone receive applications. The LBNA2 requires +12V 100mA for full operation. Featuring a BNC connector for easy connection.

  • Features:

    • Agile: working bandwidth of 470-870 MHz
    • Easy & Quick To Use: LED display & function buttons
    • Ruggedized: sturdy metal body construction and epoxy protection on cable joints
    • High-Performances: optimized 6dB gain with a typical beam-width of 90 degrees
    • Integrated Booster: very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step

  • Specifications:

    • Frequency Ranges: 470 - 870MHz (420 - 1300MHz bypassed)
    • SWR: < 1:1.5; typ. = 1:1.4
    • Polarization: Vertical
    • Radiation: Directional
    • Connector: BNC
    • Impedance: 50Ω
    • Booster Gain: 0dB - 15dB (typical), selectable in step of 1dB (+/- button)
    • Booster Gain Flatness: +1dB, in the whole working window
    • OIP3: +43dBm (Output 3° order Intercept Point) typical
    • Power Supply: +12V, 100mA
    • Material: Epoxy fiberglass (copper - clad)
    • Finishing: Black Matte
    • Mounting: 5/8" with worth or 3/8" with adapter
    • Dimensions (HxWxD): 10.8" x 13.22" x 2.4" (276mm x 336mm x 61mm)
    • Weight: 1.17lbs (535g)

  • Item Includes:

    • 1x Wisycom LBNA2 Directional Wideband Active Antenna with Integrated Booster - BNC Connector

  • Warranty:

    • 1 Year Limited Warranty
