West Penn 254346AF 4 Pair 23AWG F/UTP 10G CMP Cat6A Premise Horizontal Cable - Black - 1000 Foot

ITEM #: WP-254346AF1000B MFG #: 254346AFBK1000

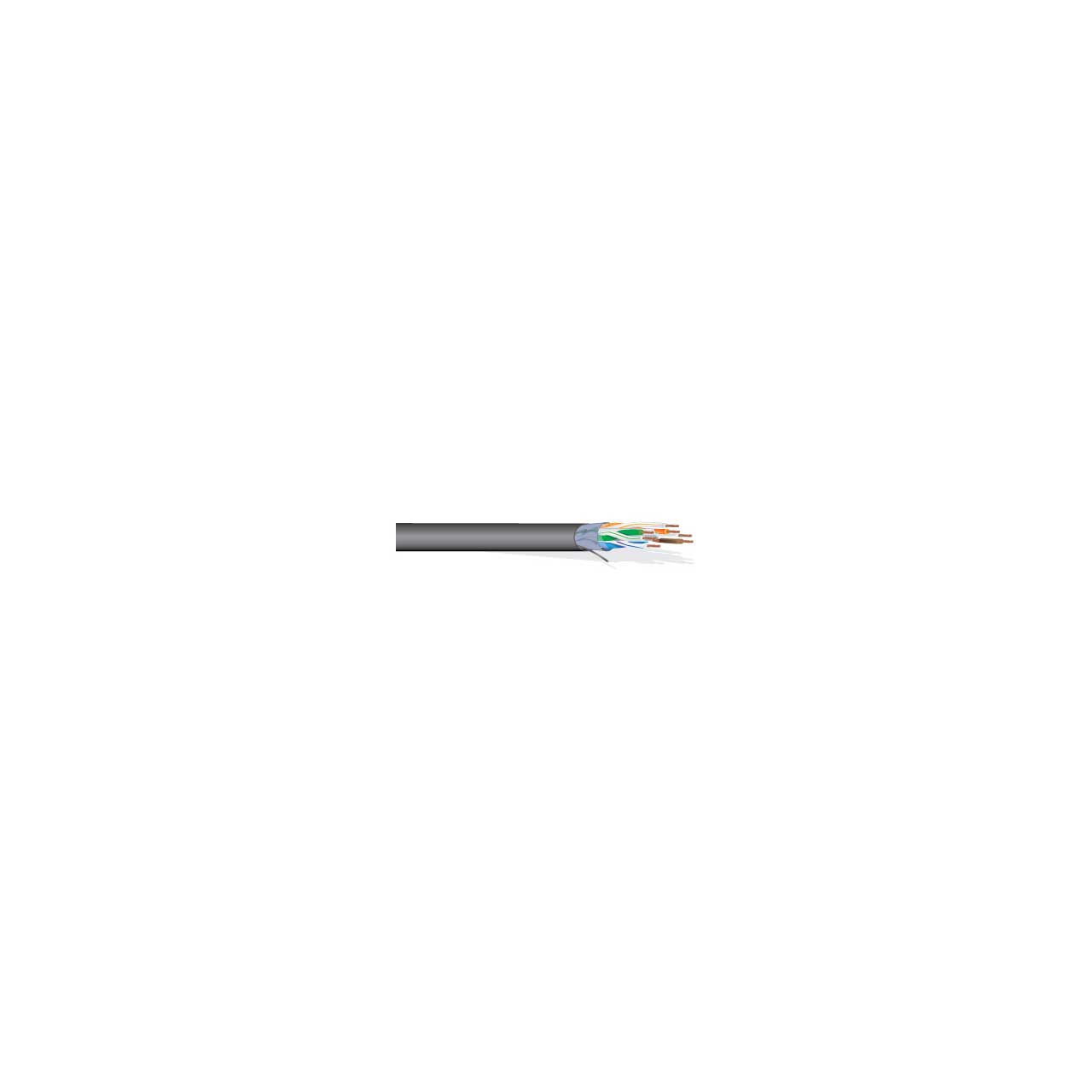

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$890.10

Our Price:

$719.97

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

254346AFBK1000 - Overview

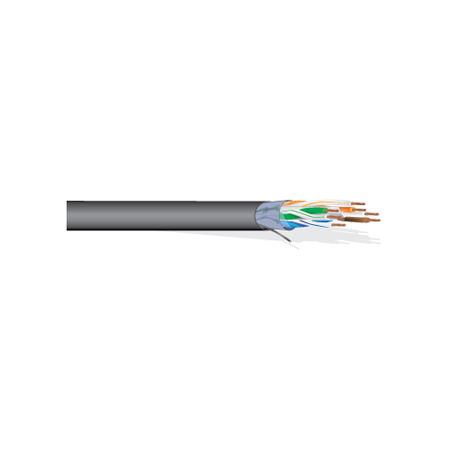

West Penn 254346AF is a 4 Pair 23AWG F/UTP Cat6A 10G CMP Small OD Premise Horizontal Cable for Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments. Replaces: 254246AF.

  • Specifications:

    • Number Of Pairs: 4
    • AWG Size: 23
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 21 Ohm/1000f
    • Insulation Type: Flouropolymer - FEP
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
    • Shield Type: 100% Aluminum Foil + Drain Wire - Drain Over the Foil
    • Nominal Impedance: 100 Ohm
    • Nominal Capacitance Between Conductors: 13 pF/f
    • Total Number of Conductors: 8
    • Jacket Type: Flexible Plenum
    • Nominal Cable O.D.: .265 in
    • Plenum: Yes
    • NEC UL Rating: CMP NFPA262 Plenum
    • RoHS Compliant: Yes
    • ANSI/TIA Category: ANSI/TIA-568.2-D Category 6A
    • TIA Test Category: 6A
    • Pull Tension: 25 lbs
    • Bend Radius: 1.25 in
    • Cable Weight: 37 lbs
    • Nominal Velocity of Propagation (VP): 69 %
    • Delay Skew: 45 ns/100m
    • UL Flammability: NFPA 262 Plenum
    • CSA Flammability: FT6
    • Operating Range: -20 to 75 Deg C
    • UL Voltage Rating: 300


  • Item Includes:

    • 1x West Penn 254346AF 4 Pair 23AWG F/UTP Cat6A Cable 10G CMP - Black - 1000 Foot
