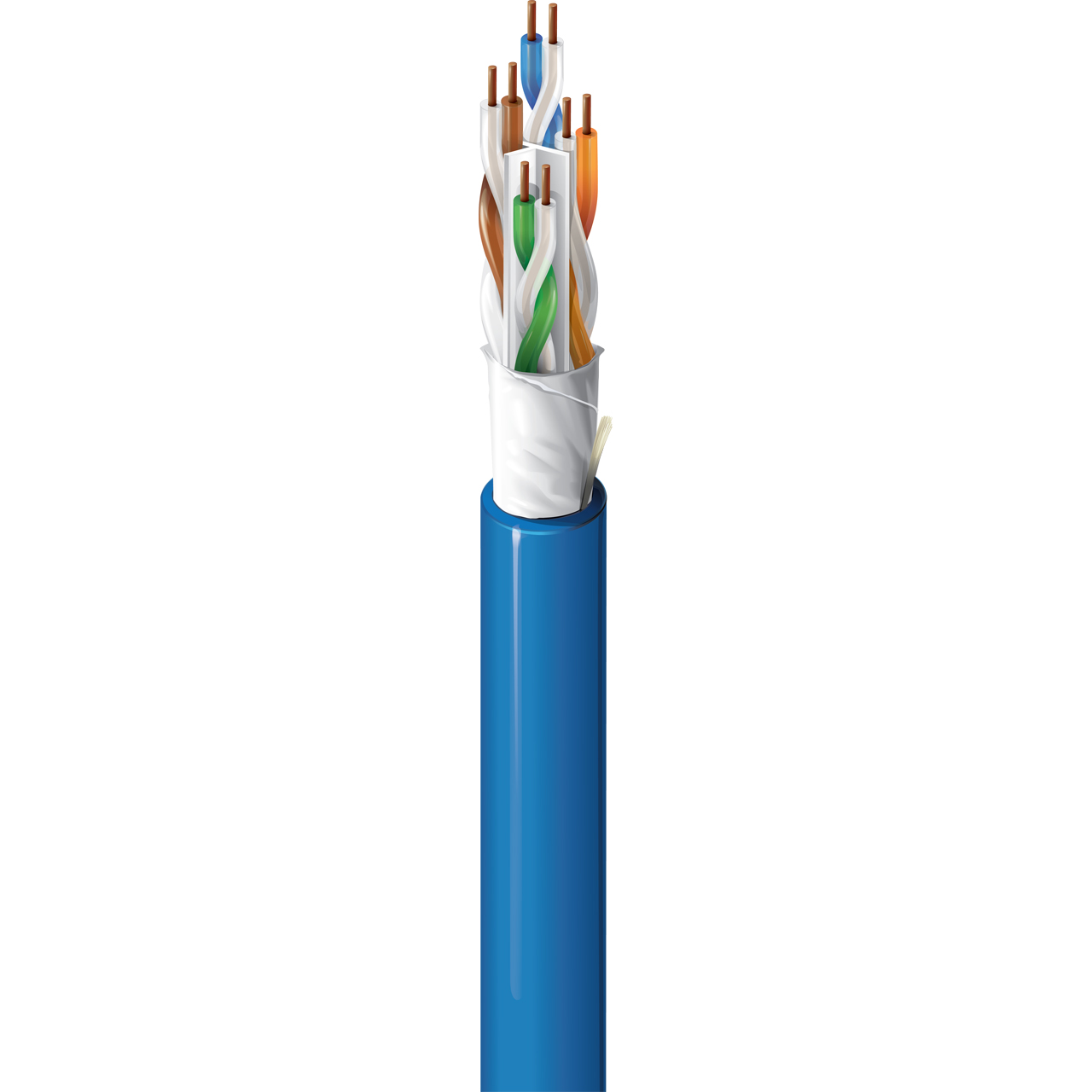

West Penn 4346A 4-Pair 23AWG CAT6A UTP CMR/CMR-LP Cable - Blue - 1000 Foot - Unshielded

ITEM #: WP-4346A-1000-BE MFG #: 4346ABL1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$430.40

Our Price:

$397.23

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    4346ABL1000 - Overview

    Premise Horizontal Cable, Ethernet 10G-BASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, PoE++, PoE+, PoE, HD-BASE-T.

    • Specifications:

      • Number Of Pairs: 4.
      • AWG Size: 23.
      • Conductor Stranding: Solid.
      • Conductor Type: Bare Copper.
      • Nominal DCR: 21 Ohm/1000ft.
      • Insulation Type: Polyolefin.
      • Insulation Color Code: 1.Blue,White 2.Orange,White 3.Green,White 4.Brown, White.
      • Shield Type: Overall 100% Aluminum Foil (F/UTP).
      • Drain Wire AWG Size: 24 AWG.
      • Drain Wire Type: Tinned Copper.
      • Nominal Impedance: 100 Ohm.
      • Nominal Capacitance Between Conductors: 16 pF/ft.
      • Total Number of Conductors: 8.
      • Jacket Type: PVC.
      • Nominal Cable O.D.: 0.265 in.
      • Plenum: No.
      • NEC UL Rating: CMR.
      • RoHS Compliant: Yes.
      • ANSI/TIA Category: Category 6A TIA/EIA 568.2-D.
      • TIA Test: ANSI/TIA-568.2-D.
      • Pull Tension: 25 lbs.
      • Bend Radius: 1.25 in.
      • Cable Weight: 37 lbs.
      • Nominal Velocity of Propagation (VP): 70 %.

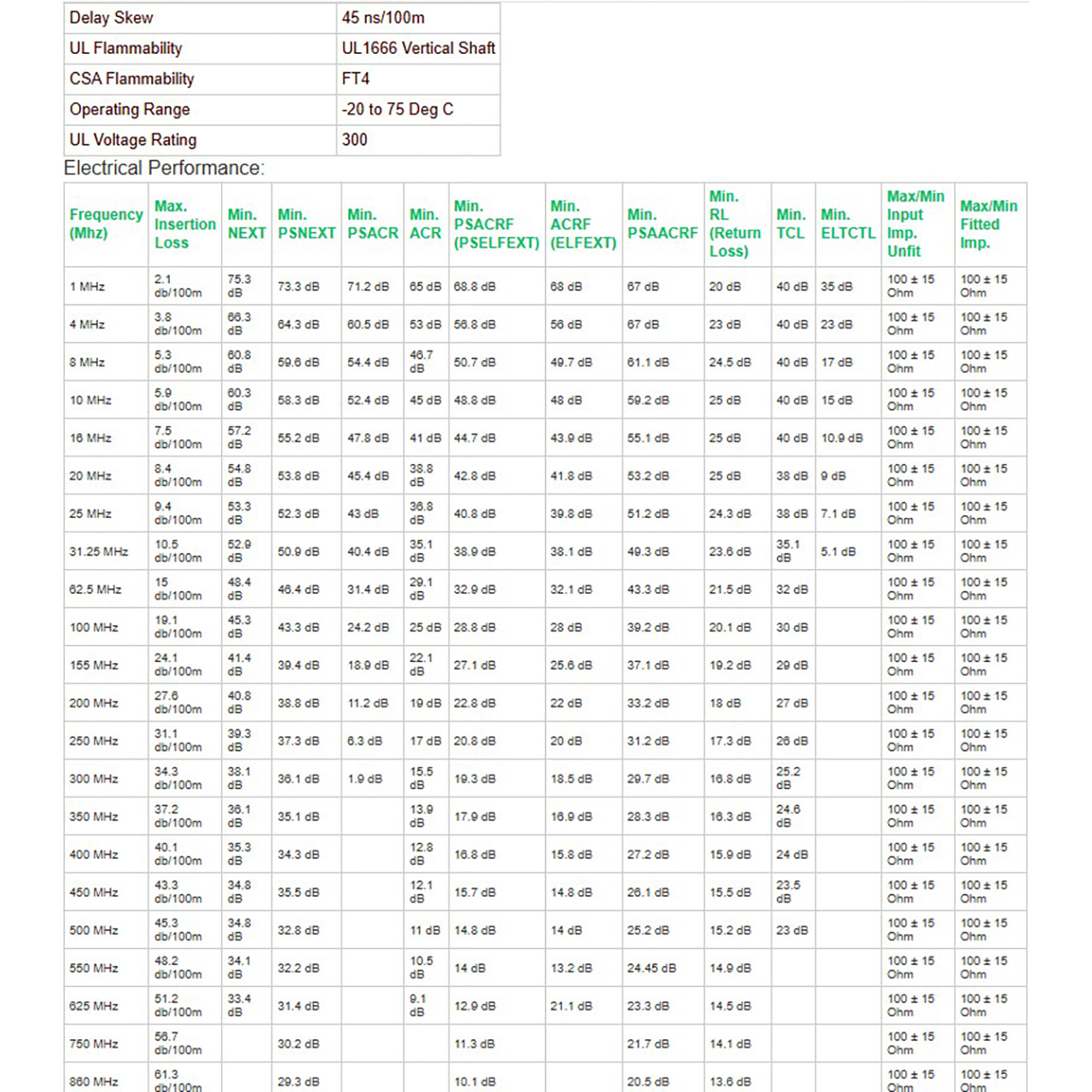

      • Delay Skew: 45 ns/100m.
      • UL Flammability: UL1666 Vertical Shaft.
      • CSA Flammability: FT4.
      • Operating Range: -20 to 75 Deg C.
      • UL Voltage Rating: 300.
