West Penn Wire DA2401 Single Pair AES/EBU Digital Cable 1000 Foot - Violet

ITEM #: WP-DA2401-1000VT MFG #: DA2401VT1000

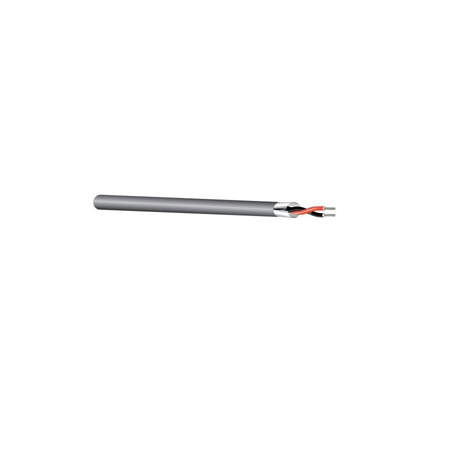

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WP-DA2401-1000VT

DA2401VT1000 - Overview

1Pr. 24AWG AES/EBU CM Digital Audio cable.

  • Specifications:

    • Number of Pairs 1
    • AWG Size 24
    • Conductor Stranding 7x32
    • Conductor Type Tinned Copper
    • Nominal DCR 26 Ohm/1000ft
    • Insulation Type Foam Polyethylene
    • Insulation Thi kness 0.022 in
    • Insulation Color Code 1. Black 2.Red
    • Shield Type Individually Shielded
    • Drain Wire Type Tinned Copper
    • Drain Wire AWG 24 AWG
    • Nominal Impedance 110 Ohm
    • Nom. Cap. Between Conductors 12.5 pF/ft
    • Nom. Cap. Conductor to Shield 22 pF/f
    • Jacket Type PVC
    • Jacket Thickness 0.030 in
    • Nominal Cable O.D. 0.178 in
    • Plenum No
    • NEC UL Rating CM
    • RoHS Compliant Yes
    • TIA Test AES/EBU
    • Pull Tension 17 lbs
    • Bend Radius 1.601 in
    • Cable Weight 14 lbs
    • Nominal Velocity of Propagation (VP) 76 %
    • UL Flammability UL1685
    • Operating Range -20 to 60 Deg C
    • UL Voltage Rating 300
