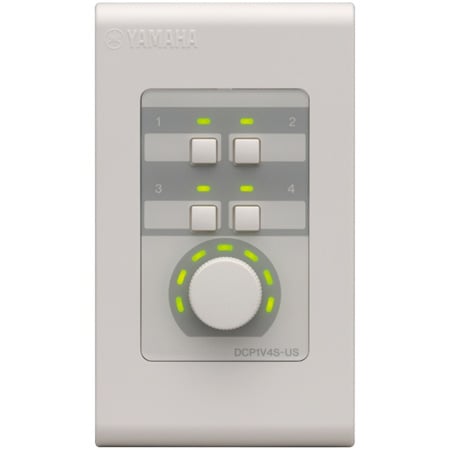

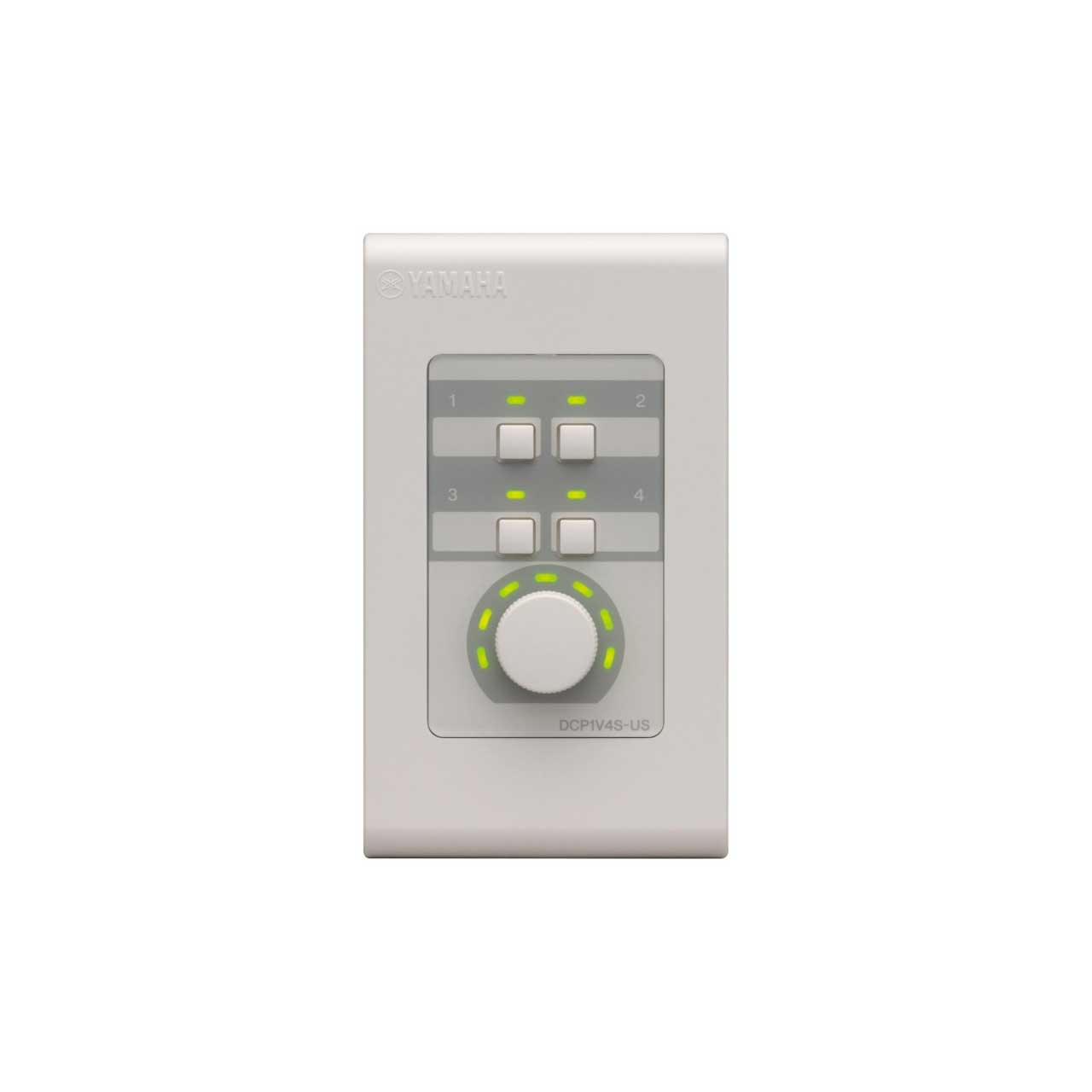

Yamaha DCP1V4S Digital Control Panel

Name: Yamaha DCP1V4S Digital Control Panel
Brand: Yamaha Corporation
SKU: YMH-DCP1V4S
Price: 141.99 USD
Availability: InStock

ITEM #: YMH-DCP1V4S MFG #: DCP1V4S

Yamaha Corporation

List Price:

$167.00

Our Price:

$141.99

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DCP1V4S - Overview

DCP1V4S with one volume knob and four switches controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback.

The series comprises of three different models that feature various configurations of switches and volume knobs. DCP controllers are connected to MTX/MRX series by using a daisy-chain connection up to eight control panels.

Features:
- In-wall volume and source selection control
- Compatible with Yamaha MA2120 and MA2030 mixer/amplifiers and PA2120 amplifier
- Backlit for ease of use in darkened environments
Specifications:
- Operating temperature range: 0 to +40 °C
- Storage temperature range: -20 to +60 °C
- Connectors: Cat5 or higher
- Dimensions (HxW): 4.72" (120 mm) x 2.76" (70 mm)
- Weight: 0.26 lbs (0.12 kg)
