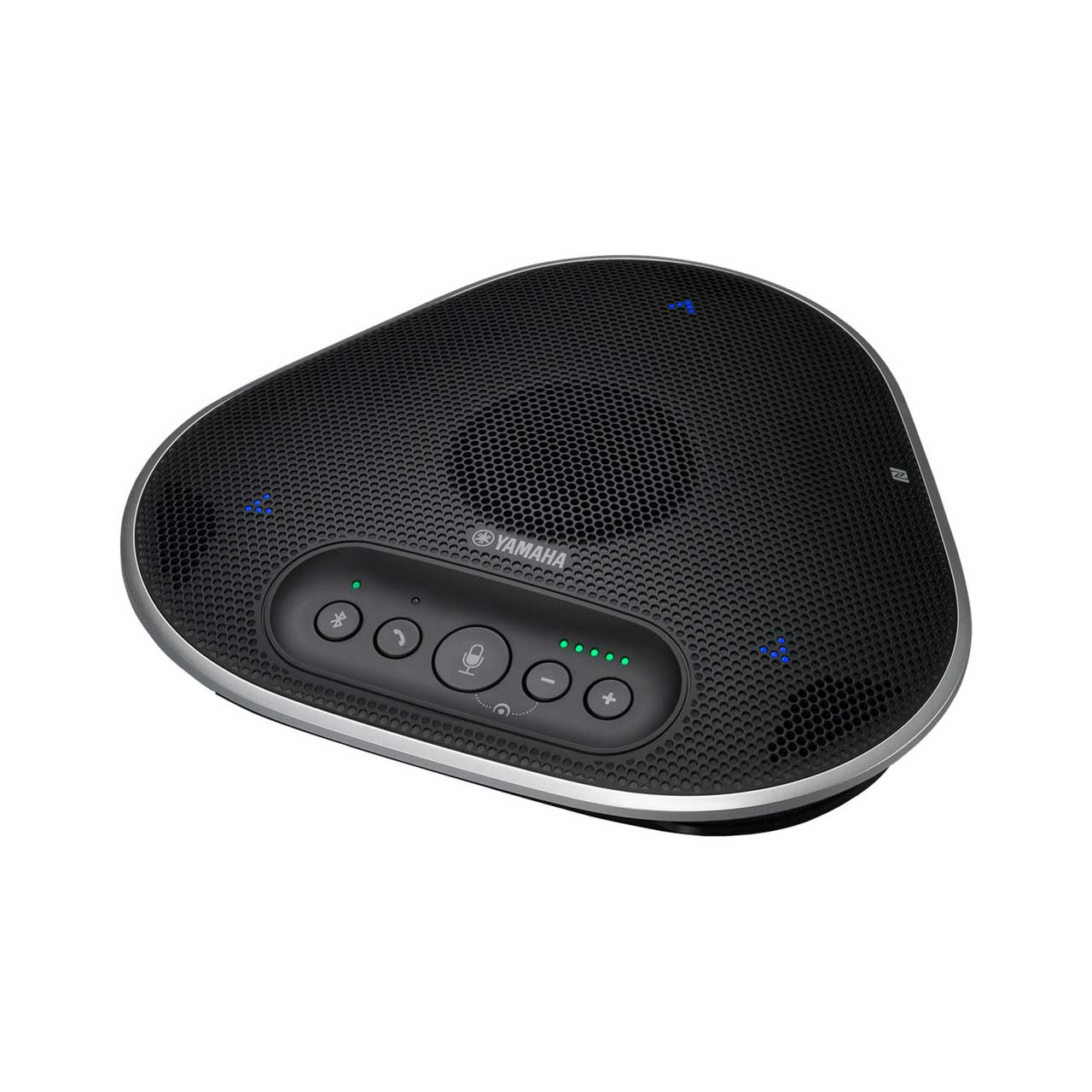

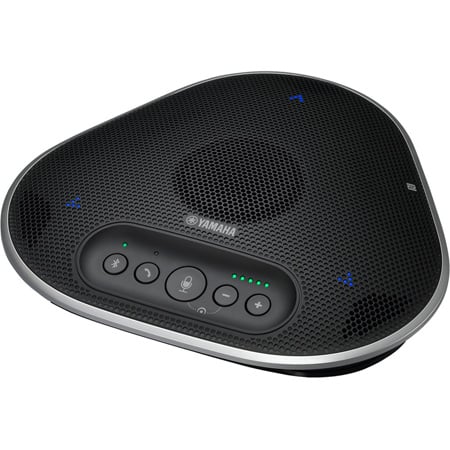

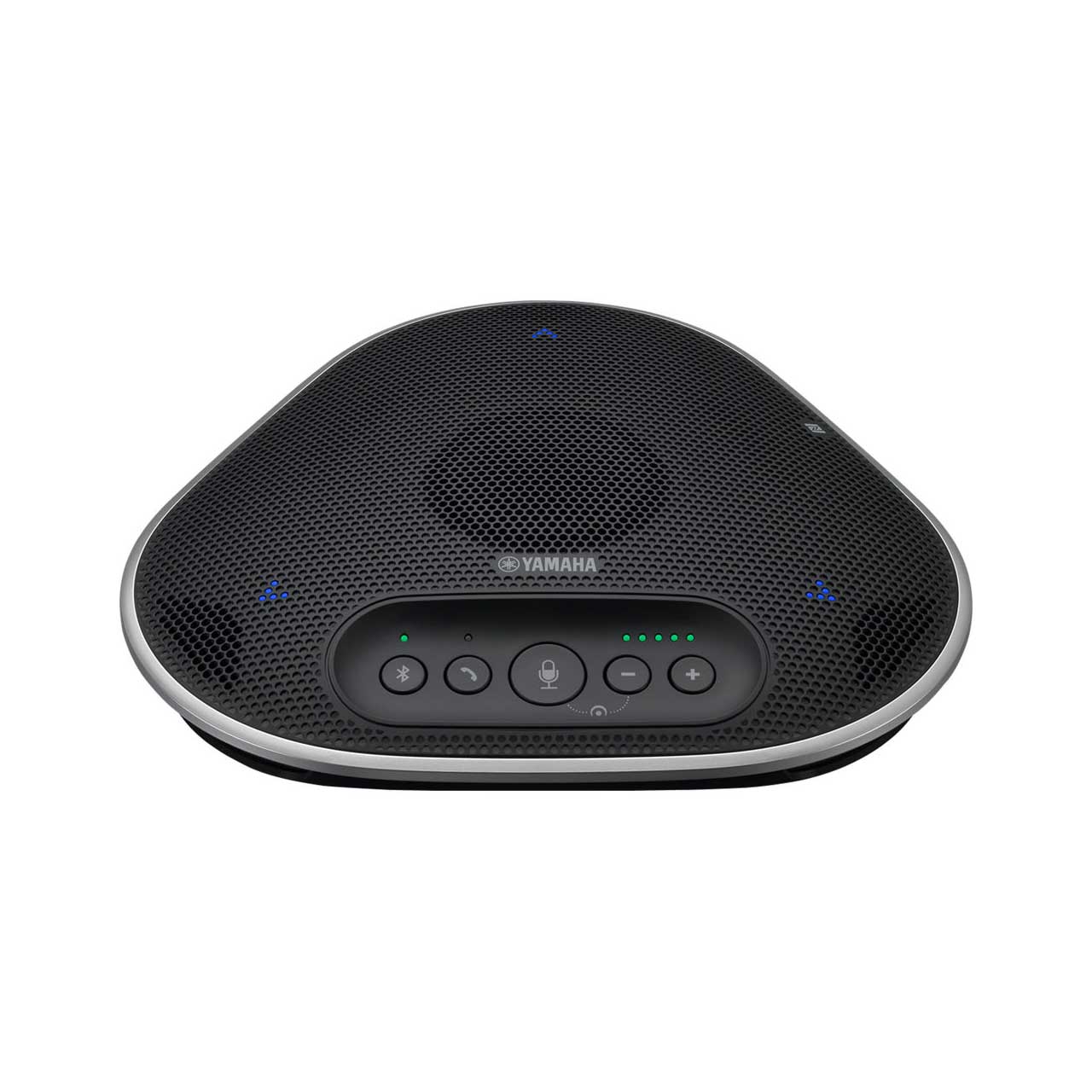

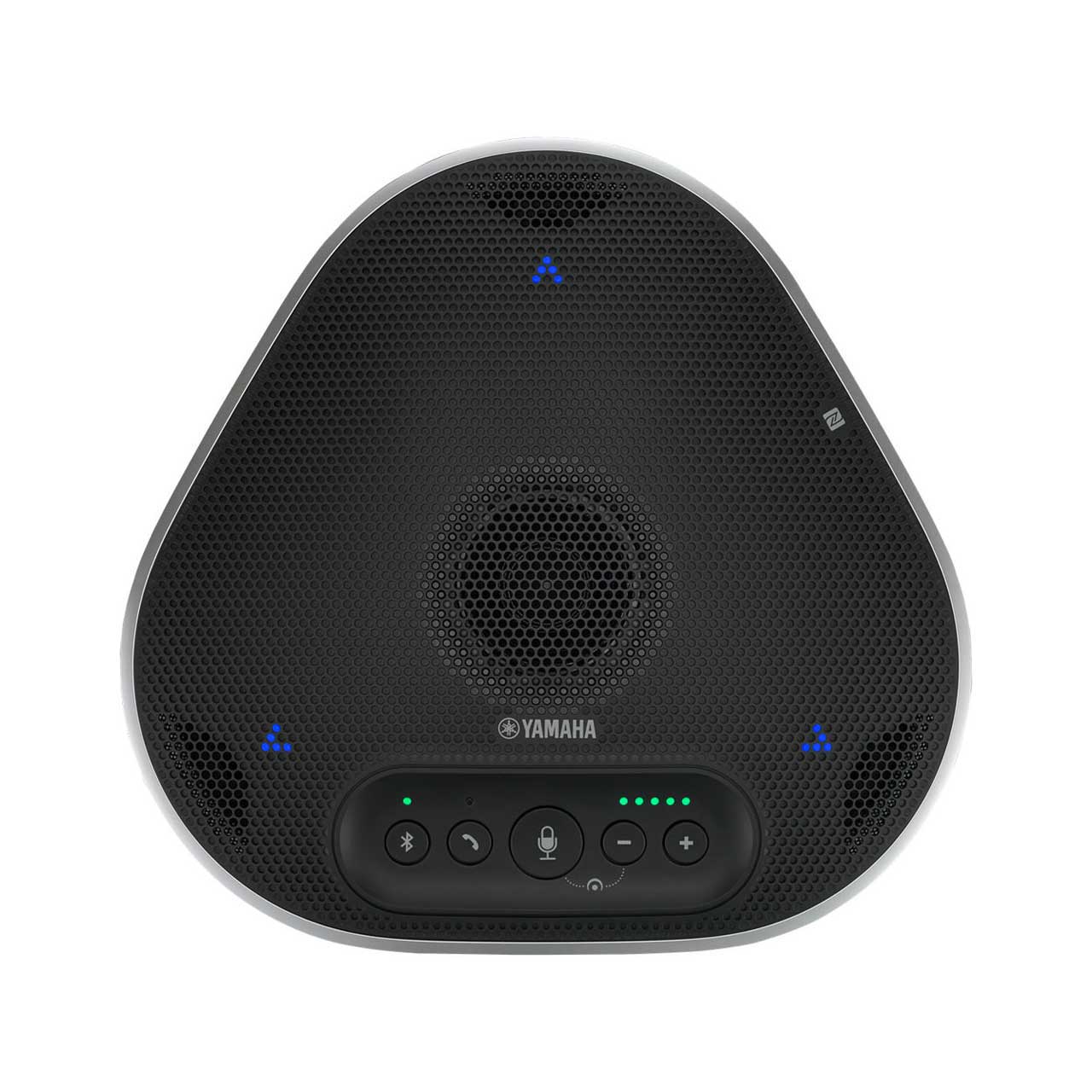

Yamaha YVC-330 USB Microphone and Speaker System - Black

10-YVC330 - Overview

• Features:

  • USB, Bluetooth® and NFC connections - audio in/out connection interfaces
  • SoundCap™ technology eliminates background noise for meetings being held in loud, open space environments
  • Self-silence mutes microphone automatically while meeting participants are not speaking
  • Self-volume balancer automatically adjusts speaker volume properly to fit surrounding ambient noise levels
  • Ability to daisy chain 2 units for medium-sized spaces
  • Power through USB


• Specifications:

  • General
  • Interfaces: USB 2.0 Full Speed (Mini-B), Bluetooth, NFC (Near Field Communication), EXT IN/OUT (stereo mini plug)
  • Connectable Devices: USB: Computer running Windows or macOS / Bluetooth: Smartphone running Android or iOS
  • Power Sources: USB bus power
  • Maximum Power Consumption: 2.5W
  • Dimensions (WxHxD): 9.3 x 1.8 x 8.9" (235 x 46 x 226mm)
  • Weight: 0.8 kg (1.8 lbs)
  • Color: Black
  • Supported OS: Windows 10 (32bit/64bit), Windows 8.1 (32bit/64bit), Windows 7 (32bit/64bit), macOS 10.14, macOS 10.13, macOS 10.12 USB: USB 2.0 or later
  • Bluetooth: Version: 2.1 + EDR Supported profiles: HFP (1.6), A2DP Supported codec: CVSD, SBC, mSBC Wireless output: Class2 Maximum communication distance: 10 m (32.8 ft) (no obstacles) Radio frequency (operational frequency): 2,402 to 2,480 MHz Maximum output power (EIRP): 4.0 dBm (2.5 mW)
  • NFC: Compatible devices: NFC-compatible Android devices, versions 5.0, 4.4, 4.3, 4.2, and 4.1
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 20 to 85% (non-condensing)
  • Storage Temperature: -4° to 122°F (-20° to +50°C)
  • Humidity: 10 to 90% (non-condensing)
  • Others: Firmware update (transferred from a PC through USB)

    Audio
  • Microphone: Unidirectional microphones x 3, 360° coverage
  • Speaker: Full-range speaker x 1
  • Volume: Momentary maximum: 91 dB (0.5 m)
  • Frequency Bandwidth: For sound pickup: 100 Hz to 20,000 Hz For playback: 190 Hz to 20,000 Hz
  • Signal Processing: Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Dereverberation, SoundCap
  • Mode: Standard Mode: Pick-up the sound in Small-Medium conference rooms SoundCap Mode: Automatically mute distracting noise in open workspace and deliver only the sound from the pick-up range (radius of 1 m) * 2 units daisy chain connection is available on Standard Mode

    Compliance
  • Safety: CB/G (IEC60065, IEC62368) CE (EN62368, EN62479, EN62311) CCC (GB8898)
  • EMC: FCC (part15B ICES-003) CE (EN55032, EN55035, EN55020, EN61000, EN301489) AS/NZS (AS/NZS CISPR32, AS/NZS 4268) KC (KN301489, KN32, KN35) CCC (GB/T 13837, GB17625) VCCI (VCCI 32-1) EAC
  • Radio: FCC (Part15B) Class A, ICES-003 CE (EN300328, EN300330) SRRC KC (KN301489)
  • RoHS: CE (EN50581)


• Item Includes:

  • 1x USB Cable: 9.8' (3m)
  • 1x User's Manual


• Warranty:

  • 2 Year Warranty


• :



• GTIN:

  0889025128698
