75 Ohm BNC Plug - For LV-61S and Analog Type RG59

ITEM #: 10-03001-202 MFG #: 10-03001-202

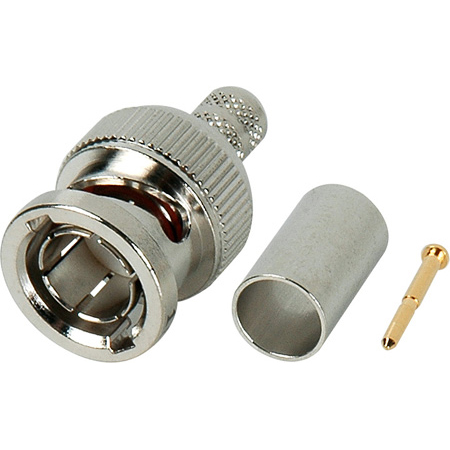

Primary Image
Unique Product Solutions
Free Shipping with $49 Minimum Order

Our Price:

$5.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

10-03001-202 - Overview

75 Ohm BNC Plug for LV-61S and analog type RG59. Diamond knurled for maximum pull strength when crimped onto the cable.

  • Features:

    • True 75 Ohm BNC Plugs
    • Cable: 8241, RG59 23 AWG
    • Crimp Sleeve: Hex 0.255
    • HDTV and Serial Digital Video Applications
    • Diamond knurled for maximum pull strength when crimped onto the cable
    • Center pin 30 " gold plating
    • Teflon securely captivates pin
    • Machined, nickel-plated body


  • Specifications:

    • Impedence: 75 Ohm
    • Frequency Range: Tested to 3 GHz
    • Working Voltage: 500 VRMS
    • Dielectric Withstanding Voltage: 1500 VRMS
    • VSWR: 1.05 + 0.1f (GHz) DC to 1 GHz
    • Contact Resistance: Center Contact 1.5 milliohms, Outer Contact 1.0 milliohms
    • Insulation Resistance: 5000 megohms (min.)
