Amphenol 172216 N Type Straight Crimp Jack for LMR-200 - 50 Ohm

ITEM #: 172216 MFG #: 172216

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.
Report Lower PriceLarge Quantity Quote

172216 - Overview

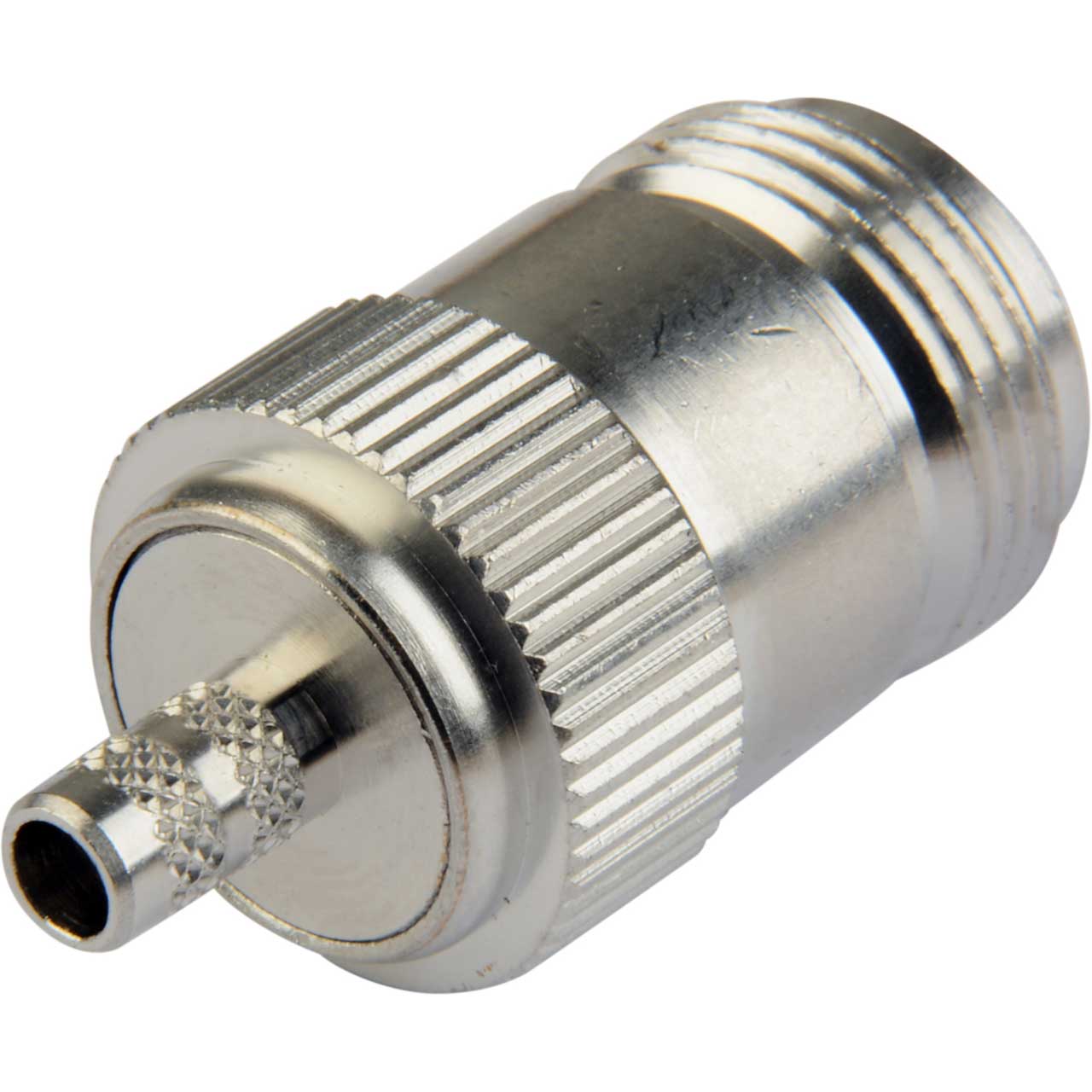

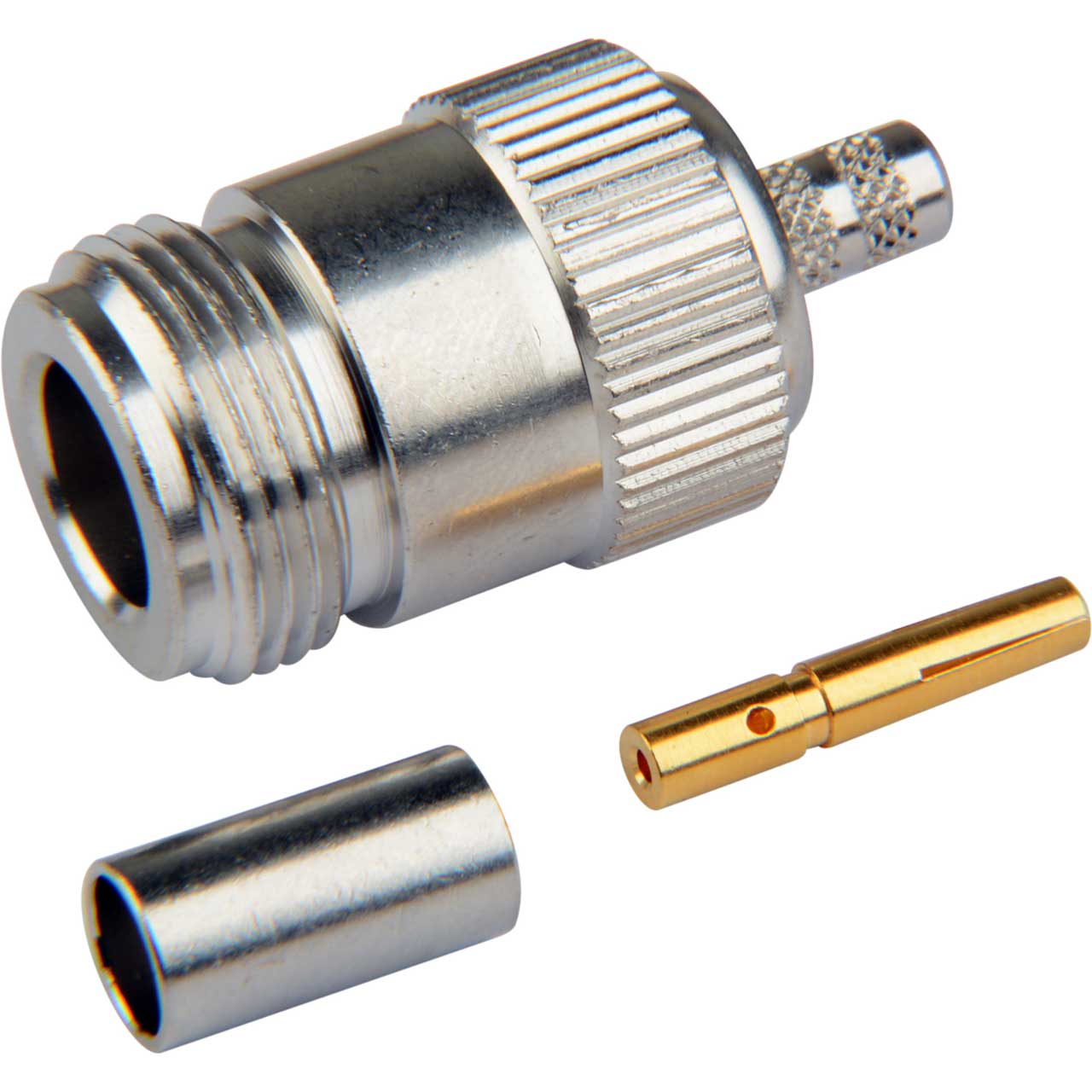

Amphenol 172216 is an RF Connector, N Type straight crimp jack for LMR-200, 50 Ohm.

  • Specifications:

    • Gender: Jack
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 50
    • Body Finish: White Bronze
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: C2
    • Cable Type: Belden 7807A, LMR-200
    • Coupling Mechanism: Threaded
    • Max Frequency (GHz): 11
    • Polarity: Standard
    • Thread Direction: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 32
