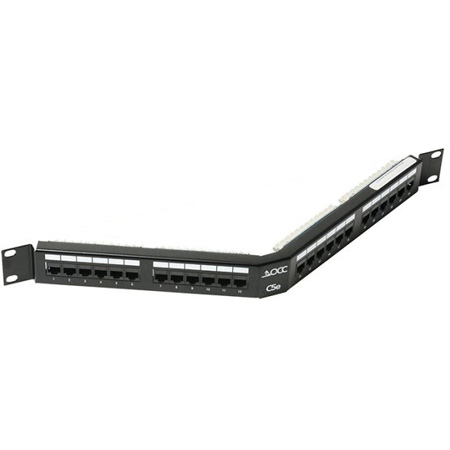

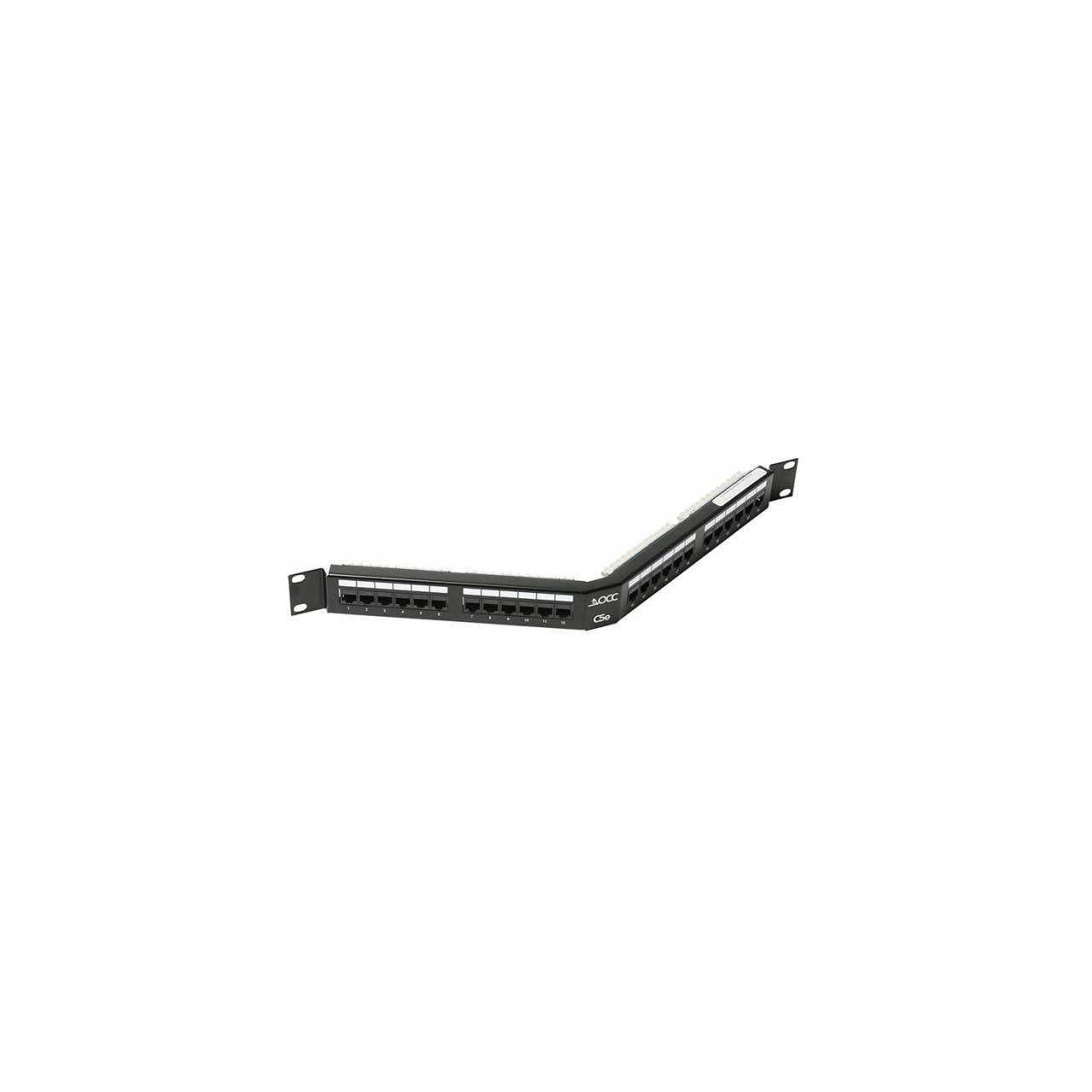

OCC ACC2488/110A5E-R Rack Mount Patch Panel

Name: OCC ACC2488/110A5E-R Rack Mount Patch Panel
Brand: Optical Cable Corp
SKU: ACC2488-110A5E-R
Price: 151.16 USD
Availability: PreSale

ITEM #: ACC2488-110A5E-R MFG #: ACC2488/110A5E-R

Optical Cable Corp

List Price:

$166.28

Our Price:

$151.16

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

ACC2488/110A5E-R - Overview

The Category 5e product line provides unmatched performance in premise connectivity. Designed for the most demanding network applications, OCC ACC2488/110A5E-R Category 5e patch panels offer customers the highest level of headroom to any Category 5e link or channel specification.

Features:
- Available in 24 & 48 port
- Comfortably exceeds TIA-568-C.2 Cat 5e requirements
- ISO/IEC60603-7 compliant
- Patented PC board technology
- Constructed of cold rolled steel for durability
- Rigid design provides solid frame for high-impact punch-down tools
- Universal TIA 568A/B wiring configuration
- IDC’s rated for 200 wire insertions
- Write-on label fields
- Cable strain-relief bar provided
- Patch panels are available in both flat and angled configurations
- Supports all IEEE Power over Ethernet (PoE) standards
- Insulation resistance: 500MΩ minimum
- Dielectric withstand: 1000 VAC RMS or 1414 VDC
- DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient
Specifications:
- Rack Mount Patch Panel
- 568A/B Wired
- 24-Port
- Category 5e
- Angled
- Rack Mount Angled Patch Panel
- 568A/B Wired
- 24-port
- 1U
