Audinate AVIO Dante USB Adapter Kit with ADP-DAO-AU-0X2/ADP-DAI-AU-2X0/ADP-BT-AU-2X1/ADP-USB-AU-2X2

ITEM #: ADN-AVIO-USBKIT2 MFG #: ADN-AVIO-USBKIT2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,051.00

Our Price:

$816.00

Availability: In Stock
iAvailability Description Popup


    ADN-AVIO-USBKIT2 - Overview

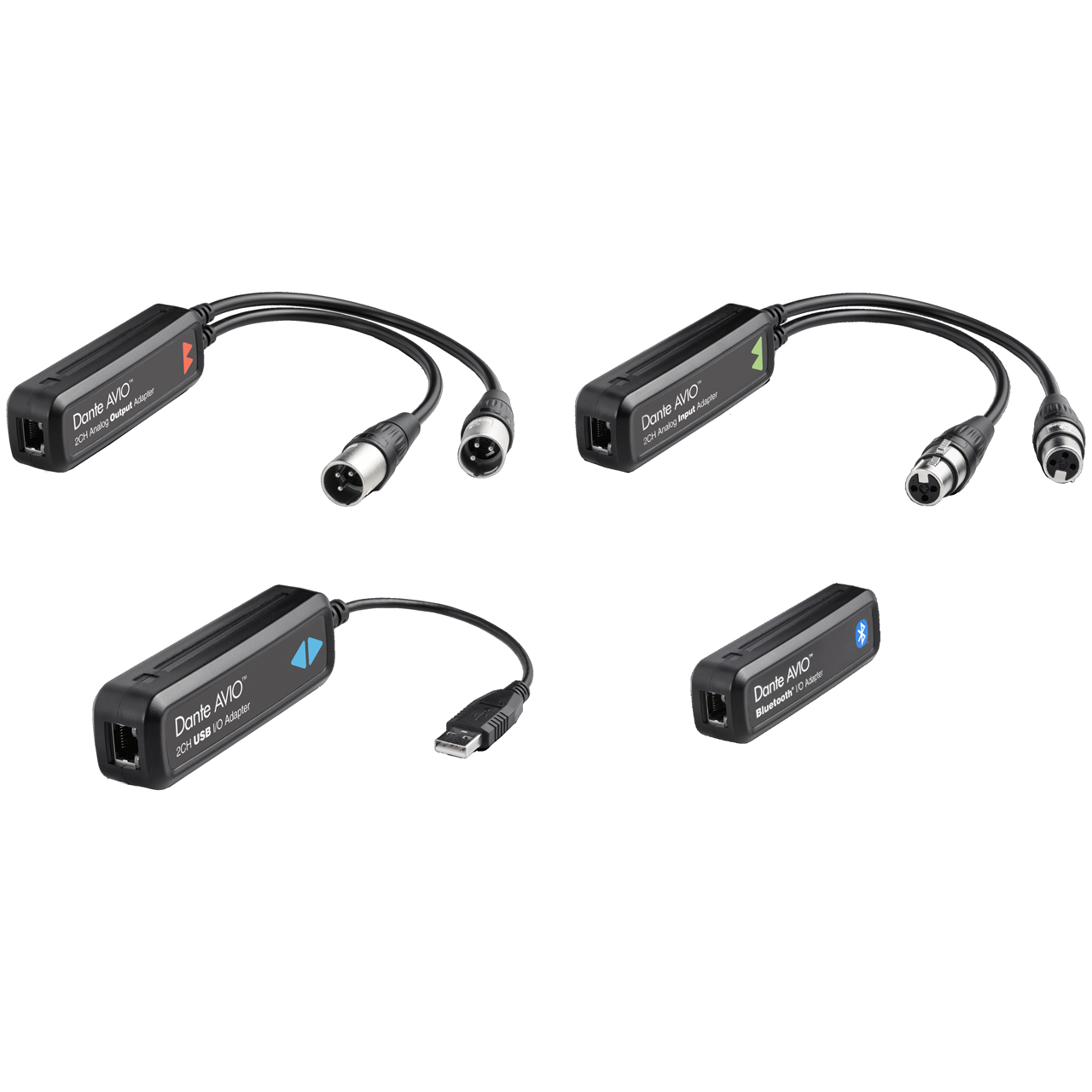

    Satisfy all your Dante adapter needs in one place! With Audinate's AVIO Dante Adapters you'll have everything you need to connect a full system together.

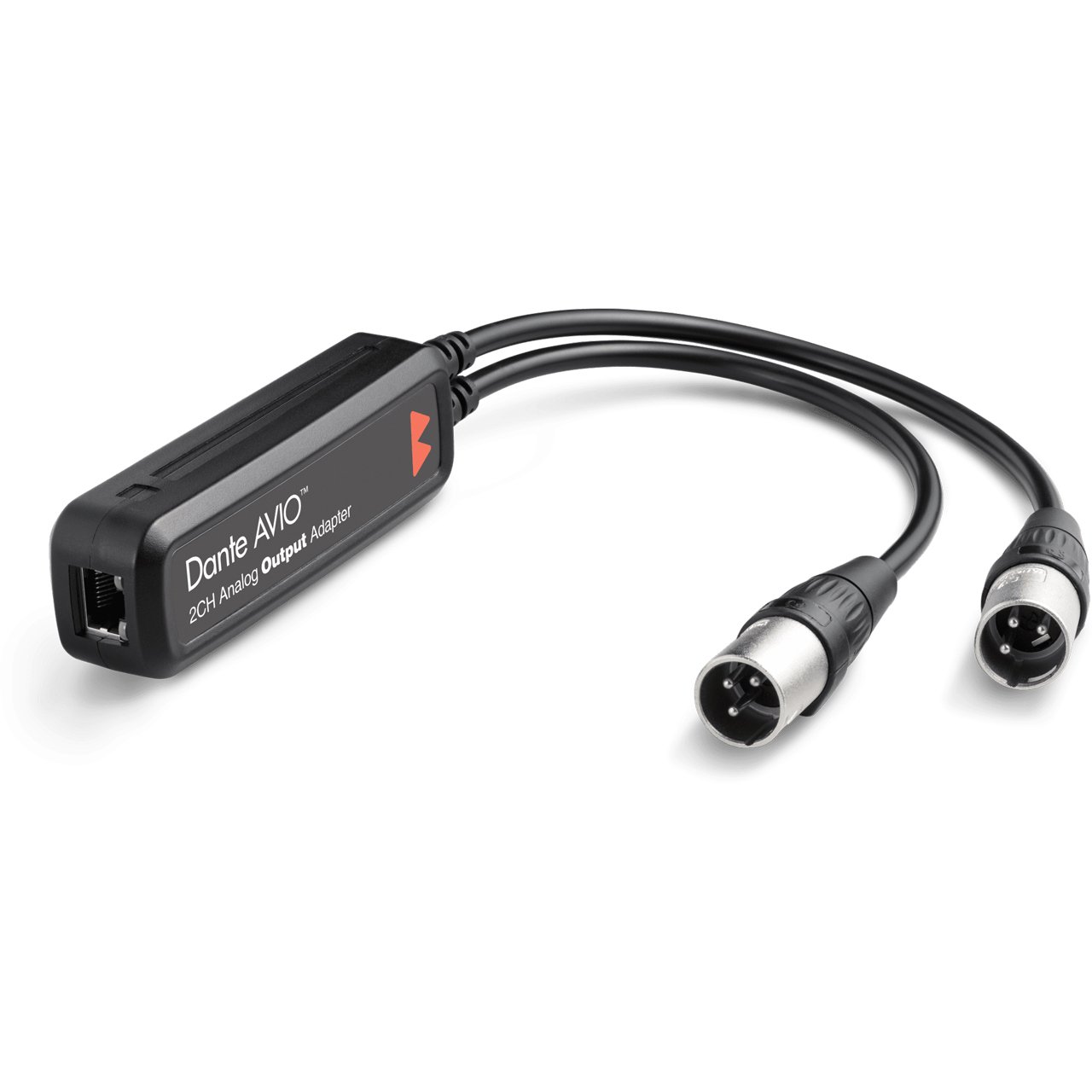

    ADP-DAO-AU-0X2 2-Channel Analog Output Adapter
    The Audinate ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter allows you to use the audio gear you already own with your Dante network. Don't abandon trusted studio monitors or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.

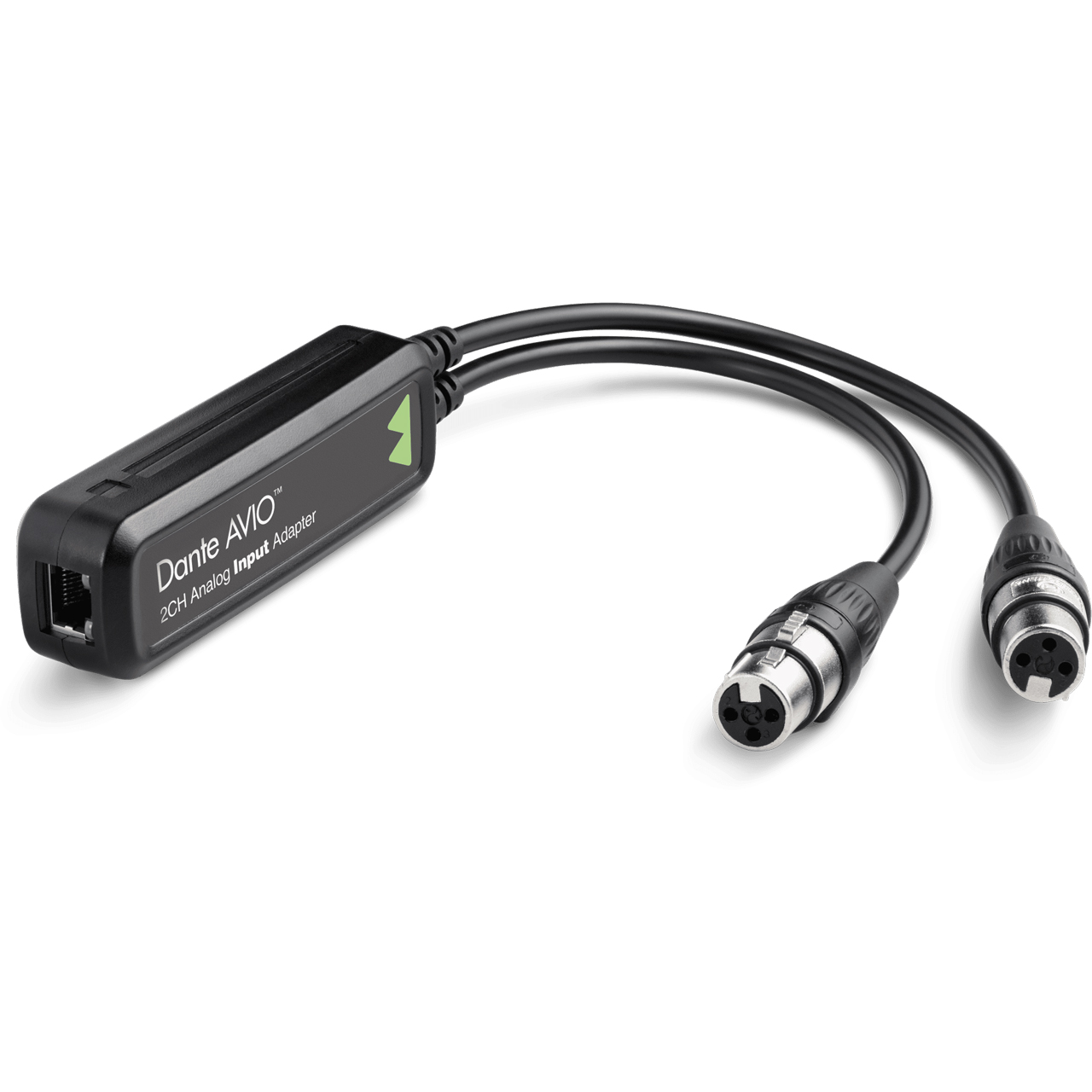

    ADP-DAI-AU-2X0 2-Channel Analog Input Adapter
    The Audinate ADP-DAI-AU-2X0 is a 2 Channel Dante AVIO Analog Input Adapter with RJ45 and 2 XLR females and connect your legacy mixers and consoles to a Dante network! You can even patch your favorite DSPs, analog compressors and equalizers into a Dante system using a combination of the Input and Output adapters.

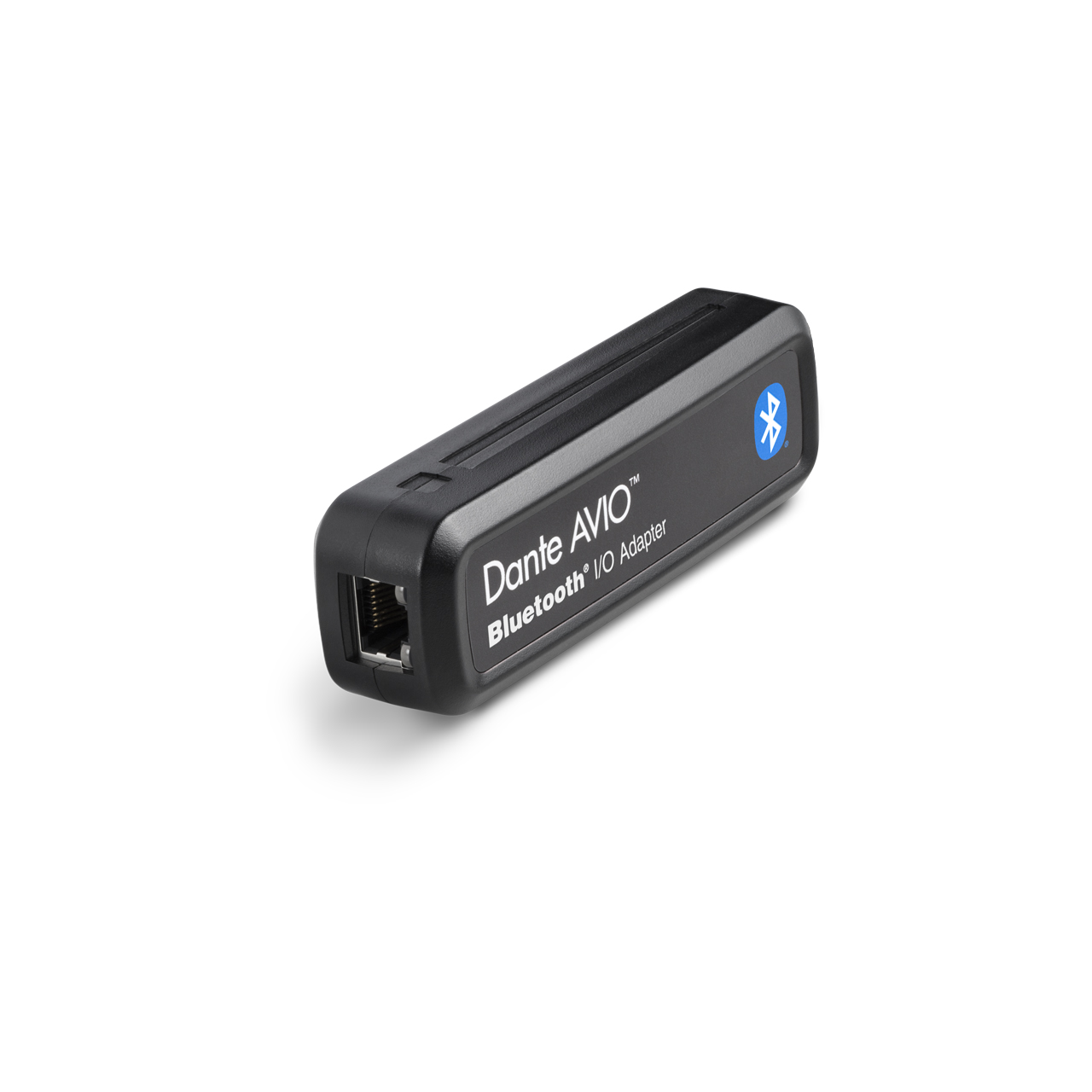

    ADP-BT-AU-2X1 Bluetooth I/O Adapter
    The Audinate ADP-BT-AU-2X1 Dante AVIO Bluetooth Adapter connects to your Dante network and supports 2 x 1 channels of wireless audio, allowing PCs and mobile devices to playout and receive audio with any of your Dante-enabled devices using only a Bluetoothrl; connection.

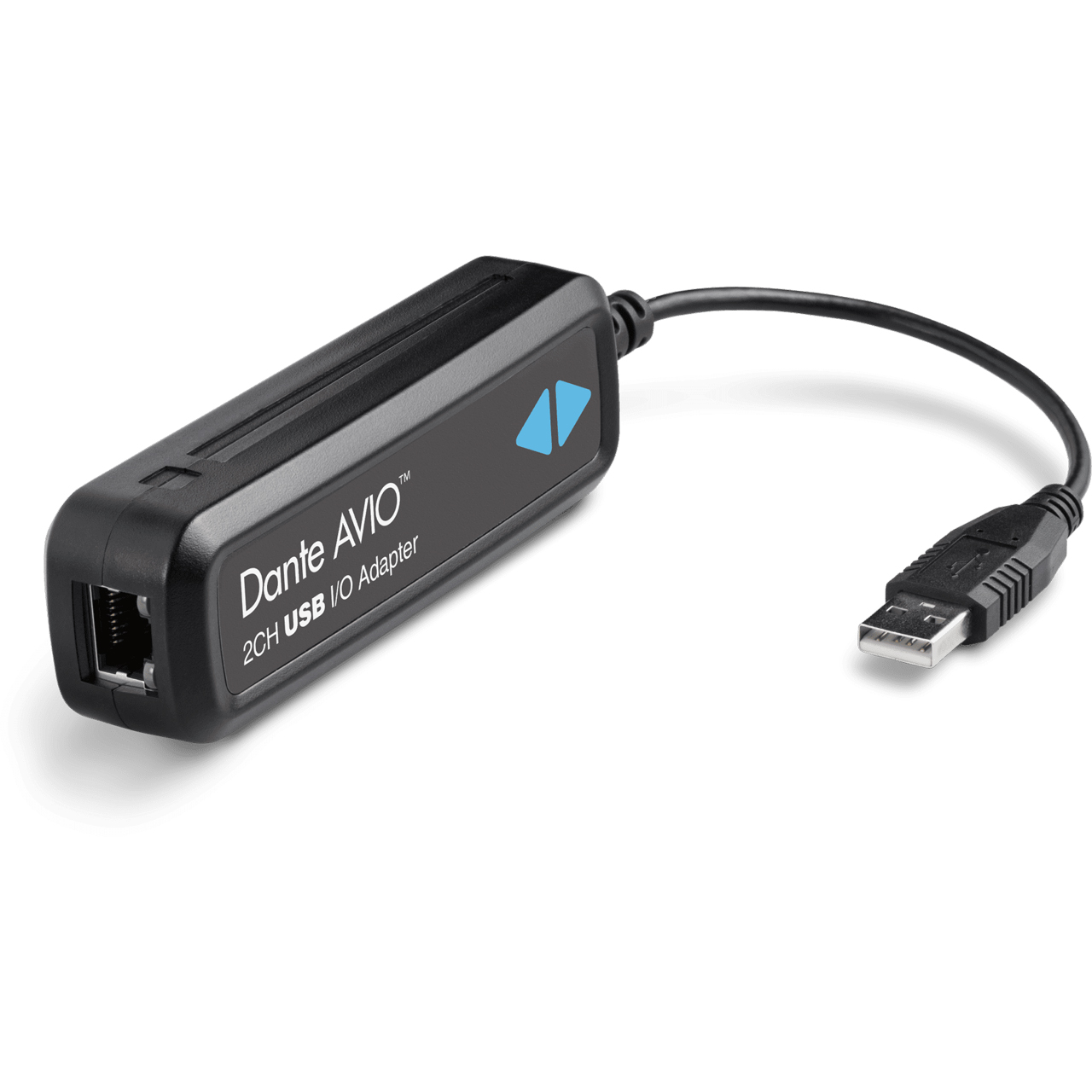

    ADP-USB-AU-2X2 USB I/O Adapter
    The Audinate ADP-USB-AU-2X2 Dante AVIO USB Adapter with RJ45 and USB Type A. Powered by USB or PoE the adapter lets you connect any computer to a Dante audio network with zero software installation, and can be used with any audio application for playout or recording.

    • Features:

      • Excellent dynamic range, SNR and THD performance
      • Plug & play operation
      • Built for the road
      • Dante Domain Manager ready
      • Dante Audio over IP and AES67 RTP transport formats
      • Power over Ethernet (PoE) support

    • Specifications:

      • ADP-DAO-AU-0X2
      • Channels: 2
      • Max Signal Level (balanced): +18dBu/+4dBu/0dBu; 0dBV/-10dBV
      • Frequency Response: 20Hz - 20kHz (±0.5dB)
      • Impedance: 150Ω balanced; 75Ω unbalanced
      • Dynamic Range: > 100dB
      • Signal to Noise Ratio: > 100dB
      • Total Harmonic Distortion: < 0.01% @ +4dBu
      • Connectors: RJ45 & 2 XLR-M
      • Power: Class 1 802.3af PoE
      • Sample Rates: 44.1, 48, 96kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP

        ADP-DAI-AU-2X0
      • Channels: 2
      • Max Signal Level (balanced): +24dBu/+4dBu/0dBu; 0dBV/-10dBV
      • Frequency Response: 20Hz - 20kHz (±0.5dB)
      • Impedance: 20kΩ balanced 10kΩ unbalanced
      • Dynamic Range: > 100dB
      • Signal to Noise Ratio: > 100dB
      • Total Harmonic Distortion: < 0.01% @ +4dBu
      • Connectors: RJ45 & 1 XLR-F
      • Power: Class 1 802.3af PoE
      • Sample Rates: 44.1, 48, 96kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP

        ADP-USB-AU-2X2
      • Channels: 2 in, 2 out
      • Connectors: RJ45 & USB Type A
      • Power: Class 1 802.3af PoE or USB
      • Sample Rates: 48kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP
      • USB: Class Compliant

        ADP-BT-AU-2X1
      • Audio Channels: 2 in, 1 out
      • Connectors: RJ45
      • Power Class: 1 802.3af PoE
      • Sample Rates: 48kHz
      • Bit Depth: 24
      • Bluetooth: Bluetooth 5.0 A2DP (AptX, AAC) and HFP
      • Dante Device Latency: 1, 2, or 5ms (configurable using Dante Controller)

    • Item Includes:

      • 1x ADP-DAO-AU-0X2 Dante AVIO Analog Output Adapter with RJ45 and 2 XLR Male - 2 Channel Version
      • 1x ADP-DAI-AU-2X0 Dante AVIO Analog Input Adapter with RJ45 and 2 XLR Female - 2 Channel Version
      • 1x ADP-USB-AU-2X2 Dante AVIO USB IO Adapter with RJ45 and USB type A
      • 1x ADP-BT-AU-2X1 Dante AVIO Bluetooth IO Adapter - 2x1 Audio Channels
