Amphenol 031-70549-12G Right Angle Crimp Plug 12G BNC Connector for Belden 4855R Cable - 75 Ohm IP-67 Rated

ITEM #: AMPH-0317054912G MFG #: 031-70549-12G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$26.00

Our Price:

$24.63

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

031-70549-12G - Overview

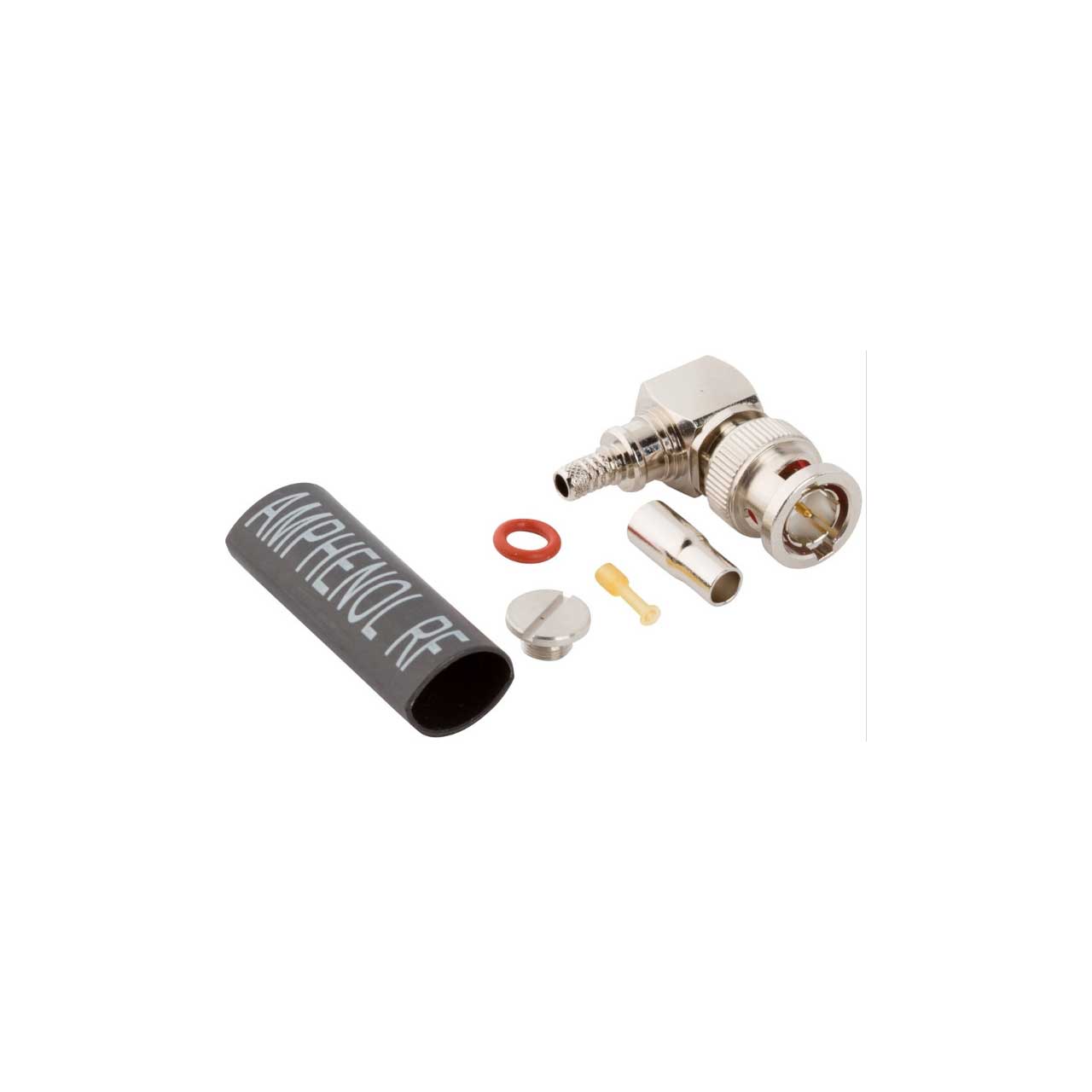

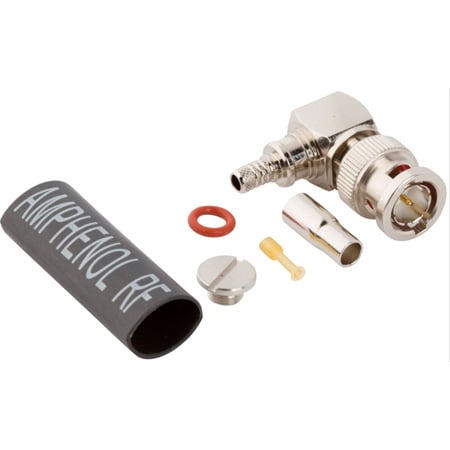

Amphenol 031-70549-12G is an RF Connector, BNC Right-Angle Crimp Plug for Belden 4855R Cable, IP-67, 12G Optimized, 75 Ohm.

  • Specifications:

    • Gender: Plug
    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: Special
    • Cable Type: Belden 4855R
    • Crimp Tool: 47-10120
    • Coupling Mechanism: Bayonet
    • IP Rating: IP67
    • Max Frequency (GHz): 18
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
