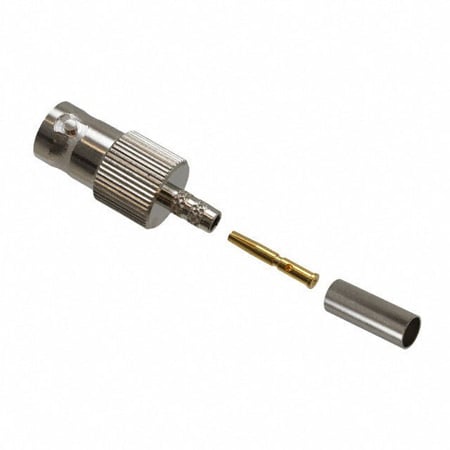

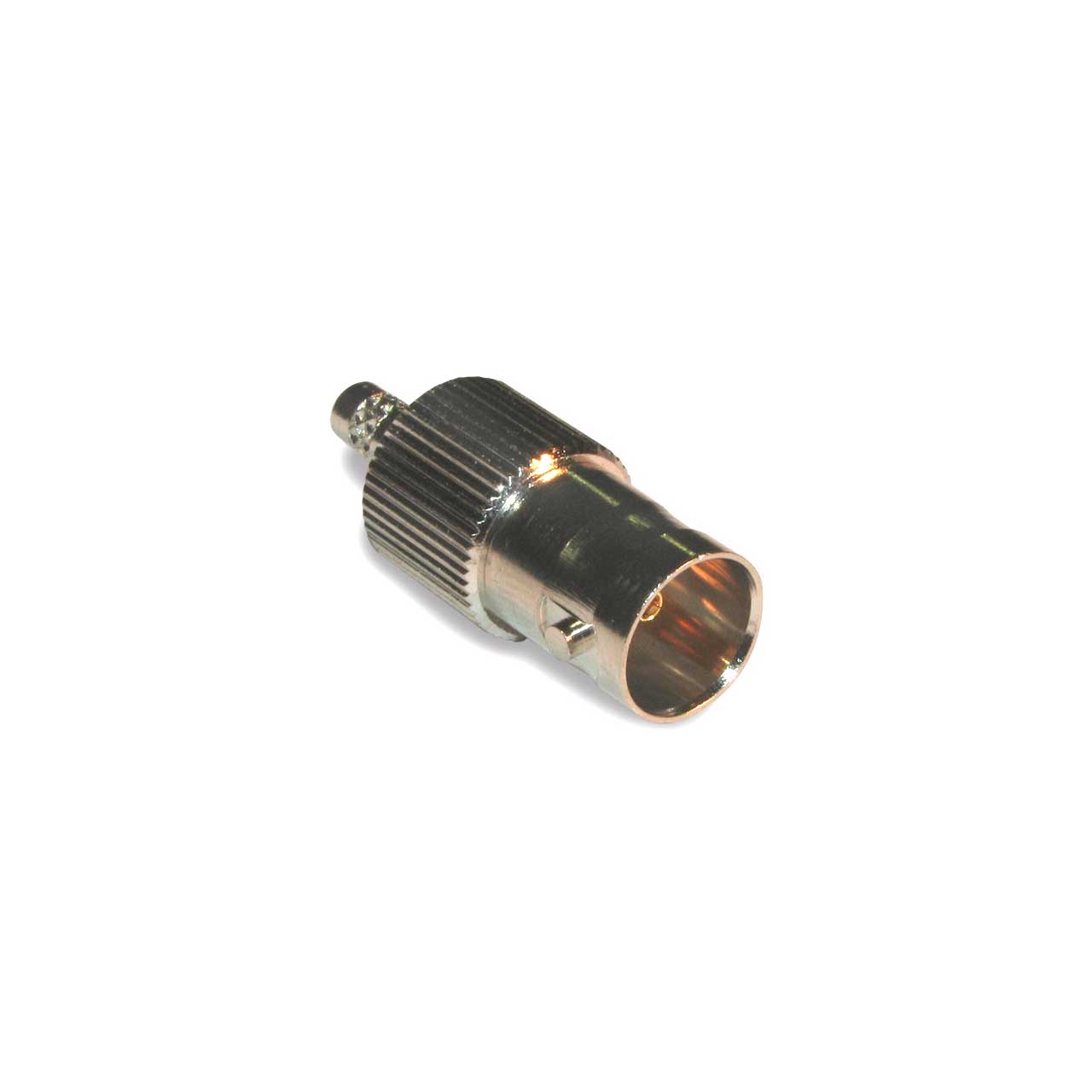

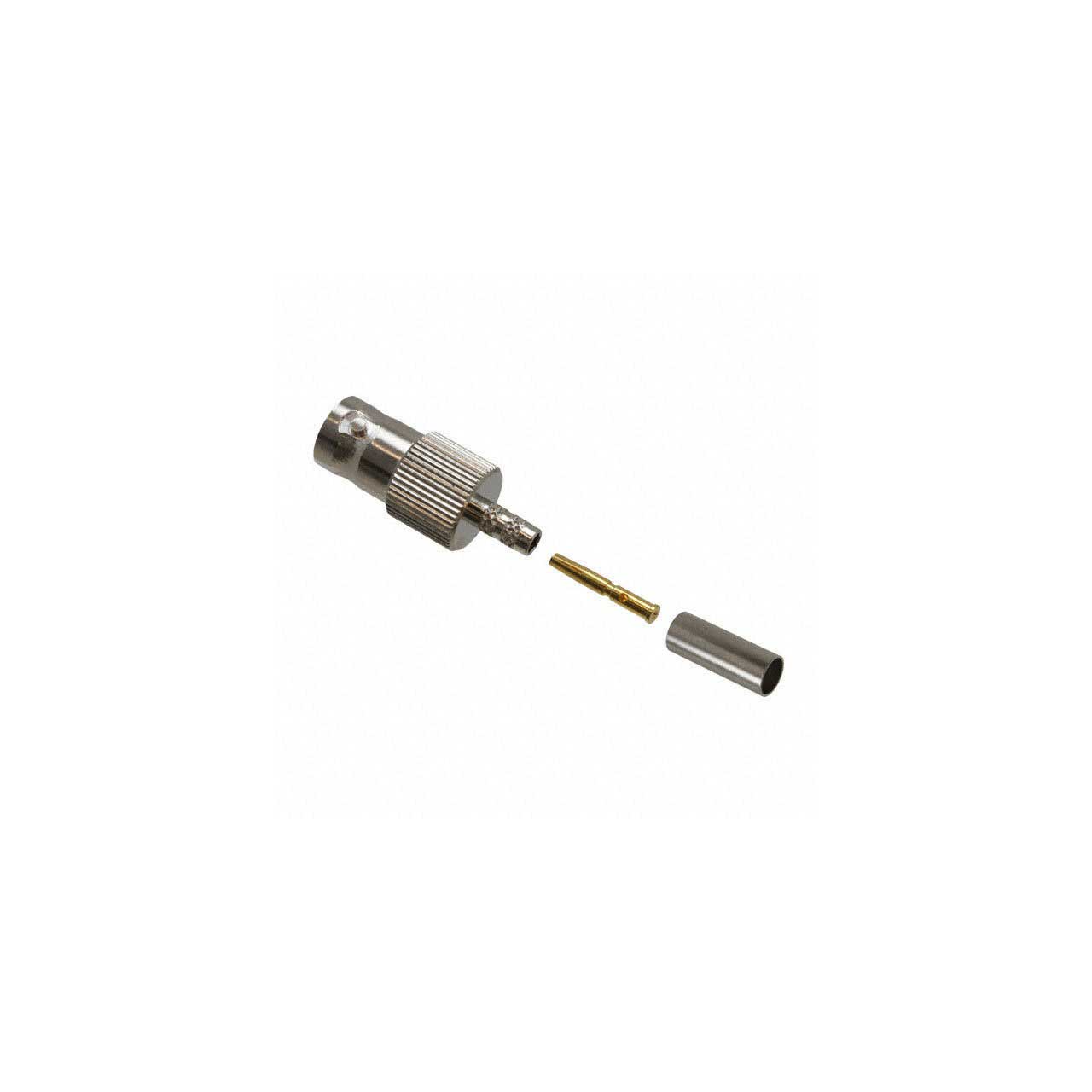

Amphenol 112559 BNC 4GHz Straight Crimp Female Jack for RG-180 RG-195 & Belden 1855A & 8218 75 Ohm

Name: Amphenol 112559 BNC 4GHz Straight Crimp Female Jack for RG-180 RG-195 & Belden 1855A & 8218 75 Ohm
Brand: Amphenol
SKU: AMPH-112559
Price: 4.09 USD
Availability: InStock

ITEM #: AMPH-112559 MFG #: 112559

Amphenol

List Price:

$5.00

Our Price:

$4.09

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

112559 - Overview

RF Connector, BNC Straight Crimp Jack for RG-180, RG-195, B1855A, B8218, 75 Ohm

Specifications:
- Brand: Amphenol Connex
- Gender: Jack
- Orientation: Straight
- Termination Style: Cable - Crimp
- Impedance (Ohms): 75
- Body Finish: Nickel
- Body Material: Brass
- Contact Finish: Gold
- Contact Material: Phosphor Bronze
- Contact Termination Style: Crimp
- Insulator Material: Delrin
- Cable Group: K3
- Cable Type: Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
- Coupling Mechanism: Bayonet
- Max Frequency (GHz): 4
- Polarity: Standard
- Min. Temp. (Celsius): -40°
- Max. Temp. (Celsius): 85°
- Mating Cycles: 500
- Weight (Grams): 9.04
- Package Type: BAG
