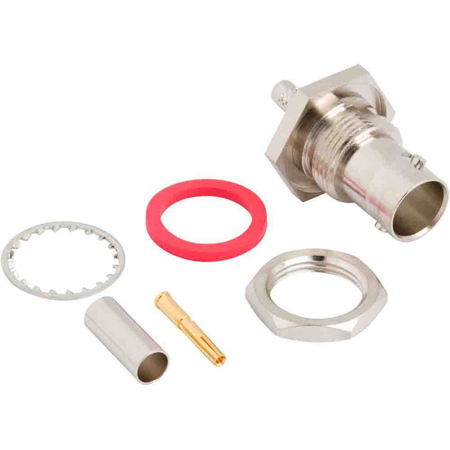

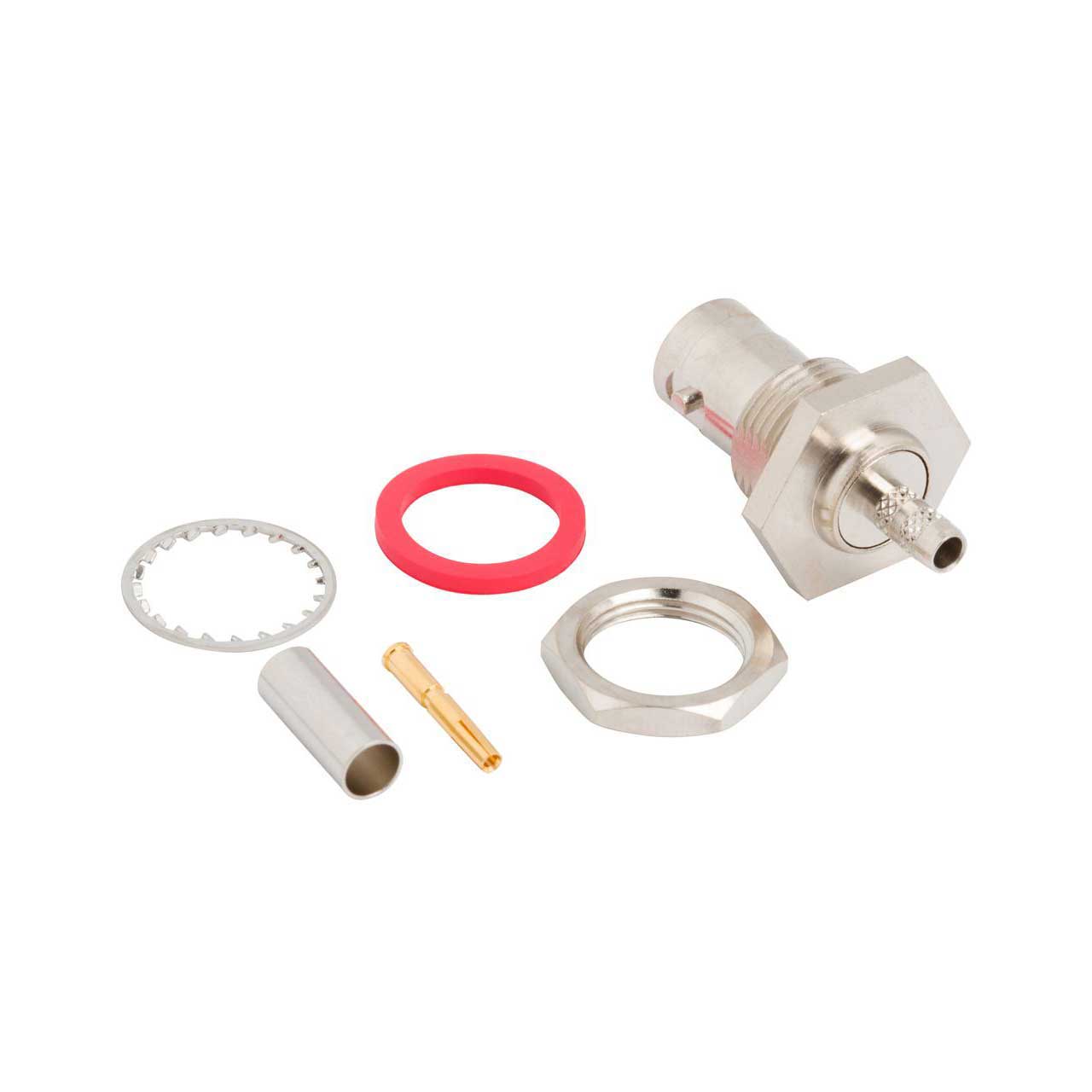

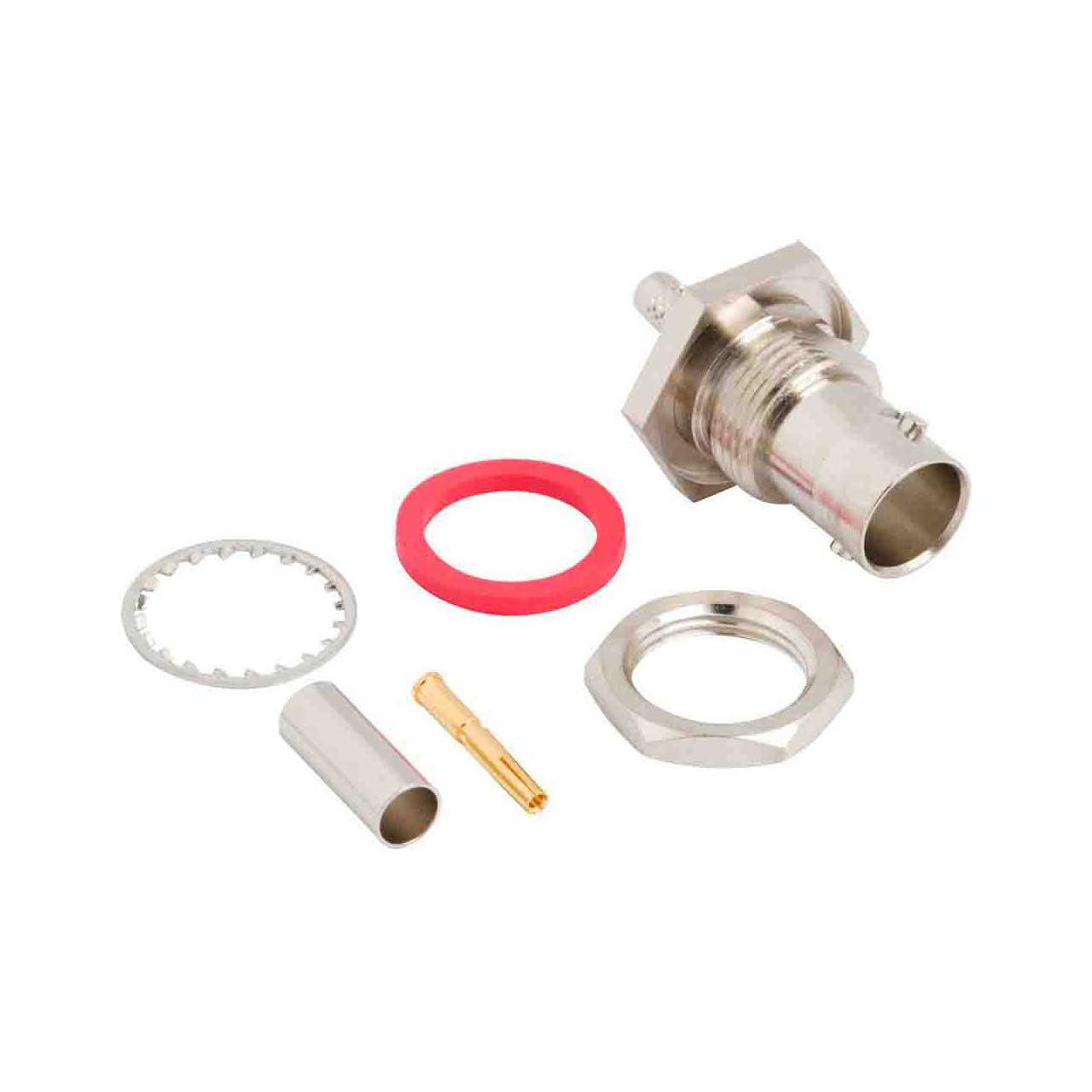

Amphenol 112568 RF Connector BNC Straight Crimp Jack for Belden RG-180/RG-195 1855A - 8218 75 Ohm Bulkhead

ITEM #: AMPH-112568 MFG #: 112568

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

112568 - Overview

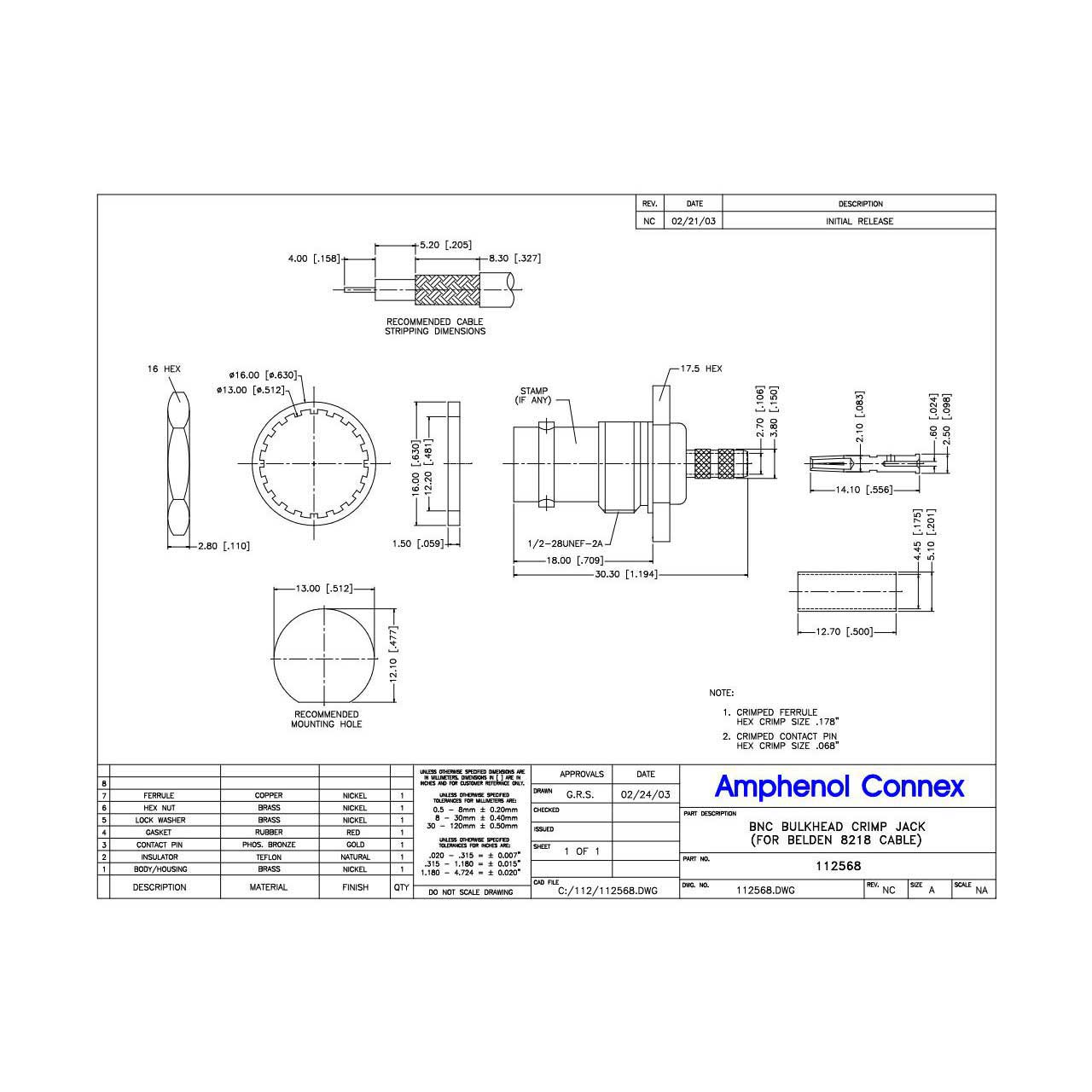

The Amphenol 112568 is an RF connector BNC straight crimp jack for RG-180, RG-195, B1855A, and B8218 75 Ohm bulkhead cable. Crimped ferrule hex crimp size .178" and contact pin hex crimp size .068" .

  • Specifications:

    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Coupling Mechanism: Bayonet
    • Mounting Feature: Bulkhead - Rear Mount
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 16.1
