Atlona AT-HDVS-CAM PTZ Camera & AT-OME-EX-KIT-LT 4K/UHD HDMI Over HDBaseT Extender Kit

ITEM #: ATNO-PTZEXTKIT2 MFG #: PTZEXTKIT2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,690.00

Our Price:

$1,089.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PTZEXTKIT2 - Overview

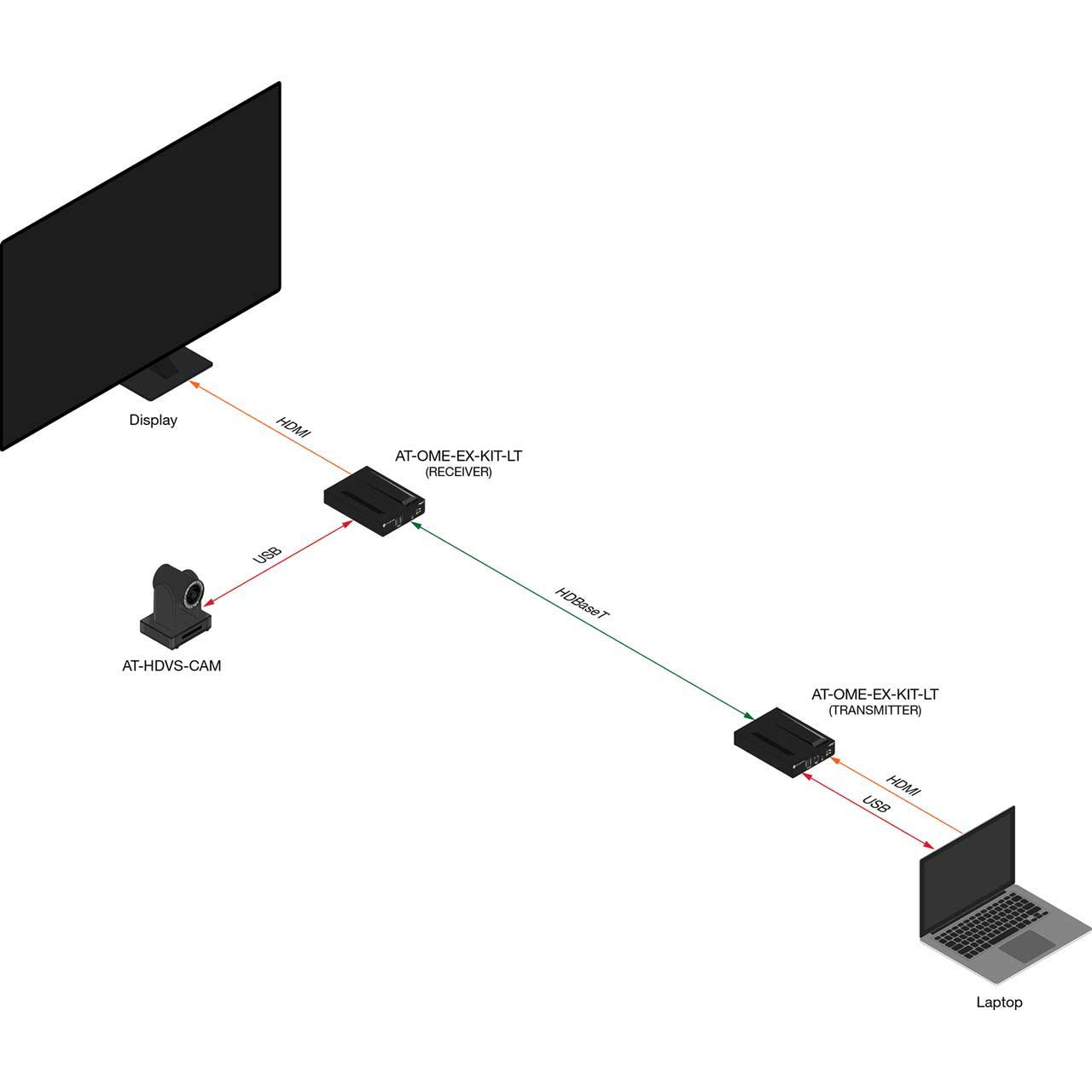

    The exclusive Atlona PTZ Camera and Extender kit is the ideal solution for educational facilities and corporate boardrooms needing a simple end-to-end package. Just add the length of cables you need along with an internet connection and you're ready to handle trainings, conferences, classes and webinars.

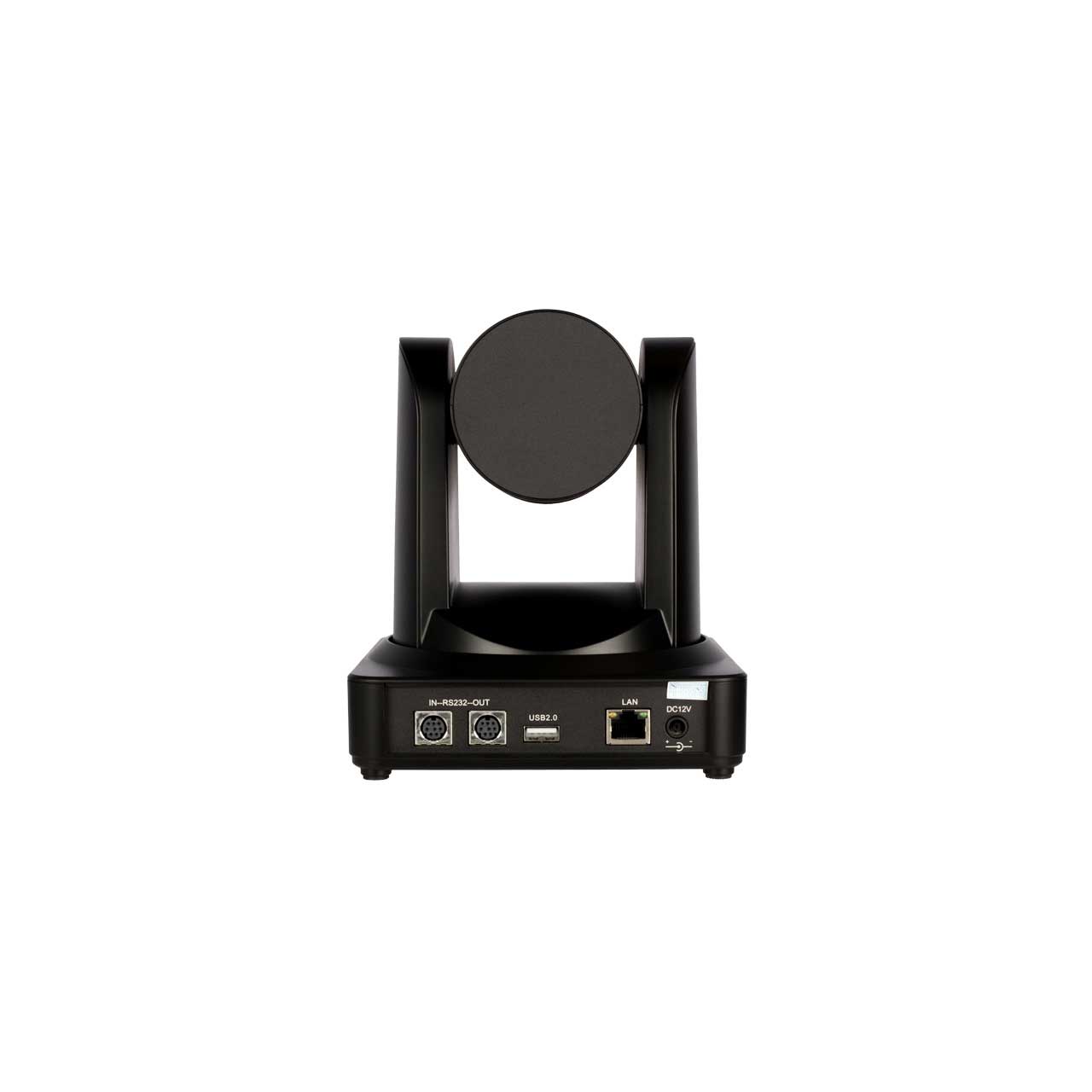

    The Atlona AT-HDVS-CAM is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features a USB 2.0 interface for video and camera control. The HDVS-CAM seamlessly integrates with the Omega Series, and OmniStream for a complete, automated conferencing system that includes AV and USB extension. The HDVS-CAM delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 30 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. Also available is H.264 or H.265 streaming over IP with support for RTMP and RTSP protocols. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, and training rooms. The HDVS-CAM is available in black or white.

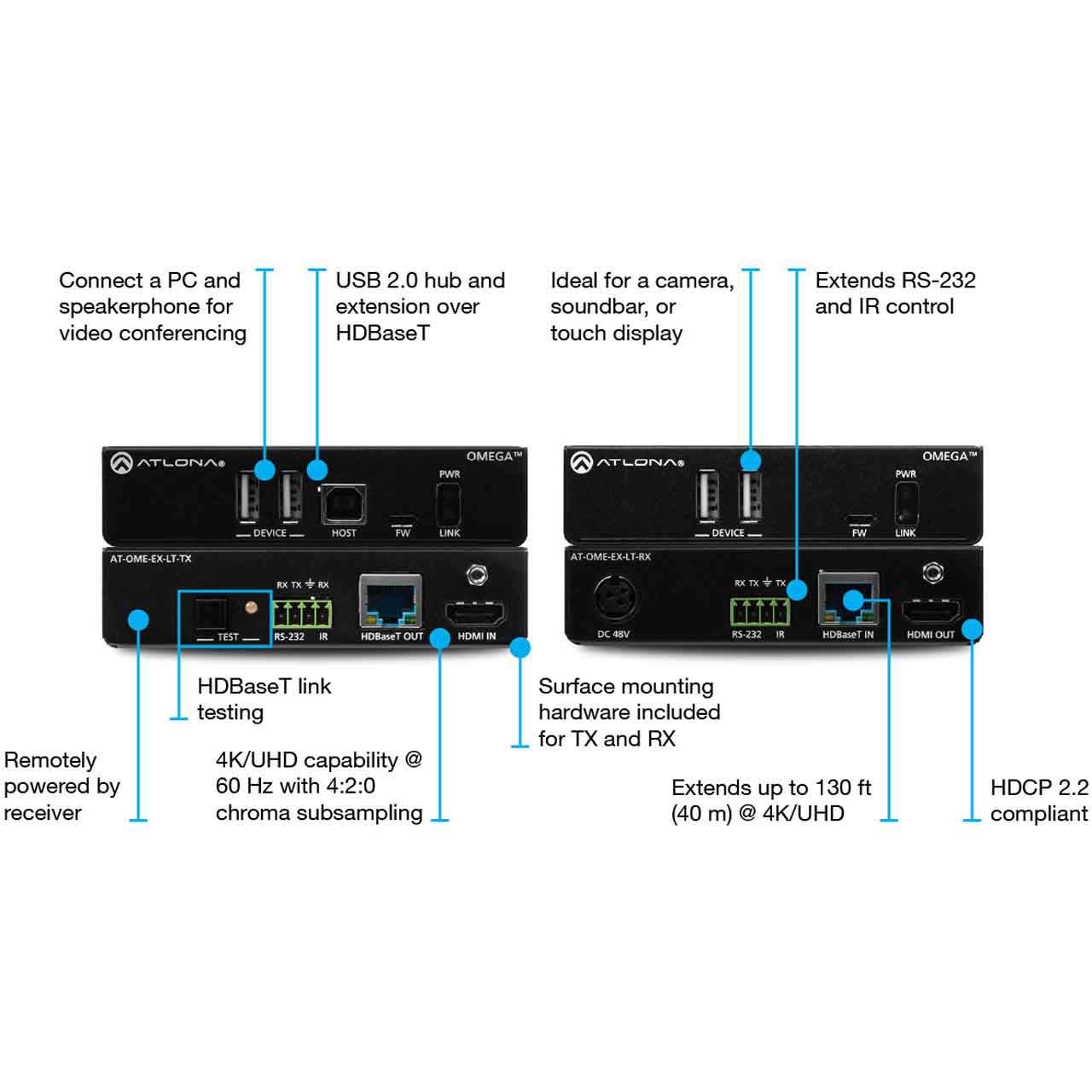

    The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and extends IR and RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display.

    The OME-EX-KIT-LT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT. Also available with the OME-EX-KIT-LT is the ability to test the integrity of the HDBaseT cable link between the transmitter and the receiver.

    • Features:

      • HDBaseT extender kit for HDMI, power, control, and USB
      • USB 2.0 interfacing and extension up to 230 feet (70 meters)
      • 4K/UHD capability @ 60Hz with 4:2:0 chroma subsampling
      • HDCP 2.2 compliant
      • Transmitter powered by receiver over HDBaseT
      • Designed for soft codec applications with AV systems supporting USB interfacing and extension
      • Universal PC compatibility through standard UVC 1.1 (USB Video Class) driver
      • High performance imaging, fine detail, and color rendering with 1/2.8" low-noise, HD CMOS sensor
      • Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view

    • Specifications:

      • AT-HDVS-CAM
      • Video
      • HD/SD/VESA (all resolutions are @30/25/20/15/10/5Hz): 1080p, 720p, 1680x896, 1024x768, 1024x576, 960x540, 800x600, 640x360, 720x576, 640x480, 352x288, 320x240, 320x180, 176x144
      • Optical Zoom: 10X, f = 4.7 ~ 47 mm
      • Viewing Angle: 6.43° (telephoto), 60.9° (wide-angle)
      • AV: F1.6 - F3.0
      • Minimum Illumination: 0.5 lm, F1.8 with Automatic Gain Control ON
      • Video Compression: H.264, H.265
      • Control Protocol: VISCA/Pelco-D/Pelco-P
      • Network Protocol: RTSP/RTMP, ONVIF
      • Pan Rotation: ±170°
      • Tilt Rotation: -30° ~ ±90°
      • Pan Control Speed: 0.1 - 180°/sec
      • Tilt Control Speed: 0.1 - 80°/sec

        Temperature
      • Operating: 14°F - 122°F
      • Storage: -14°F - 140°F
      • Operating Humidity (RH): 20% - 95%, non-condensing
      • Storage Humidity (RH): 20% - 80%, non-condensing

        Power
      • Consumption 12 W
      • Supply: Input: 110 - 220 V AC, 50/60 Hz; Output: 12 V DC, 1 A

        General
      • Dimensions (HxWxD): 6.59" x 5.90" x 5.90"
      • Weight: 3.08lbs

        AT-OME-EX-KIT-LT
      • Video
      • HDMI Specification: HDMI 2.0, HDCP 2.2
      • TMDS Clock: 300 MHz
      • UHD/HD
        4096x2160(DCI)@60(1)/30/24 Hz
        3840x2160(UHD)@60(1)/50/24/25/30 Hz
        [email protected]/24/25/29.97/30/50/59.94/60 Hz
        1080i@25/29.97/30 Hz
        720p@30/50/59.94/60 Hz
      • VESA
        2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900,
        1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768,
        1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit

        Audio
      • Pass-through:
        PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital
        Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Depth: Up to 24-bit

        USB
      • Signal: 2.0
      • Maximum Data Rate: 120 Mbps

        Control
      • CEC: Pass-through
      • RS-232: Pass-through from control system to sink device; supports baud rates
        from 2400 to 115200
      • IR: Pass-through from control system to sink device

        Connectors
      • HDMI IN: 1x Type A, 19-pin female (Tx)
      • HDMI OUT: 1x Type A, 19-pin female (Rx)
      • FW: 1x mini-USB (Tx/Rx)
      • HDBaseT OUT: 1x RJ45 (Tx)
      • HDBaseT IN: 1x RJ45 (Rx)
      • HOST: 1x USB Type-B (Tx)
      • DEVICE: 2x USB Type-A (Tx/Rx)
      • RS-232 / IR: 1x captive screw, 4-pin (Tx/Rx)
      • DC 48V: 1x 3-pin DIN (Rx)

        Power
      • Consumption: 30.5 W (Tx/Rx), 13.5 W (Tx), 17.0 W (Rx)
      • USB Power: 2.5 W per USB device interface
      • External Power Supply (Receiver):
        Input: 100 - 240 V AC, 50/60 Hz
        Output: 48 V, 0.83 A DC
      • Safety: CE, FCC, cULus

        Environmental
      • Operating Temp: 0° - 122° F
      • Storage Temp: -4° - 140° F
      • Operating Humidity (RH): 20% - 90%, non-condensing

        Chassis
      • Dimensions (H x W x D):
        Tx: 1.02" x 4.29" x 5.00"
        Rx: 1.02" x 4.29" x 5.00"
      • Weight:
        Tx: 0.88lbs
        Rx: 0.88lbs
      • Safety: CE, RoHS, FCC

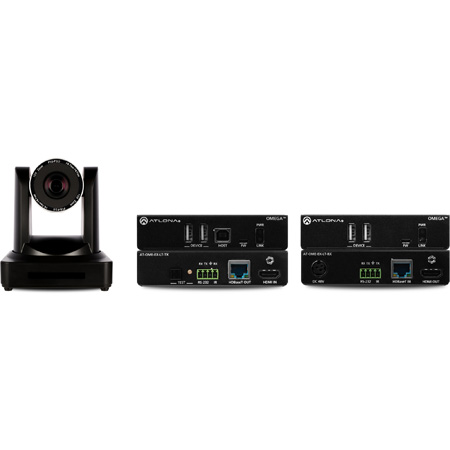

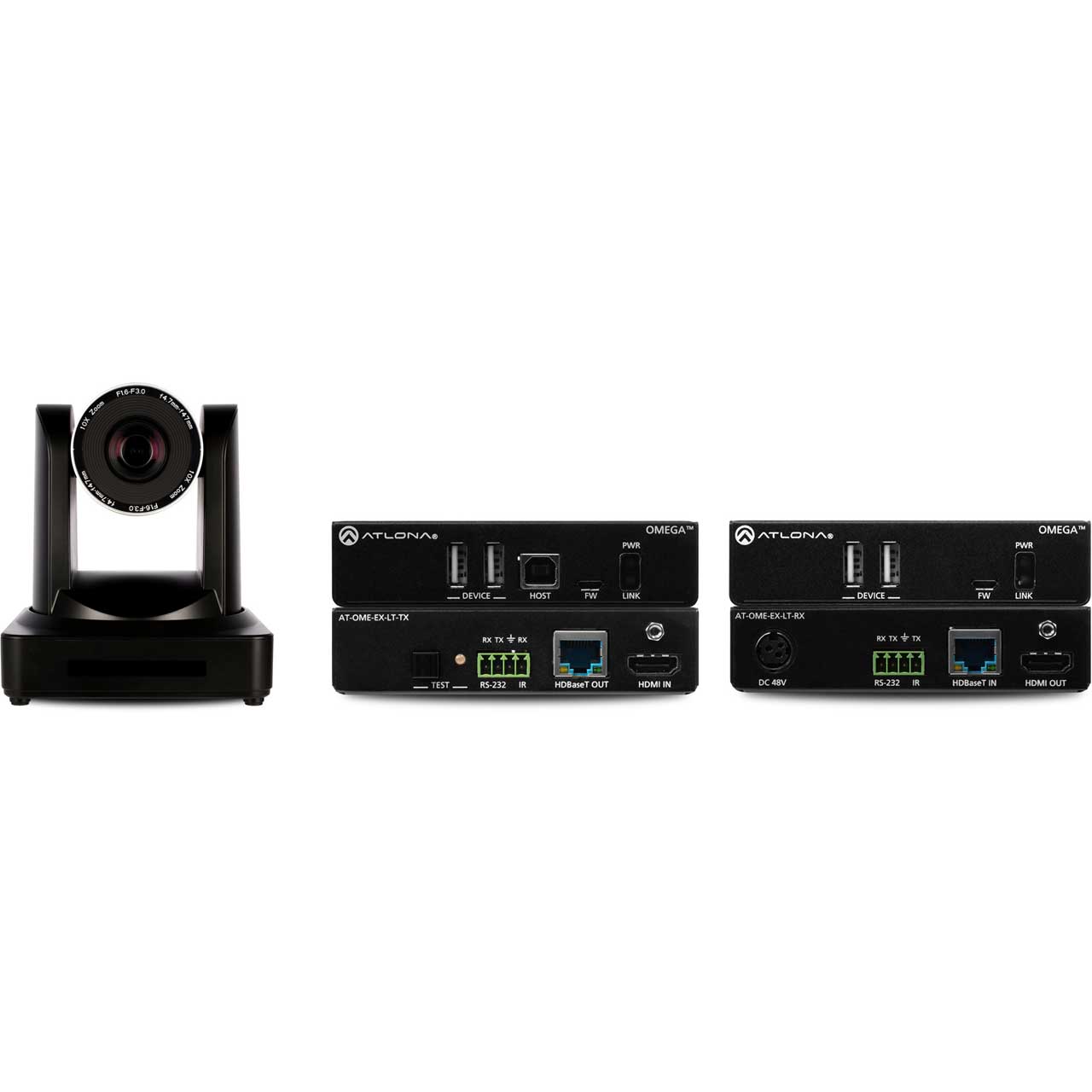

    • Item Includes:

      • 1x AT-HDVS-CAM PTZ Camera
      • 1x AT-OME-EX-KIT-LT 4K/UHD HDMI Over HDBaseT Extender Kit (Tx/Rx)
