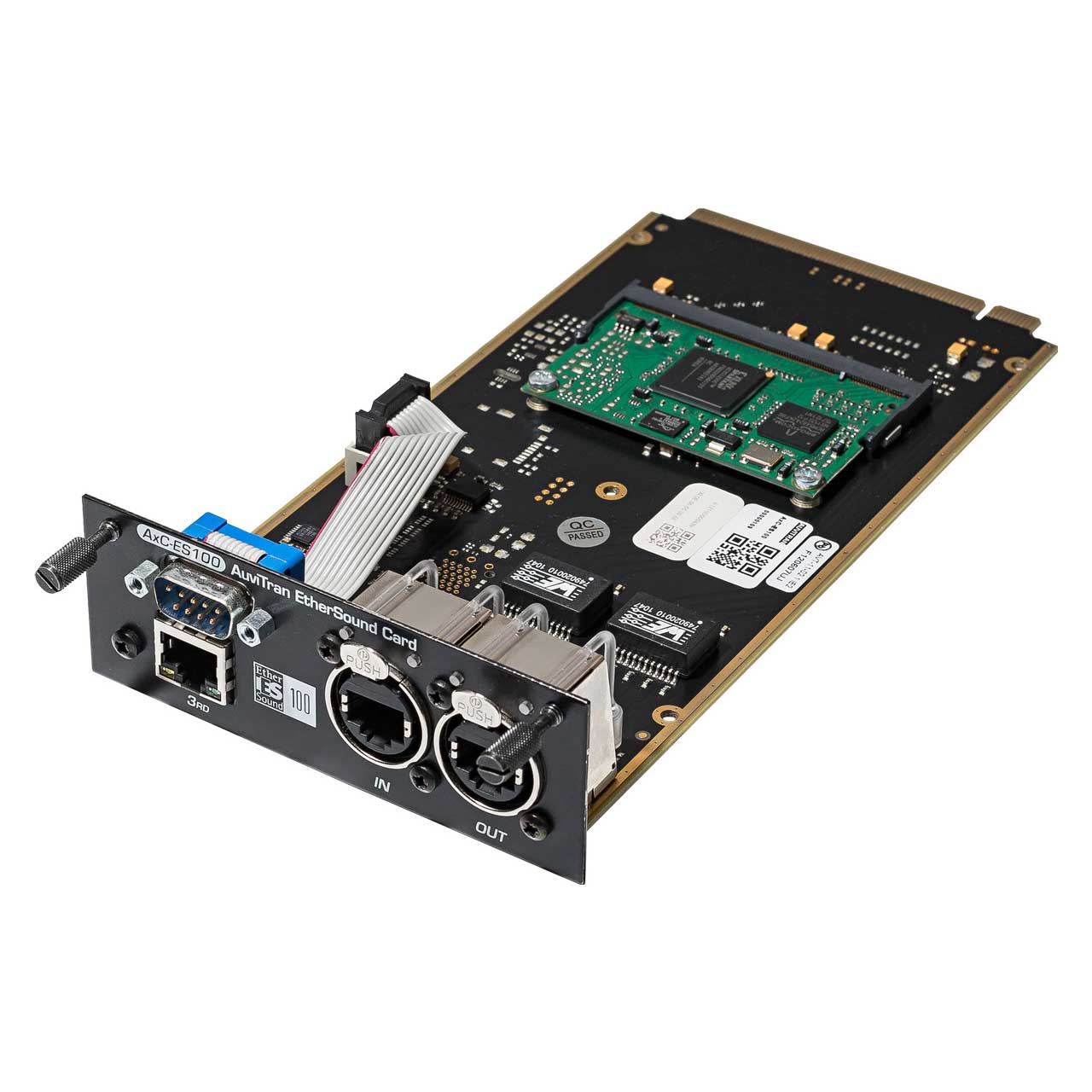

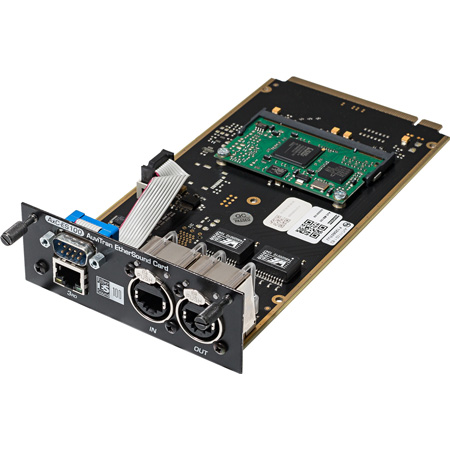

AuviTran AXC-ES100 64-I/O EtherSound Audio Card

AXC-ES100 - Overview

• Features:

  • Using only one Audio ToolBox slot, the AxC-ES100 can be used either with AVBx3 or AVBx7 platforms
  • 64 inputs and 64 outputs
  • One RS232 port compatible with Yamaha HA remote
  • ASIO through the third port (up to 64 channels in and 64 channels out)
  • Remote management with AVS-Monitor software
  • Two EtherCon connectors allowing 64 channels extraction and 64 channels insertion to ES100 network
    Applications
  • Fixed installations (installation mode):
  • Stadiums, concert halls
  • Public Address, paging systems, theme parks and resorts
  • Broadcast rack in central room
  • Theatres, bars, pubs discos
  • Exhibitions and conference centres
  • Public address in transportation terminals…
    Live applications (stage-box mode):
  • Live concerts and recording
  • Live broadcast studios and OB Vans
  • Recording studios…


• Specifications:

  • Size: 200 mm x 100 mm x 40 mm - Format AuviTran Audio ToolBox platform cards
  • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
  • Storage: Temp/Humidity - 5°C to 70°C / 0% to 95% (non-condensing)
  • Operating: Temp/Humidity 0 °C to 50°C / 5% to 90% (non-condensing)
  • Connectors:
  • 2 x Neutrik EtherCon RJ45-XLR female connectors (EtherSound ES100 from/to links)
  • 1 x RJ45 connector for third port (PC control and ASIO Streamer interface)
  • 1 x Sub-D9 (RS232) serial interface
  • Audio Outputs: 64 channels extracted from any of the 64 EtherSound downstream channels or from any of the 64 EtherSound upstream channels in bidirectional mode @ 44.1 kHz or 48kHz
  • Audio inputs: 64 channels inserted from any of the 64 EtherSound dchannels in bidirectional mode @ 44.1 kHz or 48kHz
  • Sample format: 24 bit
  • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
  • Synchronization: Automatic from EtherSound network
    ASIO
  • I/O count: Up to 64 ASIO inputs and 64 ASIO outputs from/to EtherSound
  • Sample format: 24 bit
  • Sample rate: 44.1 kHz, 48kHz, 88,2 kHz, and 96 kHz
    Host PC minimum specifications
  • OS Supported: Windows 10/8.1/8/Seven/Vista/XP for 32 or 64 bit versions (XP not recommended for ASIO due to its poor NDIS priority management)
  • Processor: Dual core CPU, clock speed > 2GHz
  • Memory: At least 2 GB for Windows Vista and Seven
  • Network: 100Mbits full duplex Ethernet adapter with latest NDIS driver (Performances of the ASIO driver are directly related to NIC driver)
  • Storage: 7200rpm disk or better for ASIO
    Control and Monitoring Environment
  • AVS-ESMonitor: AVS-ESMonitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the specific parameters of cards inserted in the different slots
