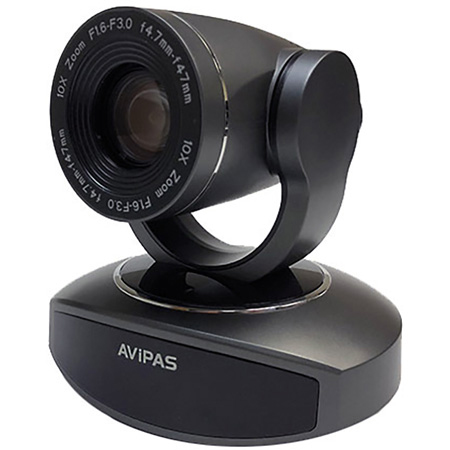

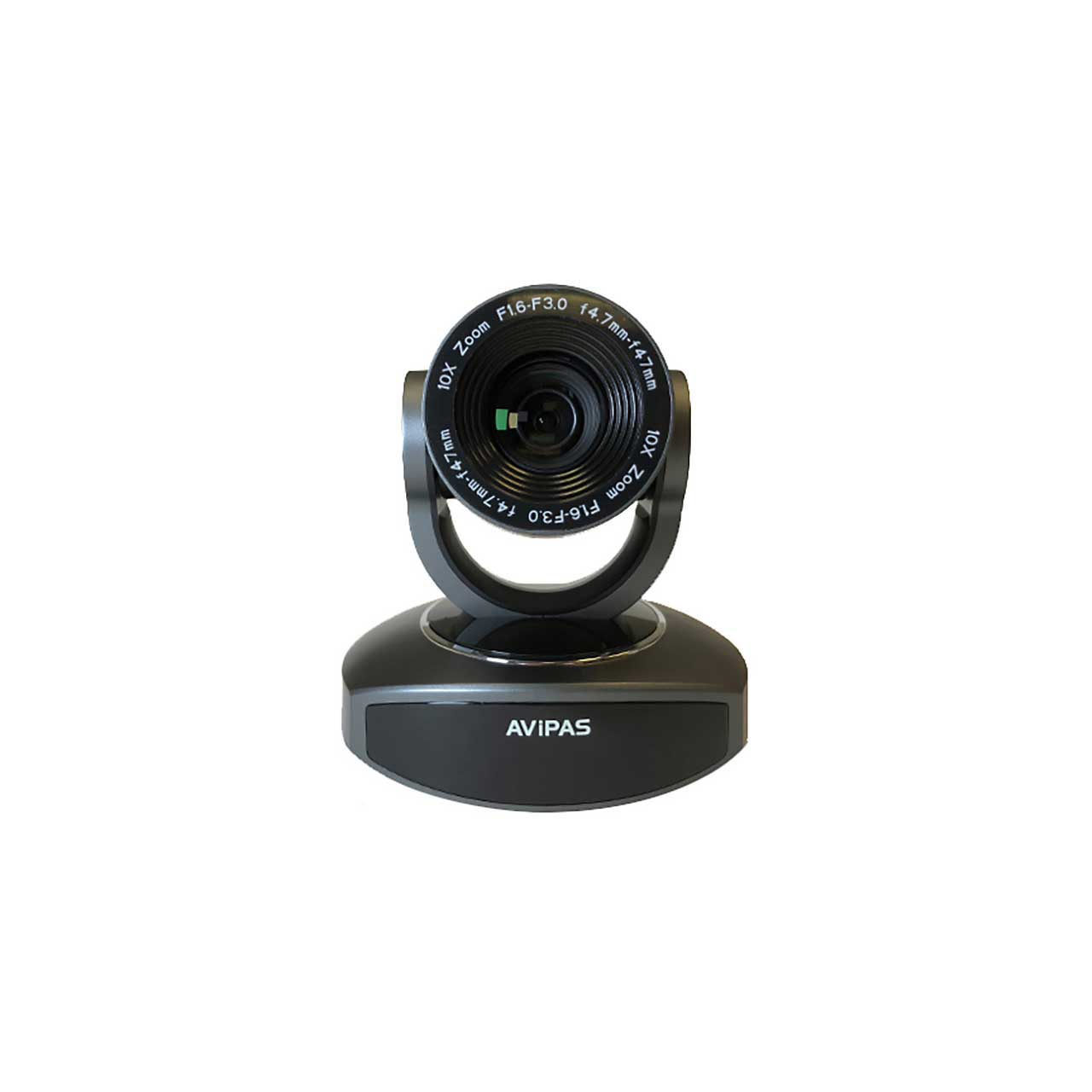

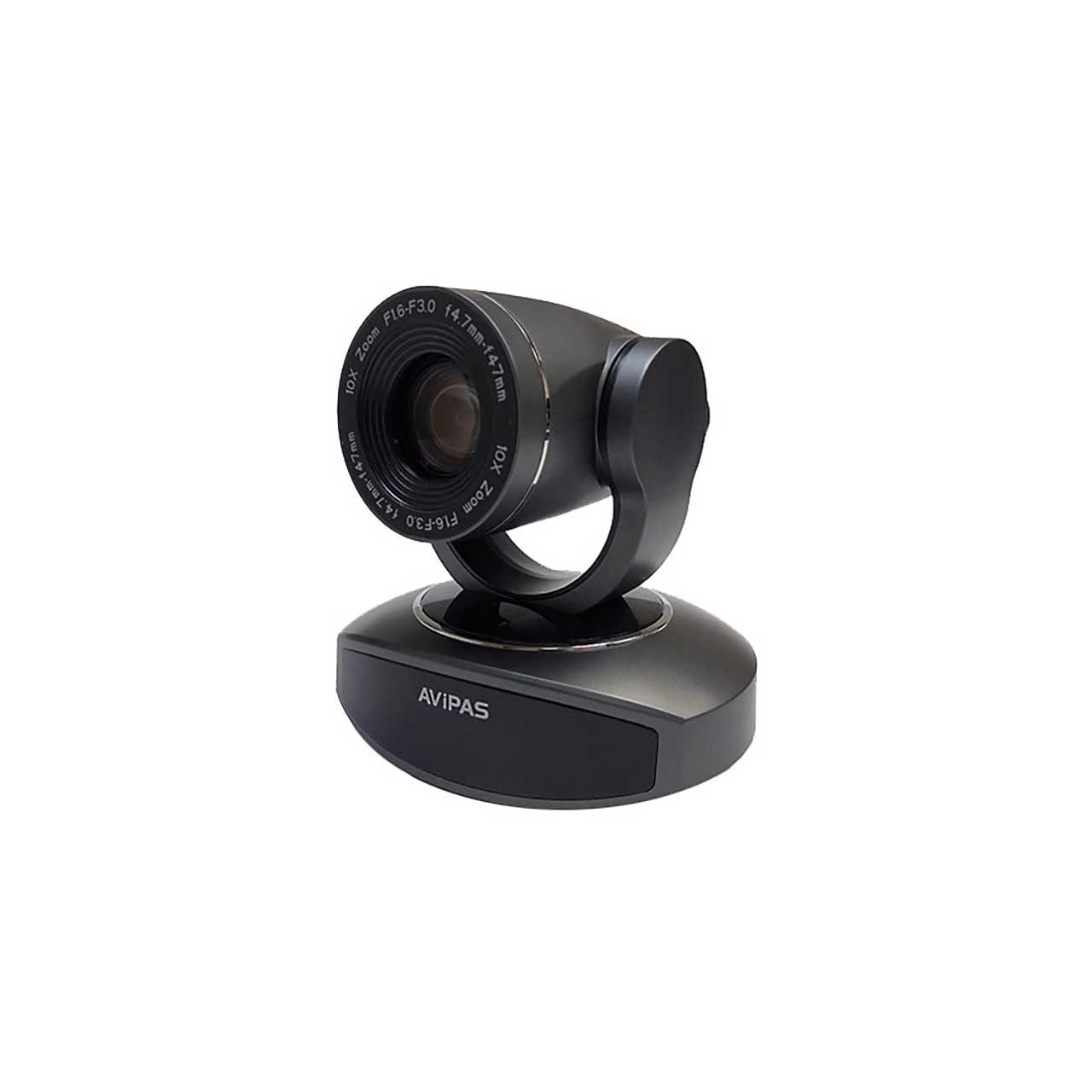

AViPAS AV-1081 10x HDMI PTZ Camera with IP Live Streaming - Dark Grey

AV-1081 (DARK GREY) - Overview

• Features:

  • Remote Pan, Tilt and Zoom
  • 10x Optical Zoom and 5x Digital Zoom
  • Full HD 1920x1080p at 60 fps
  • H.264/H.265 Video streaming
  • Video Stream: First streaming , Second streaming
  • 2.07 MP 1/2.8" CMOS Sensor
  • 83.7° wide-angle, f4.7-47mm, F1.6-F3.0 Lens
  • 0.5 Lux minimum illumination at F1.8
  • 2D&3D Digital Noise Reduction
  • AAC/MP3/G.711A Audio Encoding
  • HDMI and LAN Outputs simultaneously
  • 255-preset positions via RS232 (10-preset positions using IR Remote controler)
  • IR Remote control
  • VISCA/Pelco-D/Pelco-P communication protocol
  • Horizontal/ Vertical Image Flip
  • Standard Ceiling or Wall Mounting


• Specifications:

  • Camera Specification
  • Image sensor: 1/2.8" Panosonic CMOS sensor, 2.07 MP
  • Shutter Speed: 1/30s ~ 1/10000s
  • Minimum illumination: 0.5 Lux @ (F1.8, AGC on)
  • Gain: Auto and Manual
  • Signal to Noise Ratio: more than 55dB
  • White Balance: Manual, Auto, Indoor, Outdoor, One Push 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Image Flip: Selectable On/Off
  • Video Output:1x HDMI, 1x LAN
  • Signal Format: HDMI: 1080p30/25/50/60; 1080i60/50; 720p60/50; Fisrt stream: 1920x1080, 1280x720, 640x480; Second stream: 320x180, 320x240, 640x360, 640x480, 1280x720, 1920x1080

    Lens Specification
  • Focus System: Auto One-push, Manual
  • Focal Length 4.7 - 47mm
  • Zoom Ratio: 10x (Optical) 5x (Digital)
  • View Angle: 6.43° ~60.9°

    Controls
  • Interface: RS-232/RJ45
  • Protocol: VISCA, Pelco-D/Pelco-P
  • Pan Rotation: ±170°; Tilt Rotation: -30° ~ +90°

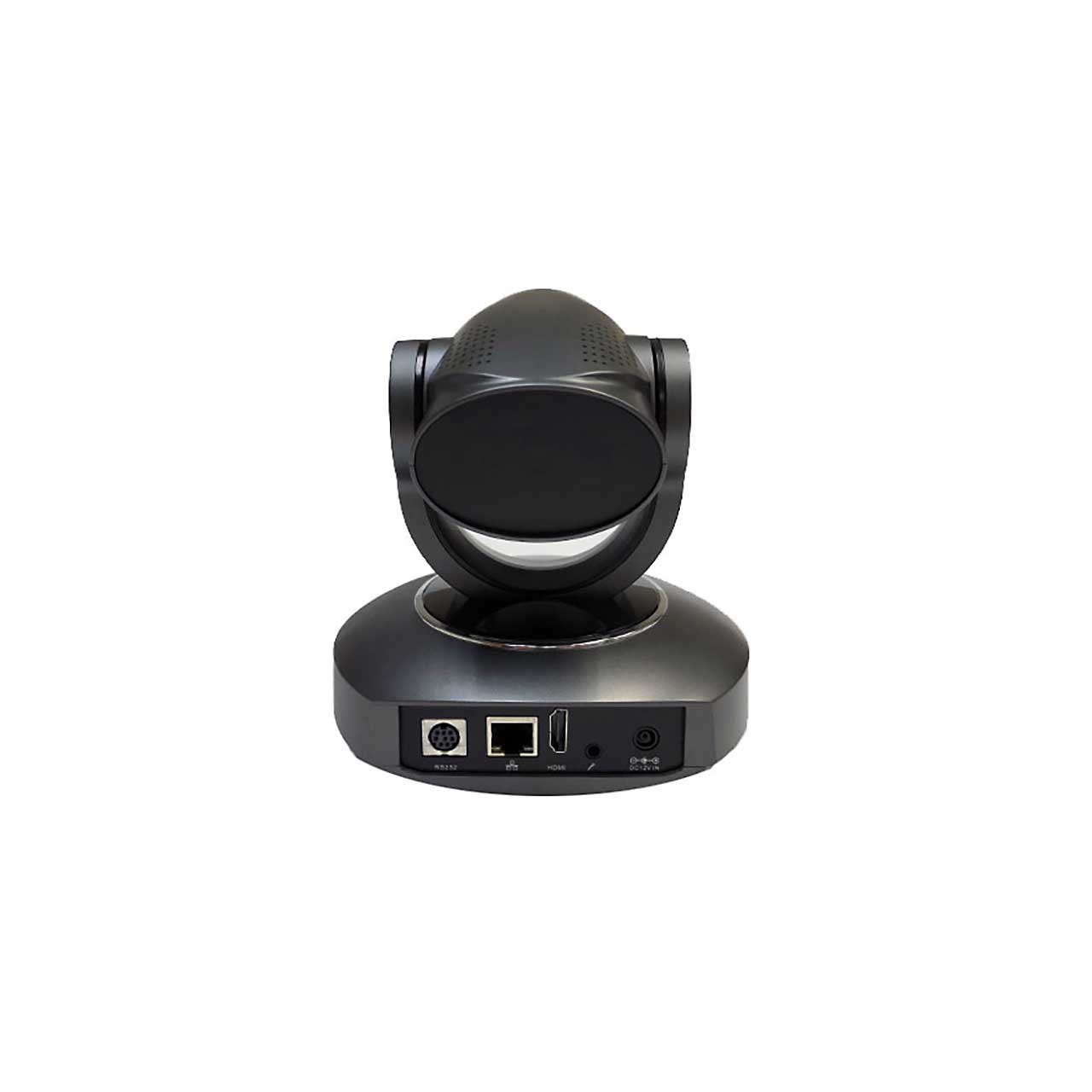

    Input/ Output Interface
  • Outputs: 1x HDMI, 1x LAN
  • Video Compression Format: H.264/ H.265

    General Specifications
  • Power Requirements: DC 12 V
  • Power Consumption: 12W
  • Operating Temperature: 20°F~80°F(-10°C ~ 50°C)
  • Storage Temperature: 20°F~95°F (-10°C ~ 60°C)
  • Dimensions: 6" x 6" x 5" (1151.2mm X 152.5mm X 126.7mm)
  • Weight: 3 lbs (1.4 kg )


• Item Includes:

  • 1x AV-1081(Dark Grey)
  • 1x AC power adaptor
  • 1x Power cord
  • 1x RS232 cable
  • 1x Remote control
  • 1x User manual


• Warranty:

  • 1 Year


• GTIN:

  0858738005336
