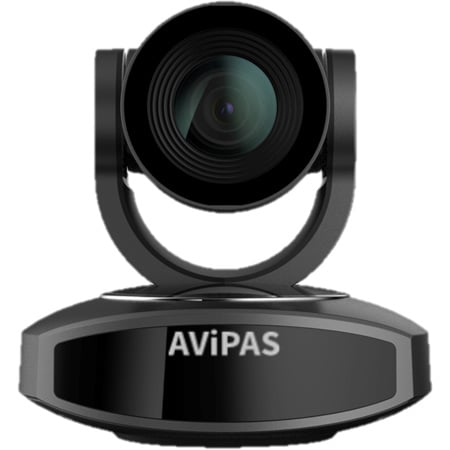

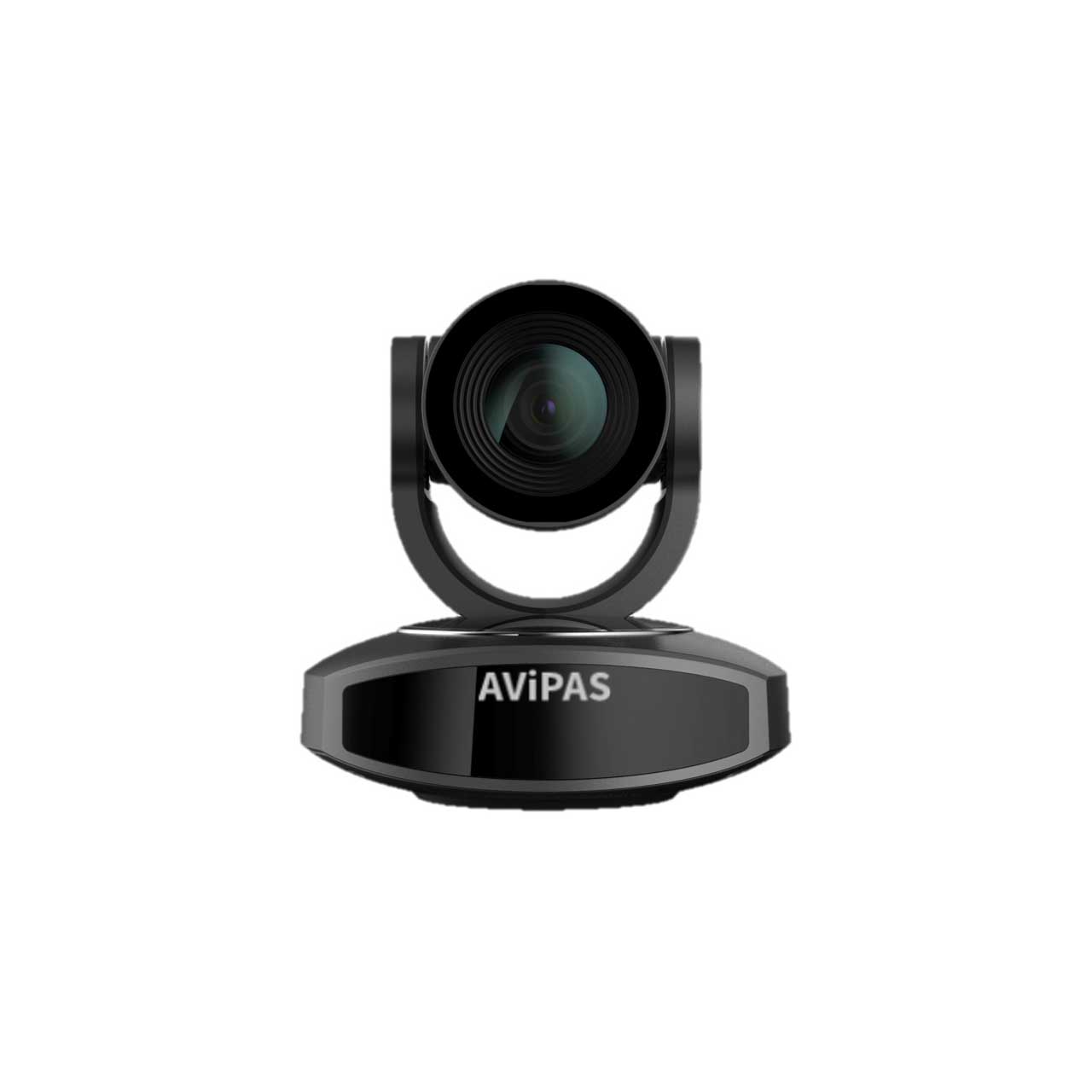

AViPAS AV-1250G 5x Full-HD 3G-SDI PTZ Camera with IP Live Streaming and PoE Supported - Gray

AV-1250G - Overview

• Features:

  • Elegant, compact design; super quiet and smooth pan/tilt mechanism
  • 1920 x 1080 high resolution output with a frame rate up to 60fps
  • 83.7° wide-angle high-quality lens
  • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
  • H.264/H.265 video compression
  • Low-power sleep function, lower than 0.4W
  • IP streaming & 3G-SDI output
  • RS-232 (VISCA/ Pelco-D/ Pelco-P) and IR remote control
  • PoE supported


• Specifications:

  • Sensor: 1/2.8'', CMOS, 16:9,
  • Effective Pixel: 2.07MP
  • Scanning Mode: Progressive
  • Lens: 5x, f=3.1~15.5mm, F1.8 ~ F2.8
  • Digital Zoom: 5x
  • Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
  • Focus: Auto/Manual/ One Push
  • Aperture: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • White Balance: Auto / Manual/ One Push/ 3000K/
  • 4000K/5000K/6500K
  • Backlight Compensation: On/Off
  • Digital Noise Reduction: 2D&3D Digital Noise Reduction
  • Video SNR: 55dB
  • Video Adjustment: Brightness/ Color/ Saturation/ Contrast/ Sharpness/ BW mode/ Gamma curve
  • View Angle: 20°(tele) ~ 83.7°(wide)
  • Pan Rotation Range: ±135°
  • Tilt Rotation Range: ±30°
  • Pan Speed Range: 0.1° ~ 60°/s
  • Tilt Speed Range: 0.1° ~ 30°/s
  • Number of Preset: 255
  • Preset Accuracy: 0.1°
  • Video coding standard: H.265/H.264
  • Video Stream: First stream, Second stream
  • Video Format: SDI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
  • Main stream: 1920x1080, 1280x720, 640x480
  • Substream: 320x180,320x240,640x360,640x480,1280x720,1920x1080
  • Frame Rate: 50Hz: 1fps ~ 25ps; 60Hz: 1fps ~ 30fps
  • Audio Standard: AAC/ MP3/ G.711A
  • Sampling Rate: 16000/ 32000/ 44100/ 48000
  • Network Protocols: RTSP/RTMP, ONVIF, GBT28181
  • Communication Interface: RS232I/O: 8pin Min DIN; Max Distance: 30m
  • Protocol: Pelco-D/ Pelco-P/ VISCA
  • Baud Rate: 115200/9600/4800/2400
  • Video Output Interface: SDI, LAN, RS232 I/O, A-IN
  • Audio Input: 1-ch 3.5mm audio interface, Line In
  • Network interface: 1xRJ45: 10/100/1000M Adaptive Ethernet ports
  • Power Jack: JEITA type (DC IN 12V), Ethernet (PoE supported)
  • Input Voltage: DC 12V
  • Current Consumption: 1.0A (Max)
  • Operating Temperature: 20°F~80°F (-10°C~50°C)
  • Storage Temperature: 20°F~95°F (-10°C~60°C)
  • Power Consumption: 12W (Max)
  • Size: 6"x6"x5" (151.2mmX152.5mmX126.7mm)
  • Net Weight: 3lb (1.4kg)


• GTIN:

  0858738005510
