AViPAS AV-1281W 10x Full-HD HDMI PTZ Camera with IP Live Streaming and PoE Supported - White

ITEM #: AV-1281W MFG #: AV-1281W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$750.00

Our Price:

$720.00

Special Price:

$667.67

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AV-1281W - Overview

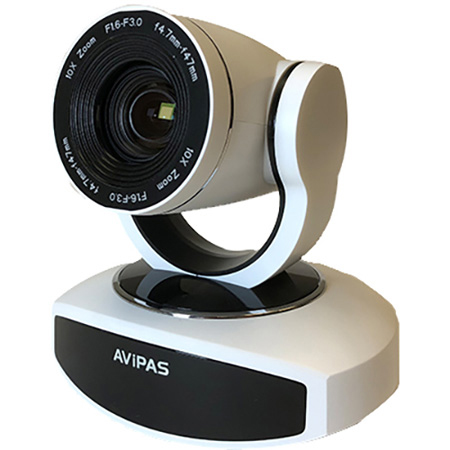

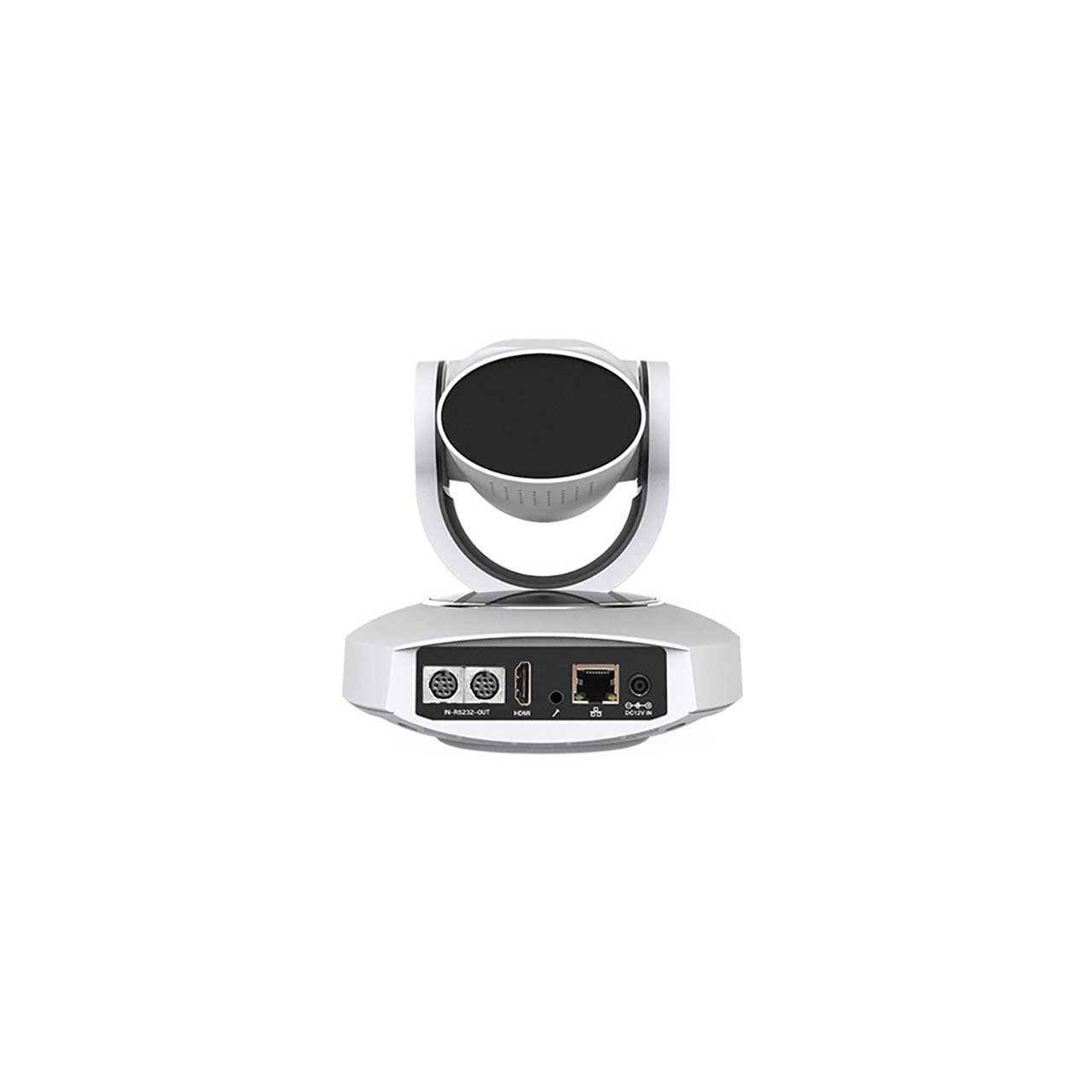

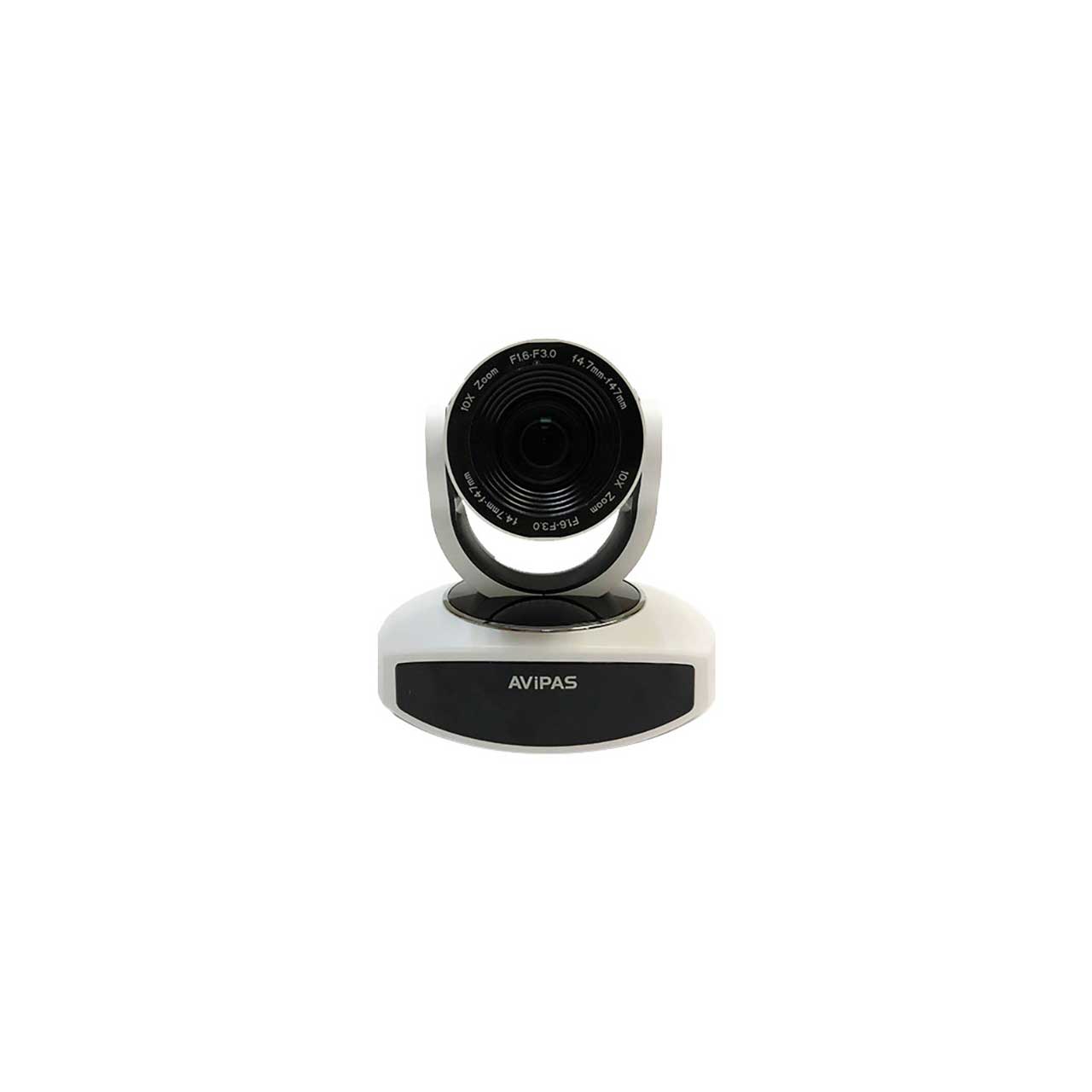

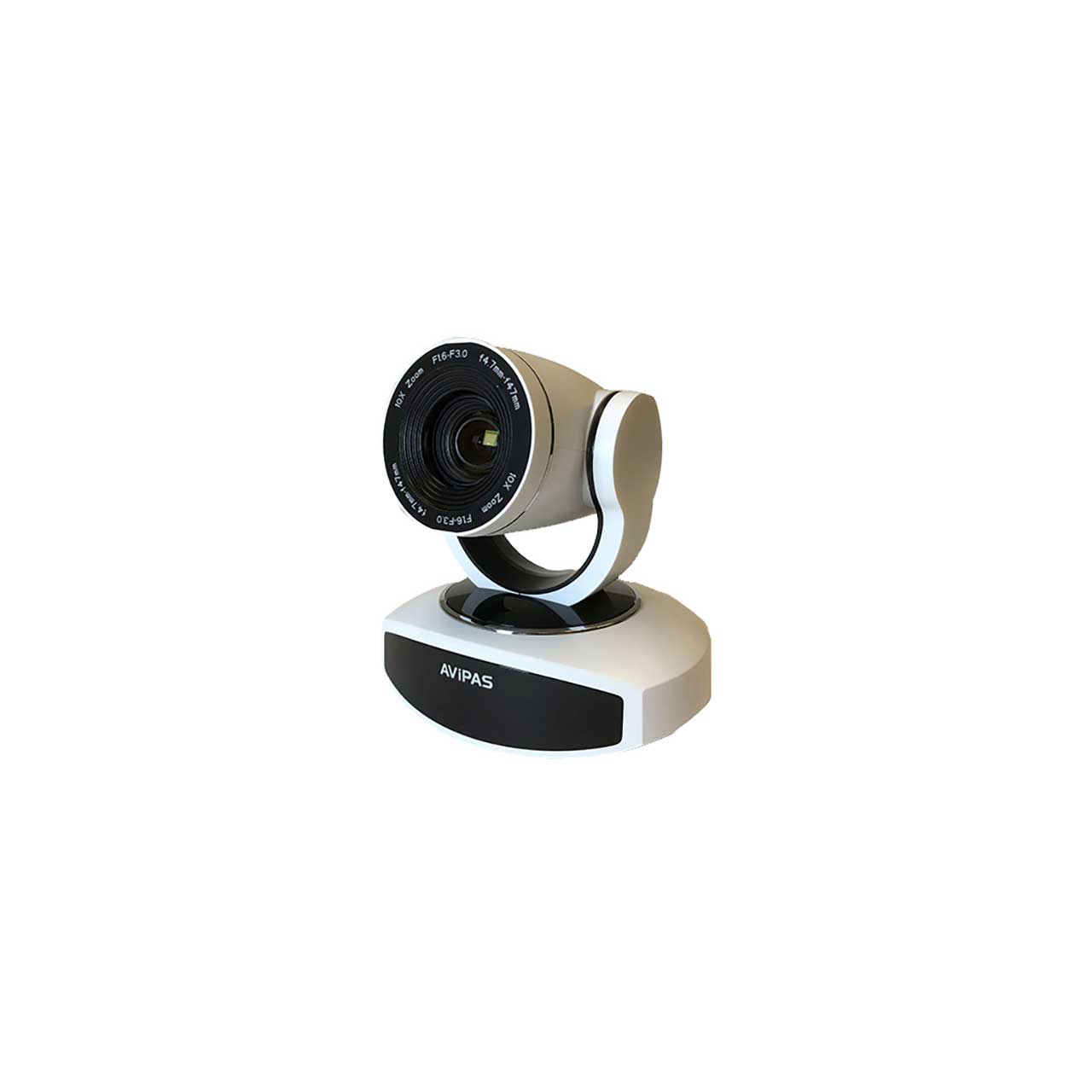

The AViPAS AV-1281W is a compact, full HD 1080p camera with 10X optical zoom & 5X digital zoom, suitable for video conferencing, education and houses of worship. It has 2 outputs: HDMI and LAN. It has a 1/2.8", 2.07 million effective pixel high-quality CMOS sensor to capture video images. Its f4.7mm~47mm, F1.6~3.0 lens and a minimum illumination of 0.5 Lux is prefect for low-light conditions. AV-1281W features a Power over Ethernet (PoE) which delivers power, IP control and video over a single Cat5/6 cable. You can stream H.264/H.265 content as well as monitor uncompressed video via the camera's HDMI output. It also supports dual streaming outputs in different resolutions. The camera has RS232 in and out ports for communication, easy to cascade. AV-1281W also has a 3.5mm audio input. AV-1281W can be controlled by IR remote control, RJ45 over network or RS232 using serial commands.

  • Features:

    • Remote pan, tilt and zoom
    • 10x optical zoom and 5x digital zoom
    • Full HD 1920x1080p @ 60 fps
    • 2.07 MP 1/2.8" CMOS Sensor
    • 83.7° wide-angle, 4.7-47mm, F1.6-3.0 Lens
    • 0.5 Lux minimum illumination @ F1.8
    • 2D&3D digital noise reduction
    • H.264/H.265 Video streaming
    • PoE supported
    • AAC/MP3/G.711A audio encoding
    • HDMI and LAN simultaneous output
    • 255-preset positions via RS232 (10 preset positions using IR remote control)
    • IR remote & RS232I/O & RJ45 for control
    • VISCA/Pelco-D/Pelco-P communication protocols
    • H/Vertical image flip
    • Standard wall / ceiling mounting

  • Specifications:

    • Image Sensor: 1/2.8" Panosonic CMOS sensor, 2.07MP
    • Shutter Speed: 1/30s ~ 1/10000s
    • Minimum Illumination: 0.5Lux @ (F1.8, AGC on)
    • Gain: Auto, Manual
    • SNR: >=55dB
    • White Balance: Manual, Auto, Indoor, Outdoor, One Push 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    • Image Flip: H&V On/Off
    • Pan Rotation: ±170°; Tilt Rotation: -30°~+90°
    • PoE: Support
    • Focus System: Auto One-push, Manual
    • Focal Length: 4.7 - 47mm
    • Zoom Ratio: 10x (Optical) 5x (Digital)
    • View Angle: 6.43° ~60.9°
    • Power Requirements: DC 12V
    • Power Consumption: 12W
    • Operating Temperature: 20°F~80°F(-10°C~50°C)
    • Storage Temperature: 20°F~95°F (-10°C~60°C)
    • Dimensions: 6"x6"x5" (1151.2mm x 152.5mm x 126.7mm)
    • Weight: 3LB (1.4kg)

  • Item Includes:

    • 1 x AV-1281W
    • 1 x AC power adaptor
    • 1 x Power cord
    • 1 x 6.5ft RS232 cable (9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
    • 1 x IR remote control
    • 1 x User manual

  • GTIN:

    0858738005442
