BZBGEAR ADAMO JR 12x 1080P Auto Tracking DANTE AV-H Live Streaming PTZ Camera with Tally Lights - Black

ITEM #: BG-ADAMOJRDA12XB MFG #: BG-ADAMO-JRDA12X-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,599.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BG-ADAMO-JRDA12X-B - Overview

The Next Generation of Full HD PTZ Cameras
The BG-ADAMO-JRDA is a brand-new Full HD Dante AV-H certified PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options.

What is Dante AV-H?
Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera's video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4. For protection of the users content, Dante AV-H is HDCP compliant.

With Dante AV-H, users will also be able transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.

Applications:
Studio Recordings
Houses of Worship
Sporting Events
Event Businesses
Doctors
Clergy

  • Features:

    • Advanced Visual Performance
    • 12/20/30x Optical Zoom
    • Supports HDMI, SDI, USB 2.0, USB 3.0,LAN Connections & IP Streaming
    • Smooth Video and Audio Processing
    • Innovative Design with Built-In 360° Tally Light
    • Extensive Control Options - Supports RS422 (compatible with RS485) Output and RS232 Input/Output
    • Supports VISCA, PELCO-D, PELCO-P, and auto identification protocol.
    • Supports ONVIF, GB/T28181, RTSP, RTMP protocols, Easily links with streaming media servers via push mode in RMTP
    • Supports RTP multicast mode and network full command VISCA control protocols


  • Specifications:

    • Camera/Lens
    • Optical Zoom: 12X
    • Focus Range: f=4.1 mm ~ 49.2 mm ±5%:
    • FOV:
      Horizontal (H): 6.57°(tele) ~ 70.28°(wide)
      Vertical (V): 3.76°(tele) ~ 42.06°(wide)
    • Iris Value: F1.8 ~ F2.68±5%
    • Image Sensor: 1/2.8 inch SONY CMOS sensor
    • Effective Pixels: 2.07 Megapixels 16:9
    • Video Signal:
    • HDMI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
    • SDI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
    • USB2.0: MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30; YUY2: 800*448 /720*480P25; 640*360 /432*240P30 NV12: 800*448P25; 640*480 /640*360 /432*240P30
    • USB3.0: YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*480P30;
    • Minimum Illumination: 0.05Lux (F1.8, AGC ON)
    • DNR: 3D
    • White Balance: Auto / Manual / One-Push / Specified Color Temperature
    • Focus Mode: Auto / Manual / One-Push
    • Exposure Mode: Auto / Manual / Shutter Priority / Iris Priority / Brightness Priority
    • Iris Value: F1.8 ~ F11, CLOSE
    • Shutter Speed: 1/25 ~ 1/10000
    • BLC: On/Off
    • Dynamic Range: Off / Dynamic Level Adjustment
    • Video Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness, W/B Mode
    • SNR: ≥50dB

      Interface Parameters

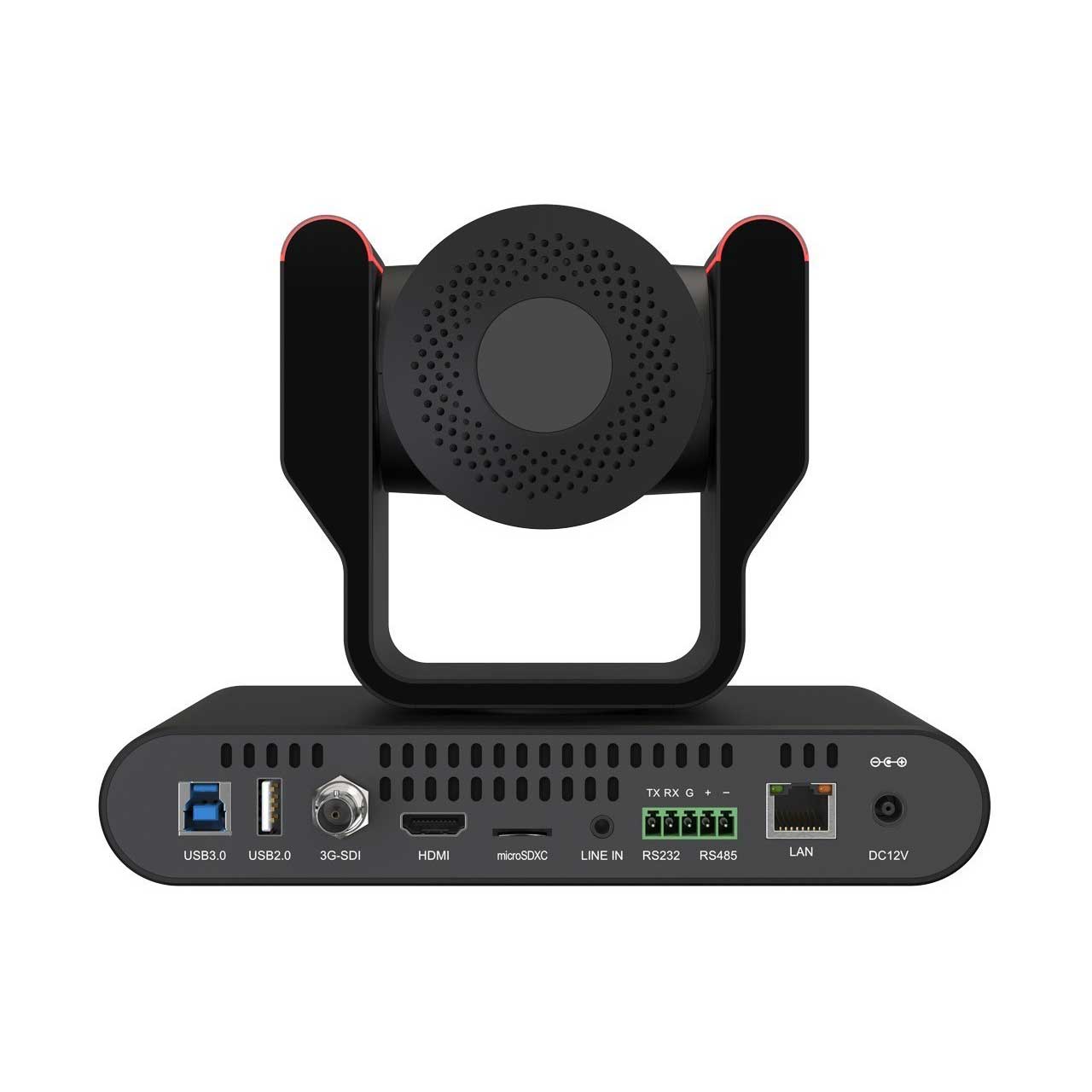

    • Interface: HDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
    • Video Compression Format: LAN: H.264, H.265
    • USB 2.0: MJPG, H264, H265, YUY2, NV12
    • USB 3.0: YUY2
    • Audio Input: Dual channel 3.5mm line input
    • Audio Output: HDMI, SDI, LAN
    • Audio Compression Format: AAC
    • Network Jack: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
    • Network Protocols: RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol
    • Control Jack: RS232-IN, RS232-OUT, RS422 compatible with RS485
    • Serial Port Communication: VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400
    • USB Communication Protocol: UVC (Video Communication Protocols)
    • Power Supply: HEC3800 Power Outlet (DC12V)
    • Power Adapter: Input: AC110V-AC220V; Output: DC12V/1.5A
    • Input Voltage: DC12V±10%
    • Input Current: <1.5A
    • Power Consumption: <12W

      PTZ Parameters
    • Pan: -170° ~ +170°
    • Tilt: -30° ~ +90°
    • Pan Speed: 1.4°/s ~ 100°/s
    • Tilt Speed: 2.9°/s ~ 30°/s
    • Preset Speed: Pan (H): 78.8°/s, Tilt (V): 31.7°/s
    • Preset Quantity: 255 Presets (10 can be set via remote control)


  • Item Includes:

    • 1x BG-ADAMO-JRDA 12x Dante PTZ Camera (Black)
    • 1x Power Adapter
    • 1x RS232 Control Cable
    • 1x USB 2.0 Cable
    • 1x USB 3.0 Cable
    • 1x Remote Control
    • 1x Manual
