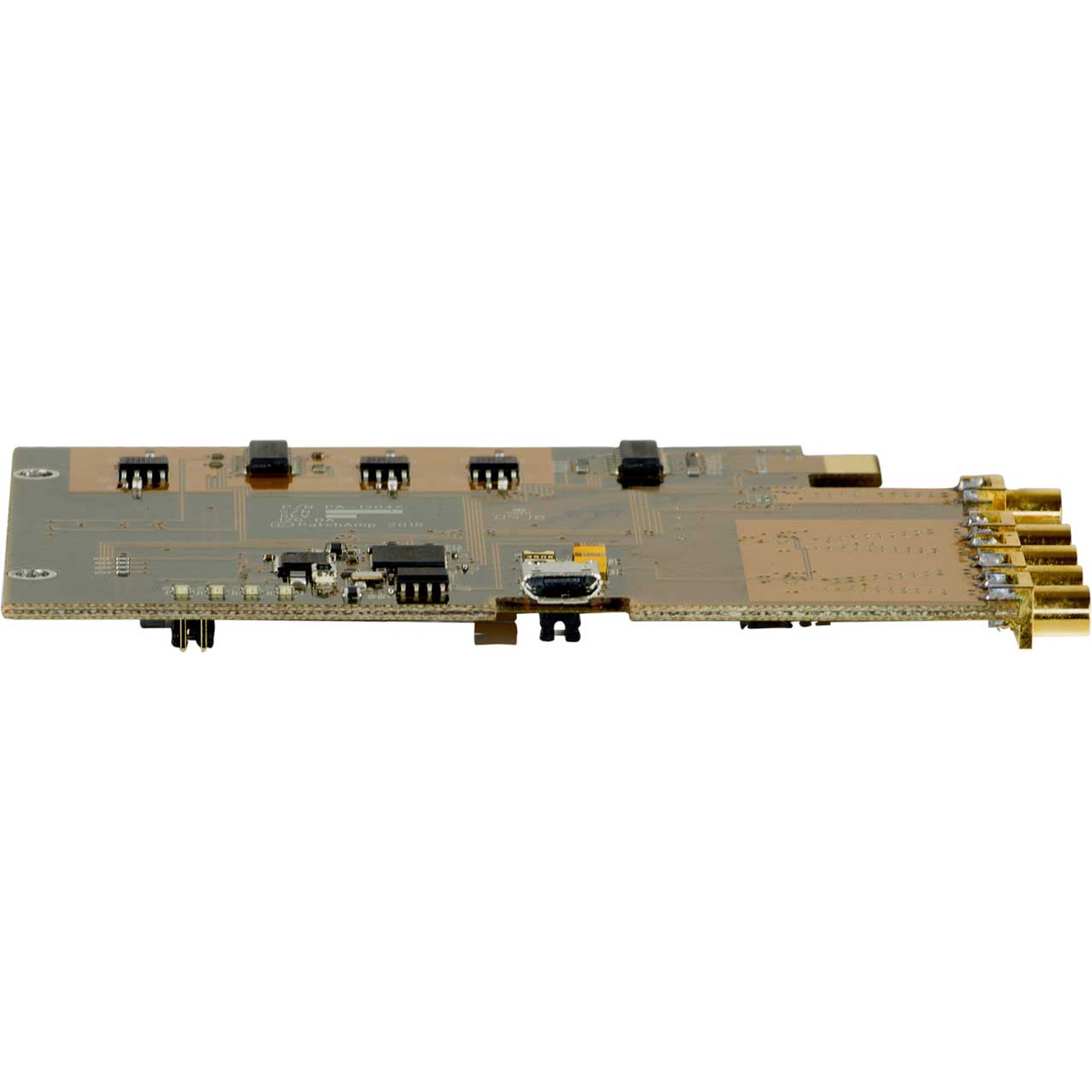

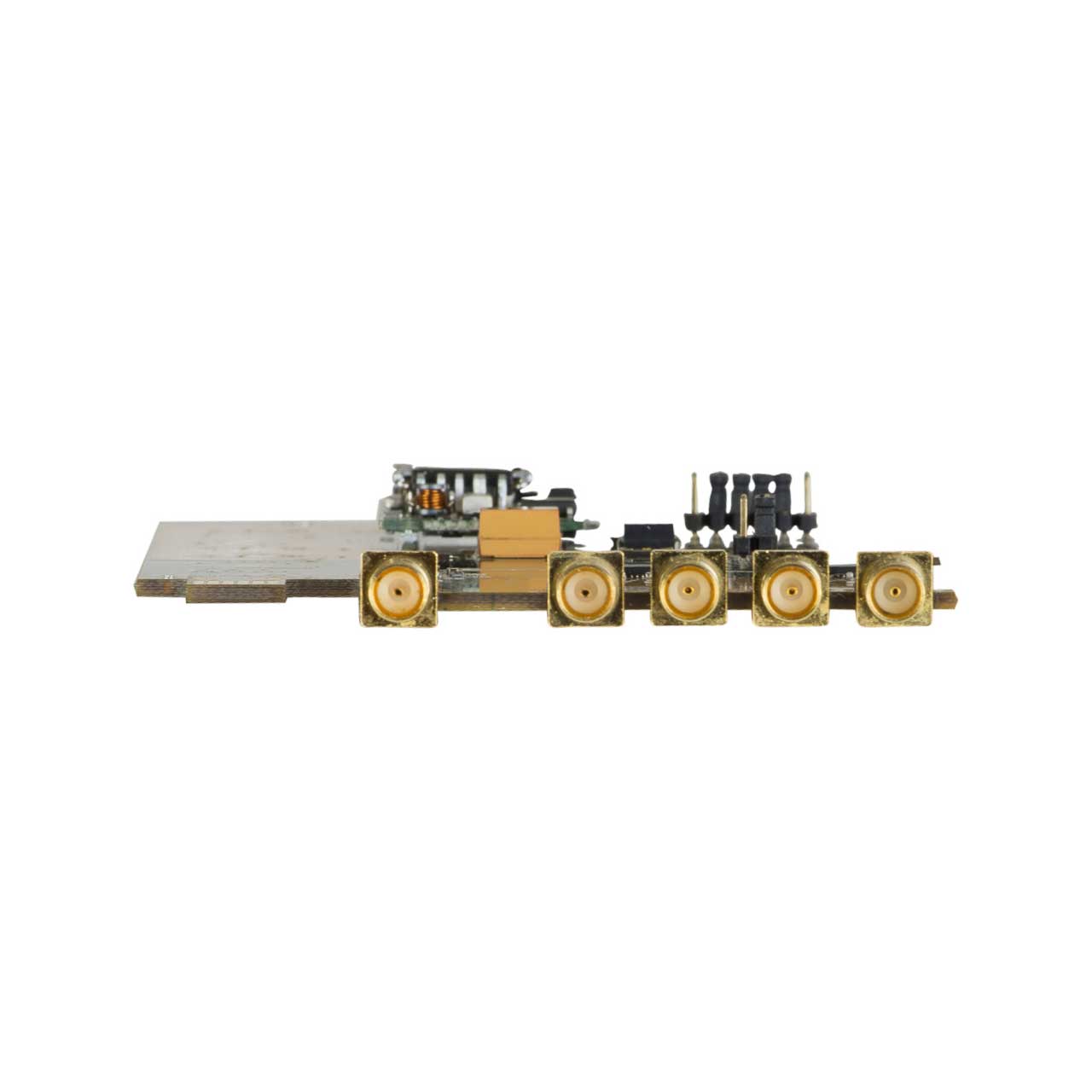

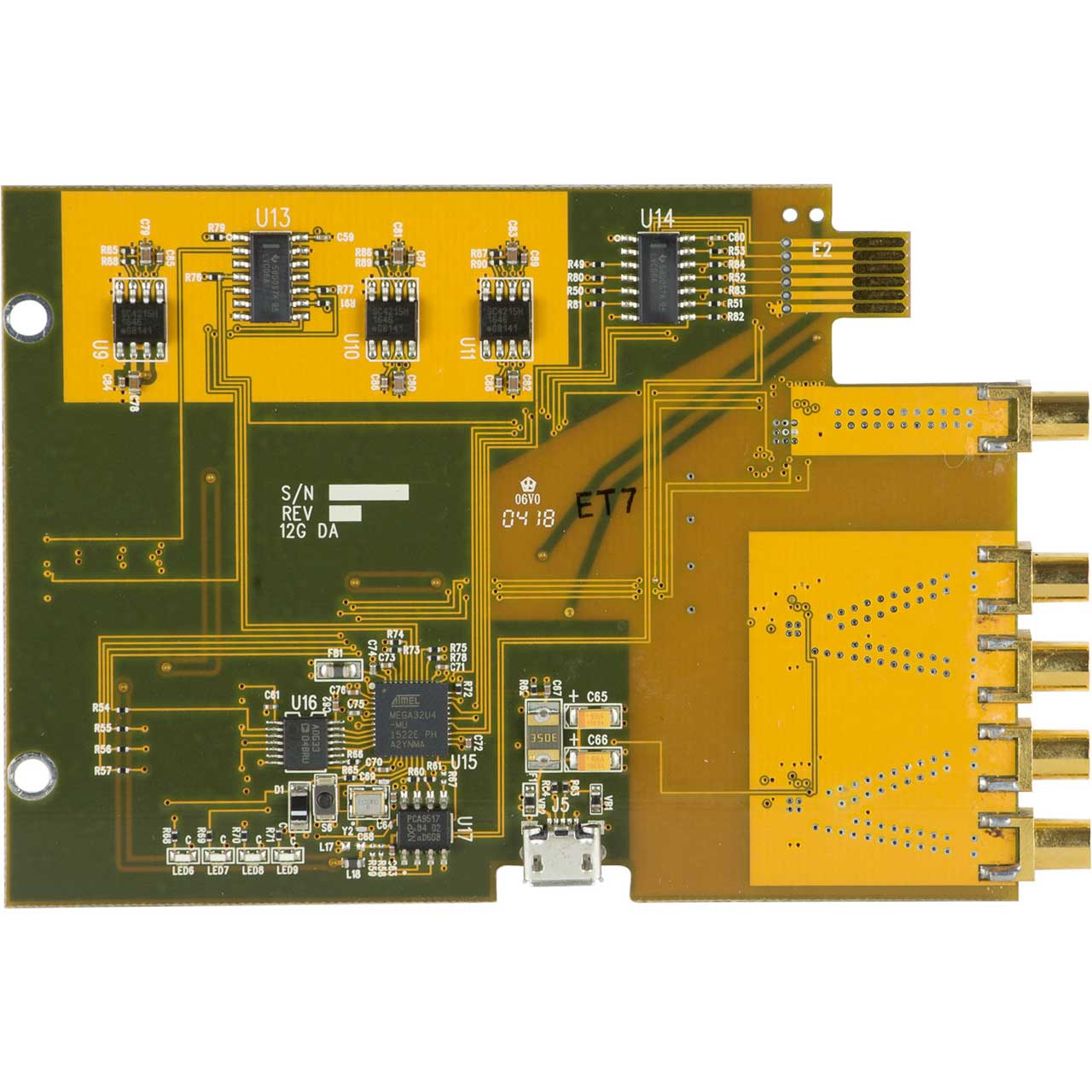

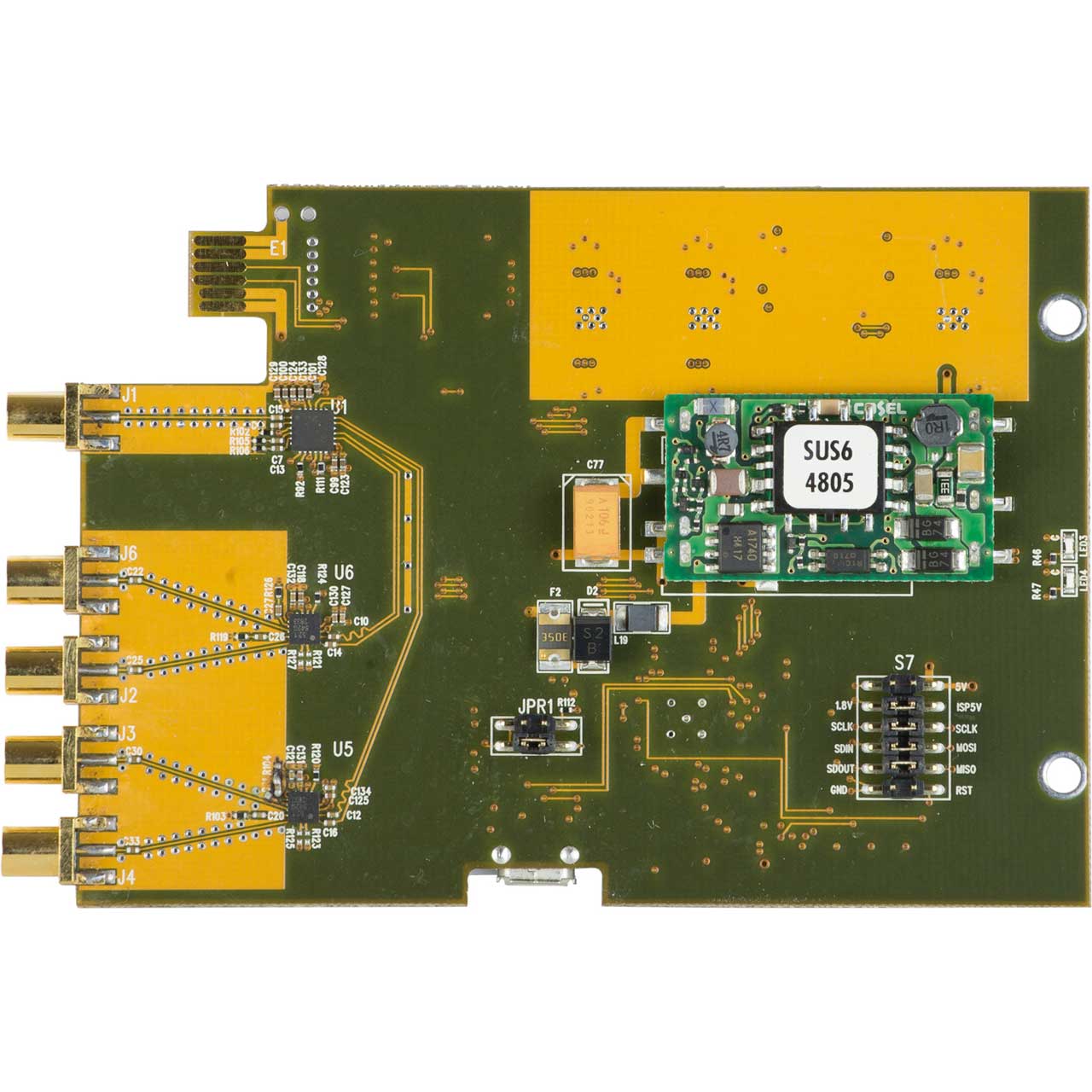

Bittree DABX 1 In x 4 Out 12G DA Card with DIN 1.0/2.3 Connectors For DAF32X Frame

ITEM #: BIT-DABX MFG #: DABX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$904.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DABX - Overview

The Bittree DABX is a 12G DA card with DIN 1.0/2.3 connectors for the DAF32X frame.

  • Features:

    • 1 in x 4 out
    • Coax in and out
    • Auto equalizing
    • Multi-rate reclocking up to 12Gb/s
    • Supports all HD/SD formats
    • Supports AES & Madi


  • Specifications:

    • Number of Inputs: 1
    • Input Connection: DIN 1.0/2.3
    • Input Impedance: 75 Ohm
    • Input Return Loss: > 15dB to 1.5GHz > 10dB to 3GHz > 5dB to 12GHz
    • Signal Level: 800mV +/-10%
    • Outputs: 4 Coax
    • Output Connection: Din
    • Output Impedance: 75 Ohm
    • Output Return Loss: > 15dB to 1.5GHz > 10dB to 3GHz > 5dB to 12GHz
    • SMPTE: 424M, 292M, 259M, 344M, ST2081, ST2082
    • Data Rates: 143, 177, 270, 360, 540, 1485, 2970, 5940, 11880 Mb/s
    • Equalization Mode: Automatic Multi-Rate Re-clocking
    • Signal Level: 800mV Nominal
    • DC Offset: 0V +/-0.5V
    • Rise & Fall Time: 200ps nominal
    • Overshoot: < 10% of amplitude Wideband Jitter < 0.1 UI @ 3G
