DAF32X - Overview

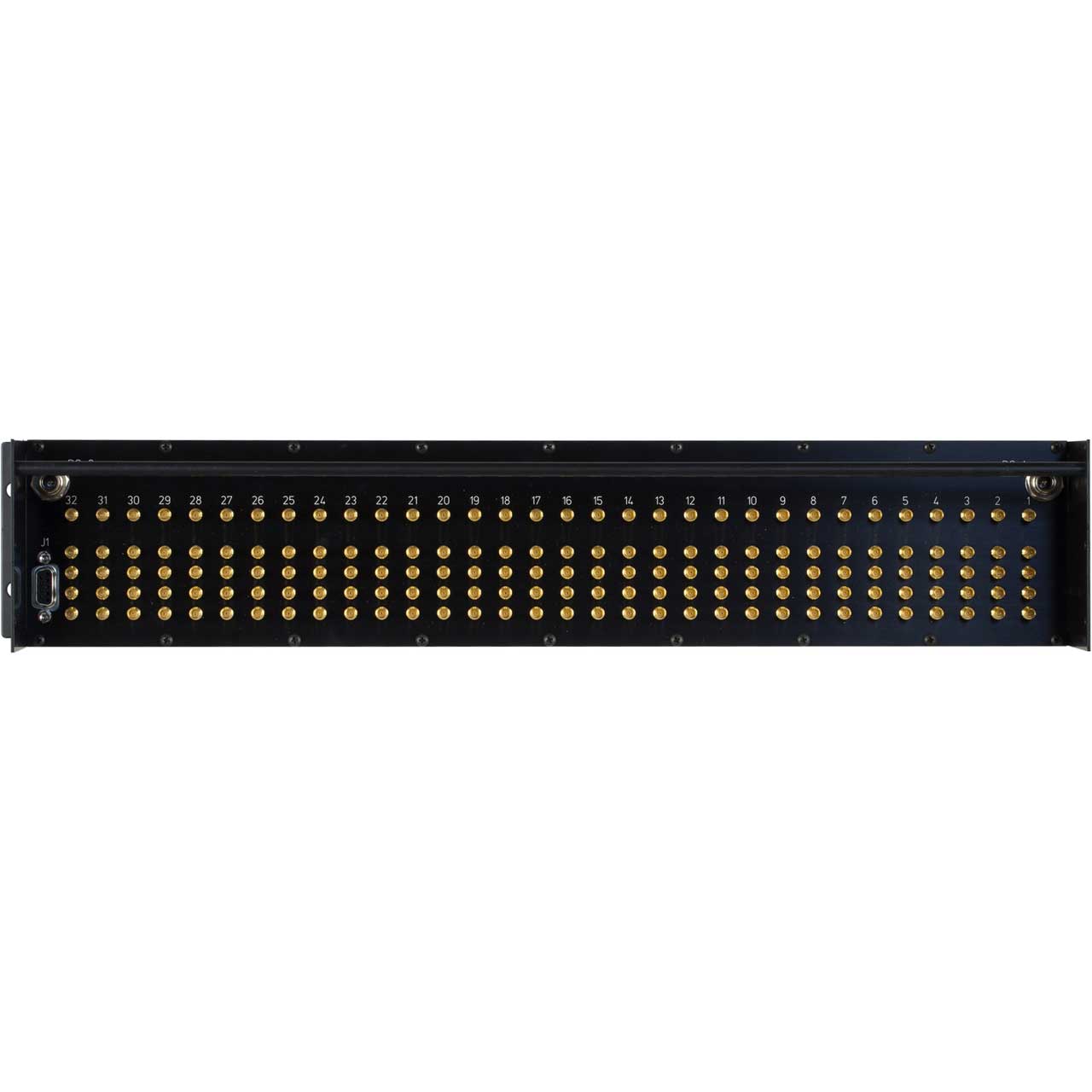

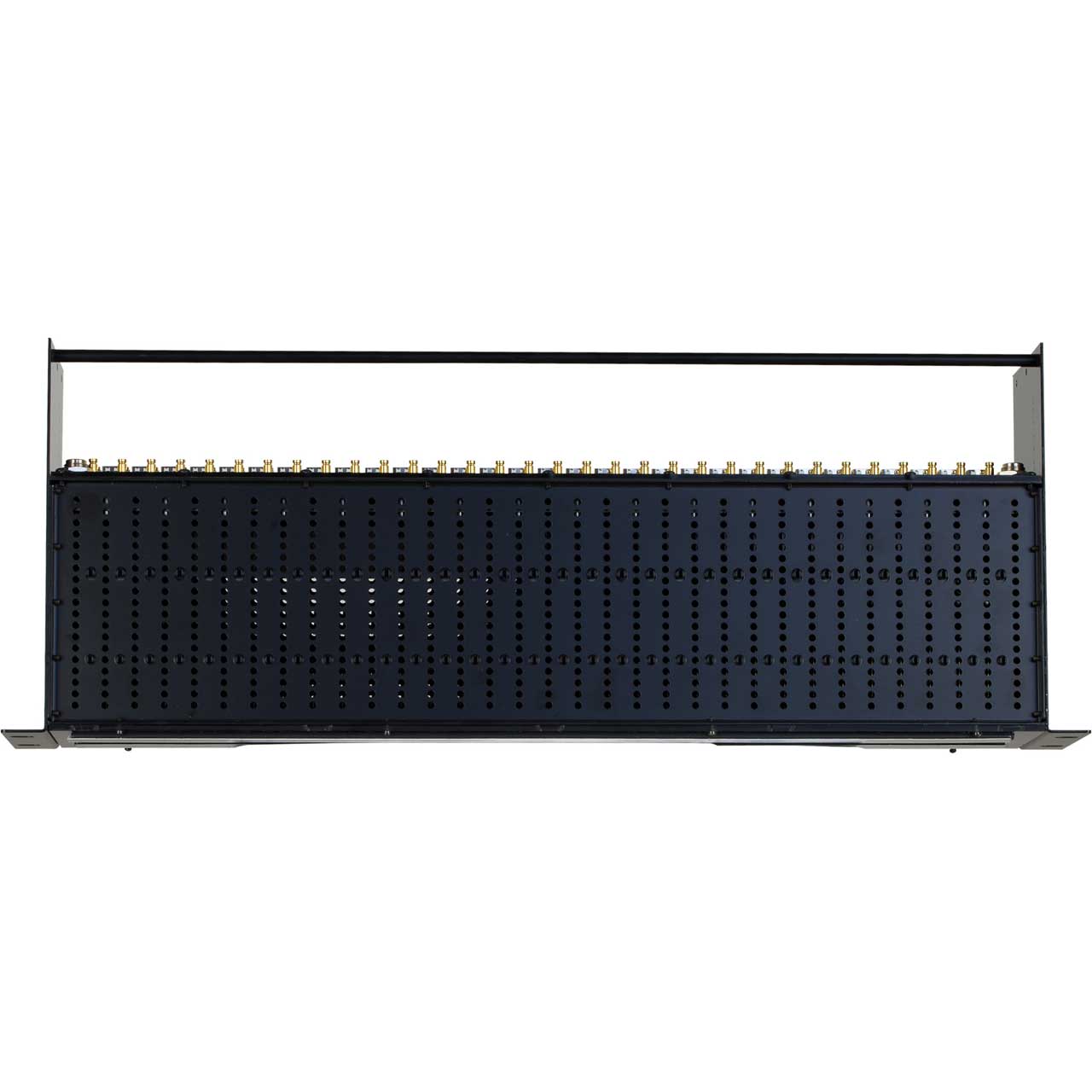

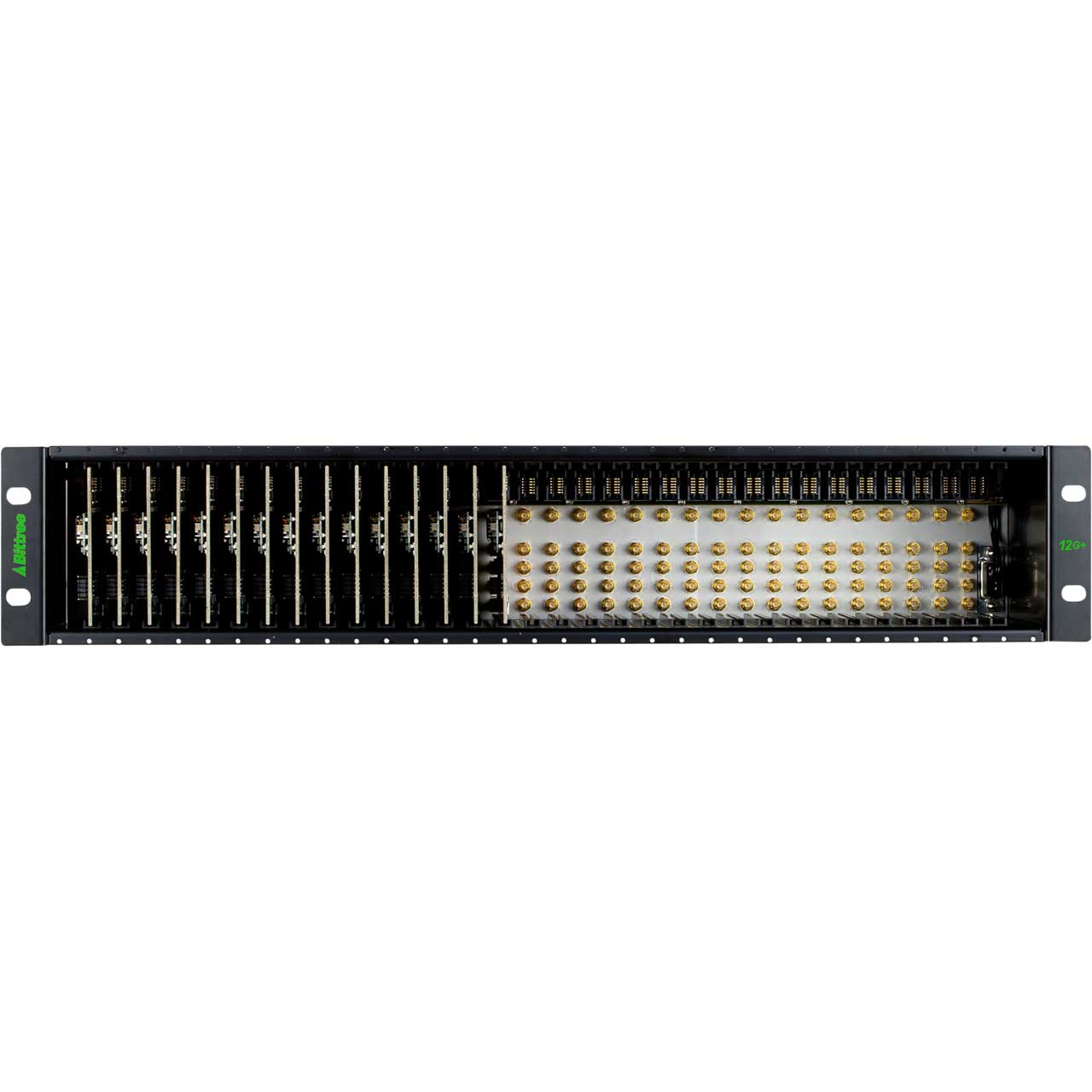

The DAF32X is a 2RU frame which houses the DABX video distribution amplifiers.

Features:
- Up to 32 1-in by 4-out distribution amps per frame
- Compact design offers high module density
- Accepts all Bittree X modules
- Wideband frame for sd-sdi, and hd-sdi & 4K UHD 12G SDI

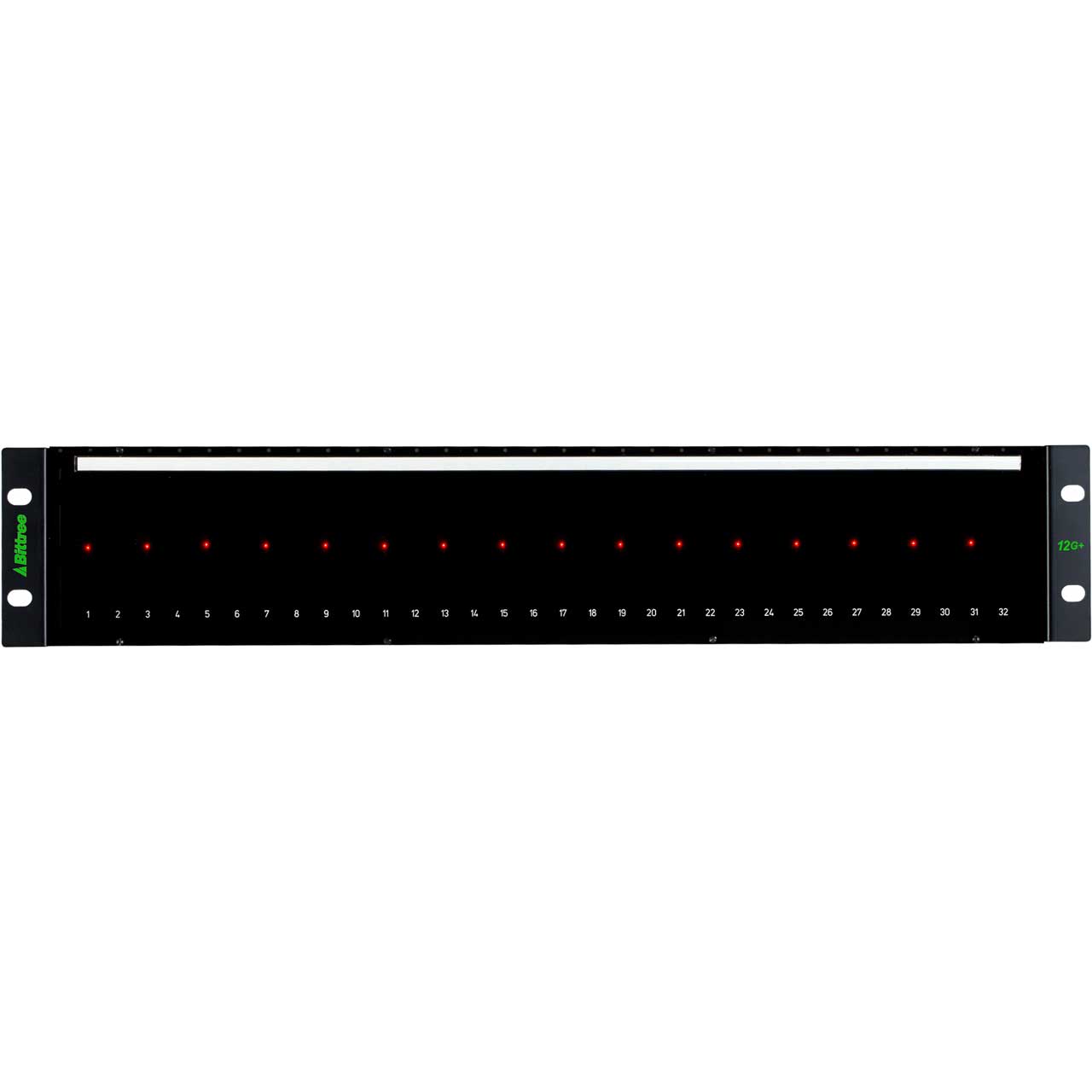

- See thru front cover allows quick status indication
Specifications:
- Height: 3.5 inches (2RU)
- Width: 19 inches
- Depth: 7 inches
- Nominal Weight: 12 lbs. FULLY LOADED
- Input: Coax
- Connectors DIN: 1.0/2.3, 75 ohm
- Number of inputs: up to 32
- Number of outputs: up to 128

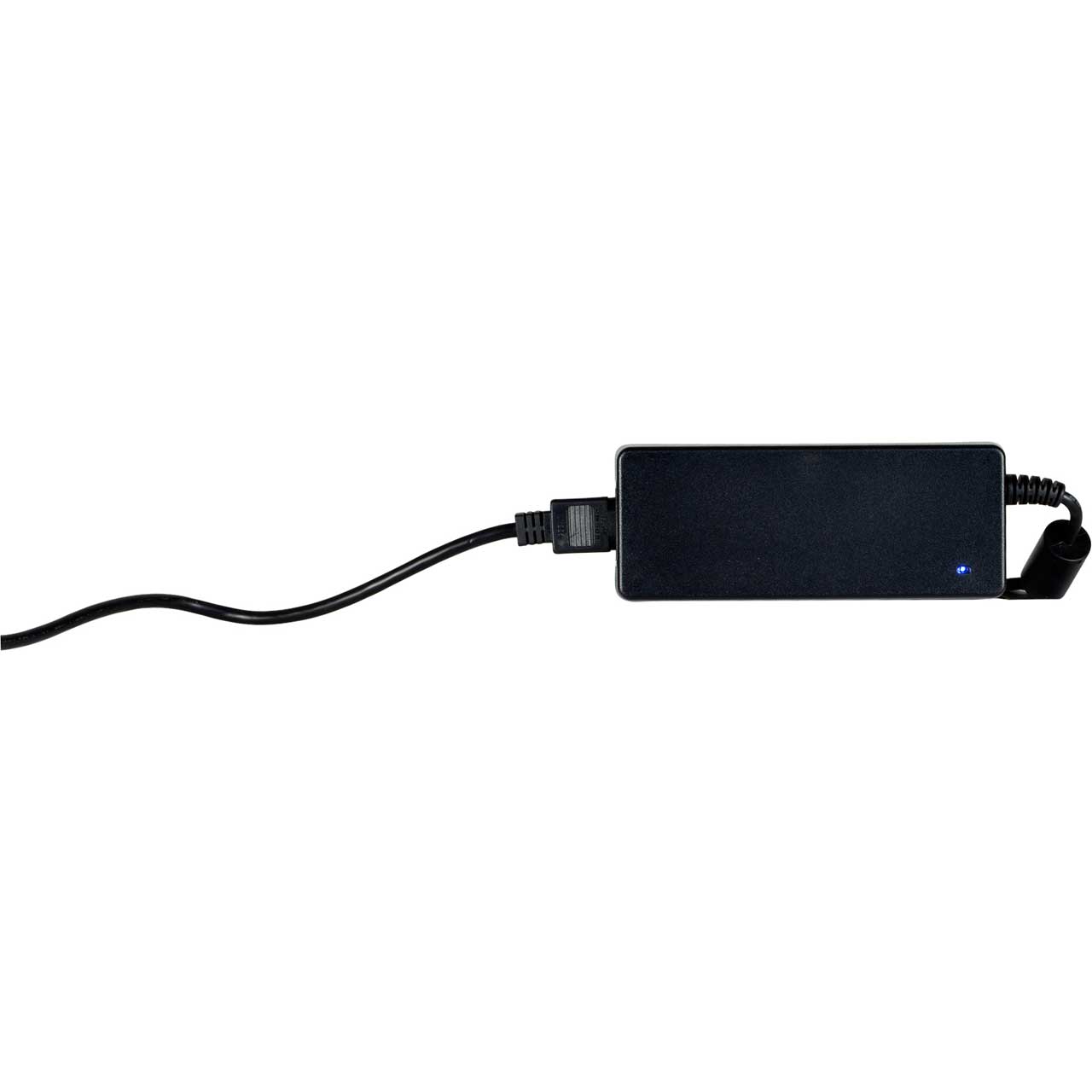

- Type: External, 48Vdc
- Input Voltage: 90-264 Vac, 47-63 Hz, Single Phase
- Redundancy: N+1, hot swappable modules
- Power Factor: >.99
- EMI: complies with EN55022 & FCC Class A
