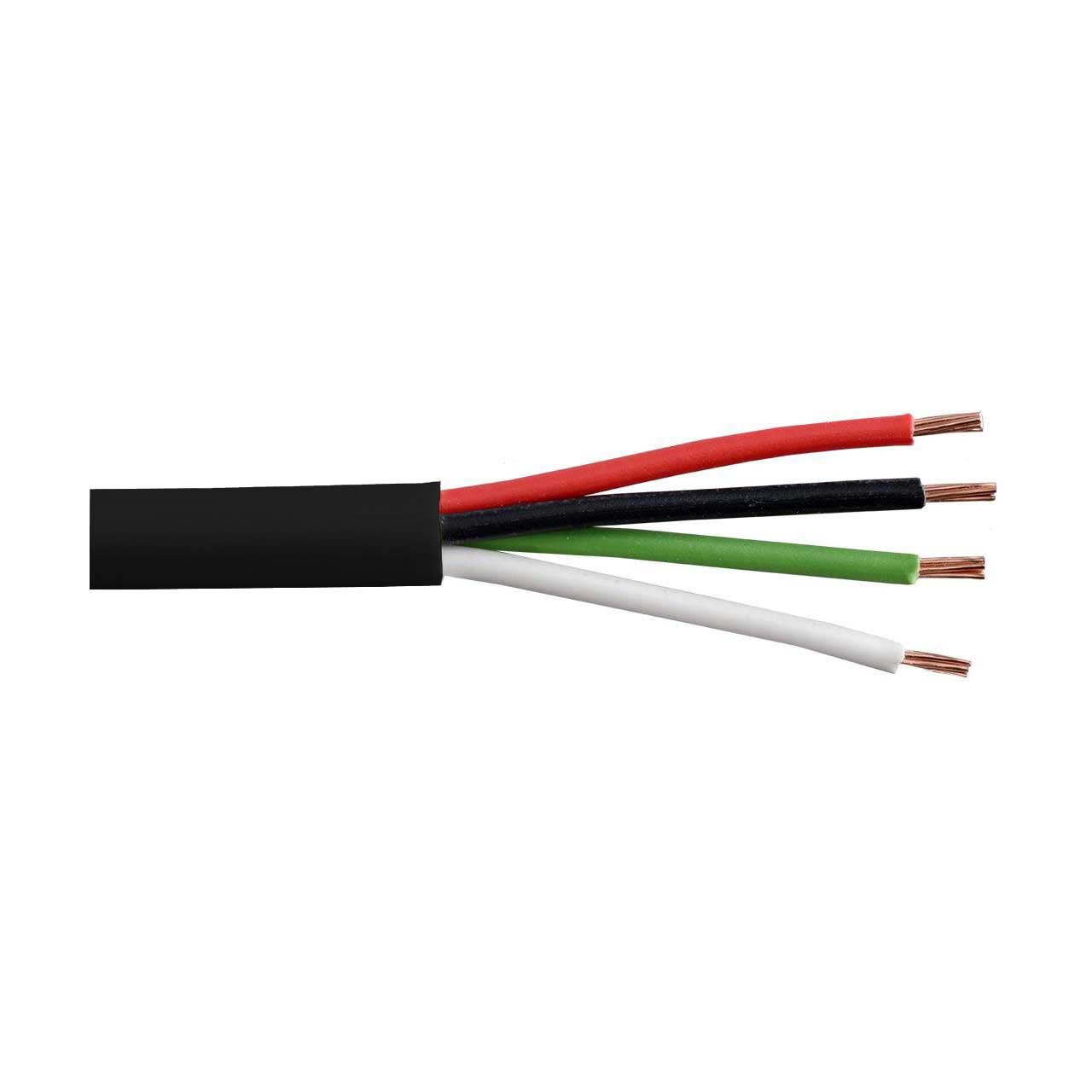

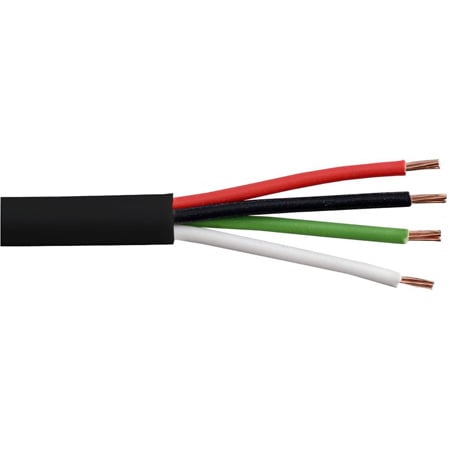

Belden 1312A 12AWG 4 Conductor Direct Burial Speaker Cable - Black - 500 Foot

ITEM #: BL-1312A-500 MFG #: 1312A 010500

Primary Image
Belden
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1312A 010500 - Overview

4 Conductor Direct Burial Audio Cable - Black

Belden 1312A Speaker Cable, 4 Conductor 12 AWG (168 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible. Suitable for Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker applications.

  • Specifications:

    • AWG: 12
    • Elements: 4
    • Stranding: 168x34
    • Material: BC - Bare Copper
    • Nom. Conductor DCR: 1.6 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 22.3 pF/ft
    • Max. Current: 18 Amps per conductor @ 25°C
    • UL Voltage Rating: 300 V (CM, CL3)
    • UL Rating Temp: 75°C
    • Operating Temp: -20°C To +75°C
    • Max. Pull Tension: 304 lbs
    • Bulk Cable Weight: 123 lbs/1000ft
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor
    • Flammability / Fire Resistance: UL1666 Riser
    • NEC / UL Compliance: Article 725, Article 800, CL3, CM


  • GTIN:

    0612825111672
