Neutrik NE8FDP-TOP Receptacle etherCON CAT5 D Series - Feedthrough/Nickel - True Outdoor Protection(TOP) - IP65/UV Rated

ITEM #: NE8FDP-TOP MFG #: NE8FDP-TOP

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$15.52

Our Price:

$13.30

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NE8FDP-TOP - Overview

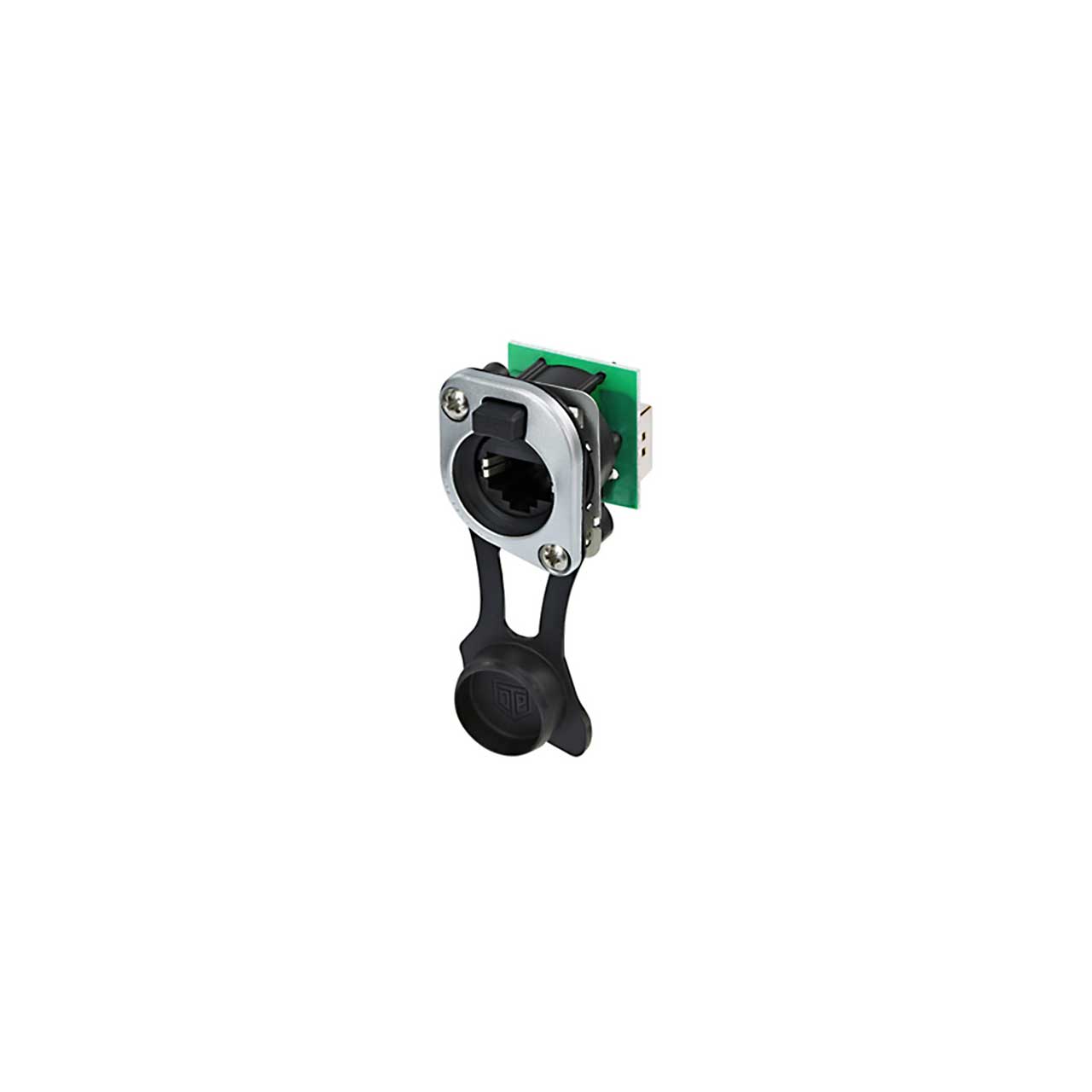

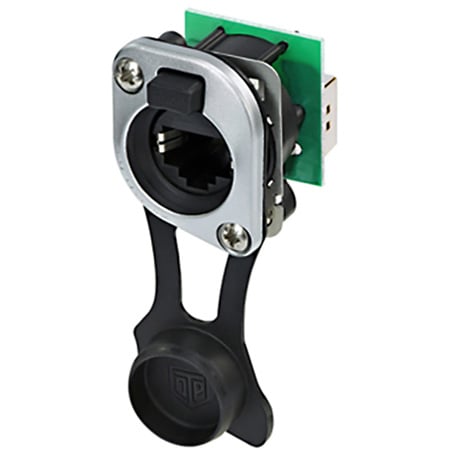

The Neutrik NE8FDP-TOP is an RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP. This includes a D-shape metal flange with the latch lock and mounting screws included. The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Please Note: This does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.

  • Features:

    • True Outdoor Protection (TOP) according to IP65 & UL50E
    • Uses high impact UV-resistant and gasket materials
    • Outdoor protection when mated with NE8MX-TOP or sealing cap closed
    • Accomodates NE8MCX or any standard RJ45 plug
    • Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
    • Approved latch lock system
    • Mountable from the front of the panel
    • Ground panel connection


  • Specifications:

    • Electrical
    • Contact resistance: < 10 mΩ
    • Dielectric strength: 1 kVdc
    • Frequency range: 1 - 100 MHz
    • Insulation resistance: > 0.5 GΩ
    • Rated current per contact: 1.5 A
    • Rated voltage: < 50 V
    • Transmission performance: CAT 5e

      Mechanical
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: 1000 mating cycles
    • Panel thickness: 2 mm - 4 mm , 0.08" - 0.16"
    • Wiring: Feedthrough
    • Locking device: Latch lock
    • Chassis shape: D

      Material
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Chromium

      General
    • Type: Chassis
    • Connection Type: etherCON
    • Gender: Female
    • Flammability: UL 94 V-0
    • Standard compliance: TIA/EIA 586B, IEC11801
    • Temperature range: -30 °C to +80 °C
    • Protection class: IP65, UL50E (mated or sealing cap closed)
