Belden 1505F CM Rated RG59 75 Ohm 6G-SDI Flexible Stranded Copper Coaxial Video Cable 22AWG - Black - 1000 Ft

ITEM #: BL-1505F-1000 MFG #: 1505F B591000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,642.50

Our Price:

$859.00

Availability: In Stock
iAvailability Description Popup


1505F B591000 - Overview

Double 95% Tinned Copper Braid Shield

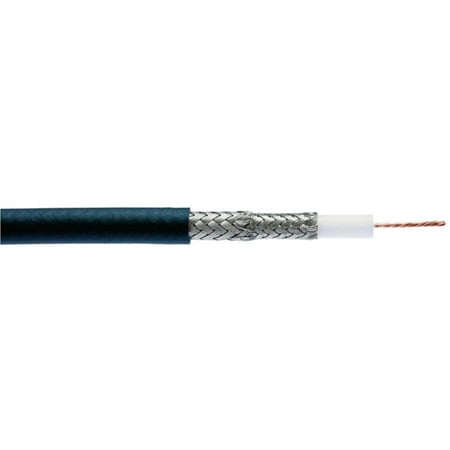

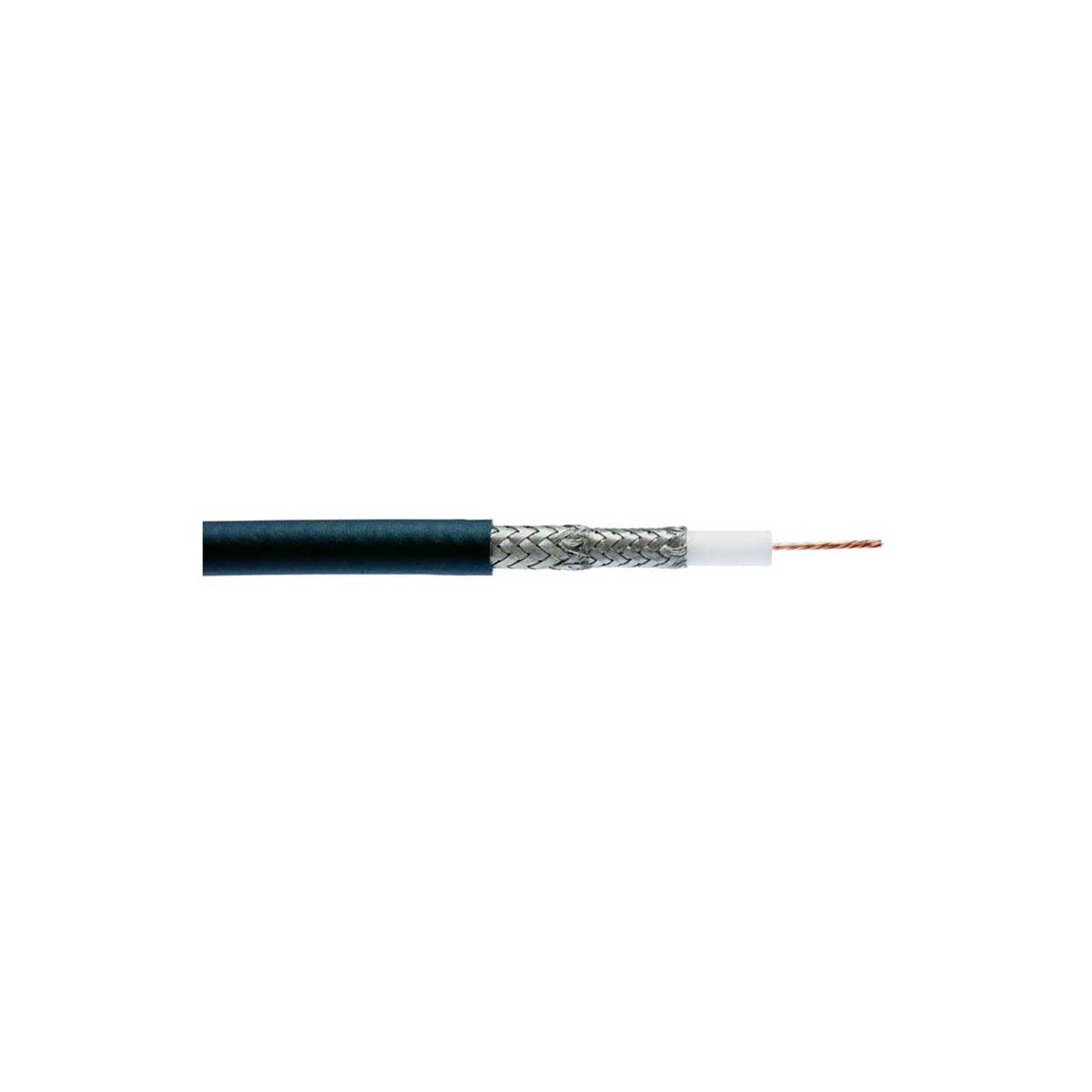

Belden 1505F is a Flexible, 75 Ohm, RG-59, 6G-SDI Coaxial Video Cable. It's 22 AWG with a Stranded (7x29) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield in a CM Rated PVC Jacket.

Applications
Digital Video
6 Gb/s UHDTV
HD-SDI 1080p

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings

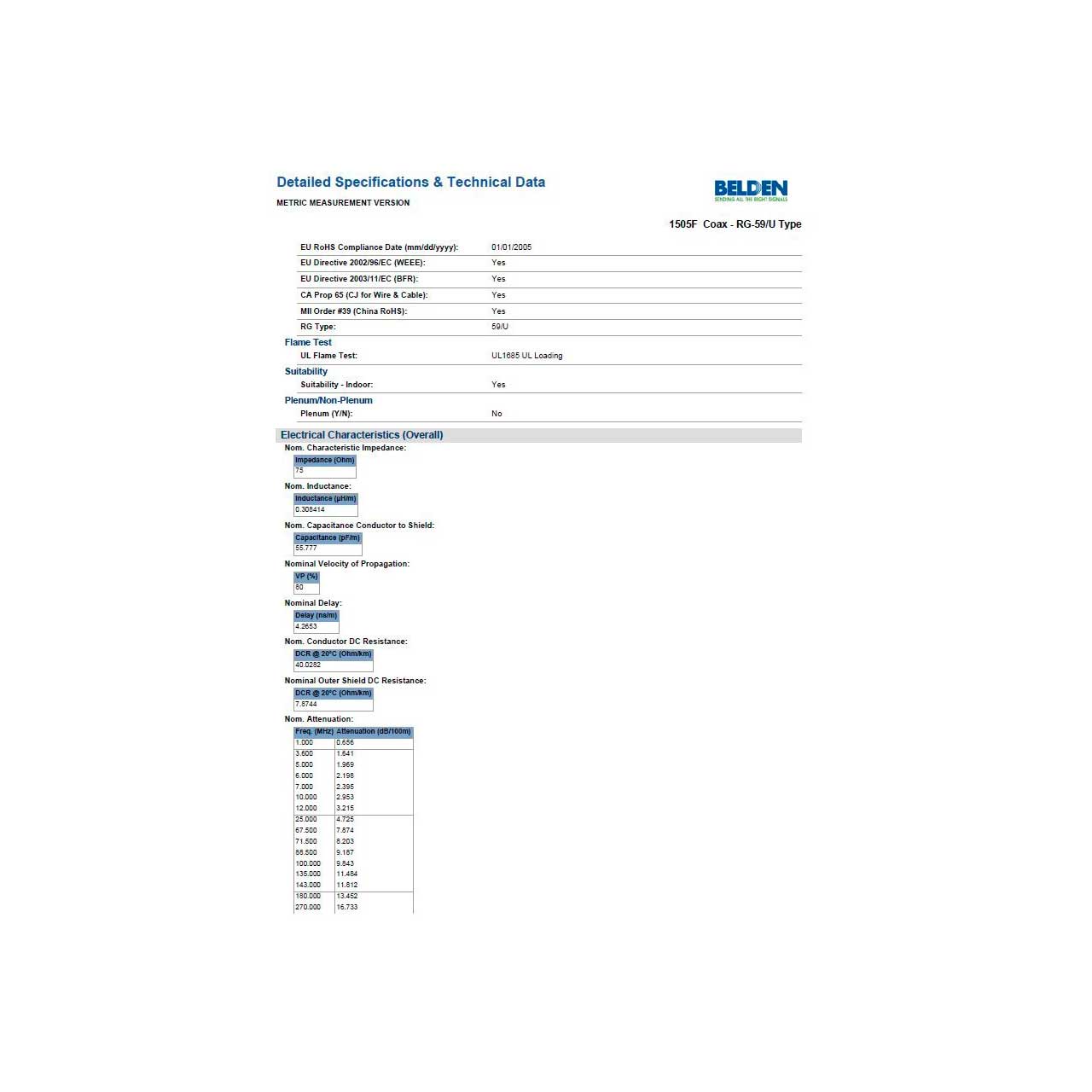

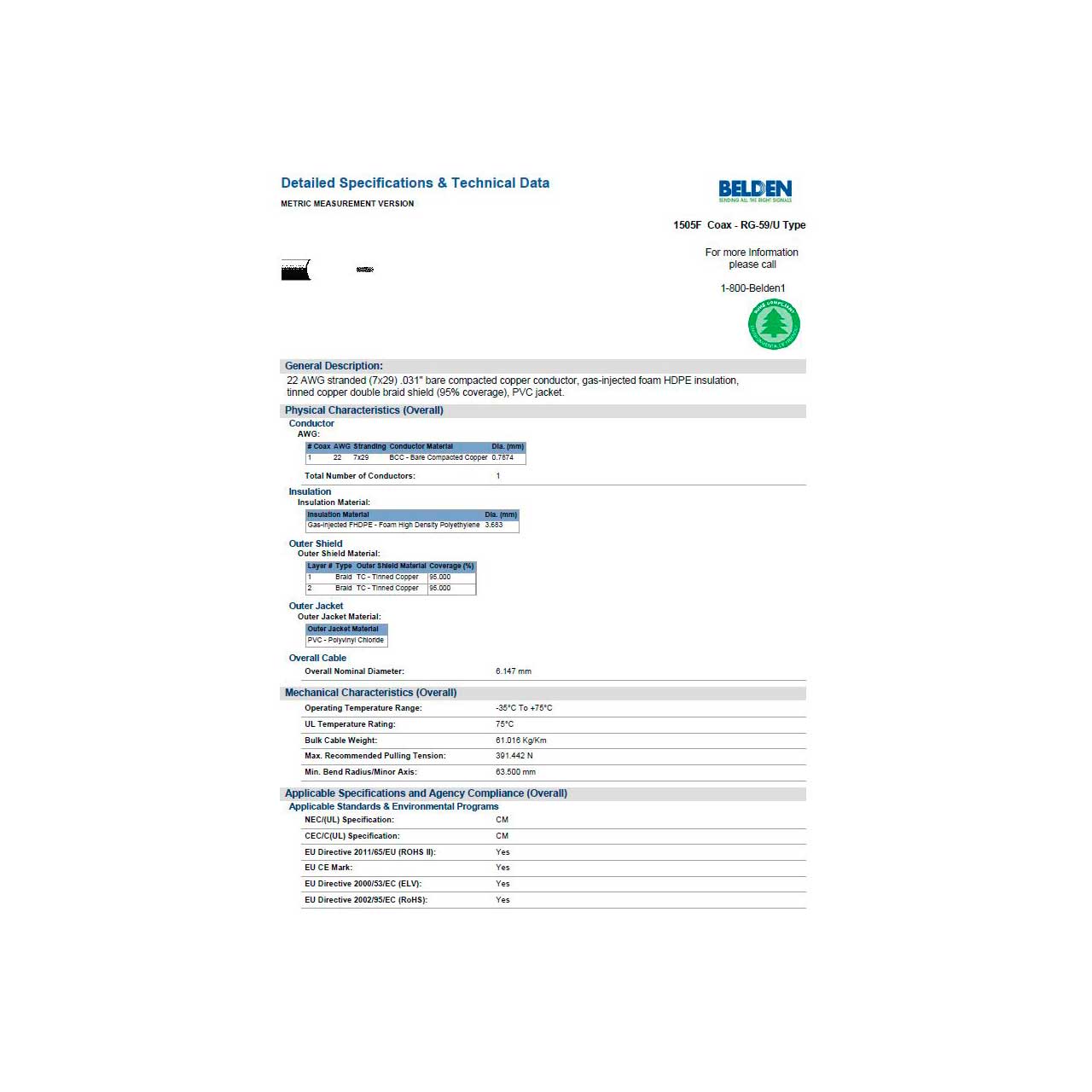

  • Specifications:

    • RG Type: 59
    • Conductor AWG: 22
    • Conductor Stranding: 7x29
    • Conductor Material: Bare Compacted Copper
    • Conductor Nominal Diameter: 0.032 in
    • Conductor Count: 1
    • Insulation Material: PE - Polyethylene (Foam)
    • Nom. Insulation Diameter: 0.145 in (3.68 mm)
    • Outer Shield Type: Braid
    • Outer Shield Material: Tinned Copper (TC)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.242 in (6.15 mm)
    • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
    • Bend Radius Install. Min.: 2.4 in
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Reaction to Fire: UL1685 UL Loading
    • Non-UL Temp Rating: 75°C
    • UL Temp Rating: 60°C
    • Operating Temp Range: -35°C To +75°C
    • NEC/CEC Compliance: CM

  • Item Includes:

    • 1505F CM Rated RG59 Cable 22AWG - Black - 1000 Ft

  • Warranty:

    • Limited 10 Year Warranty

  • GTIN:

    0612825356295
