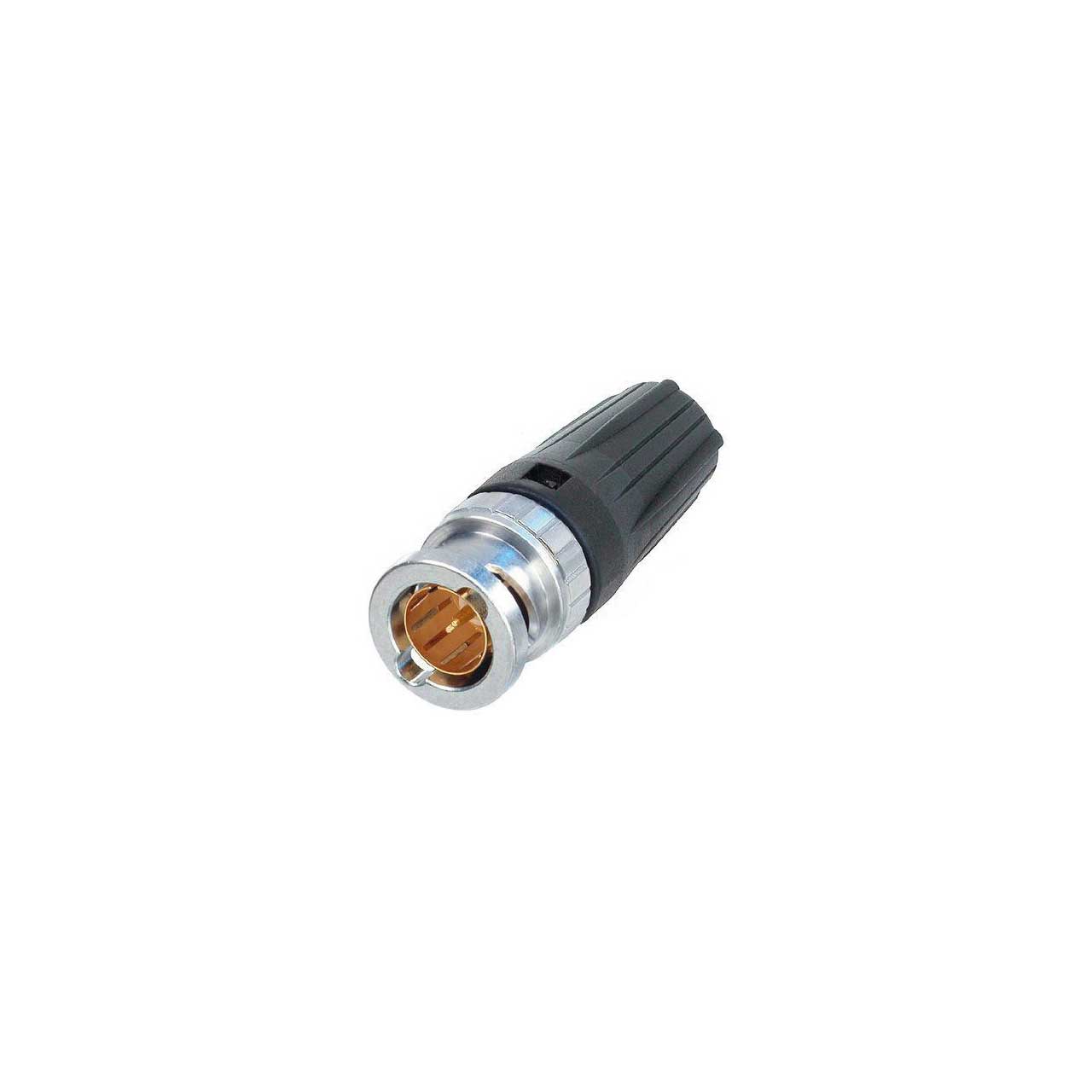

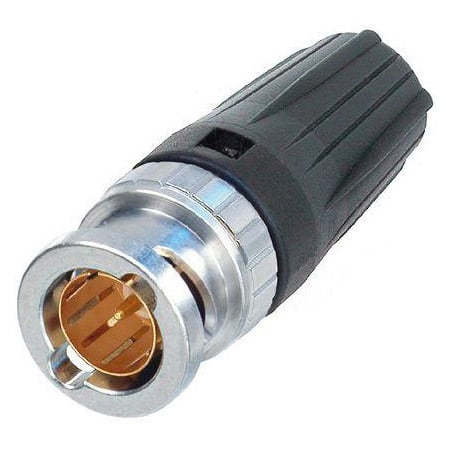

Neutrik NBNC75BJP9 75 Ohm rearTWIST BNC Connector for Belden 1505F

ITEM #: NBNC75BJP9 MFG #: NBNC75BJP9

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$3.83

Our Price:

$3.29

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NBNC75BJP9 - Overview

The rearTWIST BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cable:
Belden 1505F

Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)

  • Features:

    • "rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
    • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
    • True 75 Ohm design meets the stringent HDTV / DVD requirements
    • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
    • Snug-fit center pin insert provides tactile feedback
    • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
    • Excellent cable protection and retention
    • Precise Swiss machined brass parts for outstanding durability
    • Accessories include color coded boots in 10 standard colors, crimp tool and dies


  • GTIN:

    7613187002472
