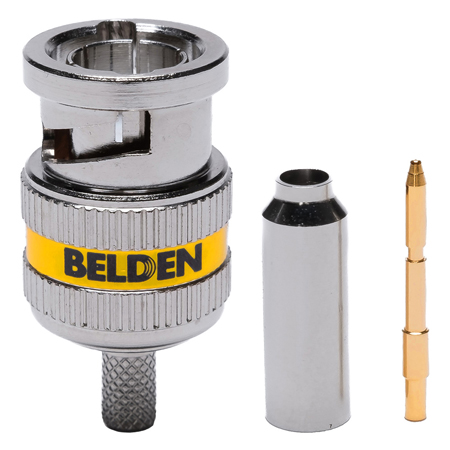

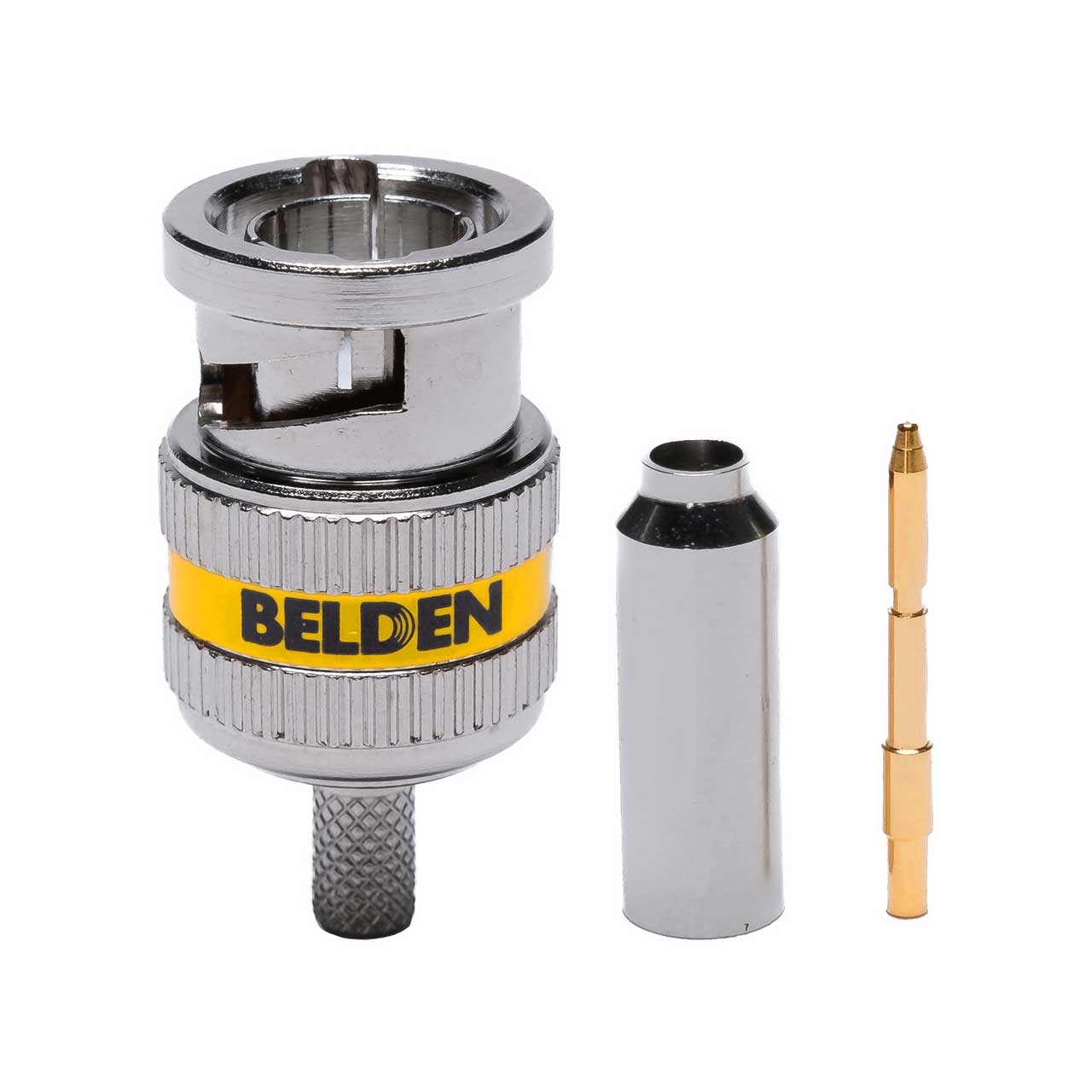

Belden 179DTBHD3 6G-SDI 3-Piece HD Ultra-miniature BNC Crimp Connector for 179DT- Yellow Band - Each

Name: Belden 179DTBHD3 6G-SDI 3-Piece HD Ultra-miniature BNC Crimp Connector for 179DT- Yellow Band - Each
Brand: Belden
SKU: BL-179DTBHD3
Price: 3.03 USD
Availability: InStock

ITEM #: BL-179DTBHD3 MFG #: 179DTBHD3

Belden

List Price:

$3.15

Our Price:

$3.03

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

179DTBHD3 - Overview

6 GHz Ultra-miniature Cable BNC Connector

The Belden BL-179DTBHD3 is a 6 GHz, Ultra-miniature RG59 cable end BNC Connector for Belden BL-179DT cable or 28.5 AWG RGB/Mini Coax. Perfect for HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080P.

The 3-piece connector delivers excellent return loss performance and quality that exceeds expectations of the typical 3-piece connector; featuring a precision machined BNC nut and extended head knurl nut for easy grip. Excellent Return Loss through 4.5GHz exceeds SMPTE specifications. Enhanced to fit perfectly with Belden Brilliance Cable for strong and dependable signal delivery and performance.

Features:
- Quick Deployment: A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy
- Excellent Holding Strength: Internal 360-degree compression rings eliminate ingress and egress from the back of the connector
- Save Space: When space is at a premium on a hybrid panel, Micro BNCs have a 51% smaller footprint than Standard BNCs and are optimized for 12 GHz and are backwards compatible to 3-6GHz
Specifications:

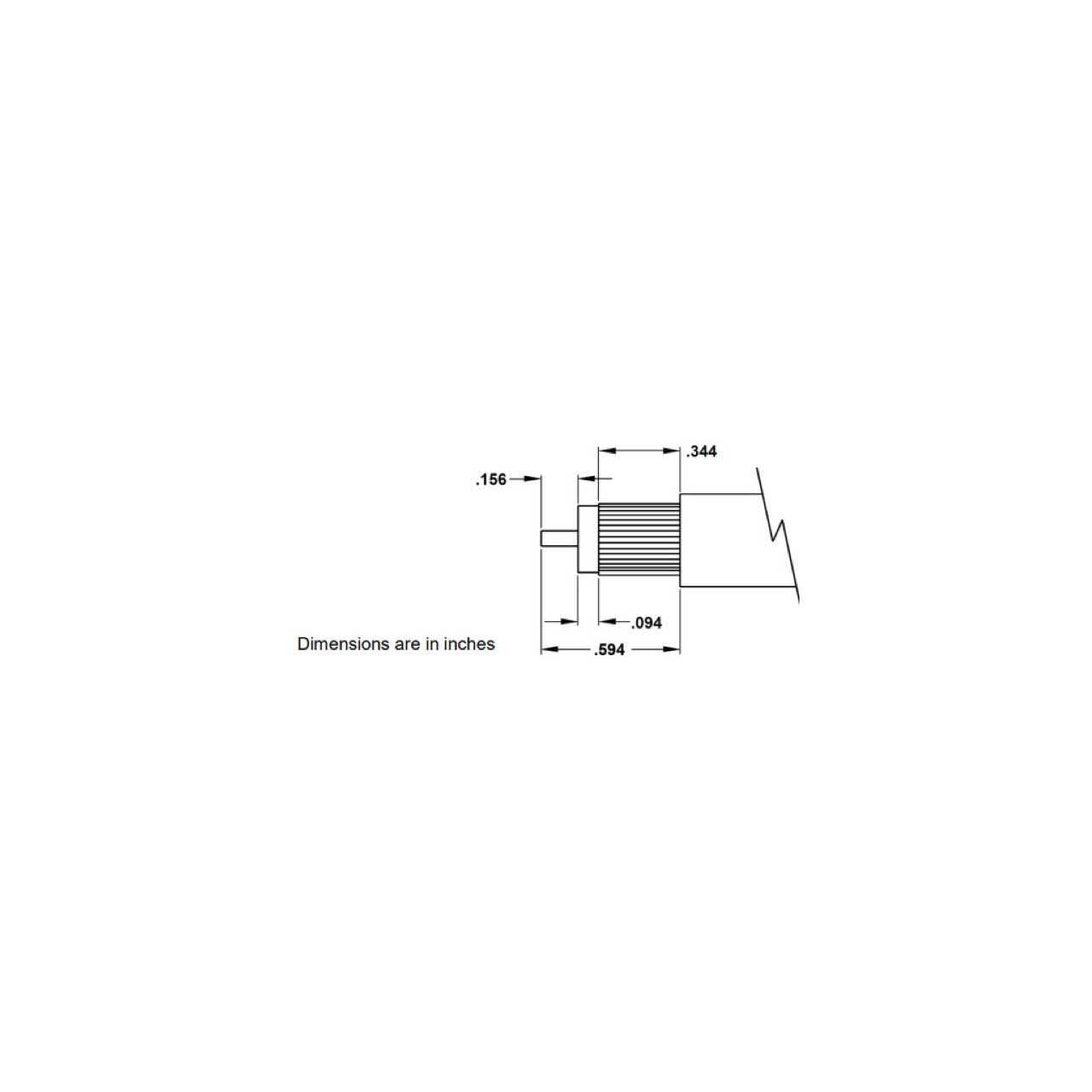

- Trim Code 3-661-1: A = 0.624"/ B = 0.312" / C = 0.155"
- Center Pin Crimp Size: 0.046"
- Center Pin Crimp Cavity: 0.042"
- Ferrule Crimp Size: 0.278"
- Ferrule Crimp Cavity: 0.178
- AWG Size: 23
- Packaging: each
- Number of Pieces: 3
- Nominal Characteristic Impedance: 75Ω
- Footprint/Type: Coax
- Connector Interface Type: BNC
- Gender: Male - plug
GTIN:
0845671002317
