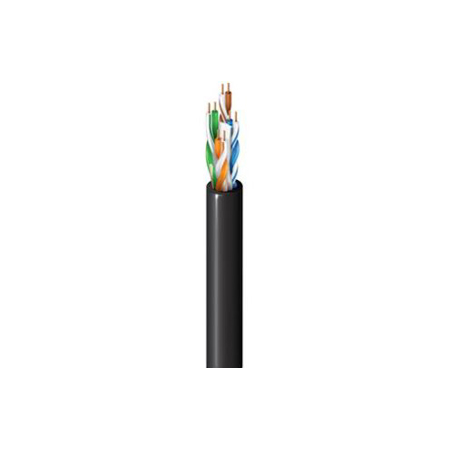

Belden 2146A CMR/CMX Indoor/Outdoor Cat 6 U/UTP 4-Pr Premise Horizontal Cable 350MHz - 23AWG - Black - 1000 Ft

2146A-0101000 - Overview

Indoor/Outdoor - Sunlight Resistance - Oil Resistance

• Features:

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii


• Specifications:

  • Conductor Size: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor Number of Pairs: 4
  • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
  • Insulation Material: PO - Polyolefin
  • Outer Shield Material: Unshielded
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Separator: Dielectric Tape (Patented)
  • Outer Jacket Nom. Diameter: 0.255 in (6.48 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.255 in (6.48 mm)
  • UL Flame Test: UL1666 Vertical Riser
  • C(UL) Flame Test: FT4
  • CSA Flame Test: FT4
  • Plenum (Y/N): No
  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial - When supported by messenger wire
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Reaction to Fire: UL 1666 Riser, FT4, FT4, IEEE 1202 Vertical Tray Flame Test
  • CPR Compliance: CPR Euroclass: Fca; CPR UKCA Class: Fca
  • NEC / UL Compliance: Article 800, CMR;CMX-Outdoor;CMG
  • CEC / C(UL) Compliance: CMX-Outdoor;CMG
  • Storage Temperature Range: -40° C To +75° C
  • Installation Temperature Range: -20° C To +75° C
  • Operating Temperature Range: -40° C To +75° C
  • UL Temperature Rating: 90°C
  • Bulk Cable Weight: 29 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 40 lbs.
  • Min. Bend Radius/Minor Axis: 1 in.
  • Min. Bend/Installation: 2.750 in.
  • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
  • Capacitance (pF/ft): 17.000


• Item Includes:

  • 2146A CMR/CMX CAT6 4-Pr Premise Horizontal Cable 350MHz - Black - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825062264
