Belden 4694ANH CMG/LS 12G-SDI 4K UHD Precision Video Coax RG-6/U 75 Ohm - 18 AWG Solid - Black - 1000 Foot

ITEM #: BL-4694ANH1000BK MFG #: 4694ANH 0101000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,979.90

Our Price:

$1,636.28

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4694ANH 0101000 - Overview

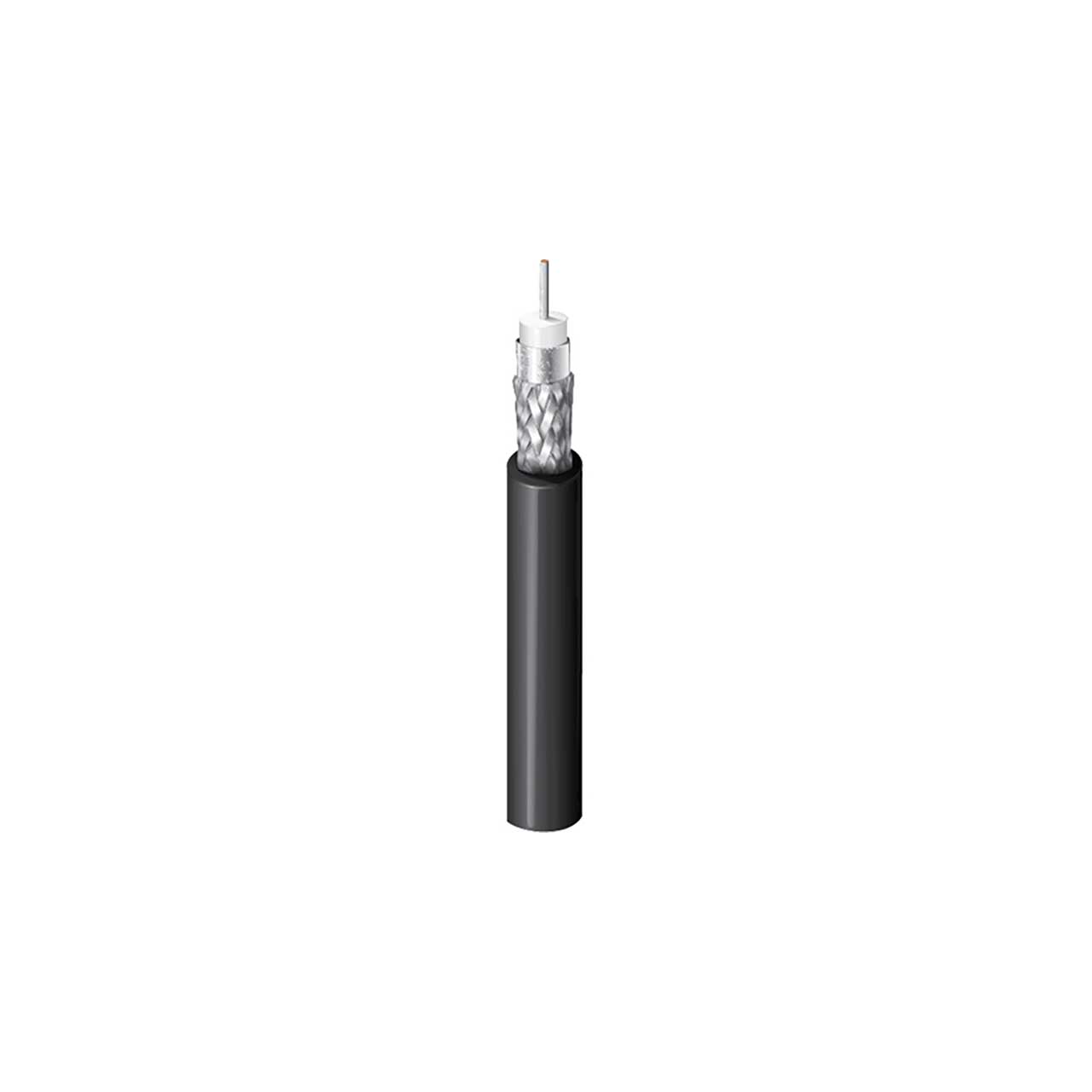

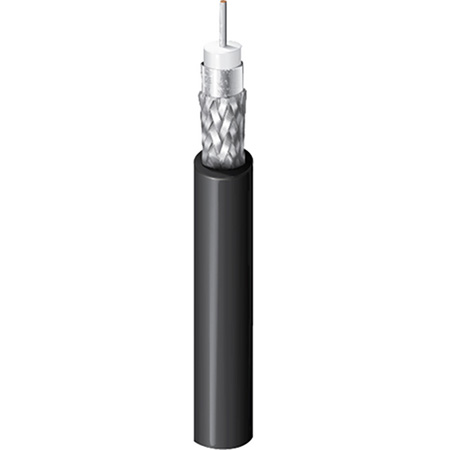

Belden 4694ANH is an indoor, 12G-SDI, 4K UHD, Precision Coax Video Cable. It's RG-6/U Type, 75 Ohm, 18 AWG with a solid .040inch silver plated copper conductor, gas-injected foam HDPE insulation, Duofoil® bonded to the core plus tinned copper braid shield (95% coverage) in a LSZH Low Smoke Zero Halogen (Flame Retardant) jacket.

Belden Serial Digital Interface (SDI) Video Coax Cable delivers uncompressed digital video signals to support professional video equipment. The portfolio of Belden SDI Cables is the world-wide broadcast cable standard today and supports legacy 3 GHz applications as well as upgraded 6 GHz and a full line of 4K UHD Coax Cables for 12G-SDI. No other cable manufacturer has invested in this technology like Belden, so no other manufacturer can assure you beyond-high-definition performance like Belden.

Applications
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • High Performance: Low Return Loss SDI Video Coax provides significant headroom to account for potential losses elsewhere in the transmission line
    • Reliable Transmission: Maintains impedance and return loss characteristics even through rough handling during installation
    • Robust Design: Incorporates specially formulated foam polyethylene increasing crush-resistance


  • Specifications:

    • Conductor AWG: 18
    • Conductor Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Conductor Nominal Diameter: 0.040 in
    • Conductor No of Coax: 1
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nominal Diameter: 0.180 in
    • Outer Shield Type Layer 1 Type: Tape
    • Outer Shield Type Layer 1: Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
    • Outer Shield Type Layer 2: Braid
    • Outer Shield Material Layer 2: Tinned Copper (TC) 95%
    • Outer Jacket Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
    • Outer Jacket Nominal Diameter: 0.274 in
    • Nominal Conductor DCR: 6.4 Ohm/1000ft
    • Outer Conductor DCR: 2.8 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 15.9 pF/ft
    • Nominal Inductance: 0.106 µH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • UL Voltage Rating: 300 V RMS
    • Operating Temp Range: -30°C To +75°C
    • UV Resistance: No
    • Bulk Cable Weight: 41 lbs/1000ft
    • Max Recommended Pulling Tension: 69 lbs
    • Min Bend Radius/Minor Axis: 2.75 in
    • NEC/(UL) Specification: CMG-LS
    • CEC/C(UL) Specification: CMG-LS
    • CPR Euroclass: Cca-s1,d1,a1
    • RG Type: 6/U Type


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825437185
