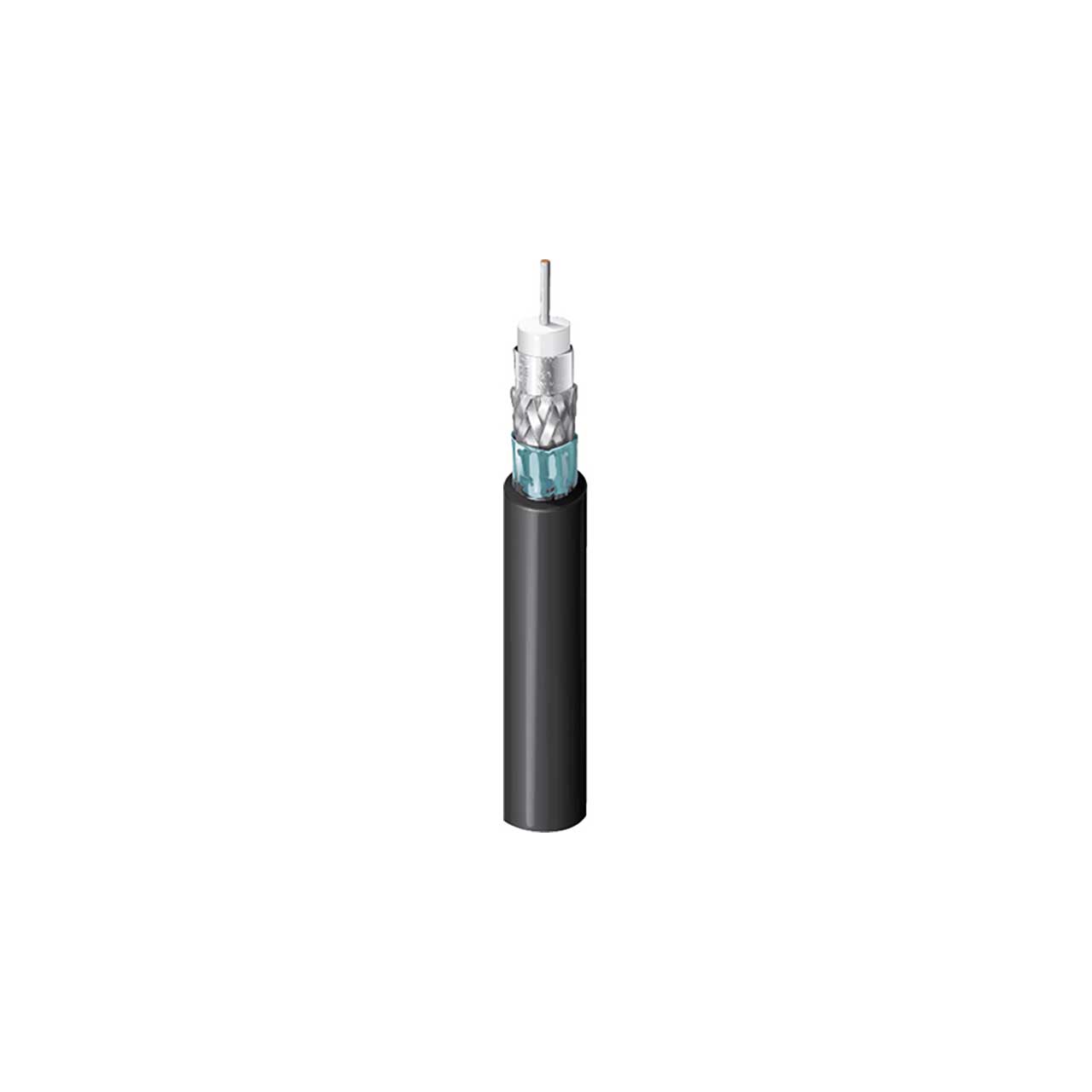

Belden 4731P 12 GHz 4K UHD Precision Video Coax Cable - RG-11/U Type/75 Ohm/14 AWG Solid/CMP/Plenum - Black - 1000 Foot

ITEM #: BL-4731P-1000BK MFG #: 4731P 0101000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$17,408.60

Our Price:

$14,315.80

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4731P 0101000 - Overview

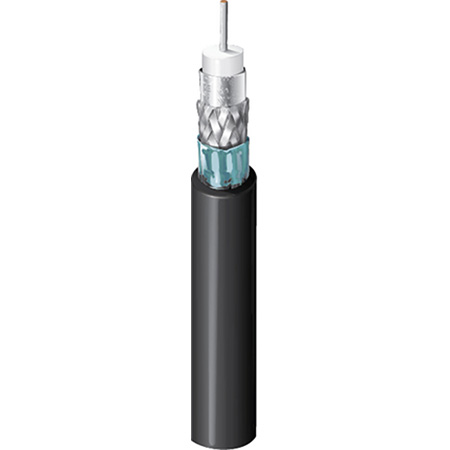

Belden 4731P 12 GHz, 4K UHD Precision Video Coax, 75 Ohm RG11 Type 14 AWG solid silver plated copper conductor, foam FEP core, Duofoil bonded to core+95% tinned copper braid+Duofoil, CMP, PVDF jacket. Suitable for SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
applications.

  • Specifications:

    • AWG: 14
    • Stranding: Solid
    • Material: SC - Silvered Copper
    • Nominal Diameter: 0.064 in
    • No. of Coax: 1
    • Nom. Conductor DCR: 6.3 Ohm/1000ft
    • Outer Conductor DCR: 2.9 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 16.1 pF/ft
    • Nominal Inductance: 0.103 æH/ft
    • Nom. Impedence: 75 Ohm
    • Nom. Velocity: 83%
    • UL Voltage Rating: 300 V
    • Operating Temp Range:: -20°C To +125°C
    • Bulk Cable Weight: 78 lbs/1000ft
    • Max. Pull Tension: 145 lbs


  • GTIN:

    0612825419532
