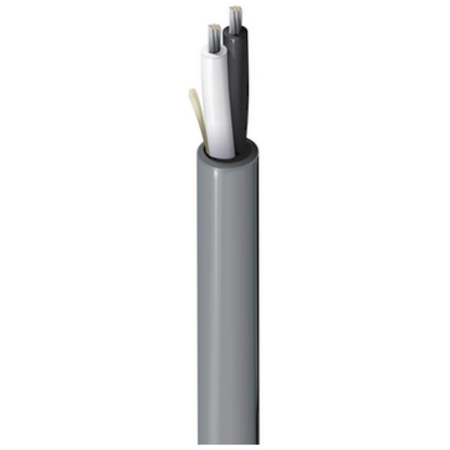

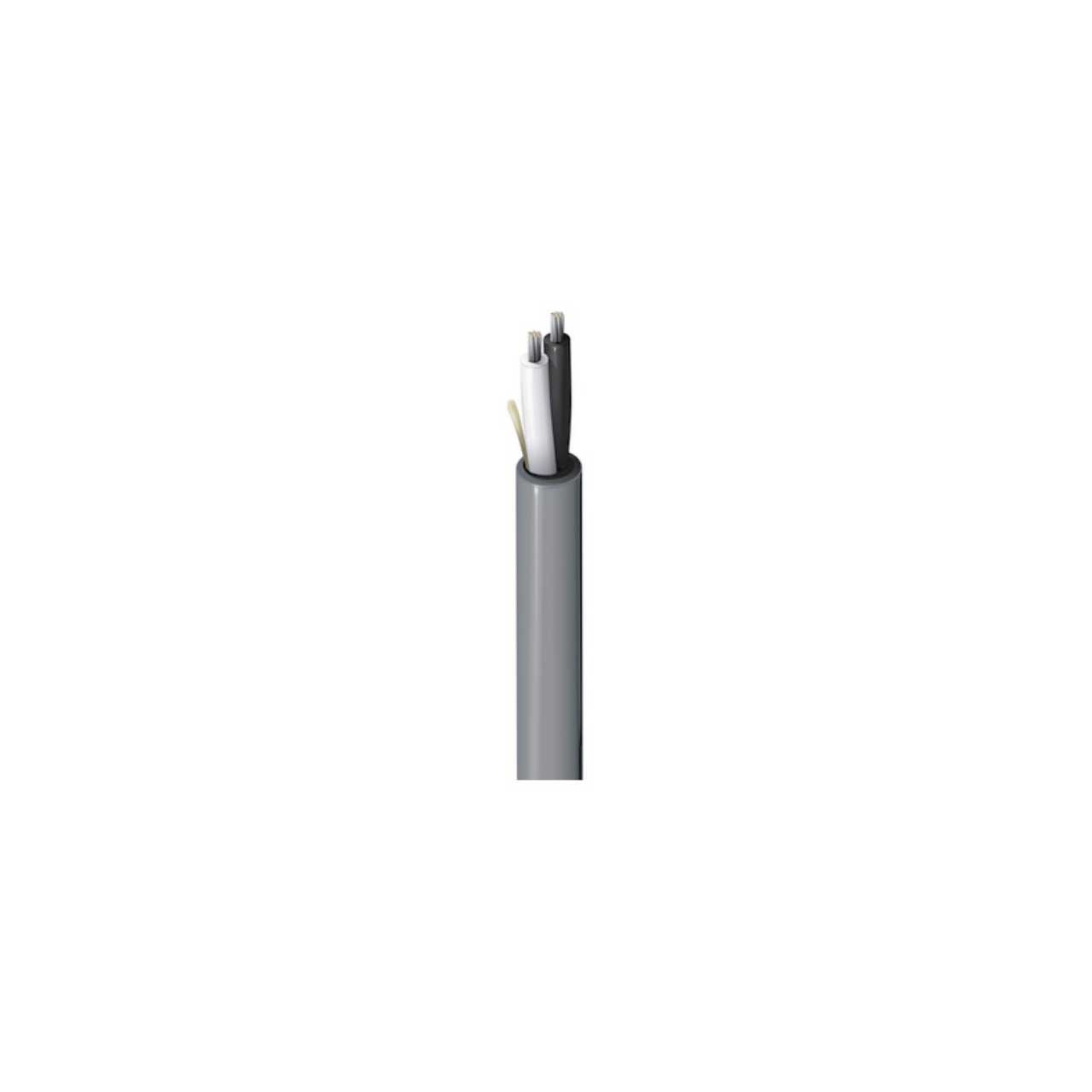

Belden 6000UE Plenum/CL2P 2 Conductor Security & Commercial Audio Cable BC/Unshielded 2-12 AWG - Natural - 1000 Foot

6000UE 8771000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Conductor Element: Conductor(s)
  • Number of Elements: 2
  • Total Number of Conductors: 2
  • Conductor AWG: 12
  • Conductor Stranding: 19x25
  • Conductor Material: BC - Bare Copper
  • Insulation Material Trade Name: Flamarrest®
  • Insulation Element: Conductor(s)
  • Insulation Material: LS PVC - Low Smoke Polyvinyl Chloride
  • Insulation Nom. Thickness: 0.010 in (0.25 mm)
  • Insulation Color Code: Black, White
  • Outer Shield Material Trade Name: Beldfoil®
  • Outer Shield Material: Aluminum Foil-Polyester Tape w/Shorting Fold
  • Outer Jacket Material Trade Name: Flamarrest®
  • Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.252 in (6.40 mm)
  • Outer Jacket Nom. Thickness: 0.015 in (0.38 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.252 in (6.40 mm)
  • Plenum (Y/N): Yes
  • Non-Plenum Number: 5000UH
  • Operating Temperature Range: 0°C To +75°C
  • UL Temperature Rating: 75°C
  • Bulk Cable Weight: 54 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 152 lbs.
  • Min. Bend Radius/Minor Axis: 2.500 in.
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, CL2P


• Item Includes:

  • 6000UE Plenum/CL2P Security & Commercial Audio Cable - Natural - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825337904
