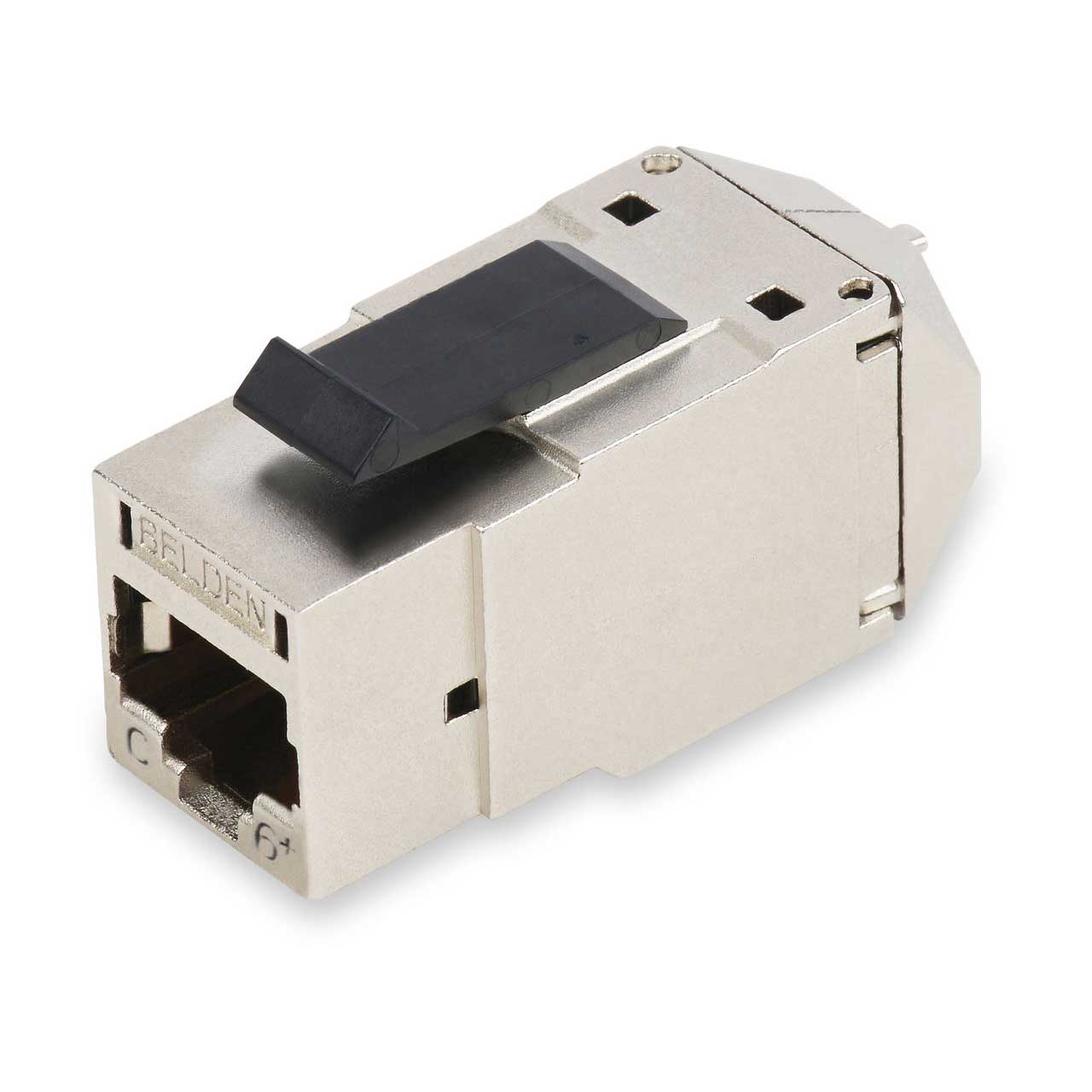

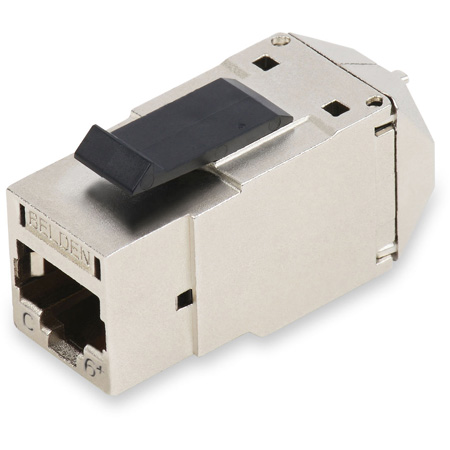

Belden RV6MJKSME-B24 Mod cat6 Jack Shielded - 24 Pack

RV6MJKSME-B24 - Overview

• Specifications:

  • Product Overview
  • Environmental Space: Indoor
  • Suitable Applications: 2400 Shielded System, TIA Category 6, ISO Class E, 1GBASE-T

    Physical Characteristics (Overall)
  • Height: 0.94"
  • Width: 1.19"
  • Depth: 1.63"
  • Wiring Scheme: T568A/B
  • Packaging: Individually packaged in a plastic bag.
  • Weight: 0.048Lbs

    Connectors
  • Front Connection: Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
  • Rear Connection: Copper alloy, Gold plated contacts over Nickel
  • Connector Body: Nickel plated zinc alloy diecast

    Electrical Characteristics
  • Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
  • Current Rating: 1.300 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max Contact Resistance: 20 mOhm
  • Termination Resistance: 2.5 mOhm

    Temperature Range
  • Installation/Operating Temp Range: 14° to 140°F (-10° to +60°C)
  • Storage Temp Range: -40° to 158°F (-40° to +70°C)

    Mechanical Characteristics
  • Footprint/Type: KeyConnect
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • Plug /Jack Compatibility: RJ45, RJ11
  • Termination Front Connection: Mated Connection
  • Termination Front Connection Durability: 750 cycles
  • Termination Rear Connection: Mated Connection
  • Termination Rear Connection Durability: 20 cycles
  • Cable/Connector Retention: 15 lbs.
  • Connector/Hardware Retention: 20 lbs
  • Plug/Connector Retention: 11.250 lbs

    Standards
  • UL Rating: UL94V-0
  • Data Category: Category 6+
  • Telecommunications Standards: Category 6 - TIA 568.C.2, Category 6 - ISO/IEC 11801:2002 Ed.2
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

    Applicable Environmental and Other Programs
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
  • MII Order #39 (China RoHS): EUP 50

    Flammability, LS0H, Toxicity Testing
  • UL Flammability: UL2043 Air Handling Spaces
  • Safety Listing: c(UL)us Listed
