Blustream HEX150CS-KIT HDBaseT HDMI 18G Extender Kit - 100m (1080p 150m)

HEX150CS-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive 4K @ 60Hz 4:4:4 or 4K @ 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 100m
  • Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
  • Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
  • Supports audio return to HDMI, optical digital, and analog L/R audio outputs (analog output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional 10/100BaseT Ethernet pass through
  • Bi-directional IR & RS-232 pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiver end
  • Advanced EDID management
  • HDCP 2.2 support


• Specifications:

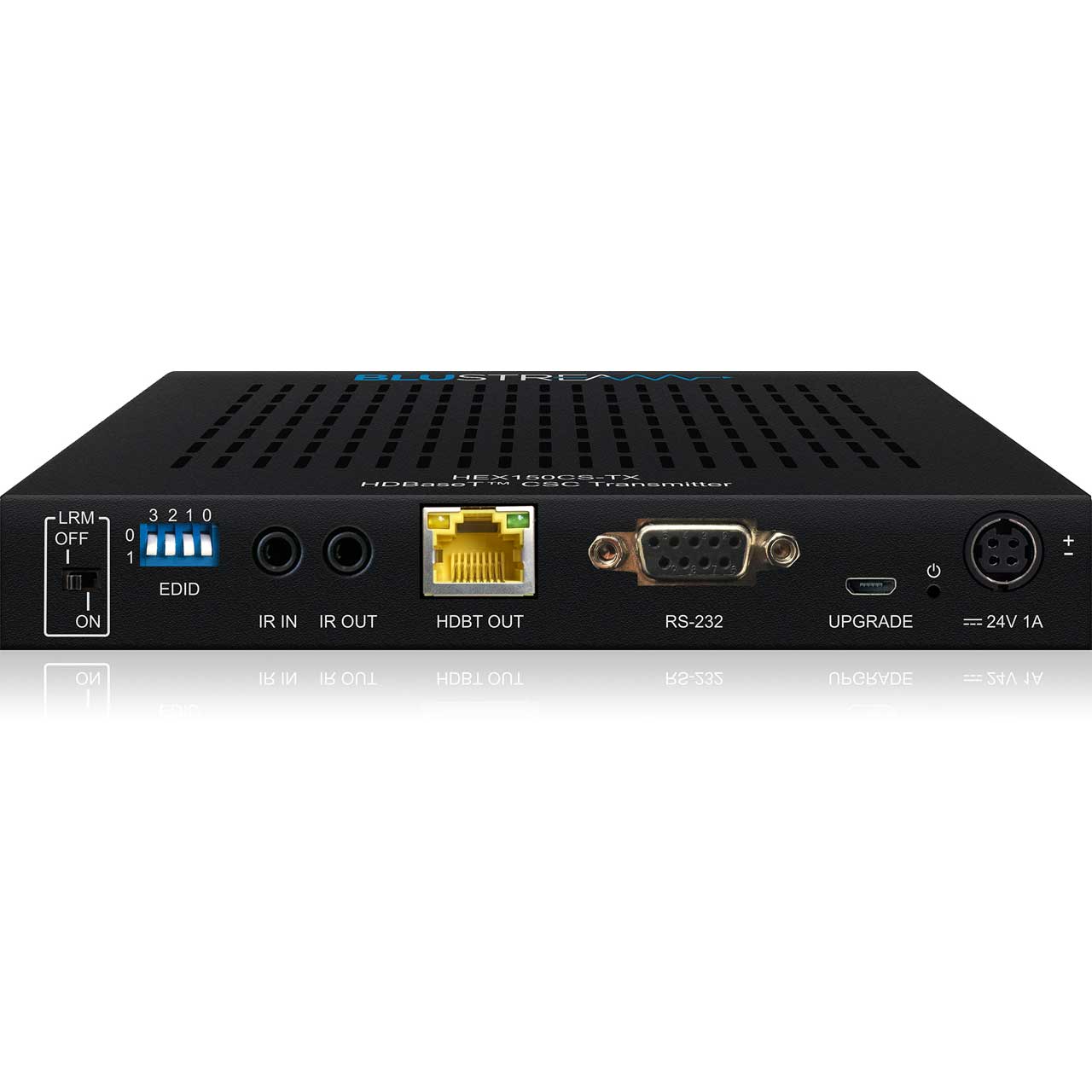

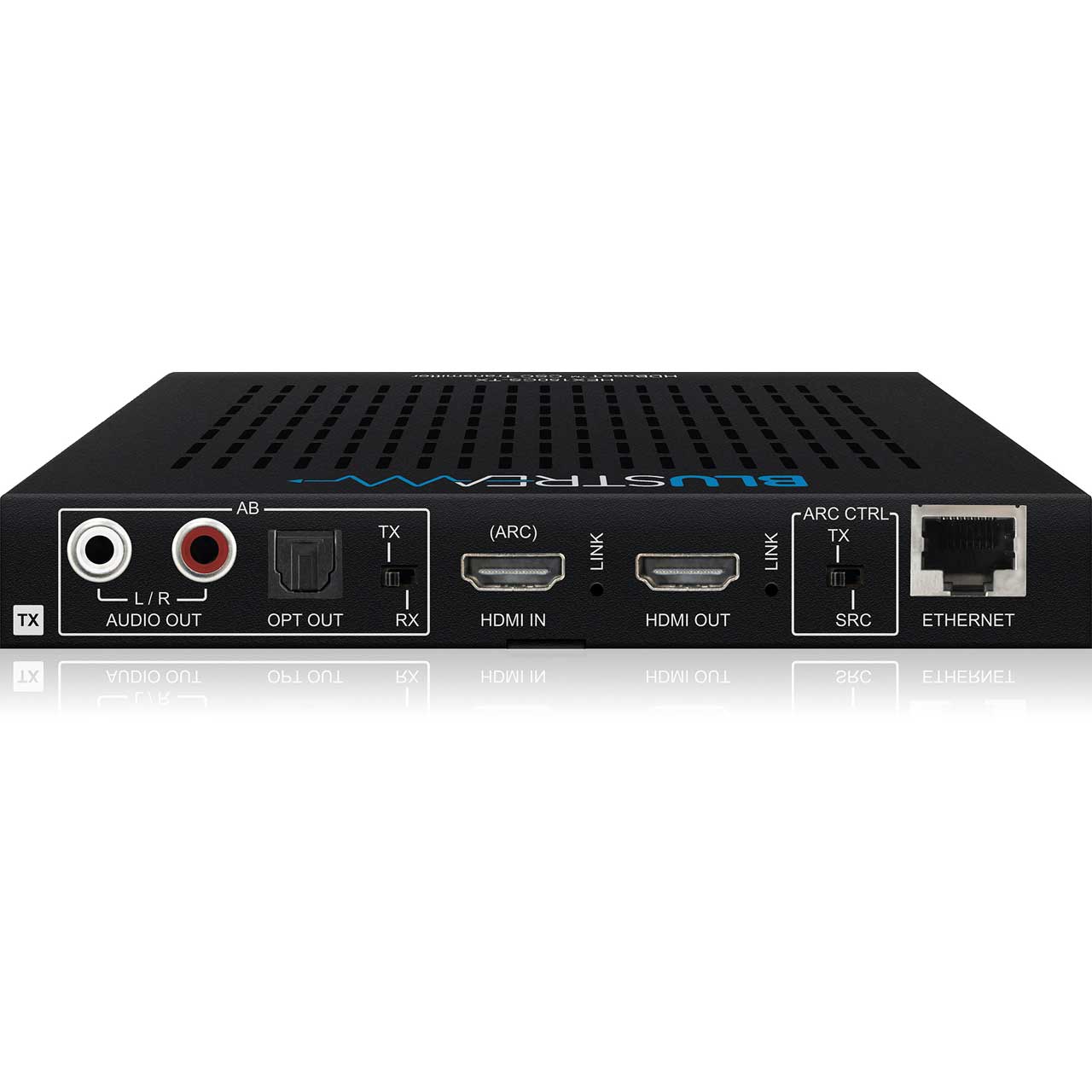

  • HEX150CS-TX Transmitter
    Video Input Connectors: 1 x HDMI Type A, female
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector
    Audio Output Connectors: 2 x RCA (L/R), 1 x Optical (SPDIF)
    Ethernet port: 1 x RJ45 connector
    RS-232 serial port: 1 x DB-9 female
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    EDID: 4-PIN DIP switch
    Power Supply: 1 x 24V/1A DC, 4-pin DIN connector

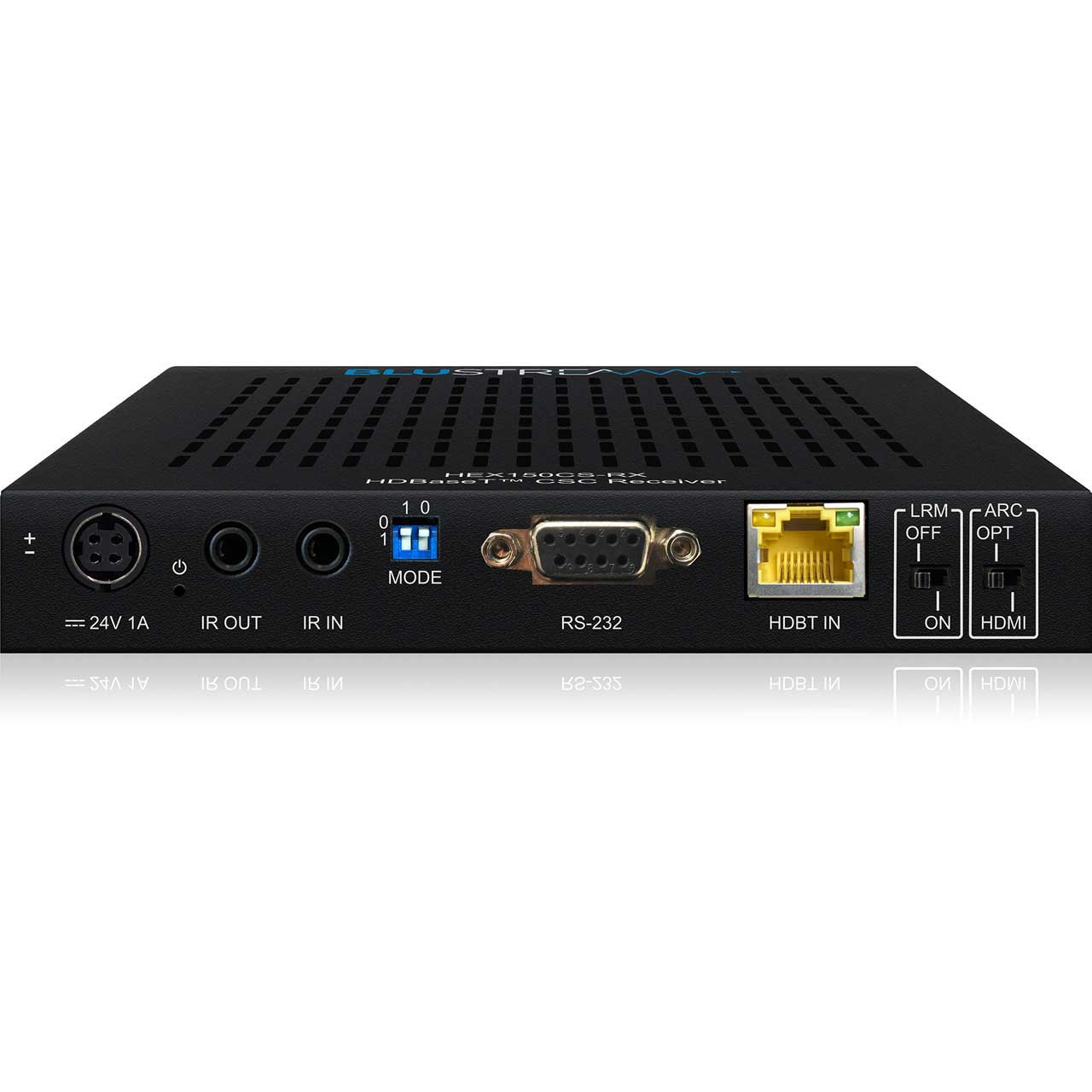

  • HEX150CS-RX Receiver
    Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
    Video Output Connectors: 1 x HDMI Type A, female
    Audio Input Connectors: 1 x Optical (SPDIF)
    Ethernet port: 1 x RJ45 connector,
    RS-232 serial port: 1 x DB-9 female
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
  • Casing Dimensions (W x D x H ): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
  • Dimensions including connections (W x D x H ): 148mm x 153mm x 22mm (RX), 156mm x 135mm x 23mm (TX)
  • Shipping Weight (Kit): 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1 x 24V/1A DC, screw connector


• Item Includes:

  • 1x HEX150CS-TX
  • 1x HEX150CS-RX
  • 1x 24V/1A DC power supply
  • 1x IR receiver
  • 1x IR emitter
  • 2x Mounting brackets
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003003
